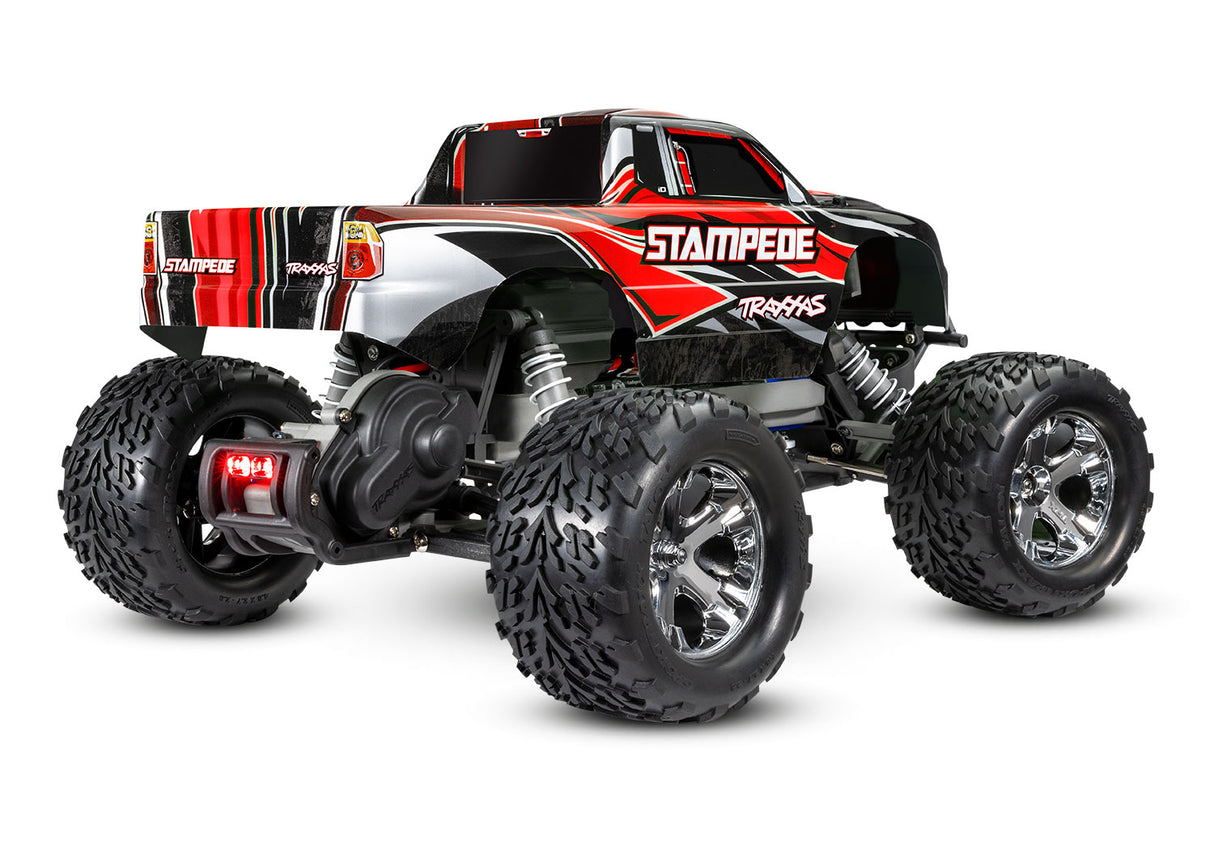

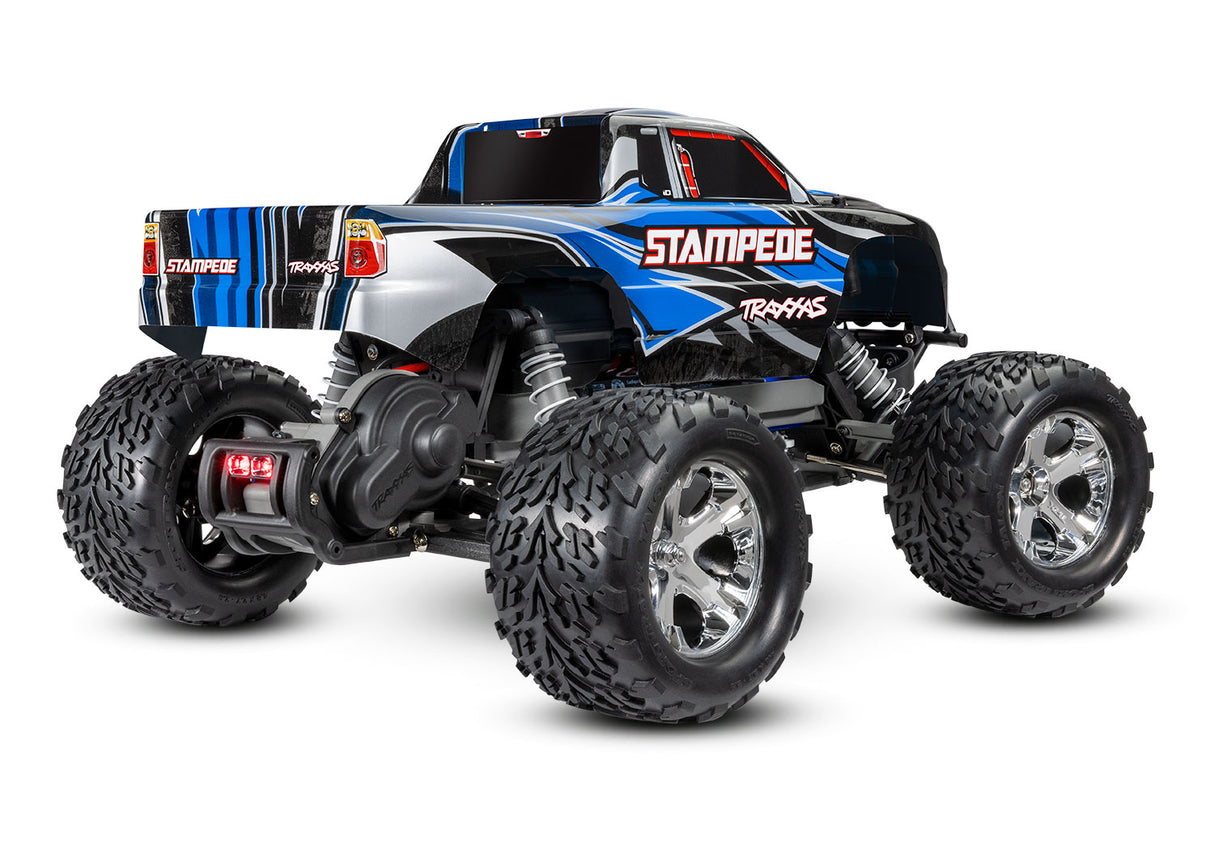

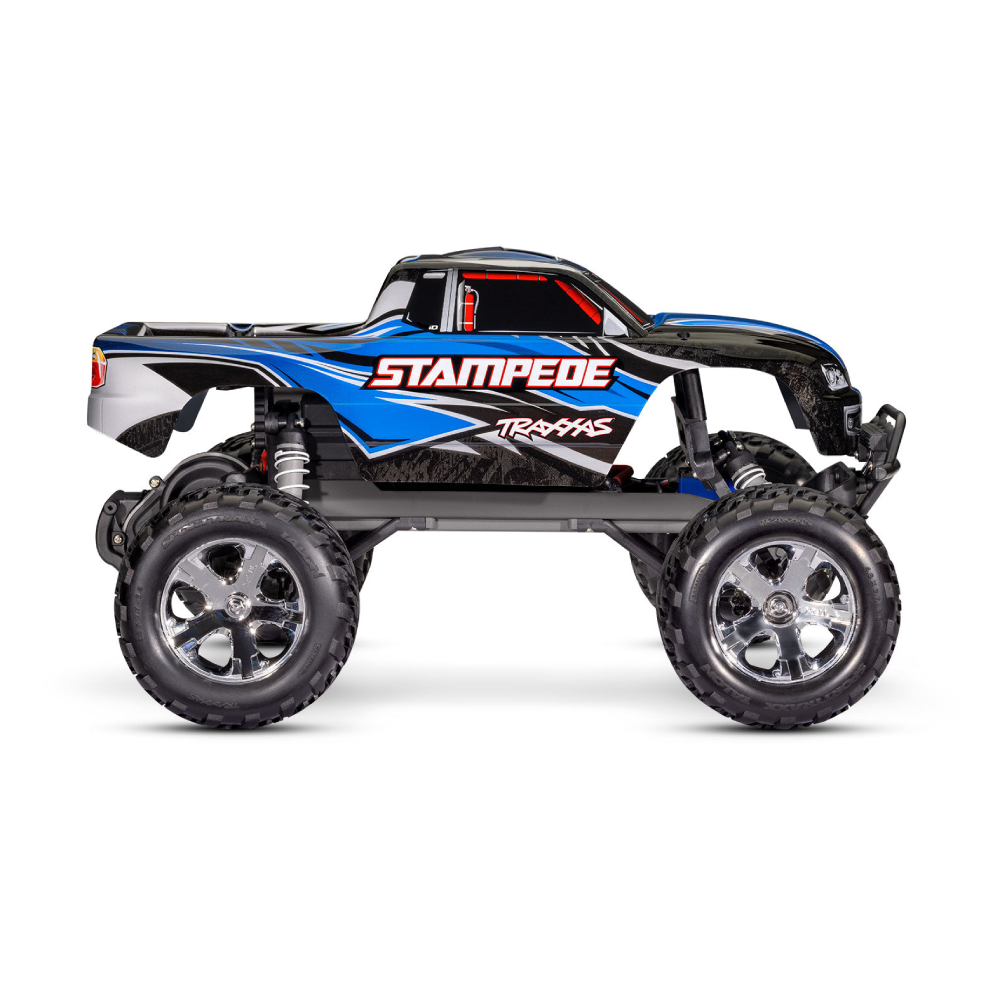

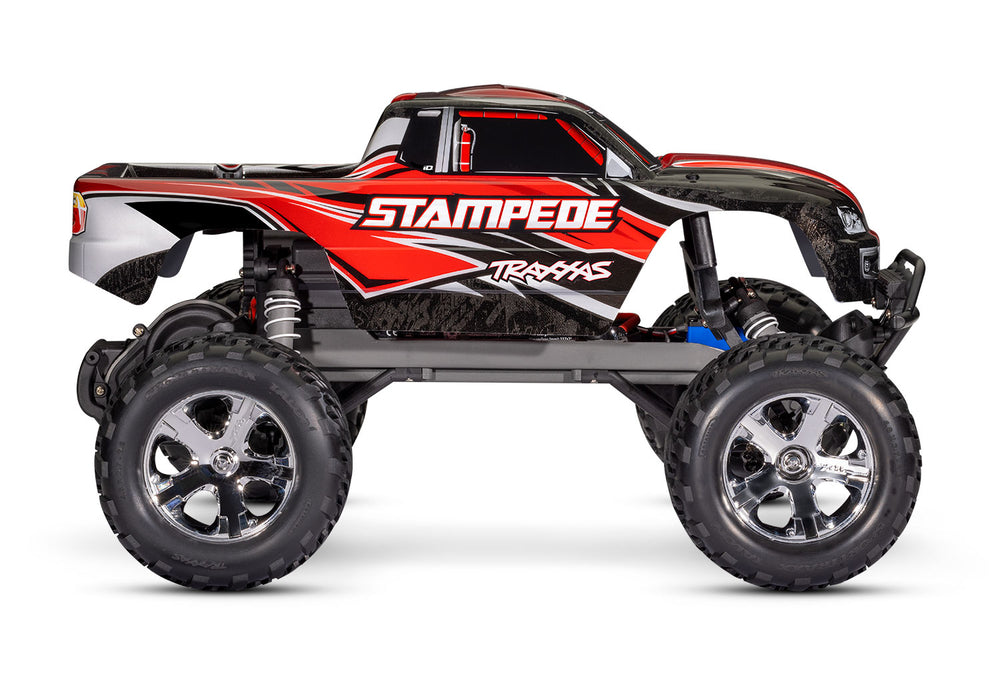

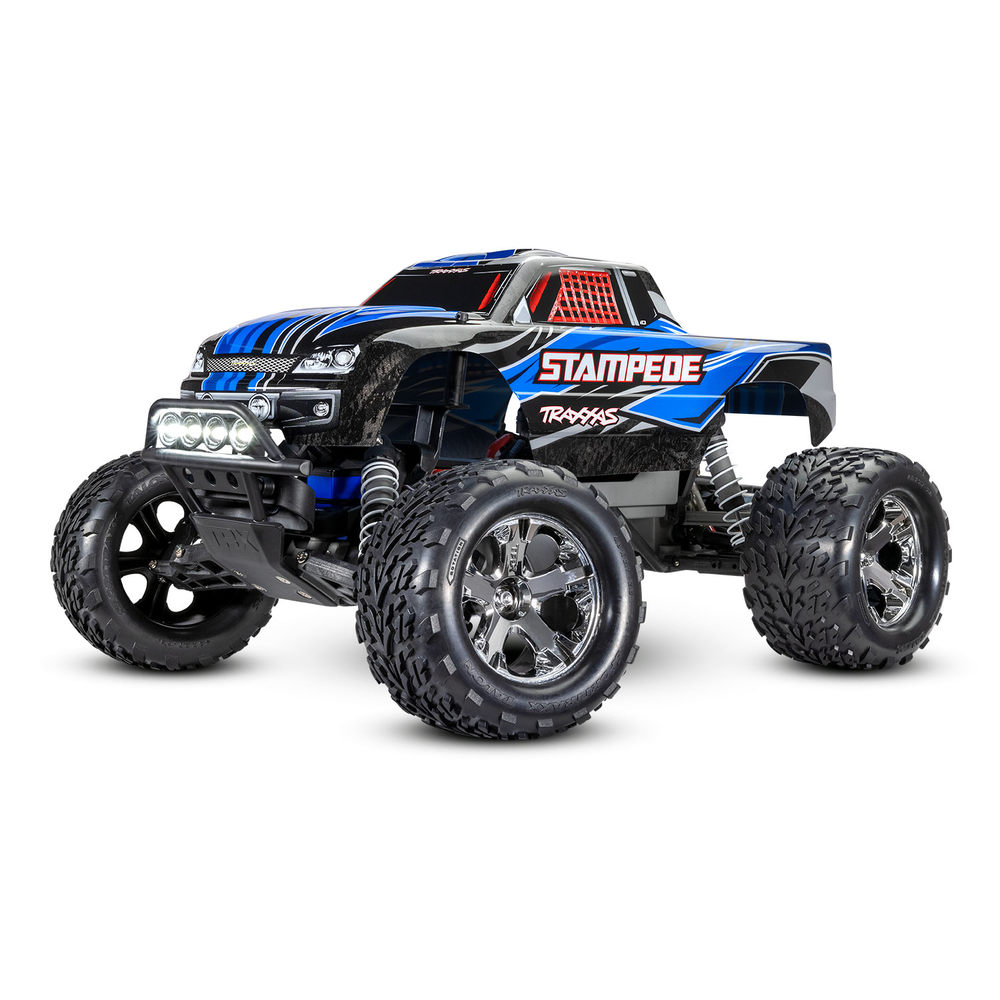

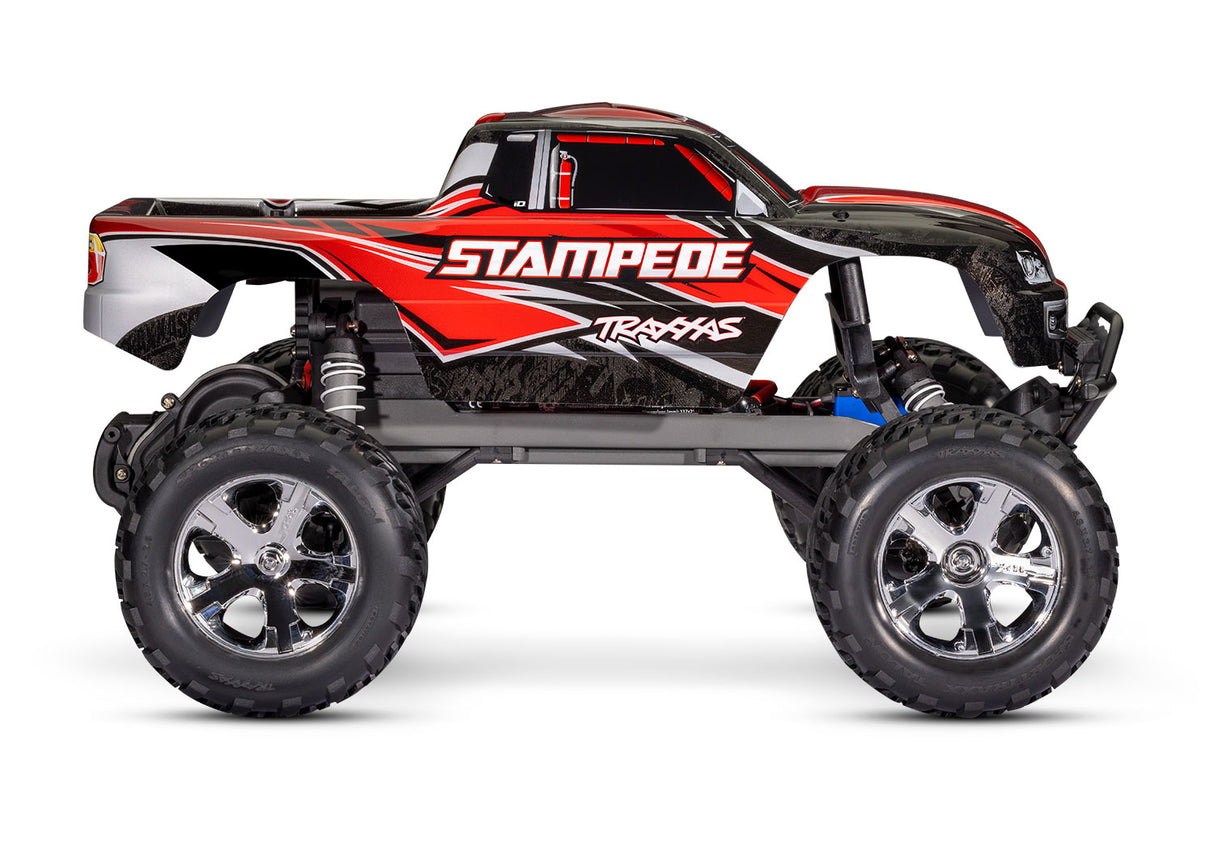

Traxxas Stampede XL-5 1/10 2WD Electric Monster Truck with LEDs (Brushed / RTR / Multiple Colors)

The Stampede’s legendary ruggedness has made its name synonymous with off-road fun. With a top speed of 30+ mph* and drive-over-anything ground clearance, Stampede rips through grass and powers over curbs. Pour on the throttle and the Titan^® motor’s massive torque raises the front wheels skyward for dirt-roosting wheelies and high-power jumps. Mud, puddles, and snow don’t stand a chance against this high-octane monster truck thanks to Traxxas’ waterproof electronics. Add more excitement to your RC adventures with the quality and performance of the Traxxas Stampede.

FEATURES:

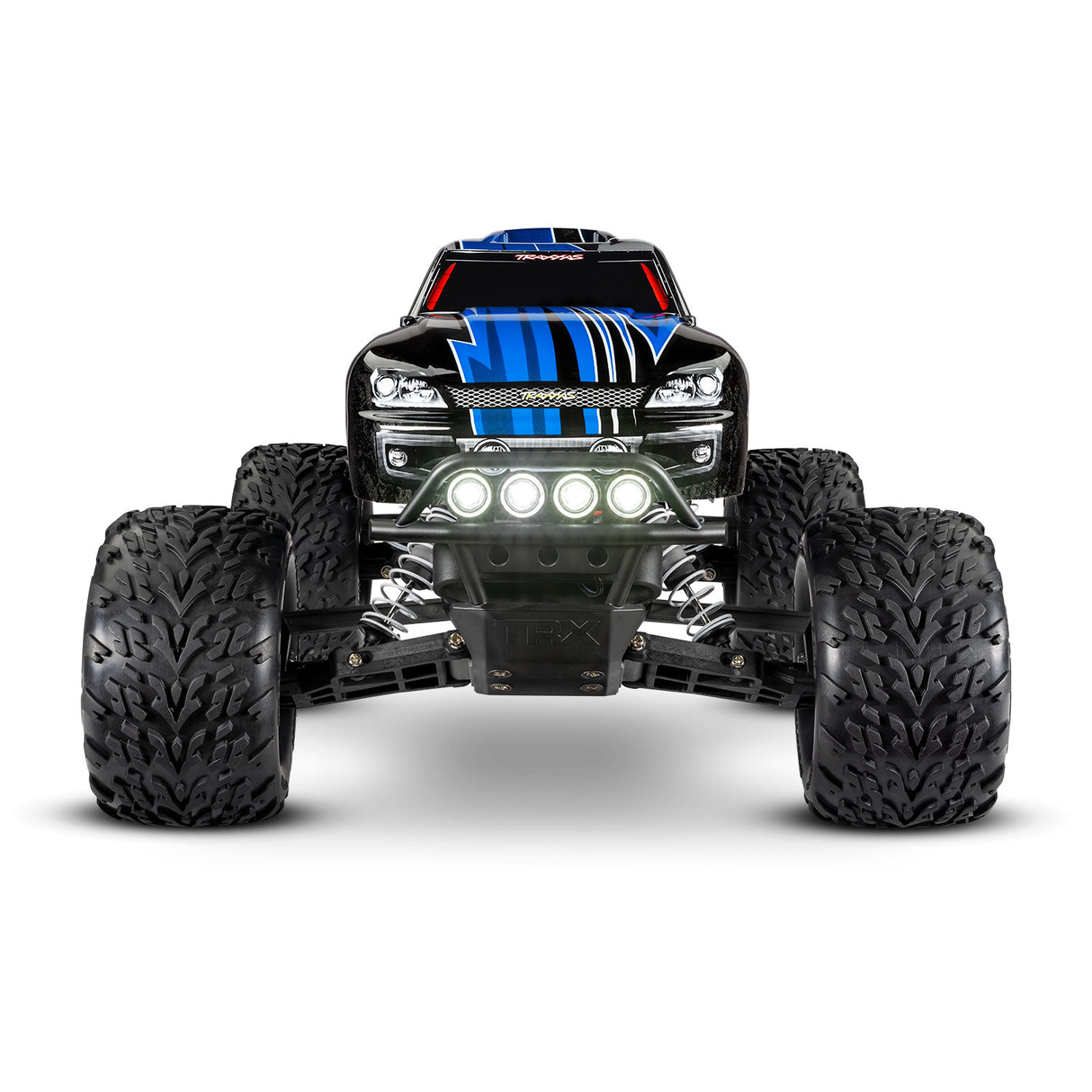

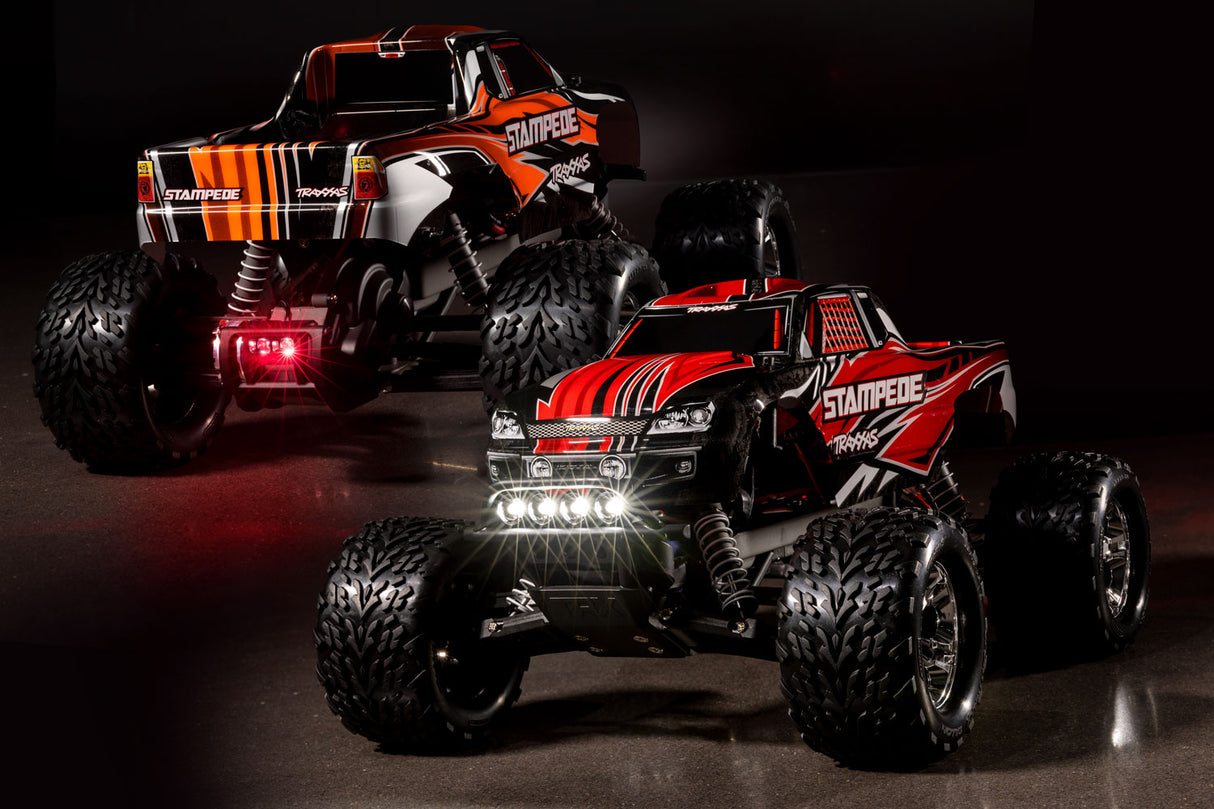

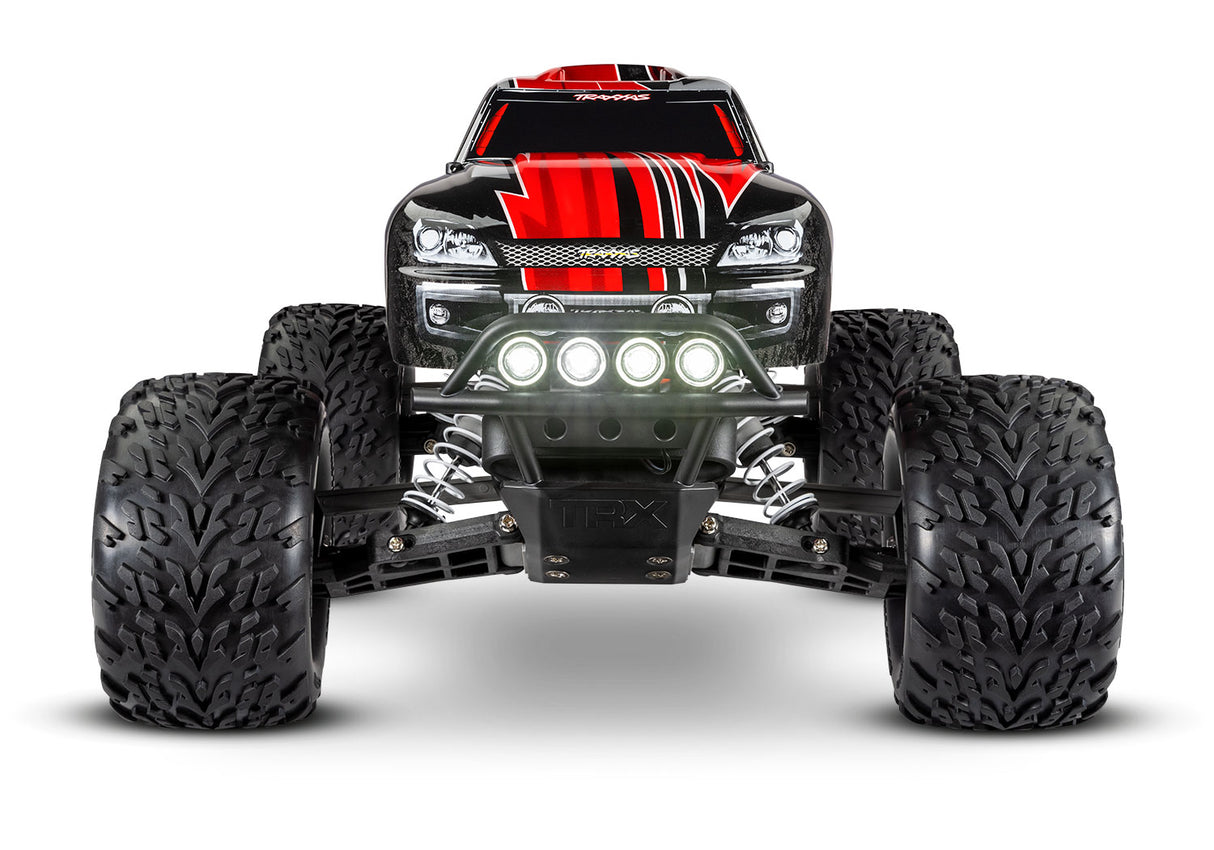

• NEW Factory-installed front and rear LED lighting
• NEW ProGraphix^® paint

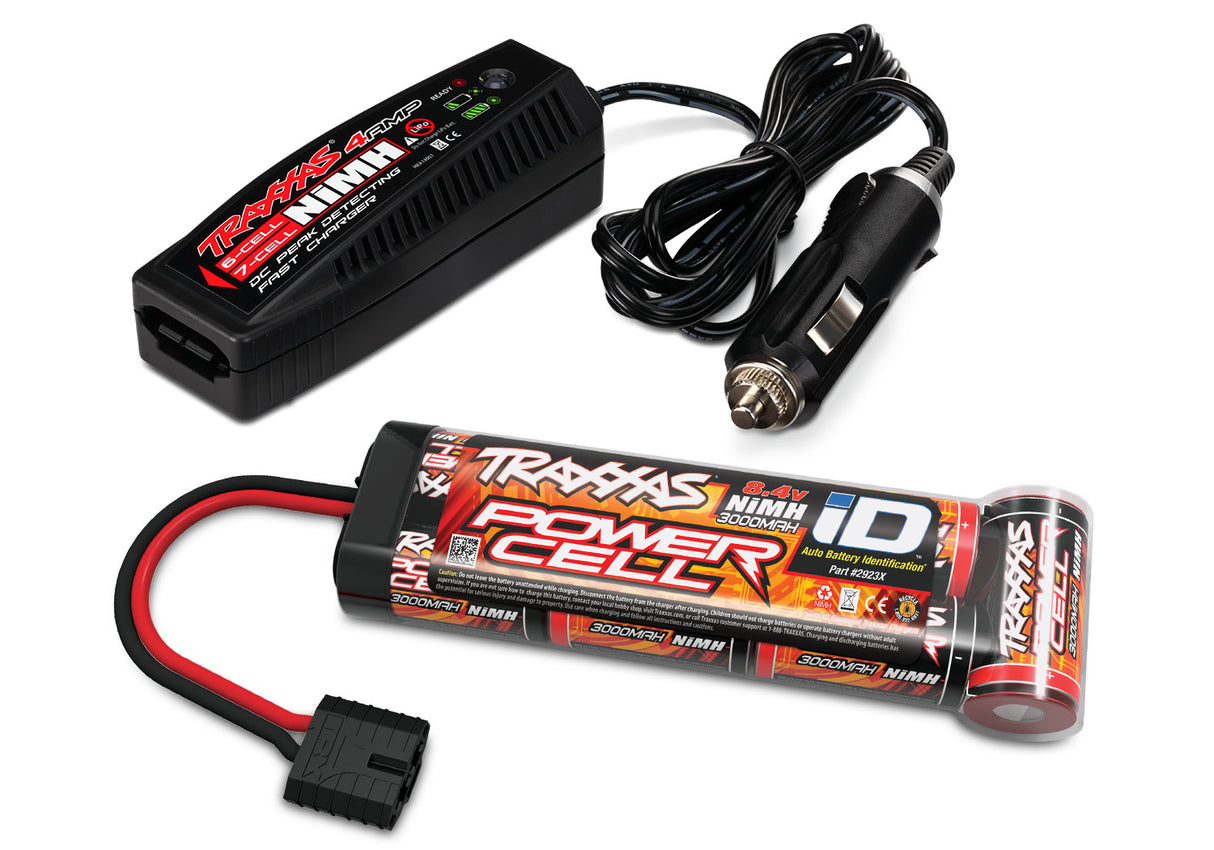

• Includes battery and charger:
  - 4-amp DC Peak Detecting Fast Charger

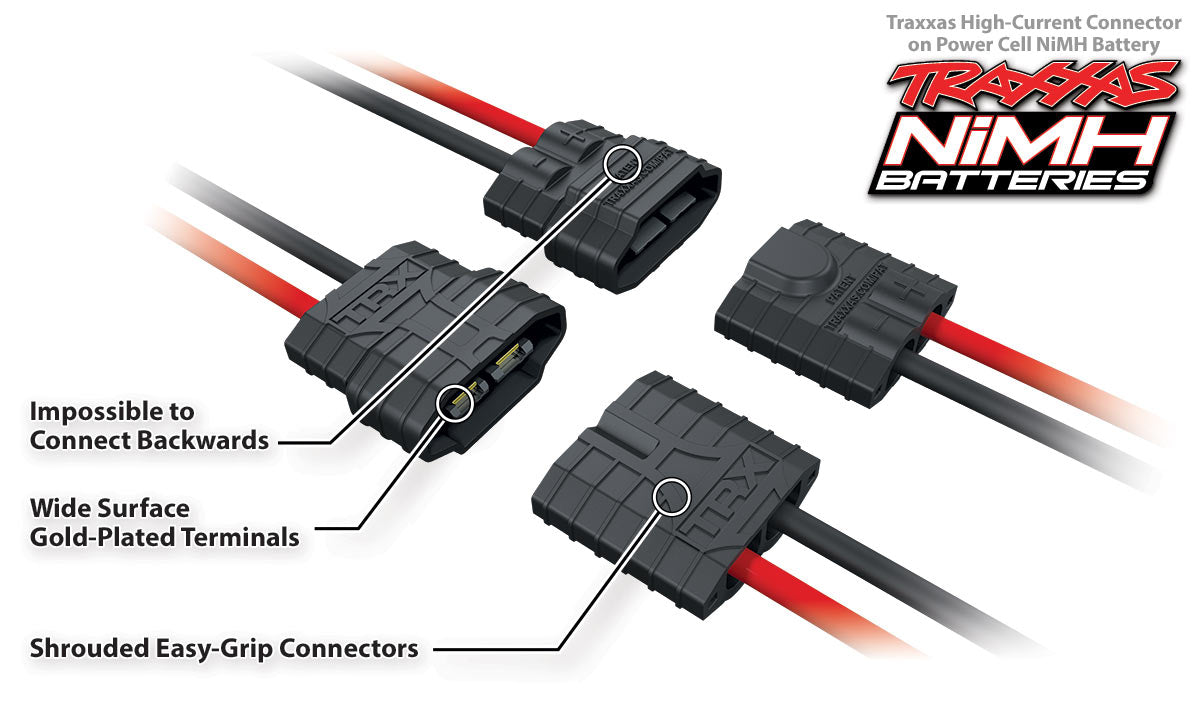

  - Traxxas 3000 mAh 8.4V 7-cell NiMH battery with iD^®
• TQ^™ 2.4GHz radio system
• Waterproof electronics for all-weather driving
• Top Speed after upgrades 30+mph!*
• Titan^® 12-turn 550 motor
• Powerful XL-5 waterproof electronic speed control
• Traxxas' exclusive patented Training Mode
• Brushless-Ready metal gear Magnum 272^™ transmission
• 100% Fully assembled and Ready-To-Race^®

SPECIFICATIONS:

• Part#: 36054-61
• Color: Blue or Red
• Length: 16.9 inches (428 mm)
• Front Track: 12.75 inches (324 mm)
• Rear Track: 12.75 inches (324 mm)
• Weight: 65.3 ounces (1.85 kg)
• Height (overall): 9.5 inches (241 mm)
• Wheelbase: 10.6 inches (270 mm)
• Front Shock Length: Long
• Rear Shock Length: XXLong
• Front Tires (pre-glued): Talon™ 2.8"
• Rear Tires (pre-glued): Talon™ 2.8"
• Front Wheels: 2.8" Mirror-Chrome (All-Star™)
• Rear Wheels: ­2.8" Mirror-Chrome (All-Star™)
• Electronic Speed Control: ­XL-5™ Electronic Speed Control
• Motor (electric): ­Titan® 12T 550 (12-Turn)
• Steering Servo: ­#2056 High Torque Waterproof

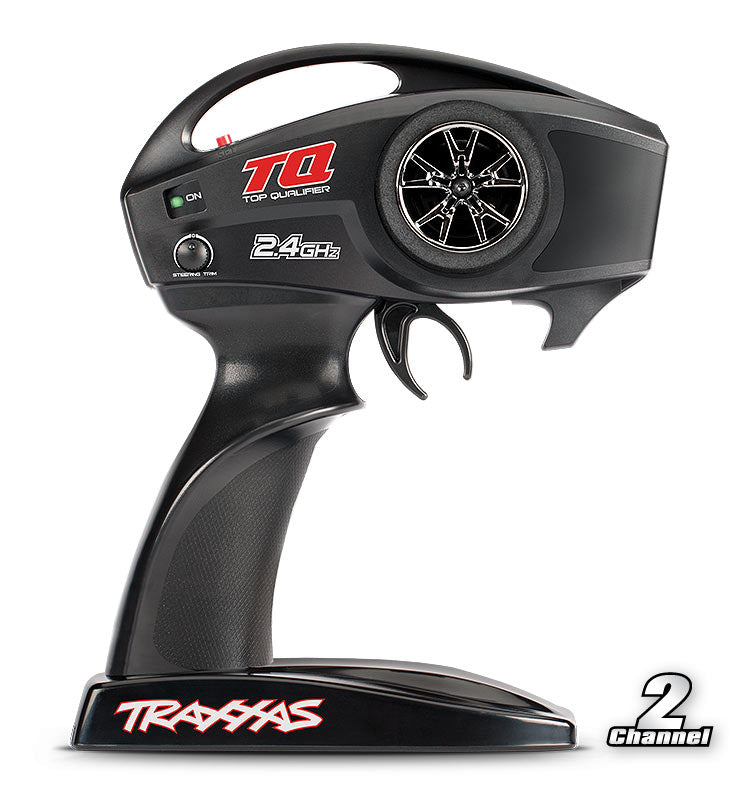

• Transmitter: ­TQ 2.4GHz Radio
• Receiver: ­#6519 3-Channel Micro
• Gear Ratio (internal): ­2.72 (final drive: 12.34)
• Differential Type: ­Planetary
• Gear Pitch: ­48-Pitch
• Transmission: ­Magnum 272™
• Steering: ­Single Point

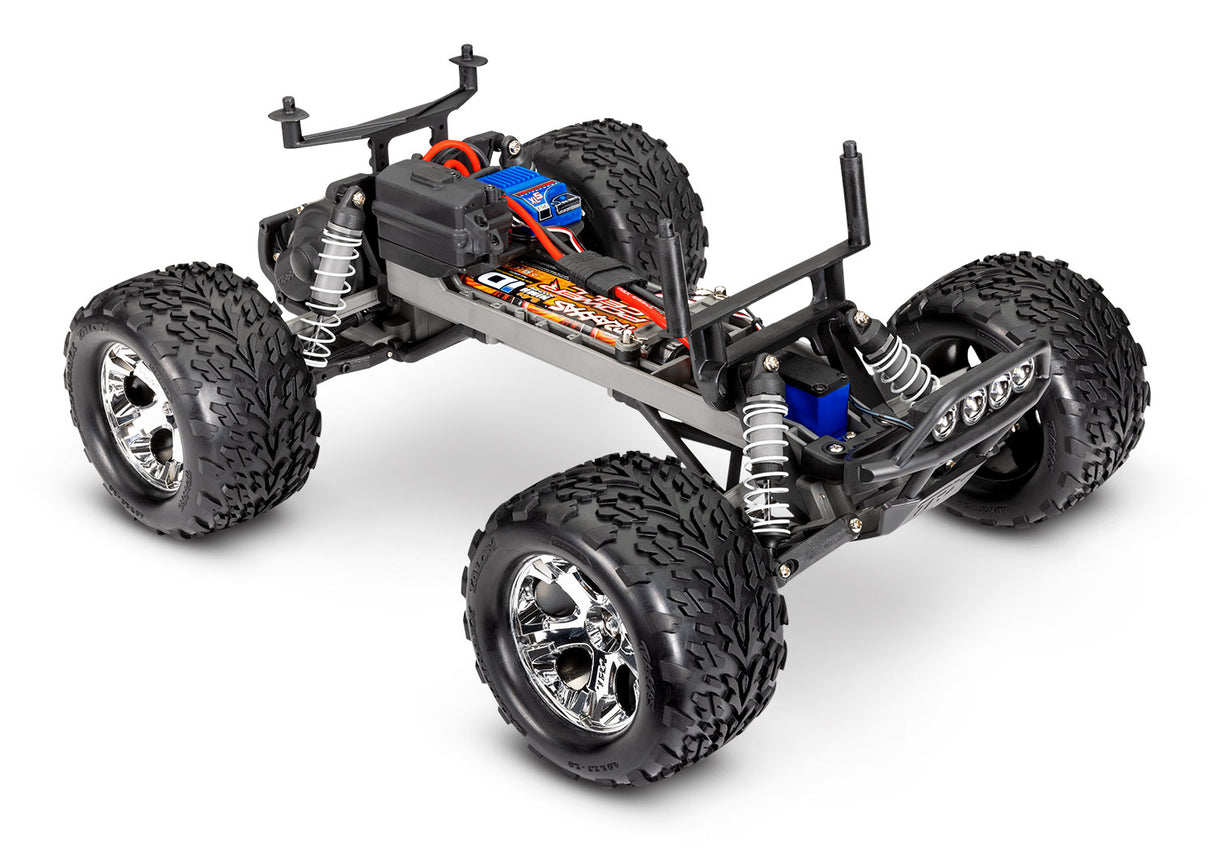

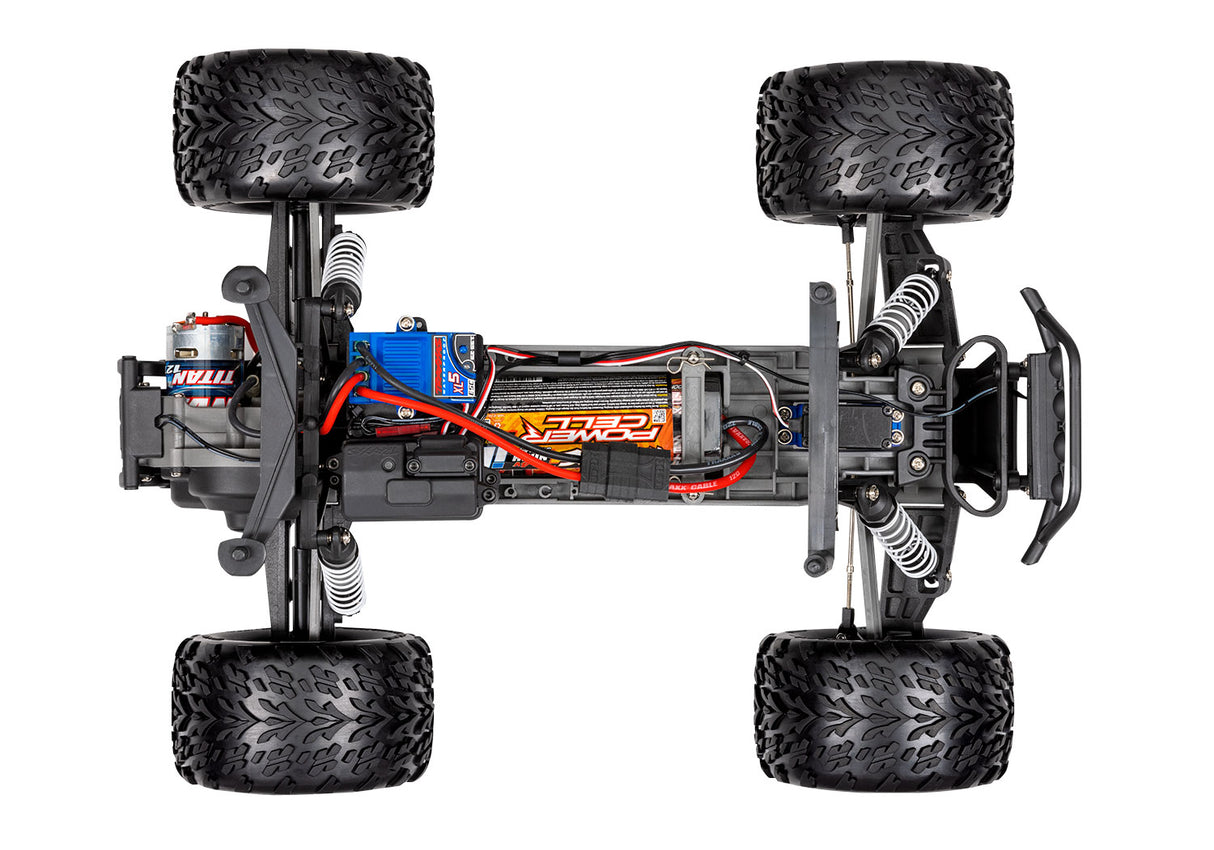

• Chassis Type: ­Modified Tub
• Chassis Material: ­Composite Nylon
• Top Speed: ­30+mph**
• Skill Level: ­1
• *Battery Tray Dimensions: ­164 mm x 46 mm x 26 mm
• Included Charger: ­4-amp DC Peak Detecting Fast Charger
• Included Batteries: ­Traxxas 7-cell NiMH battery with iD®
• Required Batteries: ­4 "AA" (transmitter)

*Battery expansion kit available (#3725X).
**With 7-cell battery and included optional 21-tooth pinion gear.

XL-5 Waterproof ESC:

• Input voltage: ­4-7 Cells (4.8 to 8.4 Volts DC)
• Case Size: ­31 mm x 55 mm x 15.5 mm
• Weight: ­2.44 ounces
• Motor Limit: ­
• 15-turns** (540 Size)
• 12-turns** (550 Size)
• On Resistance Forward: ­0.007 Ohms
• On Resistance Reverse: ­0.014 Ohms
• BEC Voltage: ­6.0 VDC
• BEC Current: ­1A
• Power Wire: ­14 Gauge / 5 inches
• Input Harness Wire: ­26 Gauge / 9 inches
• PWM Frequency: ­1600 Hz
• Low Voltage Detection (LVD): ­2-Stage indicators, switchable (on or off)
• Thermal Protection: ­Thermal shutdown
• Profile selection: ­
  Sport Mode:
  - 100% FWD, 100% brakes, 100% REV
  Race Mode:
  - 100% FWD, 100% brakes, no REV
  Training Mode:*
  - 50% FWD, 100% brakes, 50% REV
• Single-button setup: ­ Yes, Traxxas EZ-Set®

HELPFUL LINKS:

NOTES:

• *Speed with 7-cell battery and included optional 21-tooth pinion gear.
