Use this voltage regulator to adjust your voltage to your desired level, using the onboard dial, and a simple multi-meter.
- Input voltage: 4.5-28V
- Output Voltage: 0.8-20V (adjustable)
- Output current: rated current 3A(MAX).
- Switching Frequency: 1MHz
- Output Ripple: less than 30mV
- Efficiency: 96%(max)
- Operating temperature: Industrial grade (-40 C to +85 C)
- Module Properties: Non-isolated step-down module (buck)

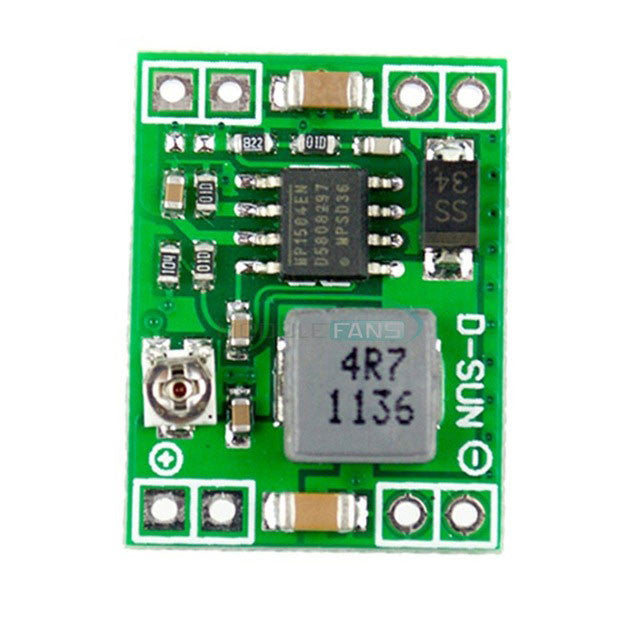

(1) Adjustable Voltage Regulator with 4.5-28V Input & 0.8-20V Output
