The AKK FX3-ultimate Mini VTX is both an MMCX VTX and UFL VTX, which means you can have more choices for VTX connectors even if one connector was broken. It is equipped with an led indicator, a microphone, and one control button. Support smart audio, pit mode, and Batefligtht making it a great FPV video transmitter. It comes with 20x20mm stackable mounting hole, perfect for your 20x20 build!
SPECIFICATIONS:
- Input Voltage: 7V to 24V
- Power Supply: 5V Camera @ Under 0.3A max.
- Output Power:
- 25mW: 100mA
- 200mW: 200mA
- 400mW: 250mA
- 600mW: 320mA @ 12V
- Range: Up to km with omnidirectional RHCP Antennas
- Antenna Connector: MMCX/U.FL
- Port Connector: Solder Pads
- Dimensions; 26x26mm / 20x20mm Holes
- Weight: 5.4g (Excluding Antenna)
INCLUDES:

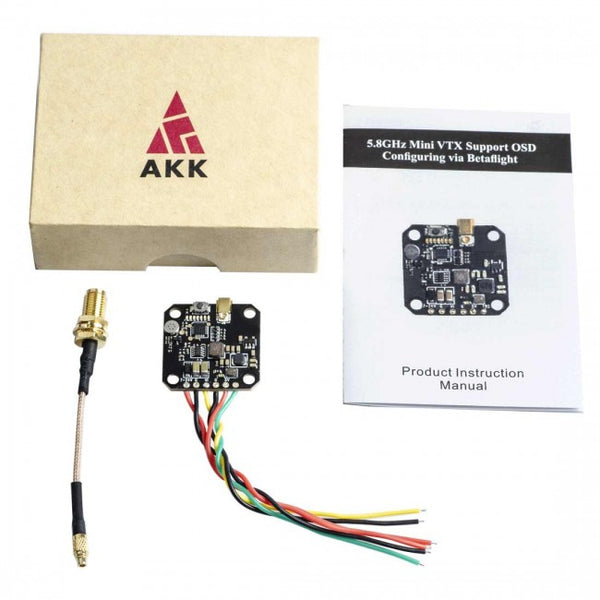

(1) AKK FX3 Ultimate Video Transmitter (20x20 / 600mW / MMCX to U.FL)
