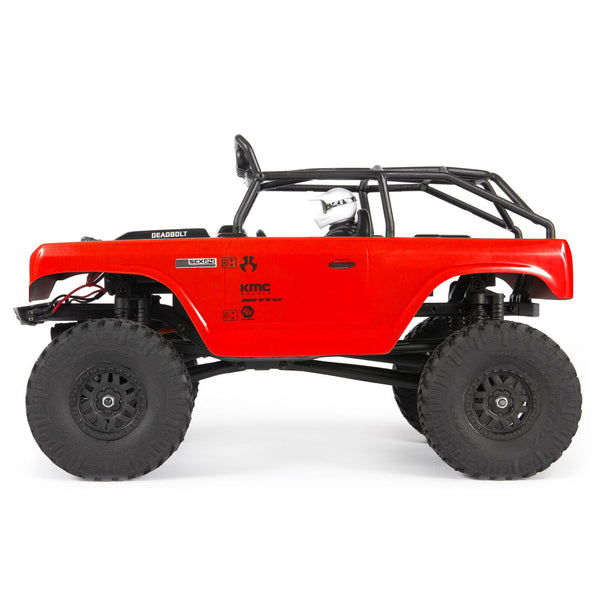

The SCX24™ Deadbolt™ 4WD is the first Axial® off-roader in 1/24 scale. At less than 8" long, it's the perfect rig to take along on your hiking, camping, and other outdoor and indoor adventures — offering factory-assembled ease, scale looks, and confident handling on any trail.
Even new modelers driving the SCX24 chassis will be well-equipped to tackle tough climbs and rough trails. Like the larger SCX10™ II chassis, this smaller version uses plenty of steel components — from the C-channel frame rails to the front and rear axles and dogbones. Even over off-road, mountainous, rocky and desert terrain, it has the strength to keep pushing onward and upward.
For the most reliable handling, the SCX24 chassis features a three-link front and four-link rear suspension. The combination of coil-over shocks and durable plastic suspension links delivers Axial-worthy crawling performance even at this small scale. The worm gear drive setup permits a high ground clearance plus a low gear ratio that reduces torque twist.
Adding even more to its beginner appeal, the SCX24 Deadbolt comes 100% complete and ready to run. Everything required for action is in the box: assembled and finished vehicle; Axial 3-channel 2.4GHz radio system with servo and ESC/receiver unit; Dynamite® 88T brushed electric motor and 350mAh 2S 7.4V LiPo battery; USB LiPo charger; and even four AA cells for the transmitter!
FEATURES:
- Realistic narrow-stance rock crawler body in red and a molded roll cage with light bar
- Officially licensed KMC XD229 Machete Crawl wheels
- Officially licensed Nitto Trail Grappler M/T tires (S30 compound, large block tread)
- Full-time 4WD
- Splined and sleeved front and rear drive shafts allow for maximum suspension travel while keeping the power to the wheels
- Steel front and rear axles, front stub axles and dogbones provide strength and durability
- Rugged steel C-channel frame rails with bracing keep everything rigid and aligned
- Front and rear axles consist of a two-piece, molded plastic solid axle design
- 3-Link front and 4-link rear suspension supply optimal handling
- Coil-over shocks with simulated reservoir and durable plastic suspension links deliver proven Axial crawling performance
- Front and rear differentials each house a worm gear setup to power the axles and create higher ground clearance. Worm gear drive also provides a low gear ratio to reduce torque twist
- Two LEDs in the front bumper for night driving
SPECIFICATIONS:
- Part# AXI90081T1
- Outer Diameter: 2" (51 mm)
- Product Width: 3.9" (99 mm)
- Scale: 1/24
- Ball Bearings: Full Set
- Drivetrain: 4WD
- Drive Type: Forward/Brake/Reverse
- Product Height: 4.73" (120 mm)
- Differential: Worm gear 16T/4T
- Tire Tread: Grappler
- Vehicle Type: Rock Crawler
- Water-Resistant: No
- Power Type: Electric
- Gear Pitch: N/A
- Motor Type: Brushed
- Wheelbase: 5.25" (133.5mm)
- Motor Size: 030 Brushed Electric Motor
- Product Length: 7.8" (198 mm)
- Spur Gear: 55T
- Pinion: 10T
- Battery Connector: PH-2.0
HELPFUL LINKS:
INCLUDES:
(1) Axial 1/24 Deadbolt Rock Crawler Truck
(1) Axial AE-6 ESC/receiver combo (installed)
(1) Dynamite® 88T brushed electric motor (installed)
(1) Axial AS-1 steering servo (installed)
(1) Axial® AX-4 2.4GHz 3-Channel Radio Transmitter
(4) AA Transmitter Batteries
(1) 350mAh 2S 7.4V LiPo Battery with PH2 Connector
(1) USB LiPo charger
(1) Product Manual
