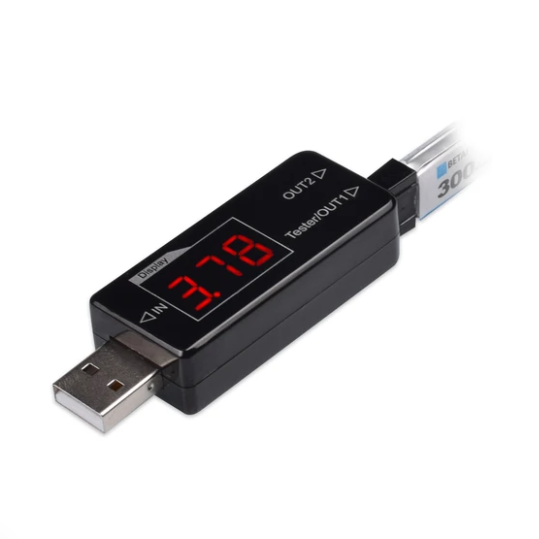

PH2.0 charger is tailored for all PH2.0 1S Battery. Not only a charger but also a cell voltage tester! The charge current is up to 1A, which improved its efficiency and shorten the charging time.
SPECIFICATIONS:
- Model: PH2.0 1S Battery Voltage Checker
- Plugs: PH2.0
- Voltage: Works with regular and HV battery packs
- Voltage cut off: DC 2.45-4.70V
- Voltage range: DC 2.50-4.70V(1S)
- LCD: Red
- Weight: 15.14g
- Dimensions: 66.3*23.6*14.4mm
HOW TO USE:
Power-on state
- OUT1/OUT2 can be charged simultaneously
- Input : USB-5V/2A
- Output : 4.35V/1A
- The red light indicates charging, and the green light indicates full charged
Power-off state
- OUT1 can be used as battery tester while OUT2 does not possess any function
INCLUDES:
(1) PH2.0 Battery Charger and Voltage Tester
