With its ultra-thin design, and 9mm width, this servo is an ideal choice for gliders, wings and airplanes.
- Uses a NOBLE Potentiometer for high accuracy and coherence.
- Dual-bearing design maintains low backlash and smoothness.
- Operating Voltage: 4.8 - 6.0V
- STD Direction: Counter-clockwise / Pulse Traveling 1500 to 1900usec
- Stall Torque: 4.8V (2.4 Kgf.cm) / 6.0V (2.8Kgf.cm)
- Operating Speed: 4.8V (0.12 Sec/60° at no load) / 6.0V (0.10 Sec/60° at no load)

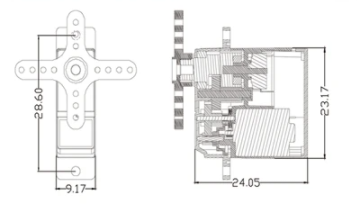

- Size: 23.17 x 9.17 x 24.05mm
- Weight: 12.4g
- Connector Type: JR Servo Plug

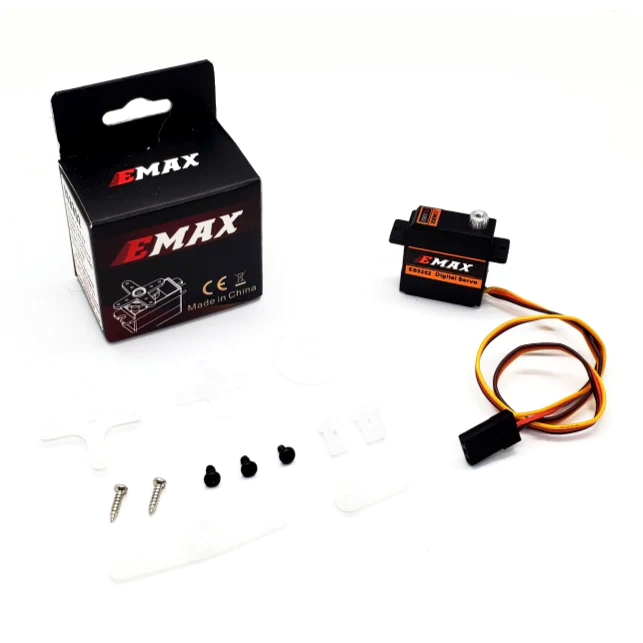

(1) ES332 12.4g Mini Metal Gear Digital Servo with JR Servo Plug
(7) Plastic Accessory Pieces
(2) Screws (Silver)
(2) Screws (Black / Large Thread)
(1) Screw (Black / Small Thread)
