The Foxeer Toothless 2 Mini FPV Camera has a super-wide field of view, switchable aspect ratio, and 1200TVL resolution.
FEATURES:
- 1/2" Sensor Size
- Built-in OSD shows Voltage, Title, and Time
- Super Wide Field of View
- Supports OSD menu remote control for camera settings using the Foxeer F405 & F722 Dual Flight Controllers
SPECIFICATIONS:
- Sensor Type: Sony 1/2" CMOS Sensor
- Scale: 4:3 / 16:9 Switchable
- TV System: PAL / NTSC Switchable
- Resolution: 1200TVL
- Lens: 1.7mm
- FOV:
- 4:3 WIDE FOV-H: 145° FOV-D:180°
- 4:3 NARROW FOV-H: 125° FOV-D:160°
- 16:9 FOV-H: 145° FOV-D:165°
- Shutter Speed: PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec
- Video Output: CVBS Analog Signal
- Minimum Illumination: 0.0001Lux
- White Balance: Auto
- DNR: 3DNR
- WDR: 100dB
- DAY / NIGHT: EXT / Auto / Color / B&W
- Flight OSD: Voltage / Cam Title / Time
- Input Voltage: 4.6V~20V
- Dimensions: 22 x 22mm; 28 x 22 (Add Bracket)
- Weight: 9.7g (Exclude cable)
HELPFUL LINKS:

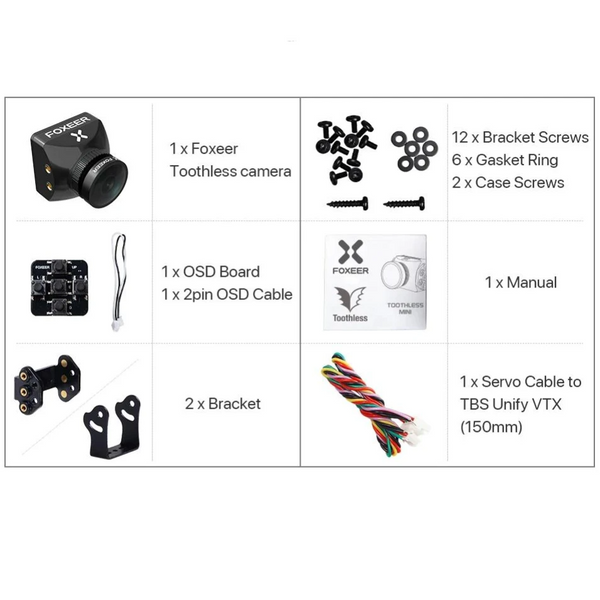

INCLUDES:
(1) Foxeer Toothless 2 Mini FPV Camera
(1) OSD Board
(1) 2-Pin OSD Cable
(2) Brackets
(12) Bracket Screws
(6) Gasket Rings
(2) Case Screws
(1) Manual
(1) Servo Cable to TBS Unify VTX (150mm)
