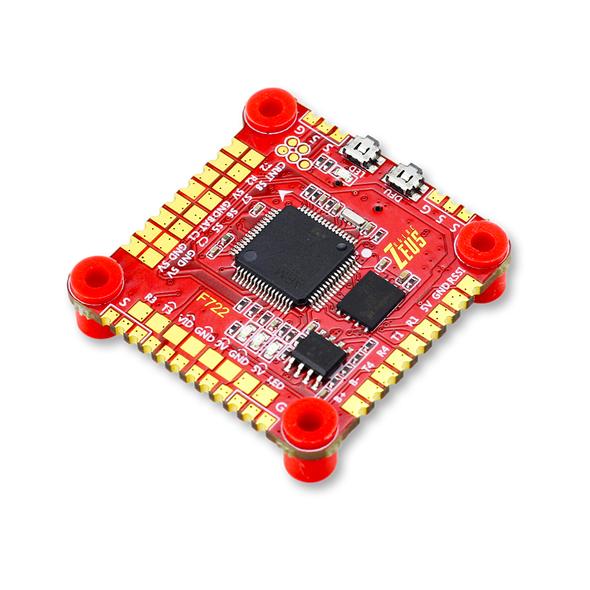

The HGLRC Zeus F722 FC supports three of the most popular firmware's: Betaflight, Emuflight, and iNav. Not only is the Zeus one of HGLRCs most reliable FCs, but it also comes equipped with Plug & Play ports for DJI Air Units, GPS Units, and LEDS!
FEATURES:
- Integrated LED controller allows quick programming of LEDs with the push of a button. (LEDs NOT INCLUDED)
- Integrated barometer and 16M black box.
- Maximum BEC 9V/2A and BEC 5V/3A output
- Easy direct soldering for XM+,NANO receiver and TBS NANO VTX
-
Quickly connect DJI Air Unit, LED and GPS via socket
SPECIFICATIONS:
- Built-in LED controller
- MPU: MPU6000
- UARTS: 5
- CPU: STM32F722 RET6
- Input Voltage: 3-6S Lipo
- Built-in Betaflight OSD to adjust PID
- BEC Output: 9V2A and 5V/3A
- LED Control: BF/Button
- BlackBox: 16M
- Size: 37.3 x 37.3mm
- Mounting Size: 30.5 x 30.5mm (M3)
- Weight: 0.28oz (8.1g)
HELPFUL LINKS:
INCLUDES:
(1) Zeus F722 Flight Control
(4) M3 Grommets (Red)
(1) SH1.0 8PIN Cable 60mm
(1) 6-Pin M81 GPS dedicated cable (140mm)
(1) 4-Pin M80 GPS dedicated cable (140mm)
(1) 6-Pin DJI Air Unit Port Cable (90mm)
