The titanium D-950TW is part of their D-Series servo line. All Hitec D-Series servos have been designed using brand-new, cutting-edge, custom engineering. Combining industry-leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with a 3mm hex screw, each D-Series servo brings monster performance never known before in the market.
COMPATIBILITY:
- 1/10 Scale Vehicles
- "Lightweight" 1/8 Scale Vehicles
SPECIFICATIONS:
- Part# HRC36950
- Bearing: Dual Ball Bearing
- Current Draw Idle: 30mA
- Current Draw Stall: 6,200mA
- Deadband: 1 µs
- Gear Type: Metal
- Input Voltage: 4.8V ~ 6.0V ~ 7.4V
- Max Servo Torque: 350-499 oz-in
- Maximum Servo Speed: 0.100-0.149 sec
- Maximum Servo Torque: 486oz/in
- Motor Type: Brushed

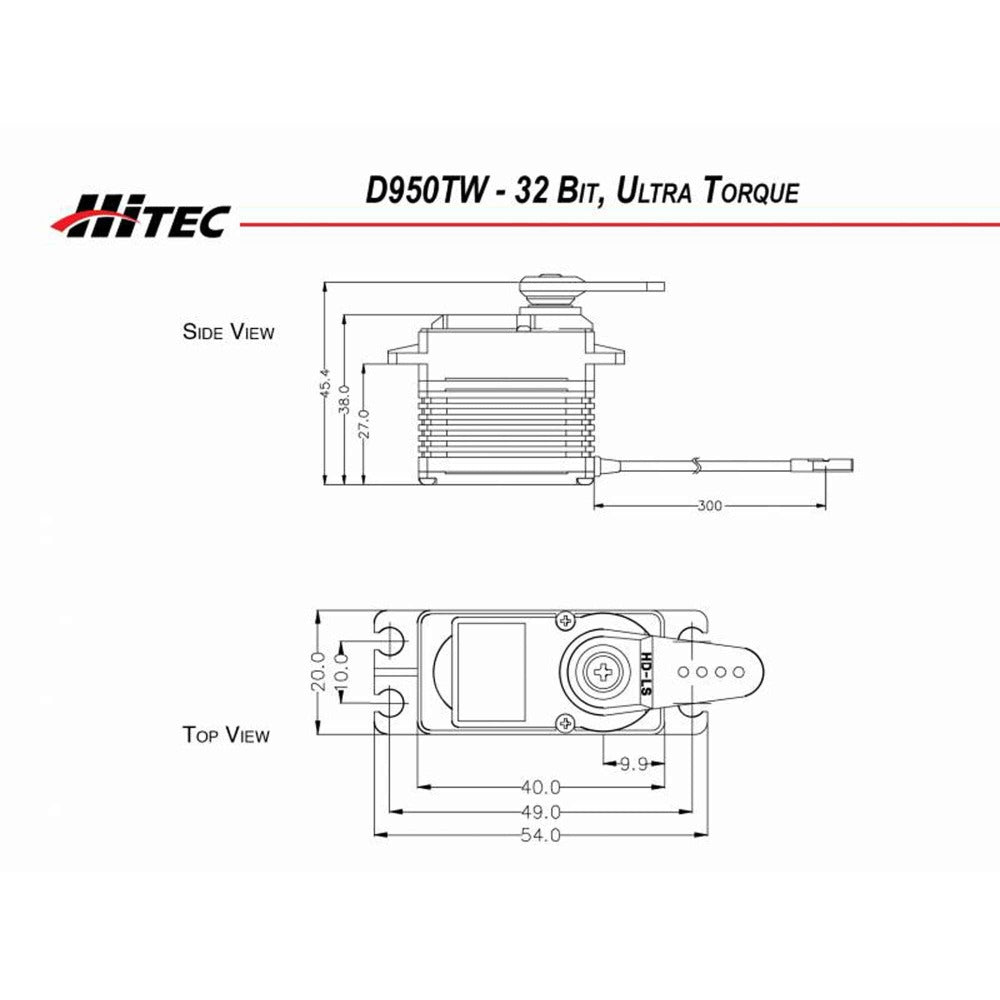

- Product Height: 1.5" (38 mm)
- Product Length: 1.57" (40 mm)
- Product Weight: 2.40 oz (68.0g)
- Product Width: 0.79" (20 mm)
- Programmable: Yes
- Servo Operating Voltage: 4.8 - 8.4V (HV)
- Servo Size Category: Standard
- Servo Type: Digital
- Spline Count: 25 - Tooth
- Torque: @4.8V 292oz/in / @7.4V 486oz/in
- Water-Resistant: Yes
HELPFUL LINKS:
- D950TW Spec Sheet.pdf
- General Servo Manual
- Hitec 2-Year Warranty.pdf
- Hitec Analog vs Digital Servos Explained - English
- Hitec Servo Chart

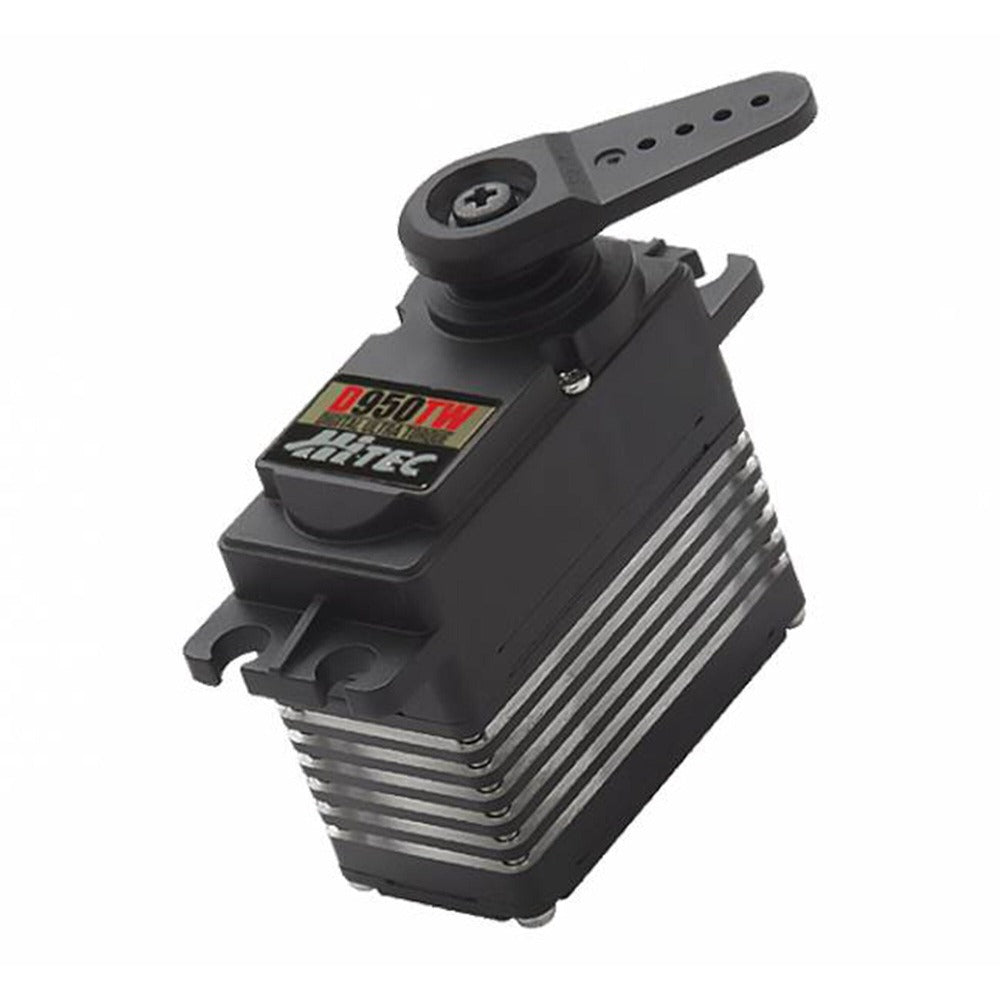

(1) Hitec D950TW Standard Digital Ultra Torque Titanium Gear Servo
