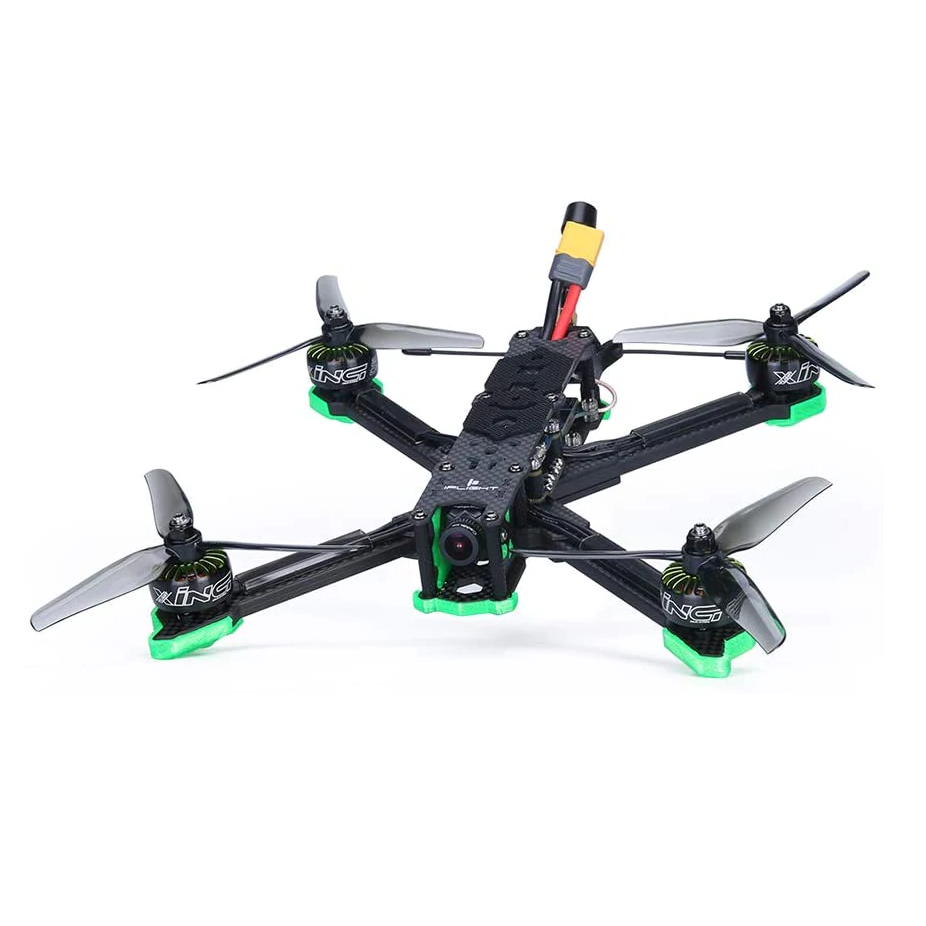

iFlight Titan XL5 HD 5" FPV Drone with GPS (6S / Air Unit Polar / FrSky)

Regular price $549.99

Shipping calculated at checkout. See Shipping Policy for shipping times.

The TITAN XL5 w/ DJI Air Unit Polar Starlight Digital HD FPV system makes flying FPV truly breathtaking. Get the best performance and better weight distribution for freestyle with this X-Style frame equipped with iFlight's latest SucceX-D F7 50A Stack and popular XING motors, as well as a GPS. This 6S drone comes ready to bind-and-fly with either your DJI Transmitter or other FrSky compatible receiver.



FEATURES:

  • 6mm arm design for more durability
  • XING 2208 (4S 2450KV/ 6S 1800KV) motors for more power

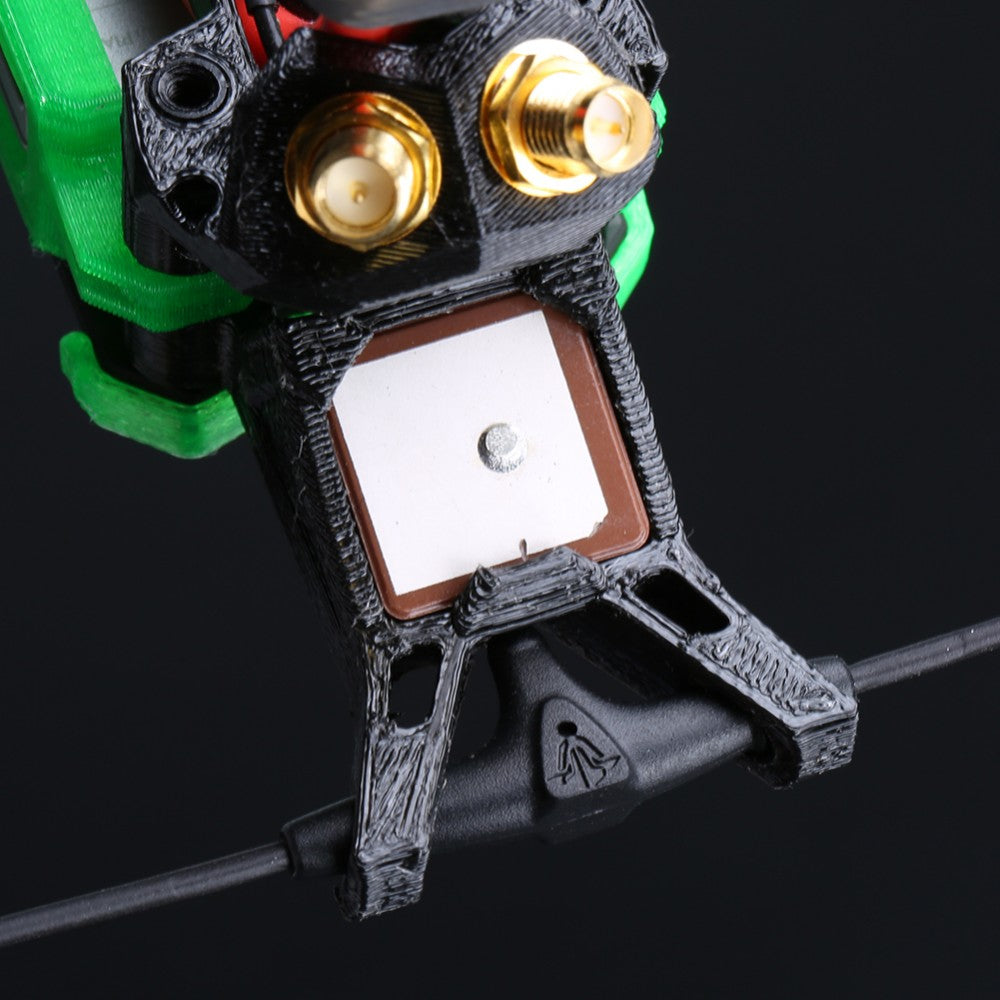

  • GPS pre-installed for more safety at a distance
  • Variable GoPro TPU mount (supports ND-Filter inserts)
  • 360° TPU protection and Antenna mounts



REQUIRED:

  • DJI HD FPV Goggles
  • FrSky D16 Compatible Radio Transmitter or DJI Remote Controller
  • 4S, 5S or 6S LiPo Battery with XT60 Connector




SPECIFICATIONS:

Frame:
  • Frame: Titan XL5
  • Weight :145g
  • Wheelbase: 250mm
  • Main body dimension: 185*133mm
  • Bottom to top distance: 30mm
  • Arm thickness: 6mm
  • Bottom plate thickness: 2mm
  • Top plate thickness: 2mm
  • Camera plate thickness: 2mm (2.5mm included TPU inserts)


Flight Controller:

  • Type: SucceX-D F7
  • Updates: Universal USB Type C connector instead of micro USB
  • Stats: 216MHz STM32F722 with 2x ICM20689 Gyros ready for SensorFusion.



ESC:

  • SucceX 50A 4-in-1
  • Stats: Up to 8S, 32MB Blackbox Flash and 5V/9V to power all you might need.
  • Features: BLHeli_32 up to 48kHz, 8 layers double-sided PCB and top-grade Mosfets.


Motors, Propellers, FPV System & Antennas:

  • Nazgul 5140 Propeller Sets (Sets of 4 - Color May Vary)
  • XING 2208 Motor Unibell 1800KV Motors
  • DJI Air Unit Polar Starlight Digital HD FPV System
  • Albatross LHCP RP-SMA 5.8g Antennas



HELPFUL LINKS:

  • Firmware/Factory Dumps *To restore factory settings
  • How to disable Angle-Mode, activate Acro-Mode *Angle-Mode is default
  • GPS Rescue Mode Setup *Off by default


  • INCLUDES:

    (1) iFlight Titan XL5 HD 5" FPV Drone with GPS (6S / BNF / FrSky)
    (2) Albatross LHCP RP-SMA 5.8g Antennas
    (2) Nazgul 5140 Propeller Set (2CCW & 2CW - Color May Vary)
    (1) iFlight Lipo Strap
    (1) Pack of Hardware

    INSTALLED:
    (1) TITAN XL5 HD Frame
    (1) DJI Air Unit Polar Starlight Digital HD FPV System
    (1) TPU Bracket for DJI Air Unit Module
    (1) TPU Antenna Holder for DJI Antenna
    (2) TPU Camera Side Plate Soft Mount
    (1) TPU Lens Cover
    (1) iFlight Lipo Strap
    (4) XING 2208 Motor Unibell 1800KV Motors
    (1) SucceX-D F7 Flight Controller
    (1) SucceX BLHeli32 50A 4-in-1 ESC 2-6S
    (2) MMCX to RP-SMA Female Adapter Cable
    (1) GPS Module
    **Action Camera/Mount shown in picture not included.



    NOTES:

    • In order to bind this drone with a DJI Transmitter, two wires must be added/soldered to the Caddx Vista Kit and FrSky Receiver wires must be de-soldered/removed.
    • All iFlight BNFs are tested by Flight before shipment to guarantee the highest quality but for any reason if you still encounter a problem after receiving your shipment, please immediately contact iFlight customer support at www.iflightrc.freshdesk.com.
    • For issues with your DJI Polar Kit, please contact www.caddxfpv.com/pages/contact-us or www.dji.com/support.
