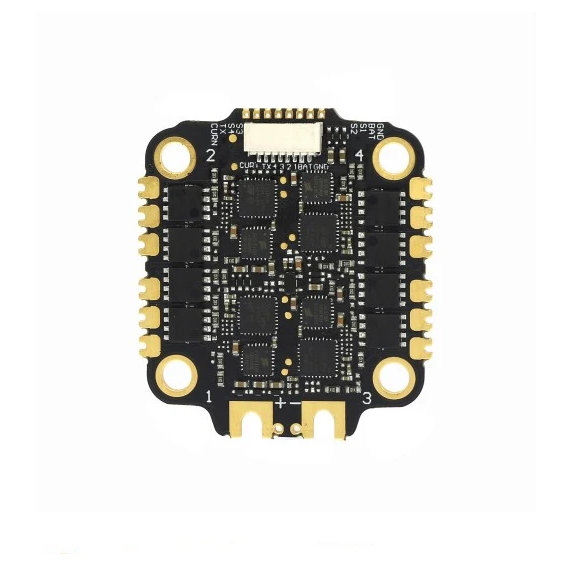

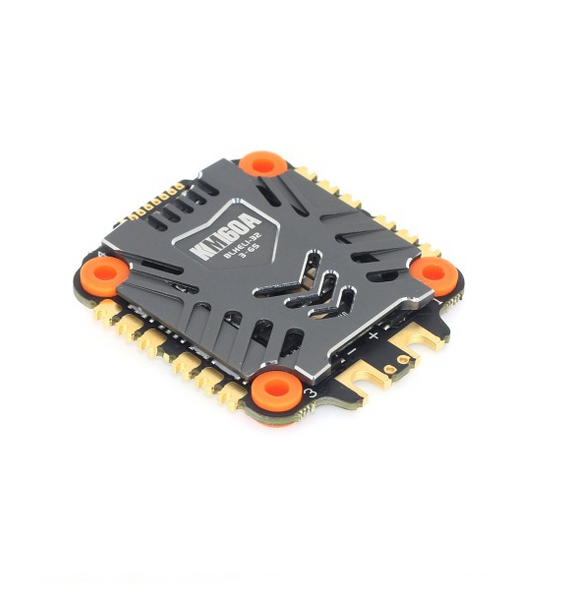

The KM60 ESC supports 3-6S and includes high-quality Mosfets. It runs BLHeli_32 firmware and supports all recent modern ESC protocols like DShot1200, 600, and Bi-Directional DShot300. It also features a "Skeleton" heatsink for better cooling, protection, and performance.
- Excellent over-current capability
- Extreme stability for 6S LiPo batteries
- Better control performance
- Flashed with the latest Blheli_32 firmware in the factory
- Supports telemetry functions (including voltage, RPMS & current).
- Input voltage: 3-6S LiPo
- Con. Current: 60A
- Peak Current: 80A≥ 10S
- Firmware: BLHeli_32
- Supports: DShot 300/600/1200
- Mounting hole : 30.5 x 30.5mm / M3
- BEC: No
- Product size: 41 x 46 x 7.6mm
- Weight: 0.63oz (18g)

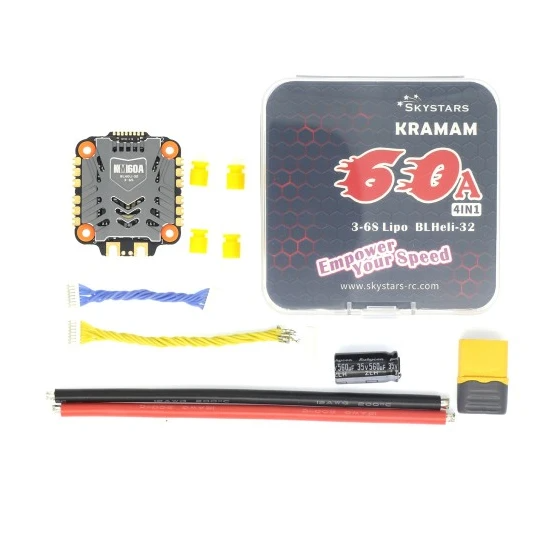

(1) Skystars KM60 60A ESC
(4) Dampeners (Orange)
(1) XT60-H Connector
(2) Power Lead Cables (Black & Red)
(2) 8-Pin Wiring Harnesses (70mm and 50mm)
(1) 35V 560uf Capacitor
