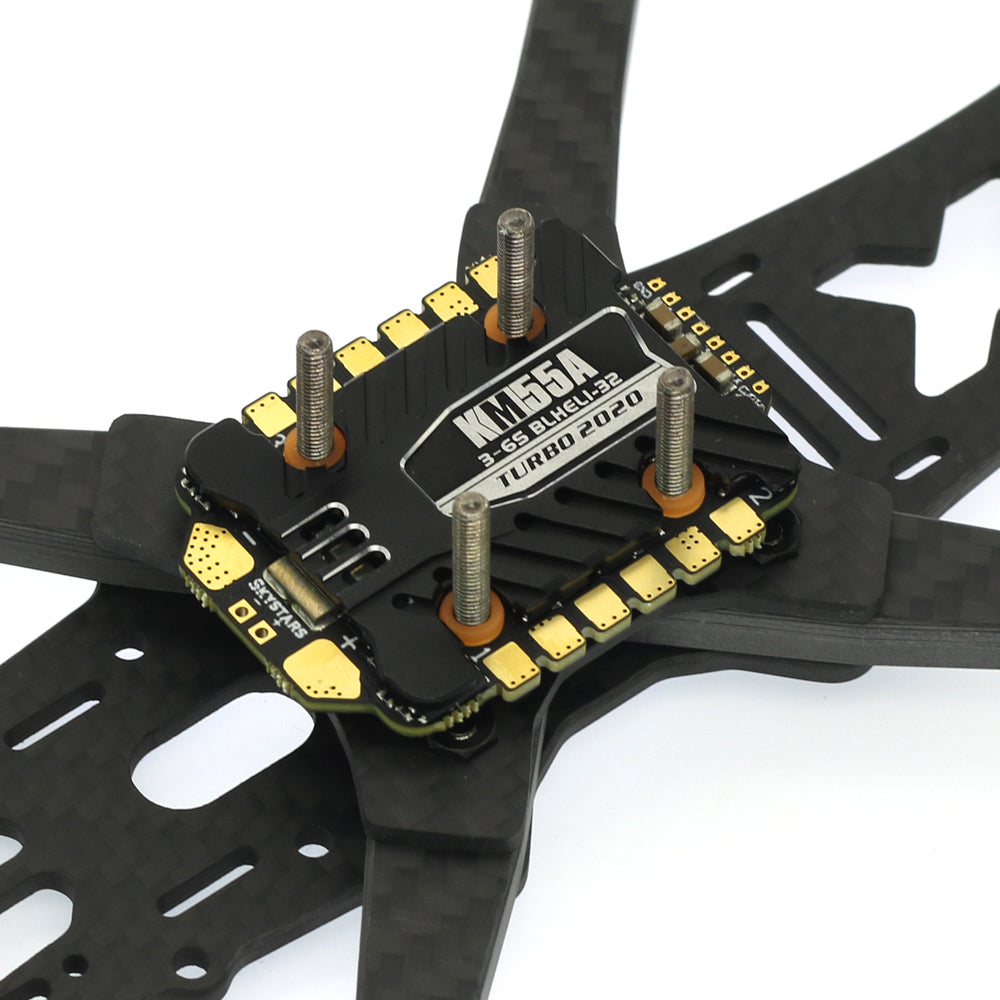

This mini ESC packs all the power you need in a small 20x20 board. It runs BLHeli_32 firmware and supports two of the newest ESC protocols, DShot600 and DShot1200.
SPECIFICATIONS:
- Input voltage: 3-6S LiPo
- Con. Current: 55A
- Peak Current: 70A≥ 10S
- Firmware: BLHeli_32
- Support : DShot 600/1200
- Mounting hole : 20x20mm / M3
- BEC: No
- Product size: 35 x 47 x 6.5mm
- Weight: 0.58oz (16.5g)
INCLUDES:
(1) Skystars KM55 55A ESC
(4) Rubber Grommets (M3x4mm)
(1) XT60 Connector
(2) Main Lead Connector Wires (Positive & Negative)
(2) 8-Pin ESC to FC Cables (50mm)
(1) 35v 560uf Capacitor
NOTES:
- Manufacturer upgrades, alterations, and processor/firmware changes frequently made without prior notice. Exact specifications, photos and links cannot be guaranteed.
