Traxxas 3S Velineon VXL Brushless Power System

Regular price $169.99

Shipping calculated at checkout. See Shipping Policy for shipping times.

The ultimate upgrade! The key to the Velineon's extreme power output is total system optimization. All of the components are carefully engineered to work seamlessly together. From the Traxxas High Current battery connector to the powerful Velineon 3500 brushless motor, all parts of the system are optimized to eliminate restriction and allow maximum power flow. High-frequency transistors and advanced circuit design deliver incredibly smooth and refined throttle control.



COMPATIBILITY:

Replacement Part for:

  • Bandit® VXL
  • Drag Slash
  • Rustler® 4X4 VXL
  • Rustler® VXL
  • Slash 4X4 Platinum
  • Slash 4X4 Ultimate
  • Slash 4X4 VXL
  • Slash VXL
  • Stampede® 4X4 VXL
  • Stampede® VXL
  • 4-Tec® 2.0 VXL AWD Chassis

Accessory Part for:

  • 4-Tec® 2.0 AWD Chassis
  • Bandit®
  • BIGFOOT® No. 1 Officially Licensed Replica
  • Chevrolet® Corvette® Stingray
  • Factory Five '33 Hot Rod Coupe
  • Factory Five '35 Hot Rod Truck
  • Ford® F-150 Raptor
  • Ford® Fiesta® ST Rally
  • Ford® GT
  • Ford® Mustang GT
  • Rustler® 4X4
  • Rustler®
  • Slash 2WD Unassembled Kit
  • Slash 4X4
  • Slash
  • Stampede® 4X4 Unassembled Kit
  • Stampede® 4X4
  • Stampede®



SPECIFICATIONS:

Velineon VXL Power System:

  • Model#: 3350R

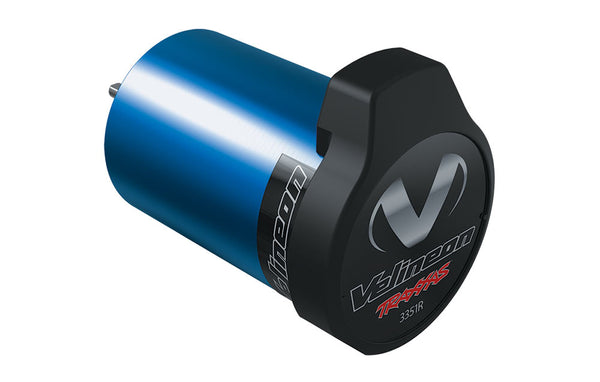

Velineon 3500 Brushless Motor:

  • Part# 3351R
  • KV: 3500KV (equivalent to a 10-Turn brushed motor)
  • Material: Silicon Steel Laminations
  • Color: Blue

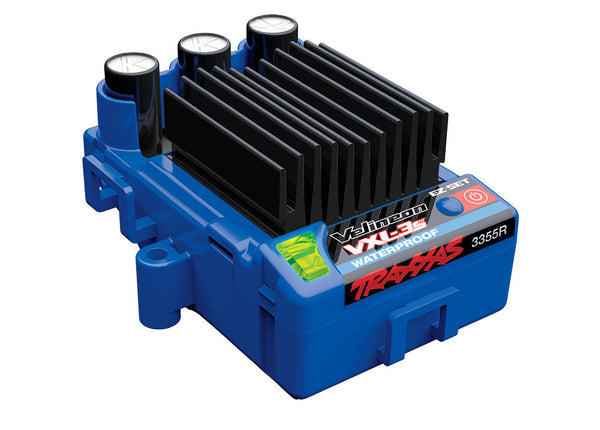

Velineon VXL-3S ESC:

  • Part# 3355R
  • Input Voltage:
    • NiMH 4-9 Cells (4.8 to 10.8 Volts DC)
    • LiPo 2-3 Cells (7.4 to 11.1 Volts DC)
  • Case Size: 39 x 55 x 33mm
  • Weight: 3.17oz (90g)
  • Motor Limit (Brushless): No motor limit
  • BEC Voltage: 6.0 V
  • BEC Current: 2.5A
  • Power Wire: 12-Gauge Maxx® Cable
  • Motor Connectors: 3.5 mm bullet
  • Input Harness Wire: 26 Gauge / 100 mm
  • Low Voltage Detection: 2-Stage indicators, switchable (on or off)
  • Thermal Protection: 2-Stage thermal shutdown
  • Profile selection:
    • Sport Mode: 100% FWD, 100% BRAKES, 100% REV
    • Race Mode: 100% FWD, 100% BRAKES, NO REV
    • Training Mode:* 50% FWD, 100% BRAKES, 50% REV
  • Single-Button Setup: Yes, Traxxas EZ-Set®
  • Battery Input Connector: Traxxas High-Current Connector
  • Ports: RX Input, auxiliary fan



HELPFUL LINKS:



INCLUDES:

(1) Velineon 3500 Brushless Motor
(1) Velineon VXL-3S Waterproof ESC

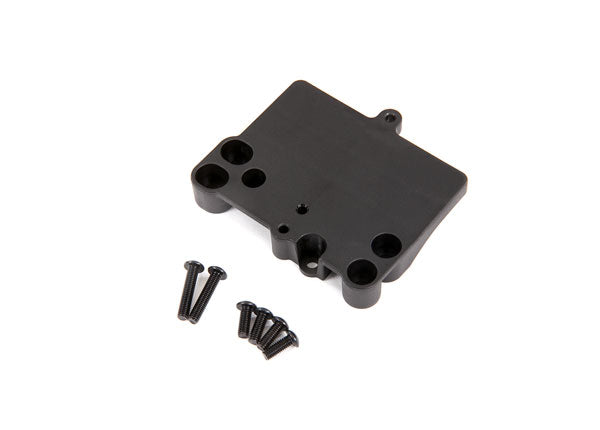

(1) ESC Mounting Plate
