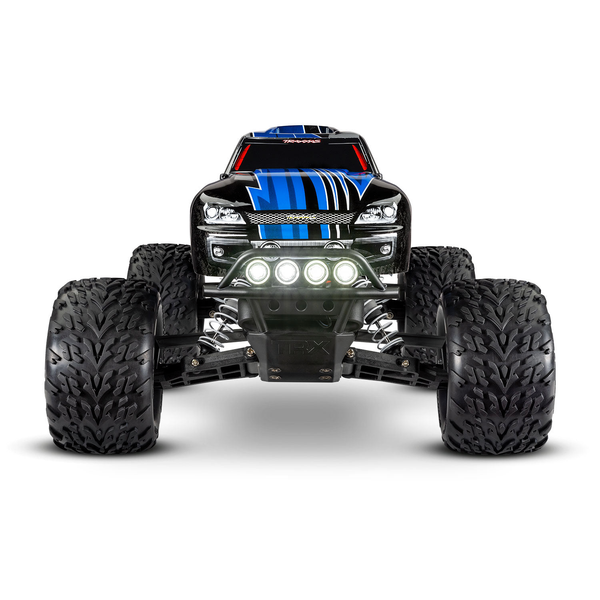

The Stampede’s legendary ruggedness has made its name synonymous with off-road fun. With a top speed of 30+ mph* and drive-over-anything ground clearance, Stampede rips through grass and powers over curbs. Pour on the throttle and the Titan® motor’s massive torque raises the front wheels skyward for dirt-roosting wheelies and high-power jumps. Mud, puddles, and snow don’t stand a chance against this high-octane monster truck thanks to Traxxas’ waterproof electronics. Add more excitement to your RC adventures with the quality and performance of the Traxxas Stampede.
FEATURES:

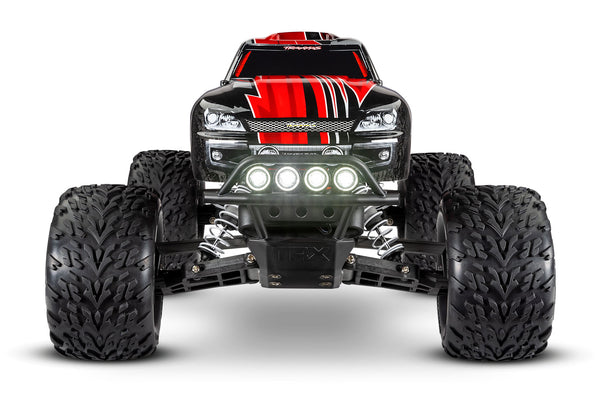

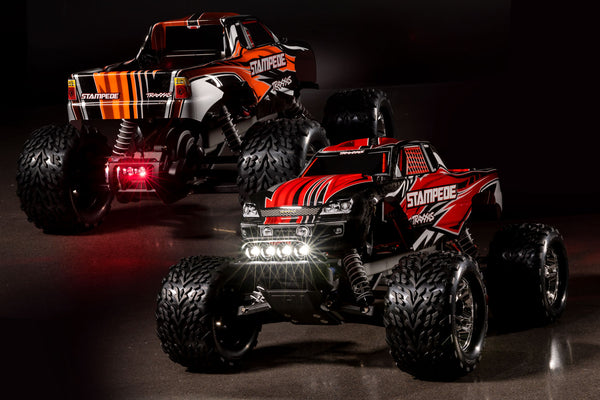

- NEW Factory-installed front and rear LED lighting
- NEW ProGraphix® paint

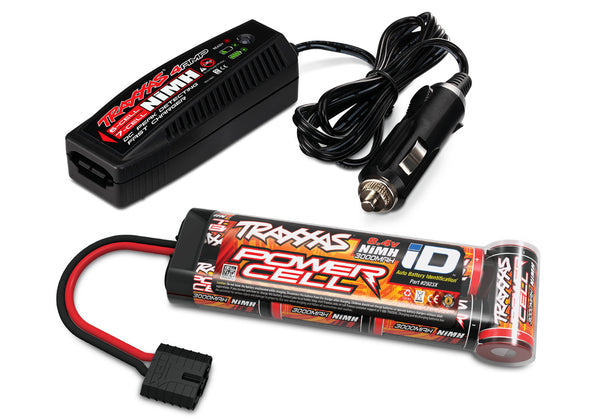

- Includes battery and charger:
- 4-amp DC Peak Detecting Fast Charger
- Traxxas 3000 mAh 8.4V 7-cell NiMH battery with iD® - TQ™ 2.4GHz radio system
- Waterproof electronics for all-weather driving
- Top Speed after upgrades 30+mph!*
- Titan® 12-turn 550 motor
- Powerful XL-5 waterproof electronic speed control
- Traxxas' exclusive patented Training Mode
- Brushless-Ready metal gear Magnum 272™ transmission
- 100% Fully assembled and Ready-To-Race®
SPECIFICATIONS:

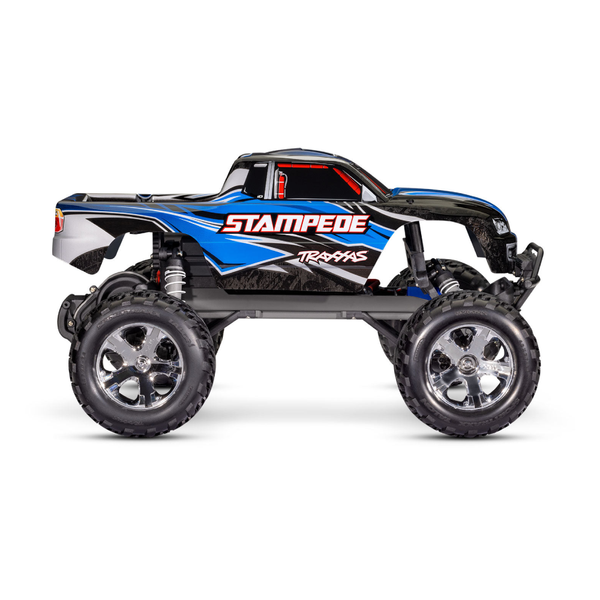

Stampede:- Part#: 36054-61

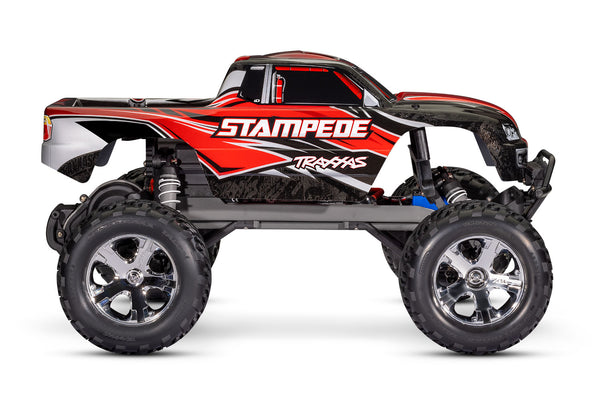

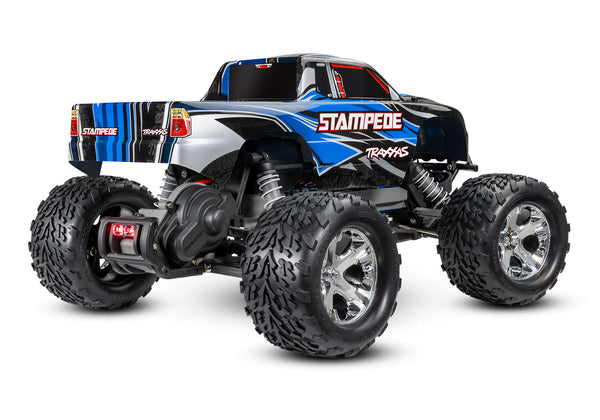

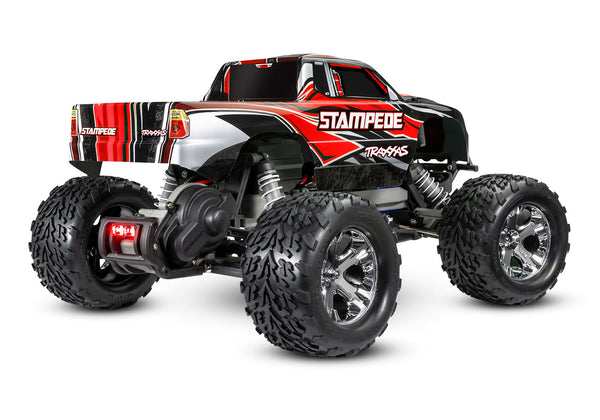

- Color: Blue or Red
- Length: 16.9 inches (428 mm)
- Front Track: 12.75 inches (324 mm)
- Rear Track: 12.75 inches (324 mm)
- Weight: 65.3 ounces (1.85 kg)
- Height (overall): 9.5 inches (241 mm)
- Wheelbase: 10.6 inches (270 mm)
- Front Shock Length: Long
- Rear Shock Length: XXLong
- Front Tires (pre-glued): Talon™ 2.8"
- Rear Tires (pre-glued): Talon™ 2.8"
- Front Wheels: 2.8" Mirror-Chrome (All-Star™)
- Rear Wheels: 2.8" Mirror-Chrome (All-Star™)
- Electronic Speed Control: XL-5™ Electronic Speed Control
- Motor (electric): Titan® 12T 550 (12-Turn)
- Steering Servo: #2056 High Torque Waterproof

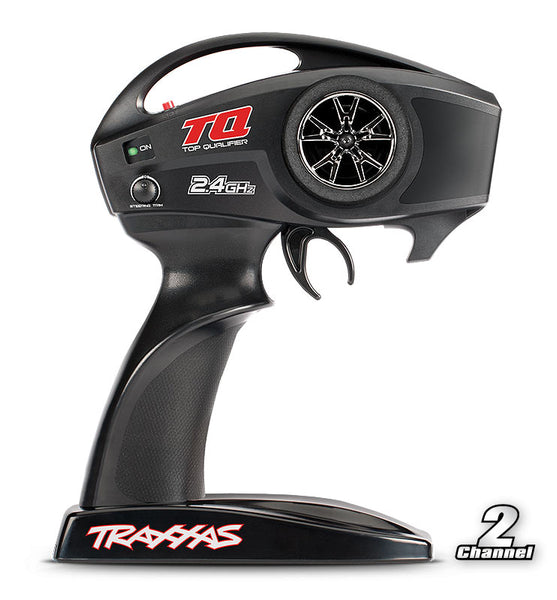

- Transmitter: TQ 2.4GHz Radio
- Receiver: #6519 3-Channel Micro
- Gear Ratio (internal): 2.72 (final drive: 12.34)
- Differential Type: Planetary
- Gear Pitch: 48-Pitch
- Transmission: Magnum 272™
- Steering: Single Point

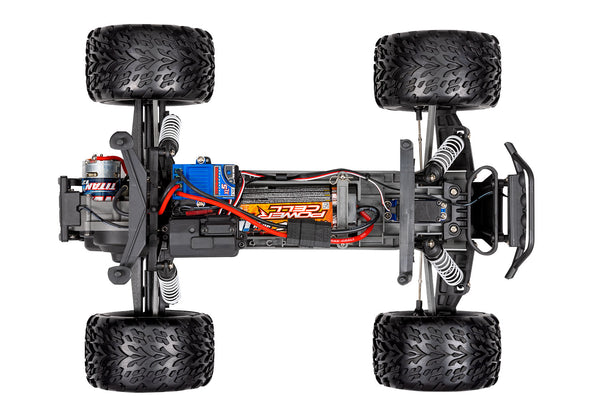

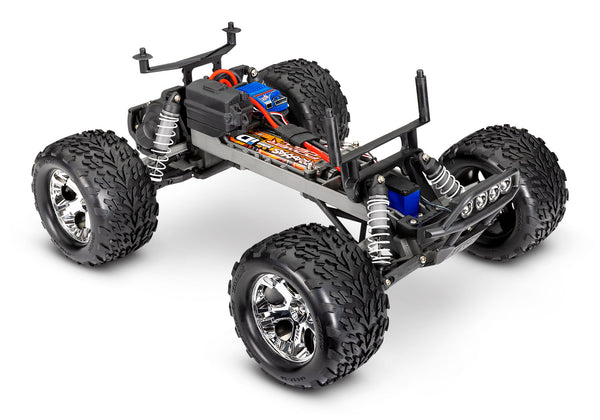

- Chassis Type: Modified Tub
- Chassis Material: Composite Nylon
- Top Speed: 30+mph**
- Skill Level: 1
- *Battery Tray Dimensions: 164 mm x 46 mm x 26 mm
- Included Charger: 4-amp DC Peak Detecting Fast Charger
- Included Batteries: Traxxas 7-cell NiMH battery with iD®
- Required Batteries: 4 "AA" (transmitter)
*Battery expansion kit available (#3725X).
**With 7-cell battery and included optional 21-tooth pinion gear.
XL-5 Waterproof ESC:
- Input voltage: 4-7 Cells (4.8 to 8.4 Volts DC)
- Case Size: 31 mm x 55 mm x 15.5 mm
- Weight: 2.44 ounces
- Motor Limit:
- 15-turns** (540 Size)
- 12-turns** (550 Size)
- On Resistance Forward: 0.007 Ohms
- On Resistance Reverse: 0.014 Ohms
- BEC Voltage: 6.0 VDC
- BEC Current: 1A
- Power Wire: 14 Gauge / 5 inches
- Input Harness Wire: 26 Gauge / 9 inches
- PWM Frequency: 1600 Hz
- Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
- Thermal Protection: Thermal shutdown
- Profile selection:
Sport Mode:
- 100% FWD, 100% brakes, 100% REV
Race Mode:
- 100% FWD, 100% brakes, no REV
Training Mode:*
- 50% FWD, 100% brakes, 50% REV - Single-button setup: Yes, Traxxas EZ-Set®
HELPFUL LINKS:
- Manual
- Parts List
- Box Panels
- Stampede (36054-61) Chassis Assembly Exploded View
- Stampede (36054-61) Front Assembly Exploded View
- Stampede (36054-61) Rear Assembly Exploded View
- Stampede (36054-61) Transmission Assembly Exploded View
INCLUDES:
(1) Traxxas Stampede XL-5 1/10 2WD Electric Monster Truck with LEDs (Blue or Red)
(1) XL-5™ Electronic Speed Control (Installed)

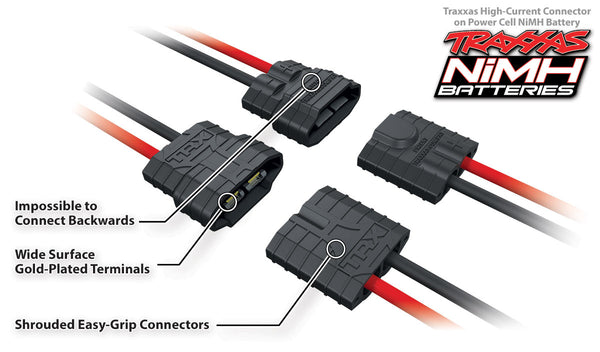

(1) 8.4V NiMH Traxxas Power Cell battery with iD®
(1) 4-amp DC Fast Charger
(1) Accessory pinion gear
(1) TQ™ 2.4GHz radio system
(1) Handy Tool Set
(1) Quick Start Guide
NOTES:
- *Speed with 7-cell battery and included optional 21-tooth pinion gear.
