The XING-E series motors are very powerful motors made for FPV racing. They are well known for their performance, affordability, and durability.
This 2207 sized motor features a high-strength 4mm steel hollow shaft, single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.
FEATURES:
- High-strength, 4mm steel hollow shaft
- N52H High-temperature magnets, NSK bearings
- 16x16mm hole pattern
- Single strand copper winding
- Hex bolt shaft set screw
SPECIFICATIONS:
- Configuration: 12N14P
- Stator Diameter: 22mm
- Magnets: N52SH Curved
- Bearing Size: 9 x 4 x 4mm
- Shaft Diameter: 4mm / Steel
- Base Mounting Pattern: 16 x 16mm / M3 Thread
- Motor Dimensions: 28.5 x 19.7mm
- Weight: 1.19oz (33.8g) (150mm wires)
- Cells (LiPo): 2-6S
- Internal Resistance (Rm): 81.5mΩ
- Motor Wire Length/Gauge : 150mm / 20AWG

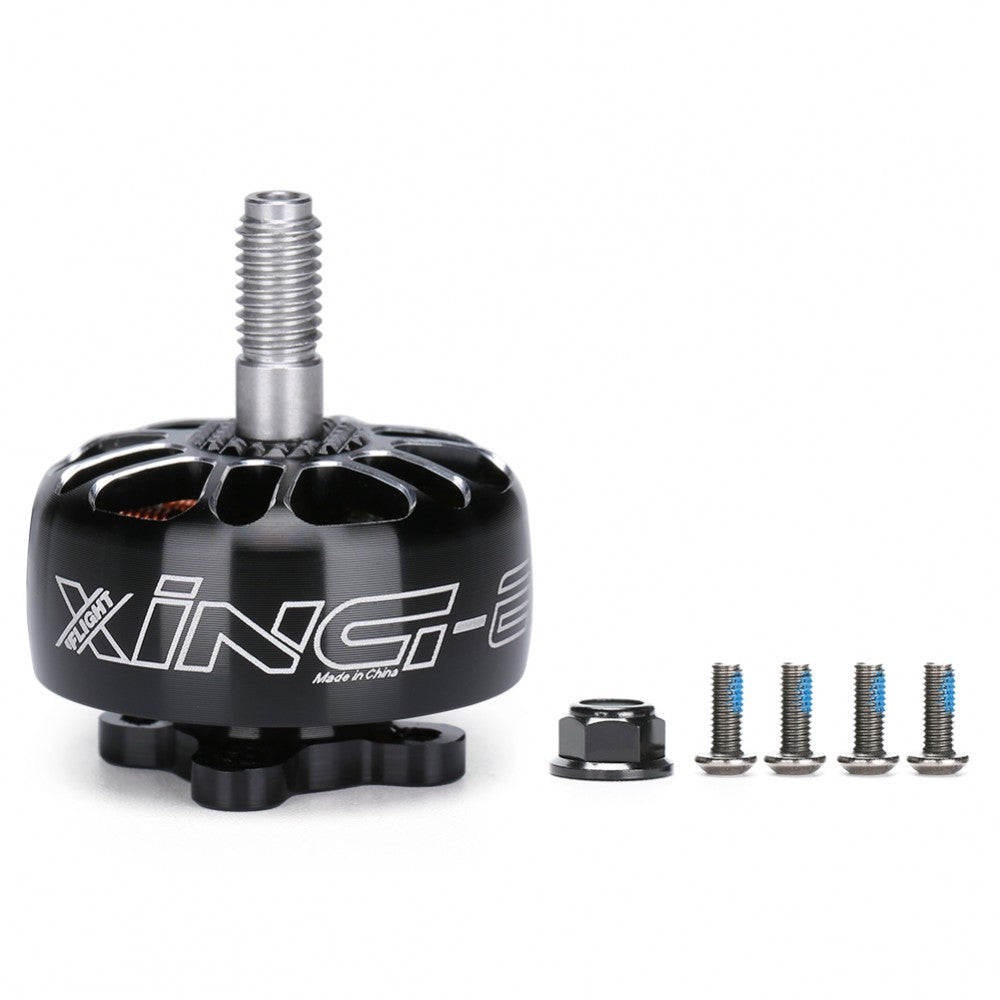

INCLUDES:
(1) Xing-E Pro 2207 / 1800KV or 2450KV Brushless Motor OR (4) Xing-E Pro 2207 / 1800KV
(4) Xing-E Pro 2207 / 1800KV
(4) M3 Screws
(1) M5 Prop Nut
