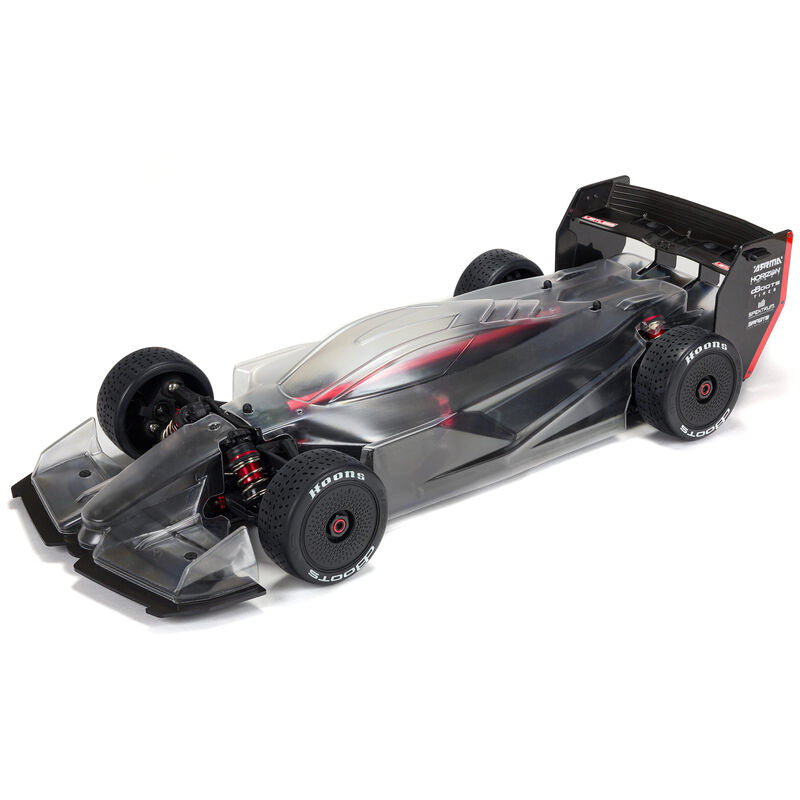

ARRMA 1/7 Limitless V2 4WD Roller Speed Car (Brushless / ARR)

REQUIRED:

(1) Transmitter and Receiver
(1) Hi-Torque Steering Servo (23T Spline, Standard Size)
(1) Electronic Speed Control (4S to 8S)
(1) Motor (50 Series – Max dimensions 4.33 in L x 1.97 in Dia., 0.98 in (25mm) screw pitch
(1) Mod 1 Pinion Gear (To suit chosen motor)
(2) 2S/3S/4S LiPo Battery (Based on your power choice)
(1) Compatible LiPo Battery Charger

SPECIFICATIONS:

• Part#: ARA7116V2
• Body: LIMITLESS (Supplied Clear & Trimmed / Decal Sheet Included)

• Approximate Assembly Time: 1-3 Hours
• Ball Bearings: Rubber Shielded Bearings
• Battery: Sold Separately

• Brakes: Integral with ESC (ESC Sold Separately)
• Charger: Sold Separately
• Chassis: 3mm Plate, 6061-T6 Aluminum
• Completion Level: Roller
• Differential: Two Oil-Filled Metal Gear Diffs
• Drivetrain: 4WD
• Front Track: 12.2 in (310mm)
• Gear Pitch: 1.0 MOD
• Ground Clearance: 0.59 in (15mm)
• Inner Tire / Outer Wheel Diameter: 3.27 in
• Internal Gear Ratio: 2.8:1
• LiPo Compatibility: 4S, 6S, 8S
• Power Type: Electric
• Product Height: 6.5" (165 mm)
• Product Length: 28.74" (730 mm)
• Product Weight: 8.6 lb (3.9kg)
• Product Width: 12.28" (312 mm)
• Radio: Sold Separately
• Rear Track: 12.28 in (312mm)
• Receiver: Sold Separately
• Scale: 1/7
• Servos: Sold Separately
• Shock Type: 3.03 in (77mm) FR, 3.43 in (87mm) RR. Aluminum Oil-Filled
• Speed Control: Sold Separately
• Spur Gear: 39T
• Suspension: Independent
• Tire Compound: White
• Tire Tread: Hoons™
• Top Speed: 110+
• Vehicle Size: Large
• Vehicle Type: Super Car
• Wheel Hex Size: 17mm
• Wheel Width: 1.69 in (43mm)
• Wheelbase: 15.98" (406 mm)

HELPFUL LINKS:

• ARRMA Limitless Manual
• ARRMA Limitless Exploded View

INCLUDES:

(1) ARRMA® LIMITLESS™ 1/7 Scale All-Road Speed Bash Roller
(1) Customizable Clear Body and Nose Cone
(1) Decal Sheet
(1) Window Mask Sheet
(1) 1/7 LIMITLESS V2 Speed Bash Roller Manual

MORE INFO:

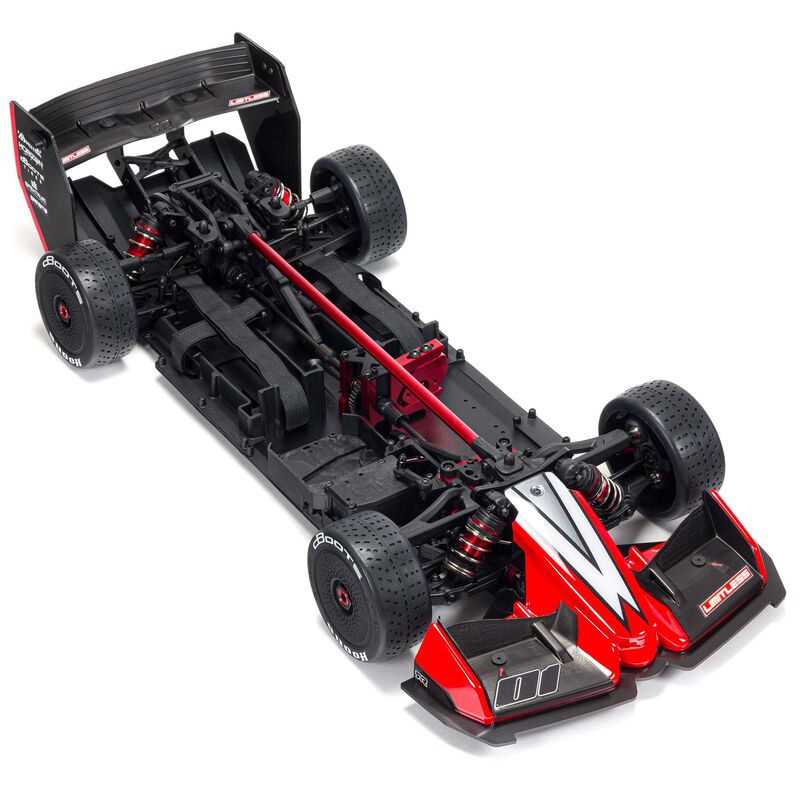

New features to the LIMITLESS platform include a 3mm anodized aluminum chassis plate that repositions the motor mount to accept longer motors. Easy Access Sliding Motor Mount can fit larger diameter motors with optional motor mounting plate, while the electronics module accepts larger ESCs and incorporates a waterproof receiver box.

Additional changes have been made to increase stability for confident control at high speeds. The 39T Mod 1.0 spool with long rear outdrive combines with a shorter rear center driveshaft for equal length center driveshafts and less drivetrain vibration. Lower ratio GP5 gears reduce centerline drivetrain speed and vibration. Stiffer front springs and sway bar improve high-speed handling, and a wider rear track increases stability.

Carried over from the original LIMITLESS, big bore oil-filled shocks on black-anodized front and rear shock towers keep the dBoots® Hoons™ all-road tires firmly planted for maximum traction over on-road, light off-road, loose gravel, short grass, dirt, and oval tracks.

Besides being the fastest ARRMA Speed Bash vehicle, the LIMITLESS 1/7 Scale All-Road Speed Bash Roller is also the first ARRMA “Rattle Can Roller.” The low-drag body comes unpainted, ready for you to personalize it with your own unique paint scheme. Window mask and decals are included. Trim lines on the front and rear wings make it easy to tune the downforce and drag.

The ultimate RC speed machine experience is here. Install your choice of electronics, paint the body in your signature colors, and create your own high-speed RC super car with the ARRMA LIMITLESS 1/7 Scale All-Road Speed Bash Roller!
