RadioMaster XR1 Nano Multi-Frequency ExpressLRS Radio Receiver

The RadioMaster XR1 Nano Multi-Frequency ExpressLRS Receiver is a compact and versatile receiver designed for FPV drones. It supports both 2.4GHz and Sub-G 900MHz bands, providing excellent range and signal stability. With its lightweight design, built-in Wi-Fi for easy firmware updates, and high-performance Semtech LR1121 transceiver, the XR1 Nano ensures reliable connectivity and low latency, making it ideal for demanding flight conditions.

FEATURES:

• Telemetry RF power: 100mW

• ESP32C3 high-performance MCU

• Semtech LR1121 2.4GHz & Sub-G 900MHz Transceiver

• Secondary UART port

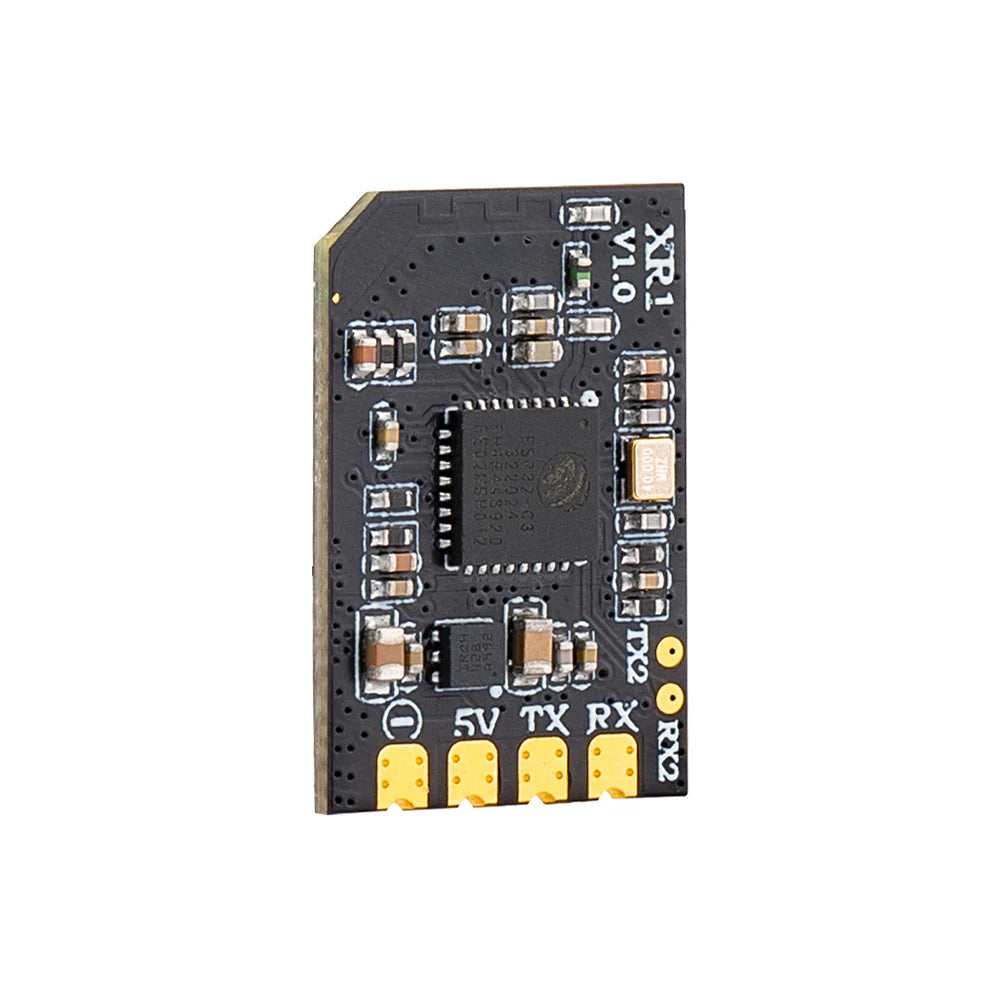

• Castled pads for easy soldering

COMPATIBILITY:

• Radio Transmitter/Controller with ELRS Protocol (2.4GHz and/or 900MHz)
  * ExpressLRS 2.4GHz or Sub-G 900MHz


SPECIFICATIONS:

• Type: ISM2.4 or FCC915

• MCU: ESP32C3

• RF chip: Semtech LR1121

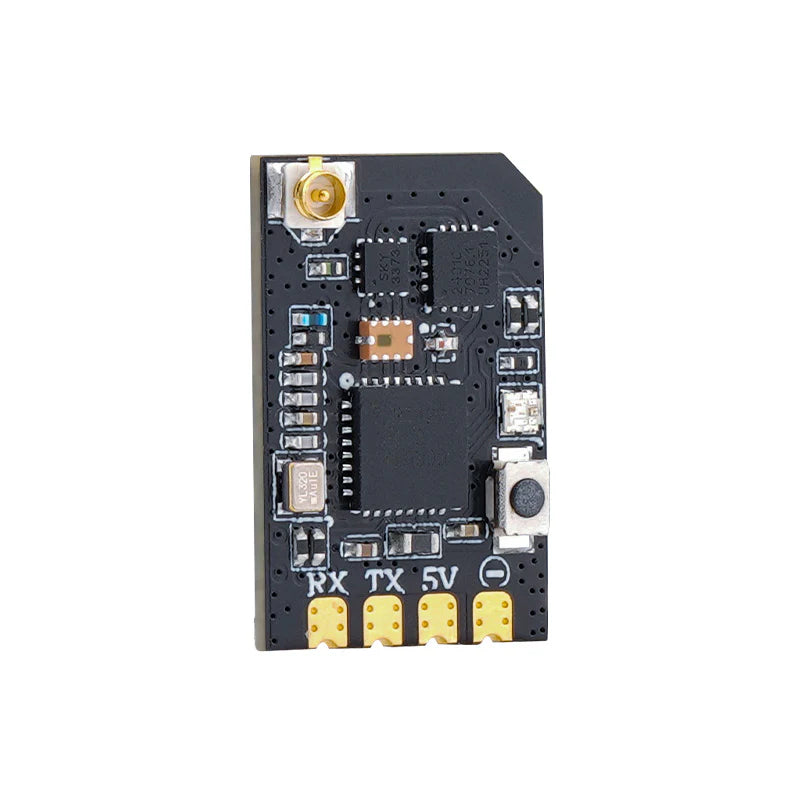

• RF connector: IPEX-1

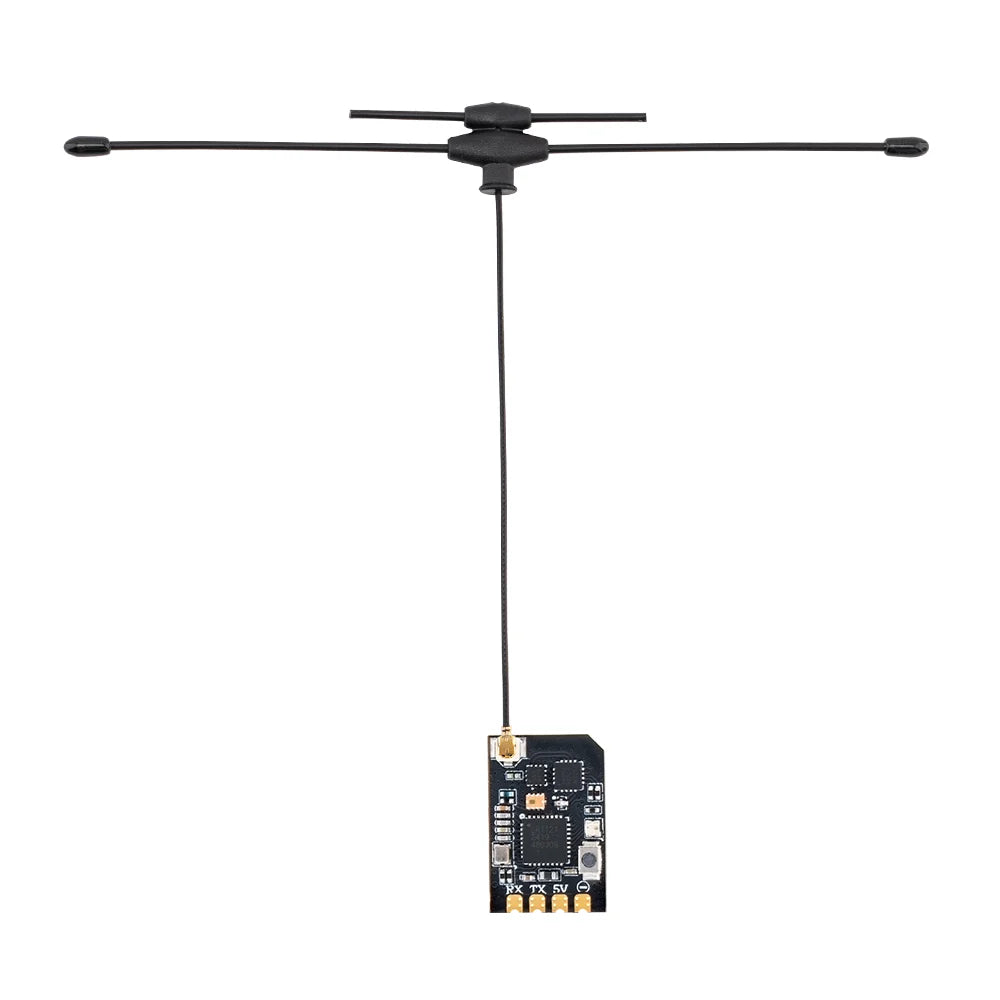

• Antenna: T-Antenna 2.4GHz/900Mhz Dual-band

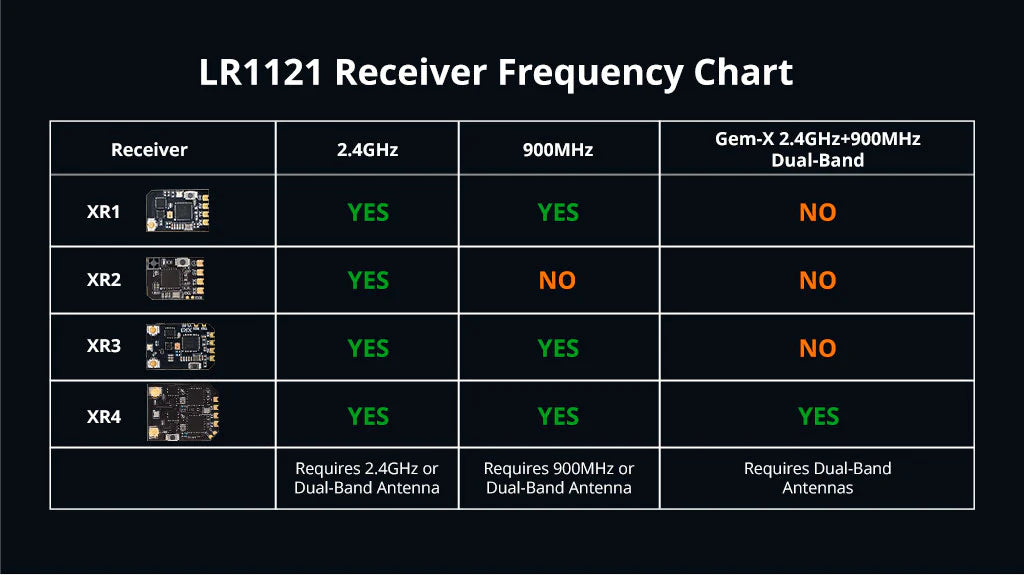

• Frequency Range: 2.4GHz or Sub-G 900MHz

• Telemetry Power: 100mW

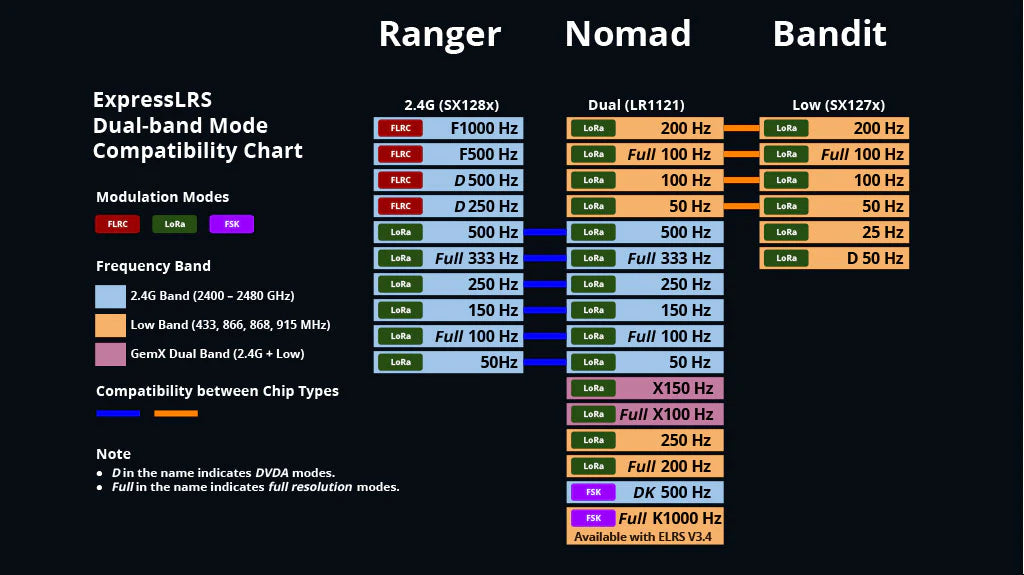

• Maximum Packet rate: DK500Hz / K1000Hz

• Minimum Packet refresh rate: 50Hz

• Working voltage: 5V

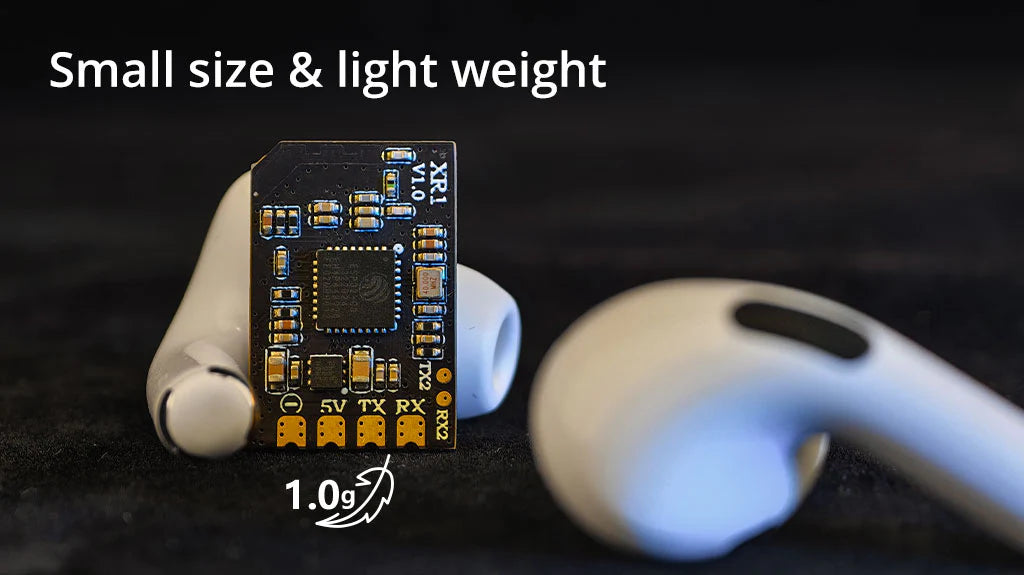

• Weight: 1.0g (without antenna)

• Dimension: 20mm * 13mm * 3mm

• Firmware Version: ExpressLRS v3.5.1 pre-installed

• FW Target:  RadioMaster XR1 2.4/900 RX

• Bus interface 1: CRSF / Bus interface 2: UART

HELPFUL LINKS:

• XR1 User Manual

INCLUDES:

(1) XR1 Nano Multi-Frequency ExpressLRS Receiver
(1) T-Antenna (2.4GHz/900Mhz Dual-band)
(1) CRSF Wire
(3) Heat-Shrink Tubes
(1) Manual Card
