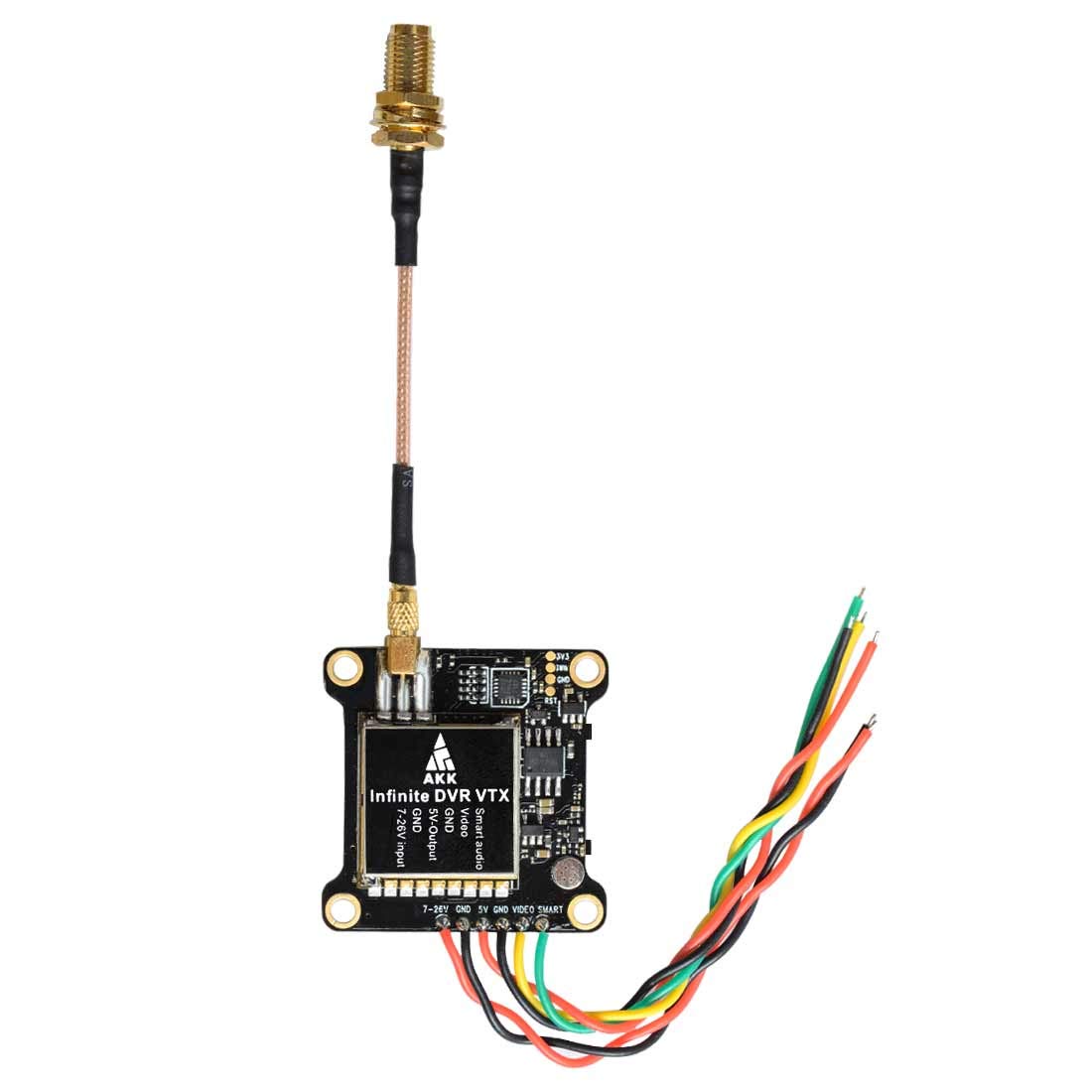

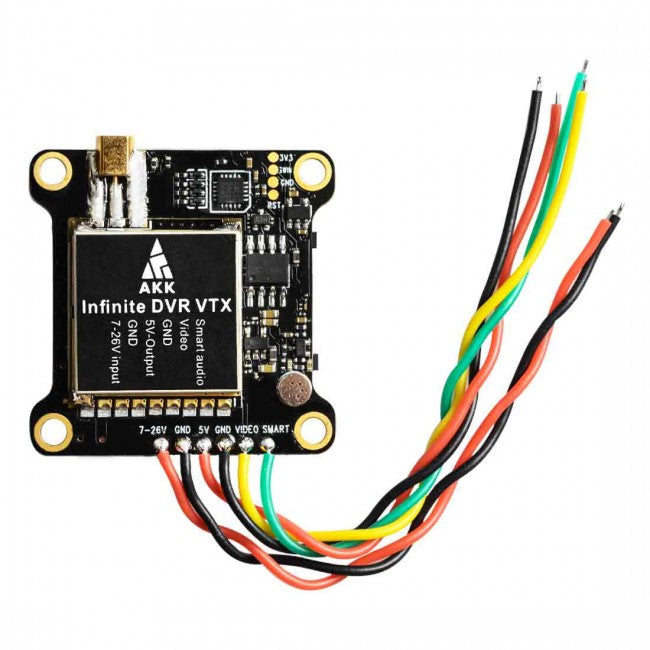

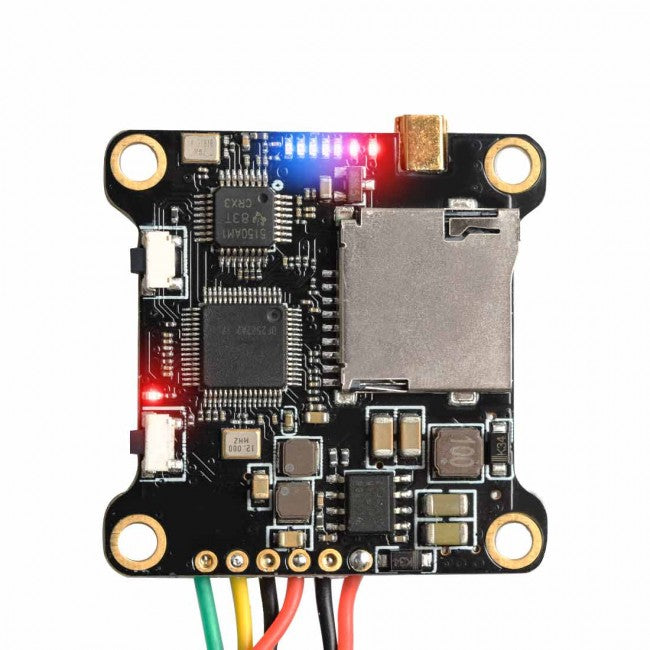

AKK Infinite DVR 5.8GHz Analog Video Transmitter (30x30mm / 1000mW / MMCX to SMA)

The Infinite DVR Video Transmitter is the first DVR VTX from AKK. Just as its name implies, this VTX comes with a DVR (digital video recorder) function that gets clear footage directly from the FPV camera rather than from your video receiver. It supports smart audio, and Betaflight, allowing you to remotely change settings on the VTX like power output, frequency, and more via Betaflight OSD controls. This DVR VTX is also a long range VTX with a super high output of up to 1000mW.

SPECIFICATIONS:

• Output power: 25/200/600mW/1000mW
• Smart audio capable
• Antenna Connector: MMCX
• Input Voltage: 7-26V
• Output Voltage: 5V

• Video format: NTSC
• Dimensions: 36mm x 36mm
• Weight: 8.8g
• Frequency: 5.8GHz / 5 bands / 40 channels

HELPFUL LINKS:

• AKK VTX Table
• Manual

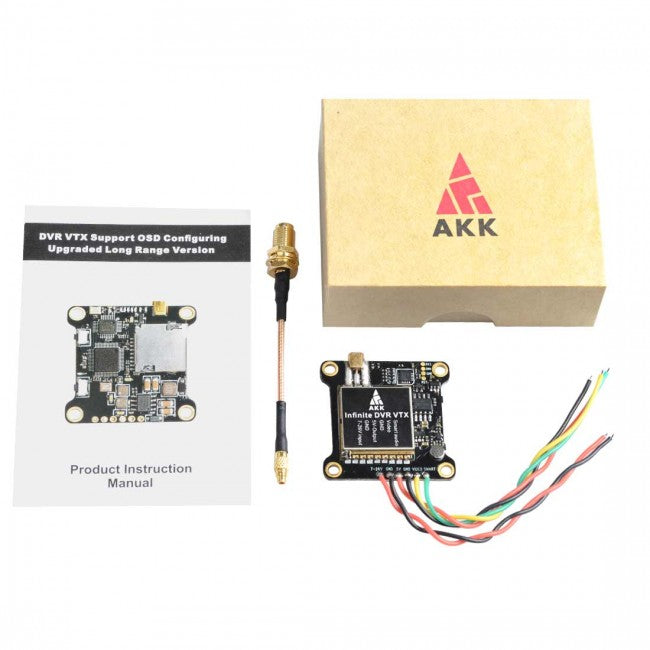

INCLUDES:

(1) Infinite DVR 5.8GHz Analog Video Transmitter
(1) MMCX to SMA Adapter Cable
(1) Manual

NOTES:

• The frequencies 5645, 5925, and 5945 (E4, E7, E8) are unavailable due to FCC regulations. Selecting these frequencies will result in an invalid action.
• Certain channels and the 1000mW power settings are not available by default due to FCC regulations. If you have a Ham license, then you can unlock the VTX by holding the button for 8 seconds until the 7 LEDs light up simultaneously. This setup will automatically lock each time the power is turned off. By purchasing this equipment, the user agrees to understand these responsibilities and to operate the equipment legally. For more information related to Ham licensing, please visit http://www.arrl.org/getting-licensed.
