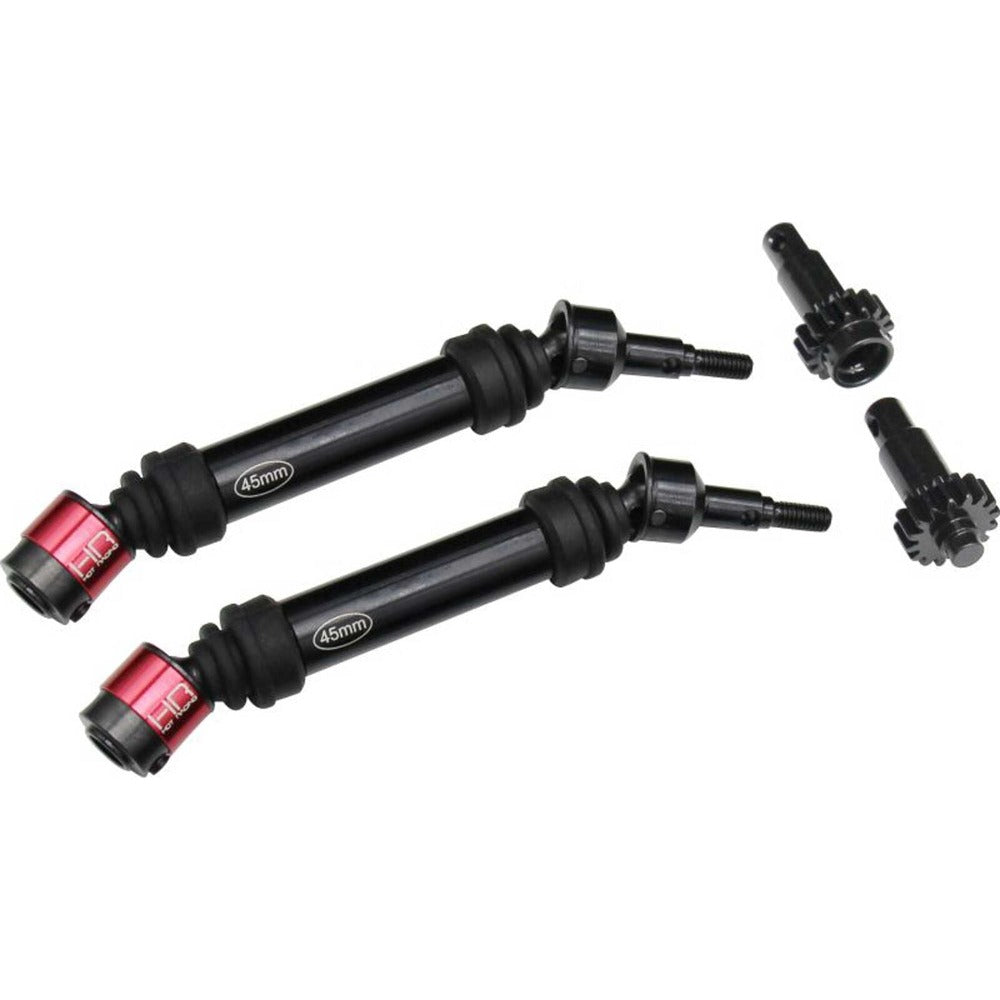

Hot-Racing CV Splined Driveshaft Set (Front or Rear)

$68.99

Hot-Racing CV Splined Driveshaft Set (Front or Rear)

Hot Racing optional upgrade heavy-duty splined star drive axle kit for 1/10 ARRMA 4X4 vehicles. See compatibility section and notes below for specific vehicle information.

FEATURES:
  • Replaces stock diff outdrives and factory plastic drive axles
  • CNC machined and hardened S2 spring steel wheel axle stubs
  • CNC machined and hardened #45 steel outdrives drive hubs, and 45mm slider spline
  • Hard anodized black aluminum 45mm slider
  • Red anodized aluminum pin capture rings with rubber o-rings to prevent movement
  • Rubber dust boot to retain lubrication and help protect slider against elements
  • Fits front or rear



COMPATIBILITY:

  • Big Rock 4X4 3S BLX (NOT the V3)
  • Granite 4X4
  • Granite 4X4 3S BLX
  • Senton 4X4
  • Senton 4X4 3S BLX
  • Typhon 4X4 3S BLX: AR102696 (optional - requires Hot Racing ATF117XT02 17mm hubs. Will NOT work with stock 17mm hubs!)


INSTRUCTIONS:
  1. Disassemble AR310872 and replace AR310775 with Hot Racing Outdrive.
  2. Install Hot Racing CV driveshafts onto Hot Racing outdrive.
  3. Add removable thread lock (blue thread-locking compound) on screws threading into metal
  4. Lightly grease CV joints and shaft slider splines help maintain their longevity


SPECIFICATIONS:
  • Part# HRAATF288RC
  • Approximate overall collapsed length: 108mm



INCLUDES:

(2) CVD Shaft Assemblies
(2) CNC Steel Output Diff Gear
(2) M4 x 2.5 x11mm Screw Shafts



NOTES:

  • Replaces stock ARRMA AR310775 diff outdrives and AR310780 front shafts, or AR310864 rear shafts
