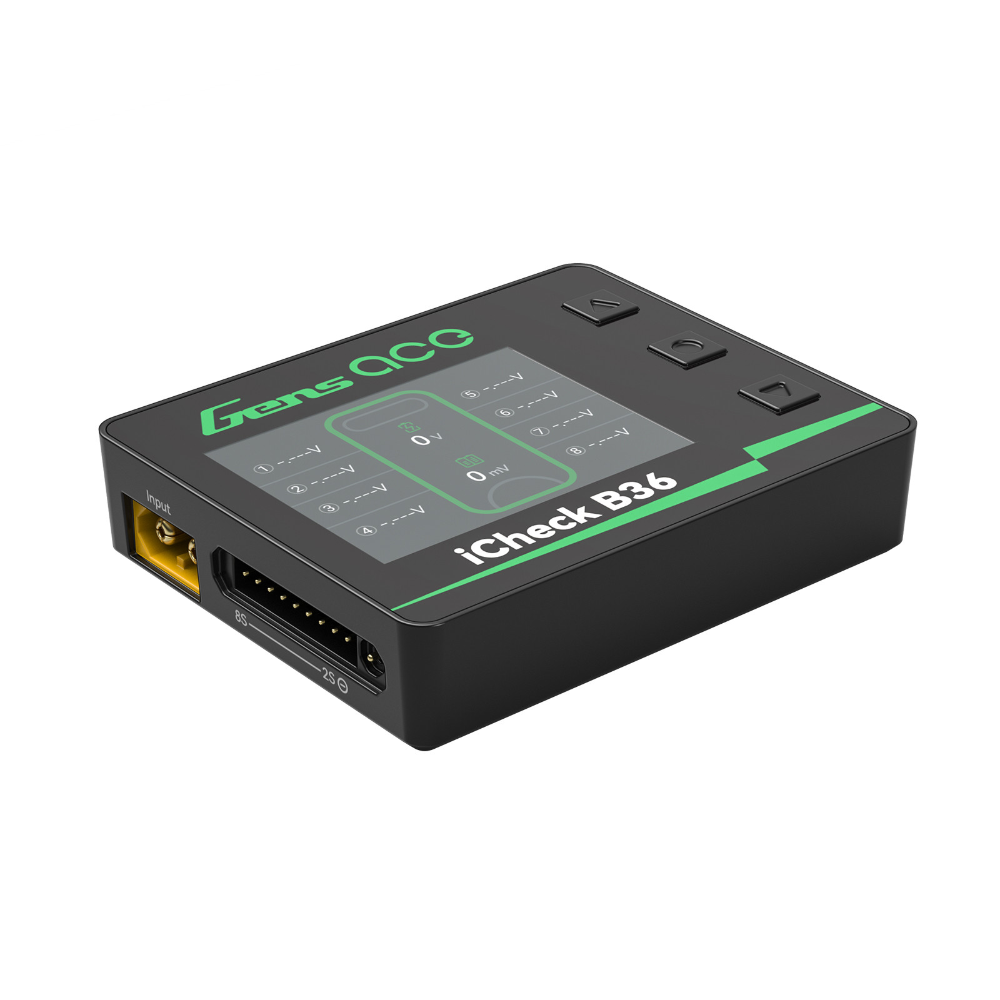

Gens Ace iCheck B36 Multi-Function Smart Battery Checker

The Gens Ace iCheck B36 is a compact smart battery checker designed for quick, accurate voltage readings on the go. Compatible with a wide range of RC LiPo, LiHV, LiFe, and NiMH packs, it provides cell‑by‑cell monitoring, total voltage, and balance status in an easy‑to‑read display. Its lightweight, pocket‑friendly design makes it a convenient tool for field checks, helping ensure your batteries are healthy, balanced, and ready for safe operation.

FEATURES:

• Real-time battery monitoring

• View detailed working parameters

• Active cell balancing

• USB charging output USB

• Built-in multi-safety protections

• Smart auto-stop

• Portable & easy one-touch operation

SPECIFICATIONS:

• Model: GEAB36
• Battery Type: LiHv/LiPo/LiFe/LiIon (1-8S)

• Operating mode: Balance discharge/USB charging

• Output power: Type-C Output Power PD30W(Max)/USB Output Power QC22.5W(Max)

• USB output current: 3A (Max)

• Balance Discharging power: 2W (Max)

• Equilibrium current: 100mA/cell

• Balancing cells accuracy: ＜0.01V

• Support USB PD Charging: PPS/PD3.0/PD2.0, PD2.0/PD3.0 output supports 5V/9V/12V/15V/20V, max 30W. QC2.0/QC3.0 output supports: 5V/9V/12V, max 22.5W

• Input interface: XT60 interface + G-Tech balance port

• Output interface: USB-A port + USB-C port, C port upgraded + PD3.0

• Display type: 2.4-inch IPS screen

• Size: Approx. 82 × 67 × 19mm

• Weight: Approx. 75g

INCLUDES:

(1) Gens Ace iCheck B36 Multi-Function Smart Battery Checker
