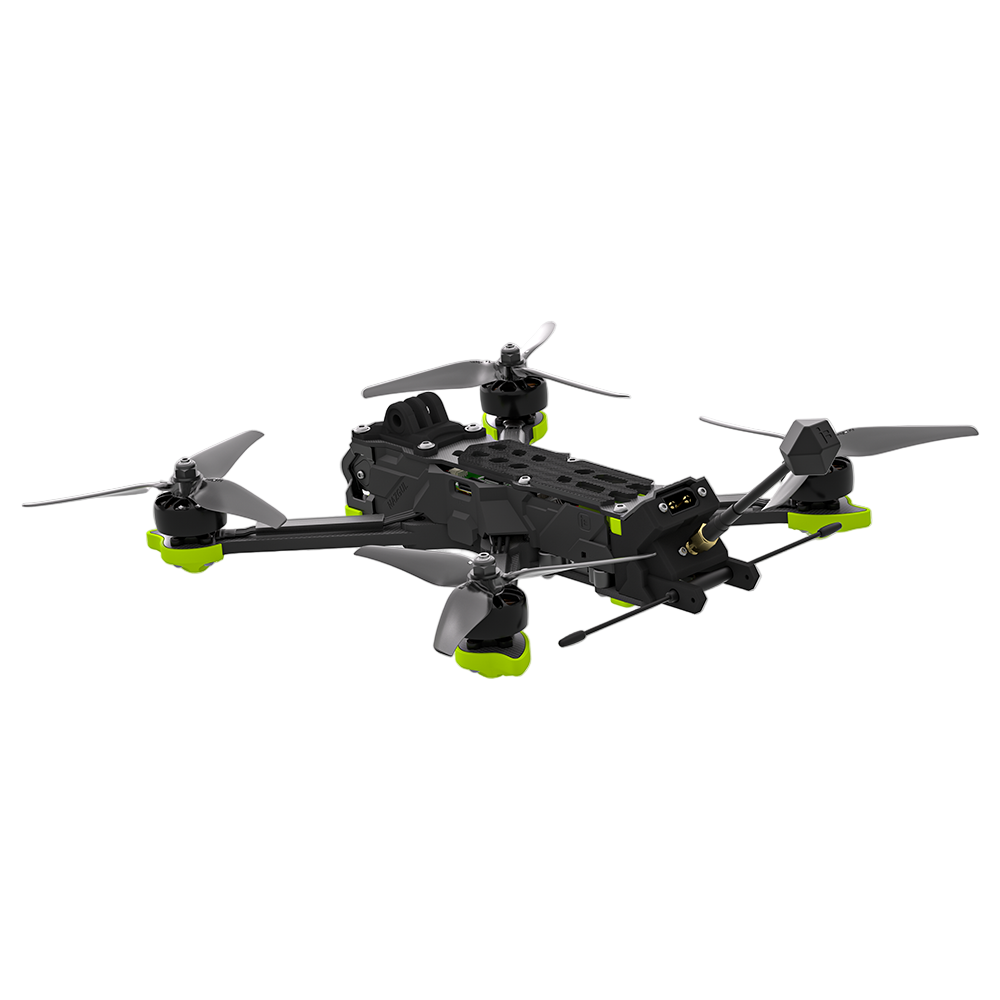

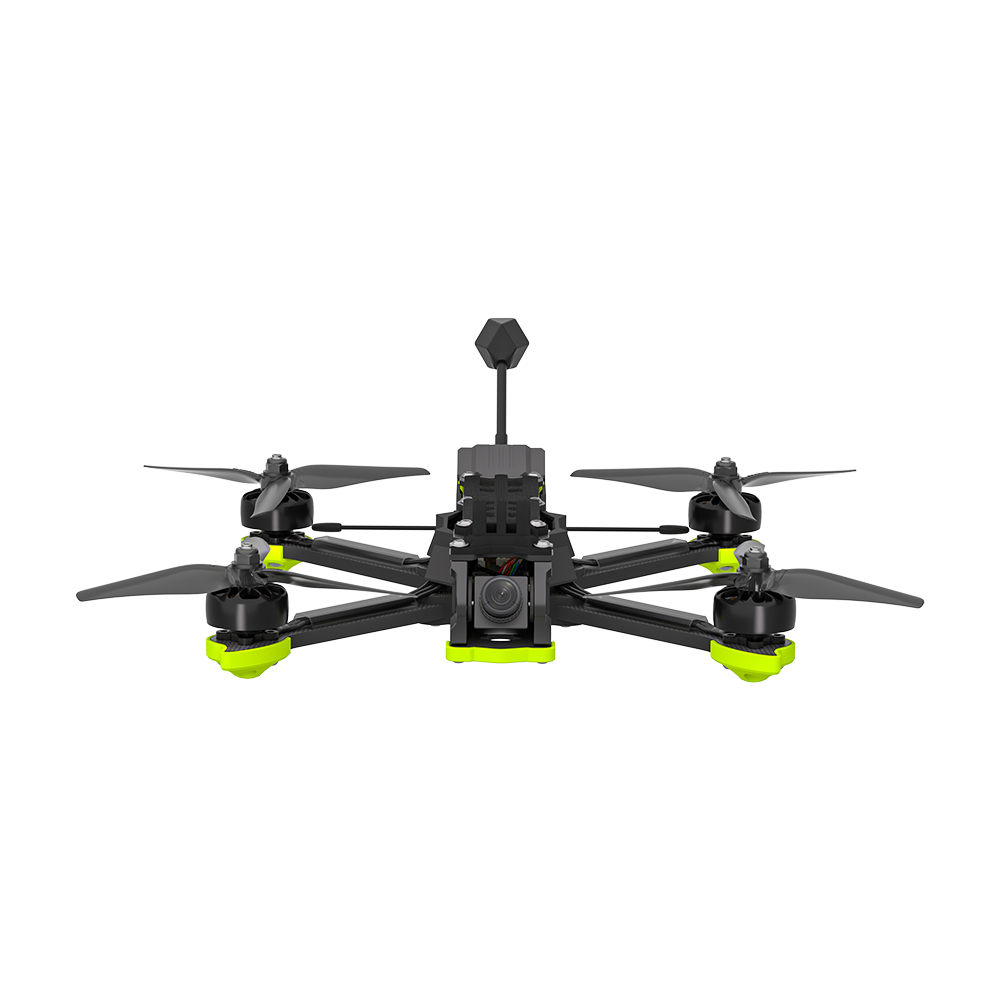

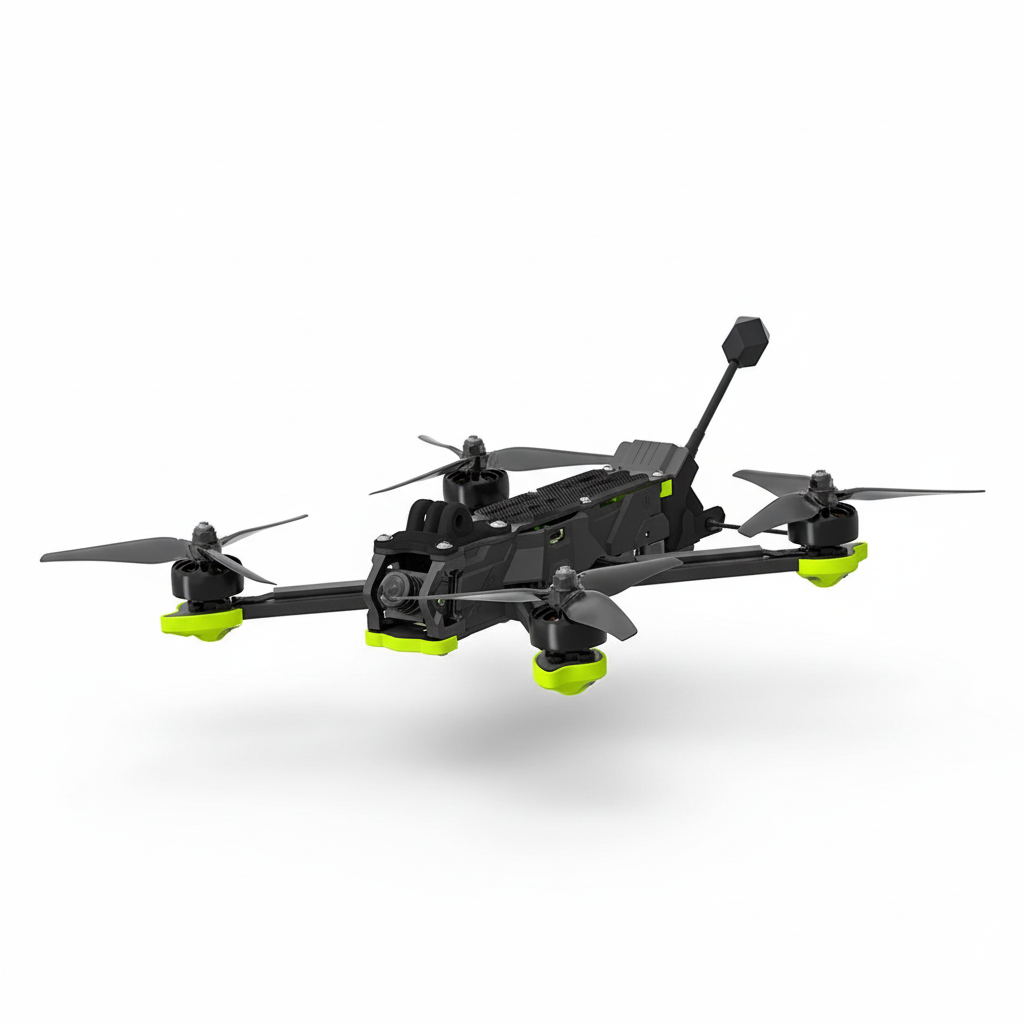

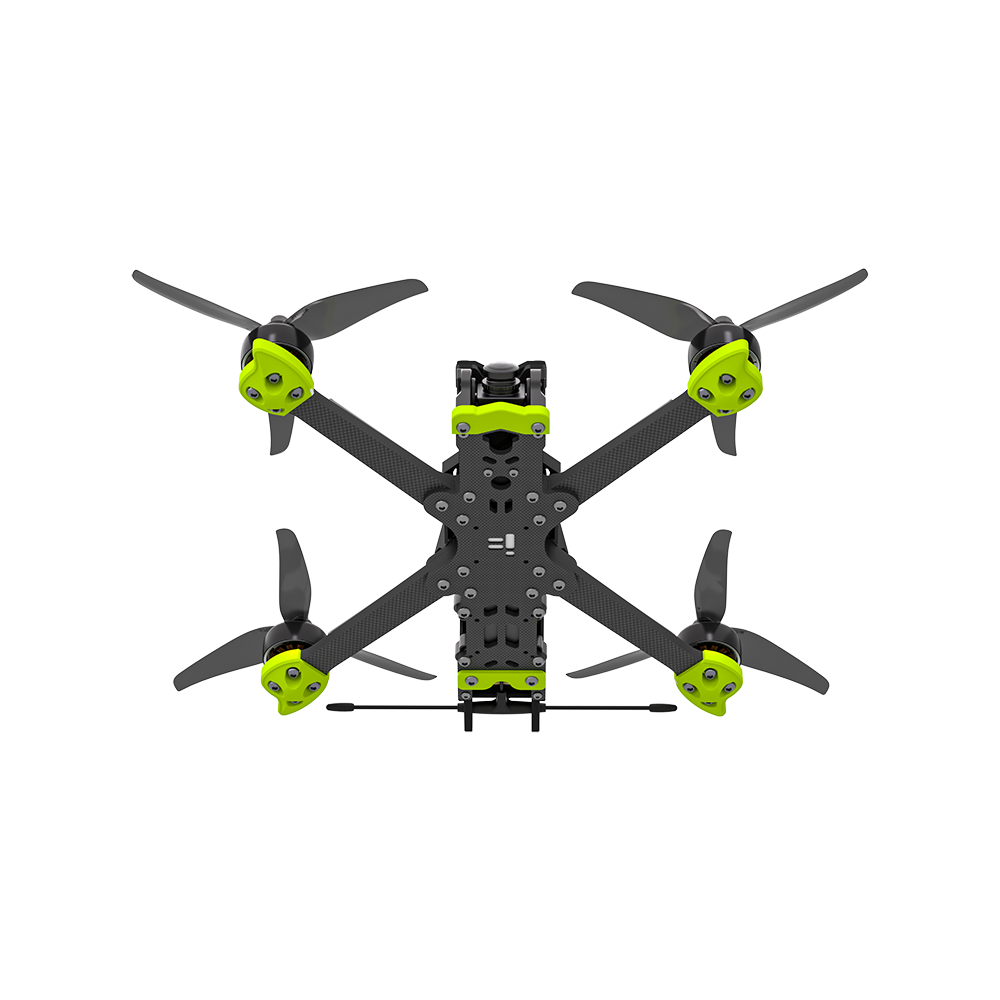

iFlight Nazgul XL5 ECO V1.1 Analog FPV Drone (BNF / ELRS / 4-6S)
iFlight Nazgul XL5 ECO V1.1 Analog FPV Drone (BNF / ELRS / 4-6S) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
iFlight Nazgul XL5 ECO V1.1 Analog FPV Drone (BNF / ELRS / 4-6S)
Introducing Nazgul XL5 ECO V1.1, the 5-inch standard Freestyle drone that redefines performance and value. Featuring an F7 flight controller, BLITZ 1.6W VTX, and BLITZ E55 2-6S 55A ESC, the Nazgul XL5 ECO delivers unparalleled performance and reliability. The carbon fiber with aluminum camera mount offers lightweight durability.
FEATURES:
- Side panels installed by default as part of product upgrade
- Lightweight and Durable: Carbon fiber + aluminum structure for strength and clear video output without propeller obstruction
- Anti-Spark Filter: Protective circuit added to XT60 connectors to prevent sparks, voltage spikes, and extend connector lifespan
- Enhanced User Experience: Built-in buzzer and receiver mount for easier maintenance and adjustments
- DIY Customized Space: Standard 20x20 and 30.5x30.5 mounting holes for compatibility with popular flight stacks and VTX systems
REQUIRED:
(1) Radio Controller w/ Correct Protocol
(1) Analog FPV Goggles
(1) 4-6S Li-Po Battery w/ XT60 Connector
(1) LiPo Charger
SPECIFICATIONS:
- Model#: F016803
- Geometry: True-X
- FC: BLITZ F7 Flight Controller
- ESC: BLITZ E55 4-IN-1 ESC
- Frame: 245mm wheelbase
- Motor: XING-E Pro 2207 1800KV motors
- Prop: Nazgul F5 propellers
- Weight: 427g
- Takeoff Weight: Approx. 652g (With 6S 1400mAh battery)
- Dimensions (L×W×H): 173×173×34±2 mm
- Diagonal Distance: 245mm
- Max Speed: 190 km/h (Manual Mode)
- Maximum Takeoff Altitude: 7000m
- Max Hover Time: Approx. 11.5 min (No Load with 6S 1550mAh Battery)
- Operating Temperature Range：-10° to 40° C (14° to 104° F)
- Antennas: Single Antenna
- GNSS: GPS+SBAS+Galileo+QZSS+Glonass(Optional)
- Video Transmission: BLITZ 5.8G 1.6W VTX
- Output Power: PIT/25mW/400mW/800mW/1600mW
INCLUDES:
(1) Nazgul XL5 ECO 6S Analog BNF ELRS v1.1
(1) 5.8GHz FPV Antenna
(1) Battery Strap
(2) Battery Pads
(2) Pairs of Nazgul F5 Propellers (CCW & CW)
(1) Set of Hardware
NOTES:
- All iFlight BNFs are tested by the manufacturer before shipment to guarantee the highest quality. If you still encounter a problem after receiving your shipment, please immediately contact iFlight's customer support at www.iflightrc.freshdesk.com.
