SKU: 190021061804

DJI O3 Air Unit Digital Kit

$229.99 $249.99

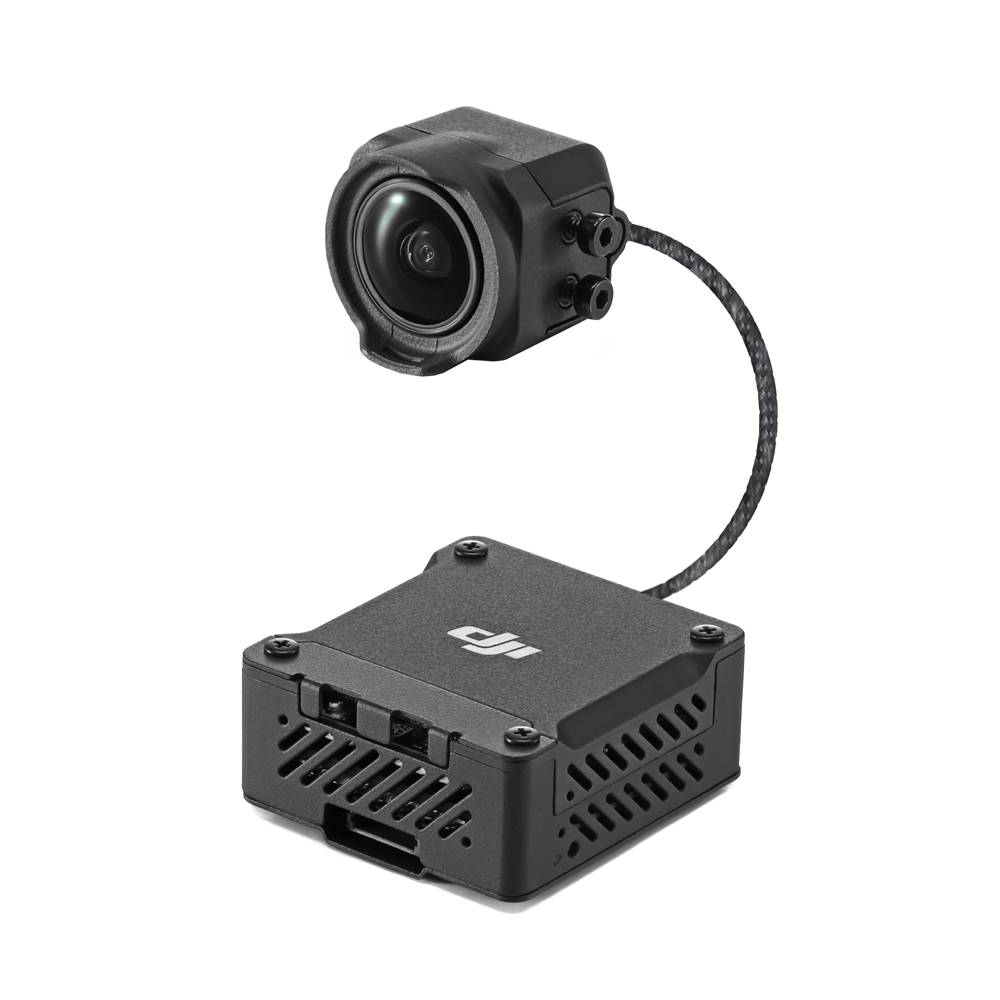

DJI O3 Air Unit Digital Kit

Integrating DJI's cutting-edge video transmission technology into a lightweight and compact body, the DJI O3 Air Unit features excellent video transmission quality with high definition, low latency, and long distances. It comes with a 1/1.7-inch sensor, a 155° super-wide FOV, and rich compatibility, providing a powerful video transmission solution for your assembled aircraft.



FEATURES:

  • Equipped with DJI O3+ Video Transmission, the DJI O3 Air Unit provides a host of powerful video transmission capabilities.
  • The DJI O3 Air Unit features a video transmission resolution of up to 1080p, while maintaining a high frame rate of 100 fps.
  • Supports the H.265 video coding format, presenting additional clarity and smoothness in your live view.
  • Fly farther and explore more with the DJI O3 Air Unit's extended 10km transmission range. It can even automatically select the frequency band to use the optimal signal, and it delivers excellent anti-interference performance.



COMPATIBILITY:

  • DJI Goggles 2
  • DJI FPV Goggles V2 (w/ New Firmware)
  • DJI FPV Remote Controller 2



SPECIFICATIONS:

Camera:

  • Sensor: 1/1.7-inch CMOS
  • Effective Pixels: 48MP
  • Lens FOV: 155°
  • Equivalent Focal Length: 12.7mm
  • Focal Length: 2.34mm
  • Aperture: f/2.8
  • Focus Mode: FF
  • Focus Range: 0.6m to ∞
  • ISO Range: 100-6400 (Auto) / 100-25600 (Manual)
  • Shutter: Rolling Shutter
  • Video Resolution (DJI Goggles 2):
    • 4K@50/60fps
    • 2.7K@50/60/100fps
    • 1080p@50/60/100fps
  • Video Resolution (DJI Goggles V2):
    • 4K@50/60fps
    • 2.7K@50/60/100/120fps
    • 1080p@50/60/100/120fps
  • Video Format: MP4
  • EIS: Supports RockSteady
  • Weight: Approx. 8.3g



Air Unit:

  • Weight: Air Unit (camera module included): Approx. 36.4g
  • Transmission Module Dimensions: 2.5×30.5×14.5mm
  • Camera Module Dimensions: 21.2×20×19.5mm
  • Coaxial Cable Length: 115mm
  • 3-in-1 Cable Length: 100mm
  • Antenna Length: 85mm
  • Communication Frequency: 2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
  • Transmission Power (EIRP):
    • FCC: < 33 dBm
    • CE: < 14 dBm
    • SRRC: < 30 dBm
  • Max Video Transmission Range: 10km (FCC), 2km (CE), 6km (SRRC)
  • Supported Flight Control System: Betaflight 4.3.0 and higher versions
  • Input Voltage: 7.4-26.4V
  • Operating Temperature: -10º to 40º C (14° to 104° F)
  • Channels:
    • Supports auto mode
    • Supports manual mode: 40 MHz: 1 channel; 20 MHz: 3 channels; 10 MHz: 3 channels
  • Supported SD Cards: microSD (up to 256GB)



HELPFUL LINKS:

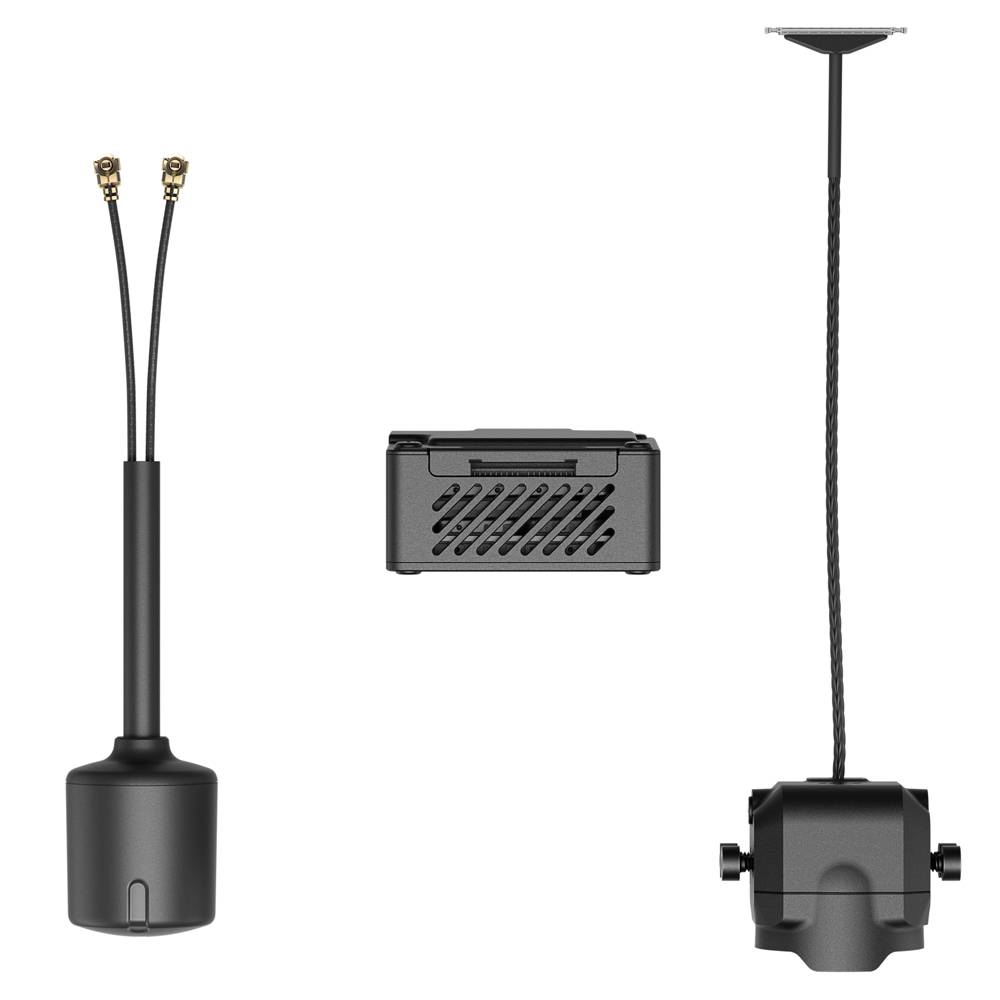

INCLUDES:

(1) DJI O3 Air Unit Camera Module
(1) DJI O3 Air Unit Transmission Module
(1) DJI O3 Air Unit Antenna
(1) DJI O3 Air Unit 3-in-1 Cable
