DJI 04 Air Unit FPV Digital Kit

The DJI O4 Air Unit is a cutting-edge digital video transmission system designed for FPV enthusiasts. It features a 1/2-inch image sensor, capable of capturing 4K/60fps video. The unit offers ultra-low latency, reaching as low as 15 ms, and a maximum transmission range of 15 km, ensuring smooth and responsive controls. With advanced features like RockSteady stabilization, 10-bit D-Log M color mode, and compatibility with DJI Goggles and FPV remote controllers, it provides a superior FPV flight experience.

FEATURES:

• Transmission: Ultra-low latency, up to 15 km range, stable frequency selection
• Video Quality: 4K/60fps recording, H.265 encoding, 1080p/100fps transmission
• Racing Mode: 15 ms latency, supports up to eight simultaneous aircraft.
• Imaging: 1/2-inch sensor (O4 Air Unit)
• Light Control: Compatible with DJI Avata 2 ND Filter Set, balanced exposure in bright conditions
• Customization: Canvas Mode, Betaflight OSD settings, customizable data display

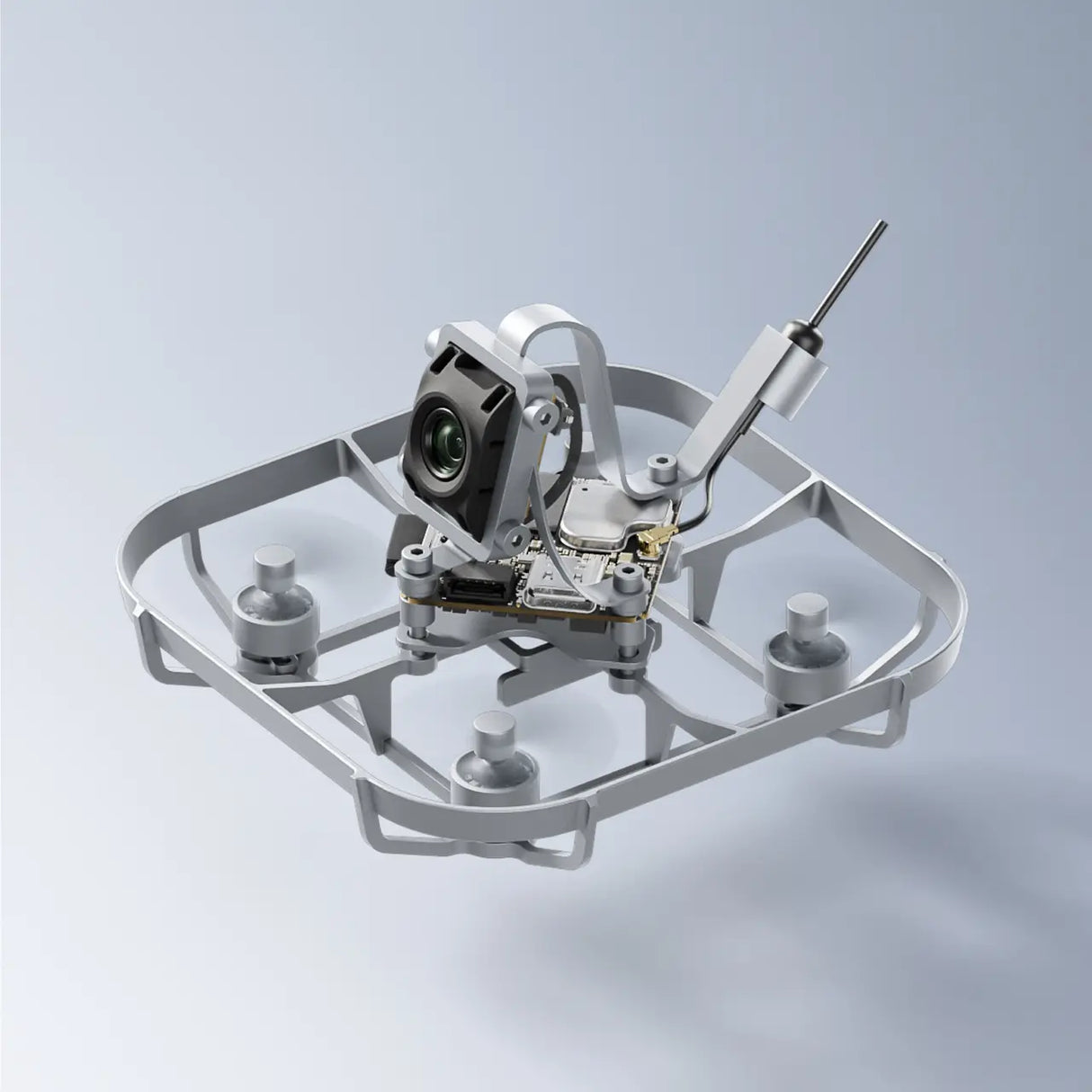

• Design: Lightweight, fits 2-inch drone frames, flexible assembly for various scenarios

COMPATIBILITY:

Adaptation Plan 1 w/ DJI FPV Remote Controller 3:

• DJI Goggles 3
• DJI Goggles N3


Adaptation Plan 2 w/ DJI FPV Remote Controller 2:

• DJI Goggles 2
• DJI Goggles Integra


SPECIFICATIONS:

• Input Voltage: 3.8-13.2 V
• Weight: Air Unit (including camera module): Approx. 8.2 g* (9.2 g with lens mount) Antenna: Approx. 0.75 g
• Dimensions: Transmission Module: 30×30×6 mm / Camera Module: 13.44×12.36×16.50 mm / Coaxial Cable: 50 mm / 3-in-1 Cable: 50 mm / Antenna: 80 mm /
• Video Transmission: Operating Frequency: 5.170-5.250 GHz, 5.725-5.850 GHz
• Transmitter Power (EIRP): 5.1 GHz: <23 dBm (CE)
• 5.8 GHz: <30 dBm (FCC) / <14 dBm (CE) / <30 dBm (SRRC)
• Latency: DJI Goggles 3 (racing mode, 1080p/100fps): 20 ms / DJI Goggles N3 (racing mode, 1080p/100fps): 24 ms / DJI Goggles 2 or Goggles Integra (1080p/100fps): <35 ms
• Transmission Range: DJI Goggles 3/N3: 10 km (FCC), 6 km (CE/SRRC)
• Live View Quality: 1080P @ 30/50/60/100fps
• Communication Bandwidth: Max 60 MHz
• Antenna: 1 antenna, 1T1R
• Channels: Auto mode and manual mode / DJI Goggles 3/N3: 60 MHz (1 ch), 40 MHz (1 ch), 20 MHz (3 ch), 10 MHz (3 ch) / DJI Goggles 2/Integra: 40 MHz (1 ch), 20 MHz (3 ch), 10 MHz (3 ch)
• Image Sensor: 1/2-inch CMOS
• Lens: FOV 117.6°, 14 mm, f/2.8, Focus: 0.6 m to ∞
• ISO Range: Auto 100-6400, Manual 100-12800
• Video Resolution: 4K (4:3) 3840×2880 @ 30/50/60fps, 4K (16:9) 3840×2160 @ 30/50/60fps, 1080p (4:3) 1440×1080 @ 30/50/60/100/120fps, 1080p (16:9) 1920×1080 @ 30/50/60/100/120fps
• Video Format: MP4
• Max Bitrate: 100 Mbps
• Color Mode: Normal
• Camera FOV: Standard, Wide-Angle
• EIS: RockSteady 3.0+, Gyroflow support
• Operating Temperature: -10° to 40° C
• Storage: Built-in 23GB (No microSD support)
• Compatibility: Flight Controller: Betaflight 4.3.0 and higher

HELPFUL LINKS:

• DJI O4 Unit Manual
• Installation Guidelines (Video Series) (This link will redirect you to DJI website)
• Download Fly App (This link will redirect you to DJI website)
• DJI Assistant 2 - Consumer Drones Series (This link will redirect you to DJI website)

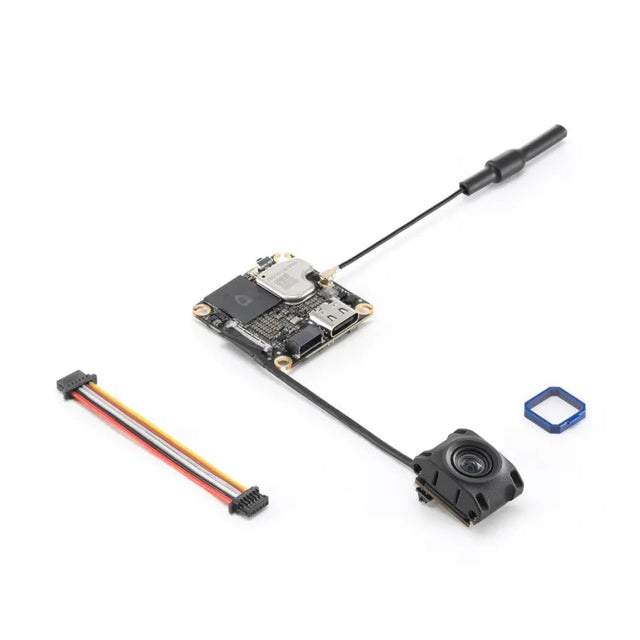

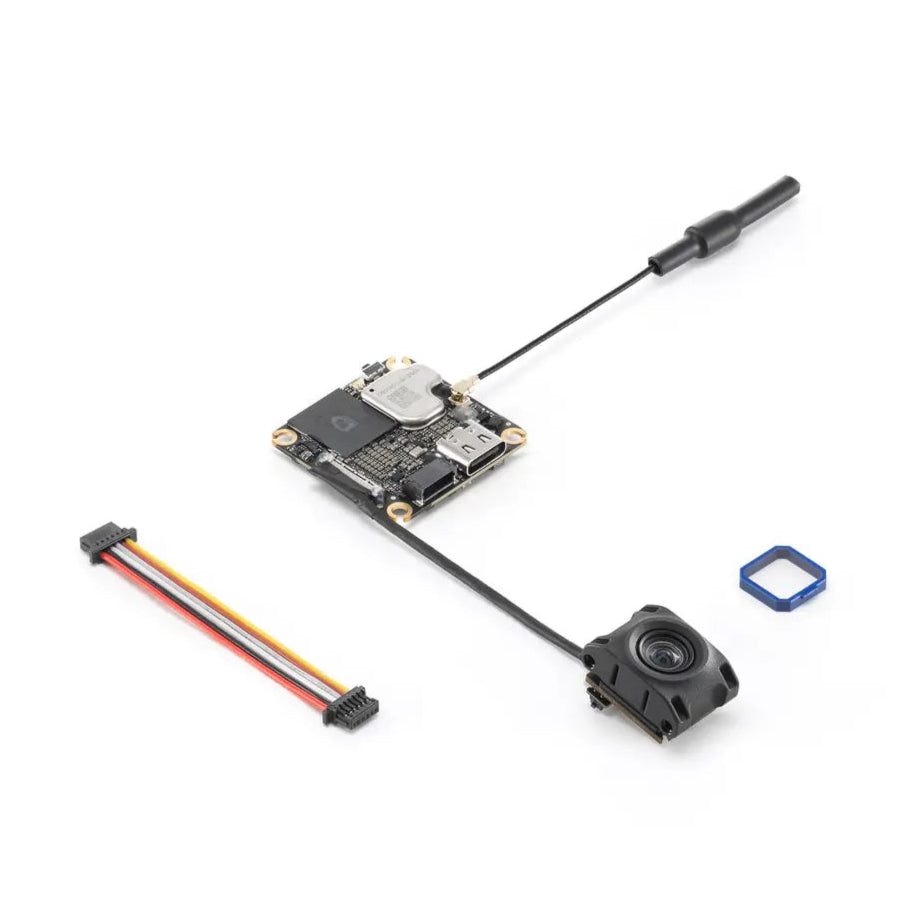

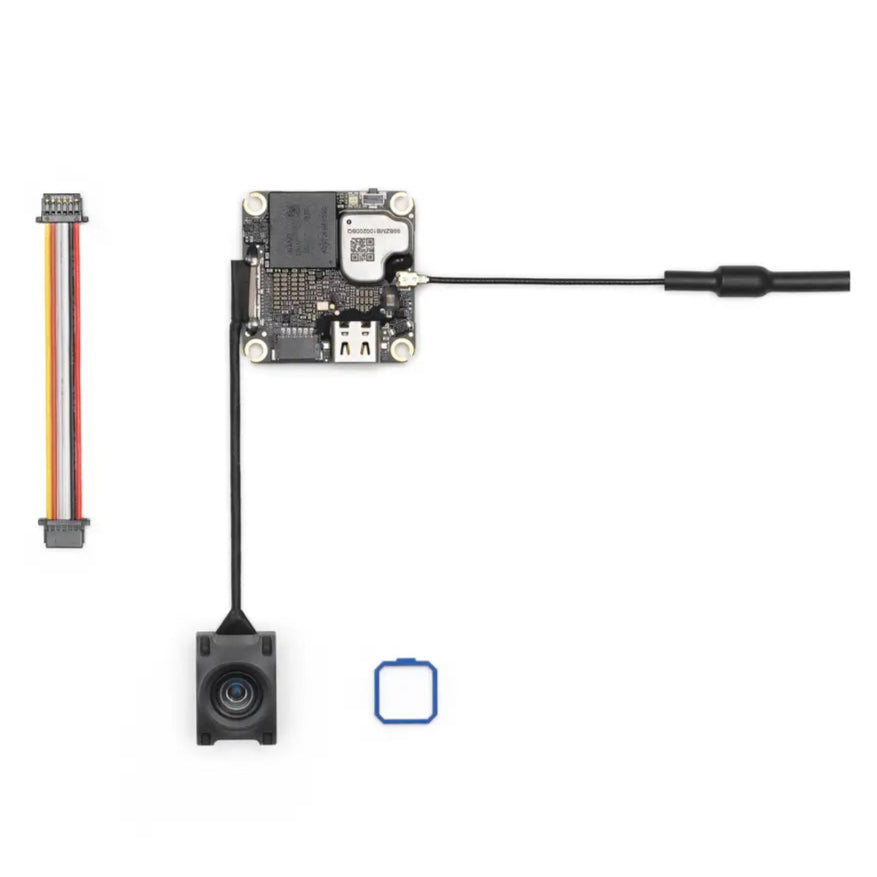

INCLUDES:

(1) DJI O4 Air Unit Camera Module w/ Adapter
(1) DJI O4 Air Unit Transmission Module
(1) DJI O4 Air Unit Antenna
(1) DJI O4 Air Unit 3-in-1 Cable
