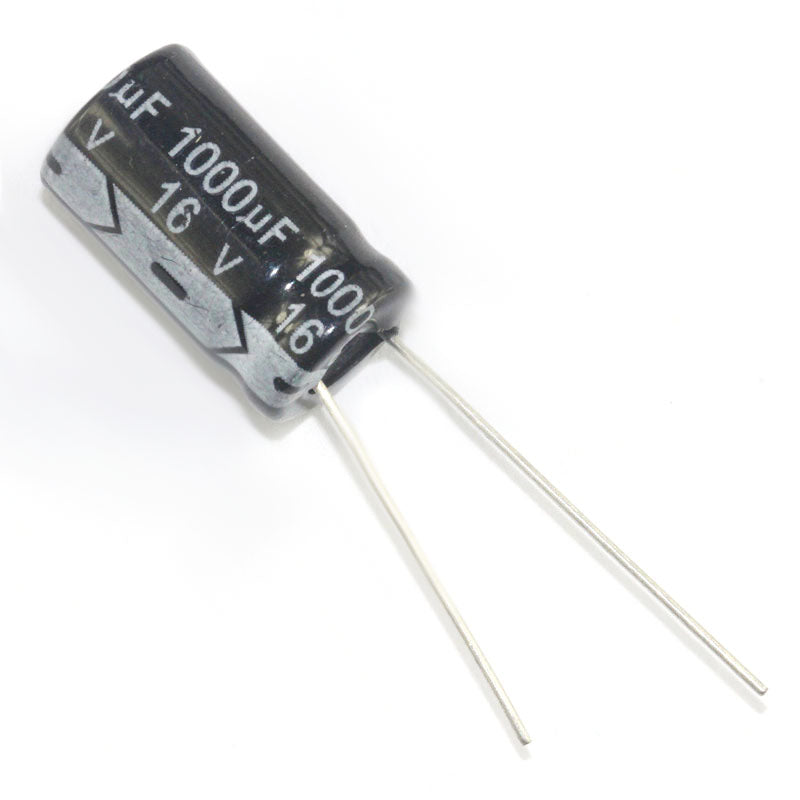

Radial Electrolytic Capacitor (Low ESR / 16V, 25V or 35V / 2pcs)

Enhance the protection of your sensitive electrical components from voltage spikes and interference by using any of these capacitors. Low‑ESR capacitors help RC vehicles by smoothing voltage spikes and reducing ripple created by brushless motors and ESC switching. This keeps the ESC cooler, protects the battery and connectors, and prevents brownouts during hard throttle punches. In short, they act like a power “shock absorber,” keeping the electrical system stable under high load. They also help clean up analog video noise when soldered to the ESC, along with your power leads.

When to Use Each Voltage Rating:

• 16V Capacitor — For 2S–3S LiPo systems (up to ~12.6V fully charged).
• 25V Capacitor — For 4S LiPo systems (up to ~16.8V fully charged).
• 35V Capacitor — For 5S–6S LiPo systems (up to ~25.2V fully charged).

SPECIFICATIONS:

• Type: Radial Lead

• Feature: High Ripple Current, Low Impedance

• Temperature Range: -40 ~ + 105 Celsius

INCLUDES:

(2) Radial Electrolytic Capacitors / Low ESR (Choose voltage & microfarad)

NOTES:

• Be careful not to solder the capacitor incorrectly. Soldering the capacitor in reverse (negative to positive, positive to negative) will burn out your capacitor or other components.
