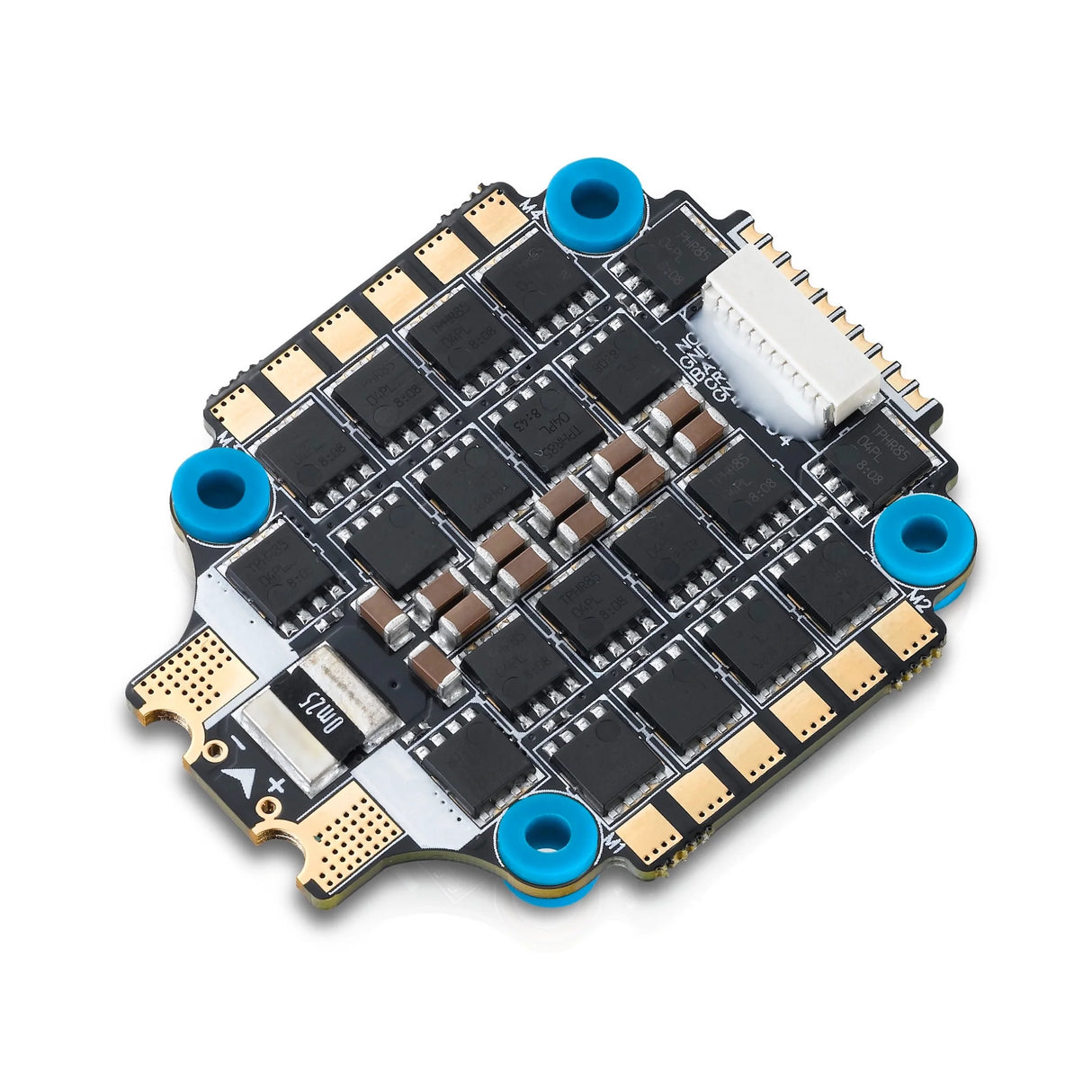

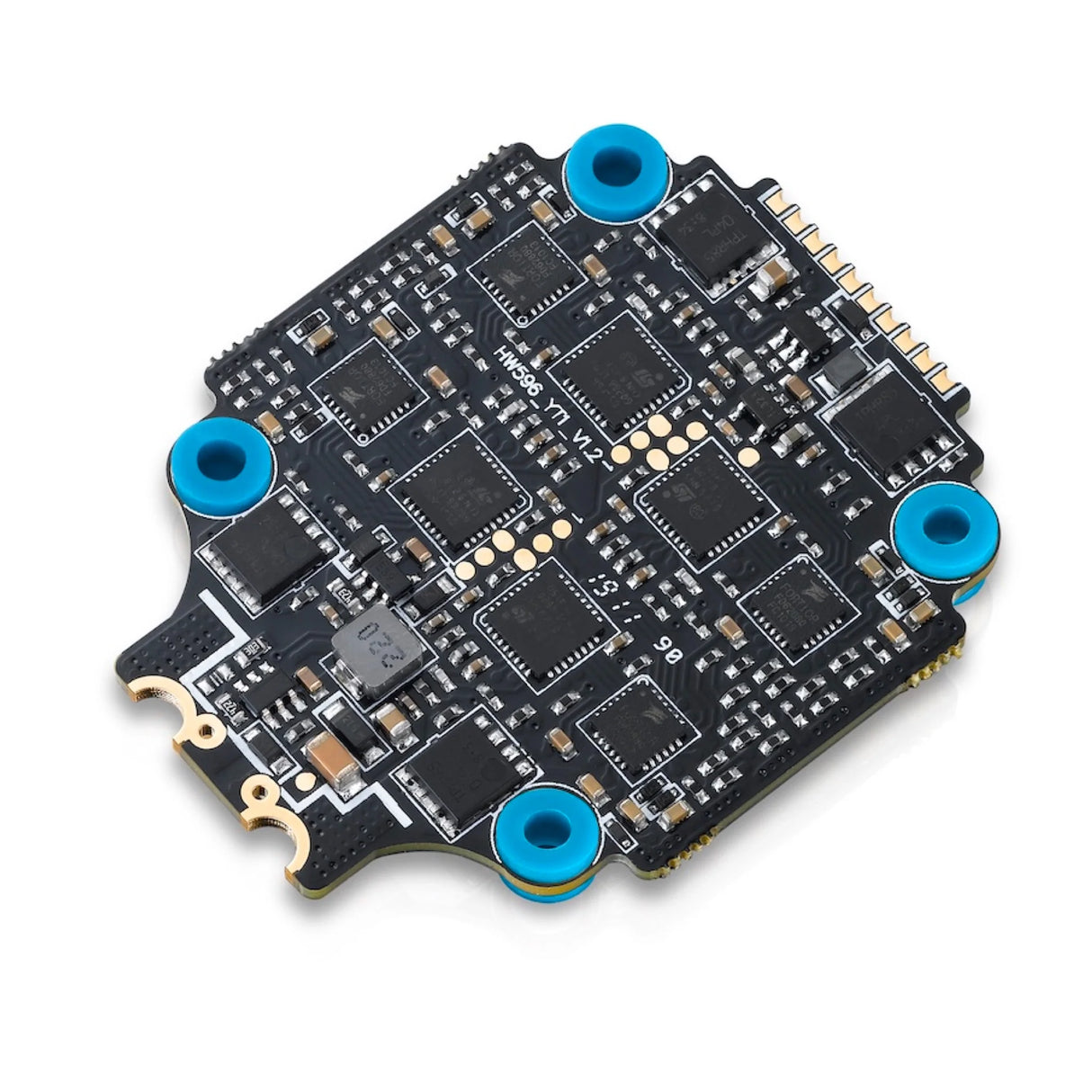

HobbyWing XRotor 65A 4-in-1 ESC (30x30 / AM32 / 3-6S)

The Hobbywing XRotor 65A ESC is a high-performance electronic speed controller designed for competitive FPV racing and freestyle drones. Built on a robust 30x30mm mounting platform, it delivers reliable current handling and precise throttle control, even under extreme flight conditions. With advanced firmware and efficient heat dissipation, this ESC ensures smooth motor response and sustained performance. Ideal for demanding builds, it pairs seamlessly with high-KV motors and supports aggressive maneuvers with stability and confidence.

FEATURES:

• High Current Handling – Supports demanding motors and aggressive flight styles

• Advanced Firmware – Delivers precise throttle response and smooth motor control

• Efficient Heat Dissipation – Designed for cooler operation under load

• Wide Voltage Support – Compatible with 3S to 6S LiPo batteries

• Reliable Signal Processing – Ensures stable performance in high-speed maneuvers

• Robust Build Quality – Engineered for durability in racing and freestyle environments

SPECIFICATIONS:

• Part#: 30902064
• Voltage Input: 3S–6S LiPo (11.1V–22.2V)
• Firmware: AM32

• Continuous Current: 65A x 4

• Burst Current: 80A (10 sec)

• Mounting Dimensions: 30.5mm × 30.5mm (standard 30x30 stack)
• Microcontroller: 32-bit MCU running up to 120MHz
• PWM Frequency: Up to 128KHz
• BEC Output: 5V@0.6A
• Signal Protocols Supported: PWM, Oneshot125 / Oneshot42, Multishot, DShot150 / DShot300 / DShot600 / DShot1200
• Motor Control Features: Damped light mode (active braking), DEO (Driving Efficiency Optimization), Sync loss prevention, Throttle range calibration, Motor direction configuration
• Beacon Function: Audible alert after idle time to help locate lost drones
• Cooling: Integrated heat dissipation design for stable performance

INCLUDES:

(1) HobbyWing XRotor 65A 4-in-1 ESC
(1) Capacitor (for voltage filtering and stability)
(1) Power lead or XT60 pigtail (varies by bundle)
(1) Mounting hardware (screws or soft mounts, depending on packaging)
(1) Signal wire set (for flight controller connection)
(1) User manual or quick-start guide

HELPFUL LINKS:

• Manual

NOTES:

• Manufacturer upgrades, alterations, and processor/firmware changes are frequently made without prior notice. Exact specifications, photos, and links cannot be guaranteed.
