SKU: 03194838

HappyModel CrossF4 / 5A / AIO Flight Controller w/ ELRS (BlHeli_S / 1-2S)

$44.99

HappyModel CrossF4 / 5A / AIO Flight Controller w/ ELRS (BlHeli_S / 1-2S)

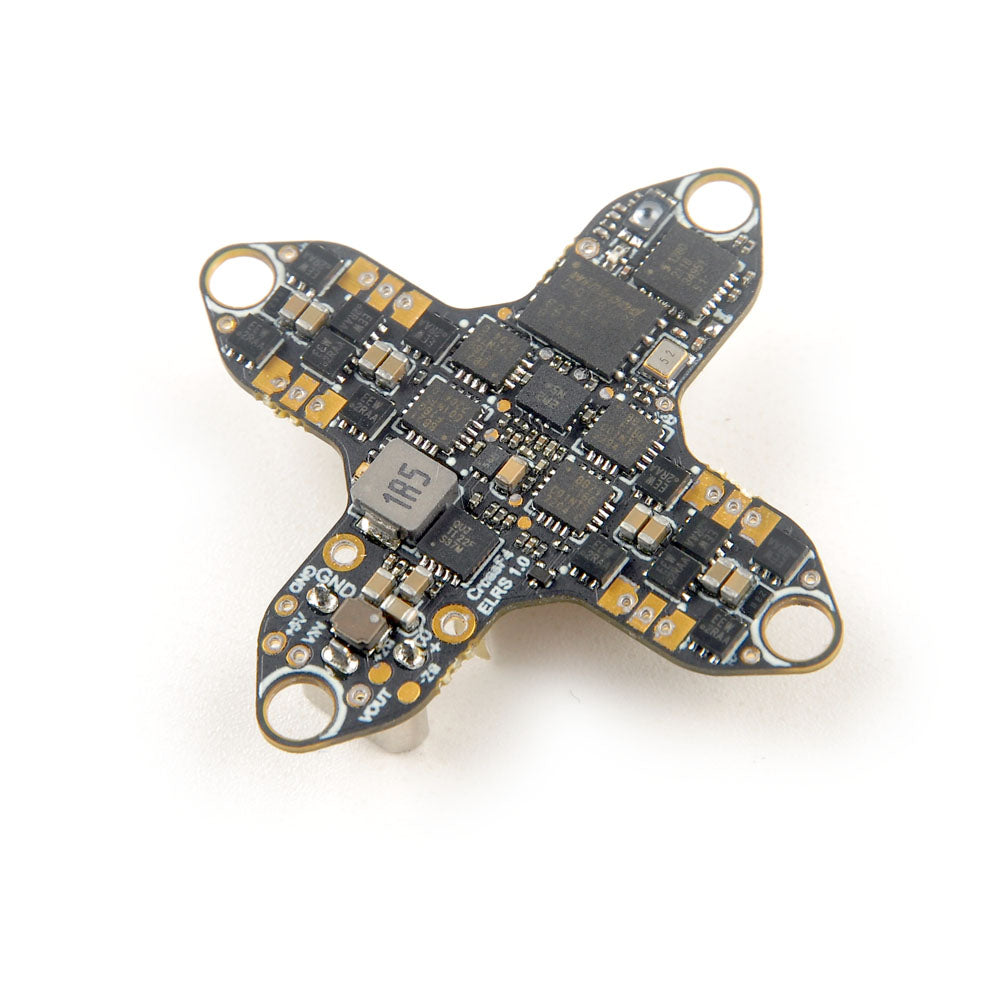

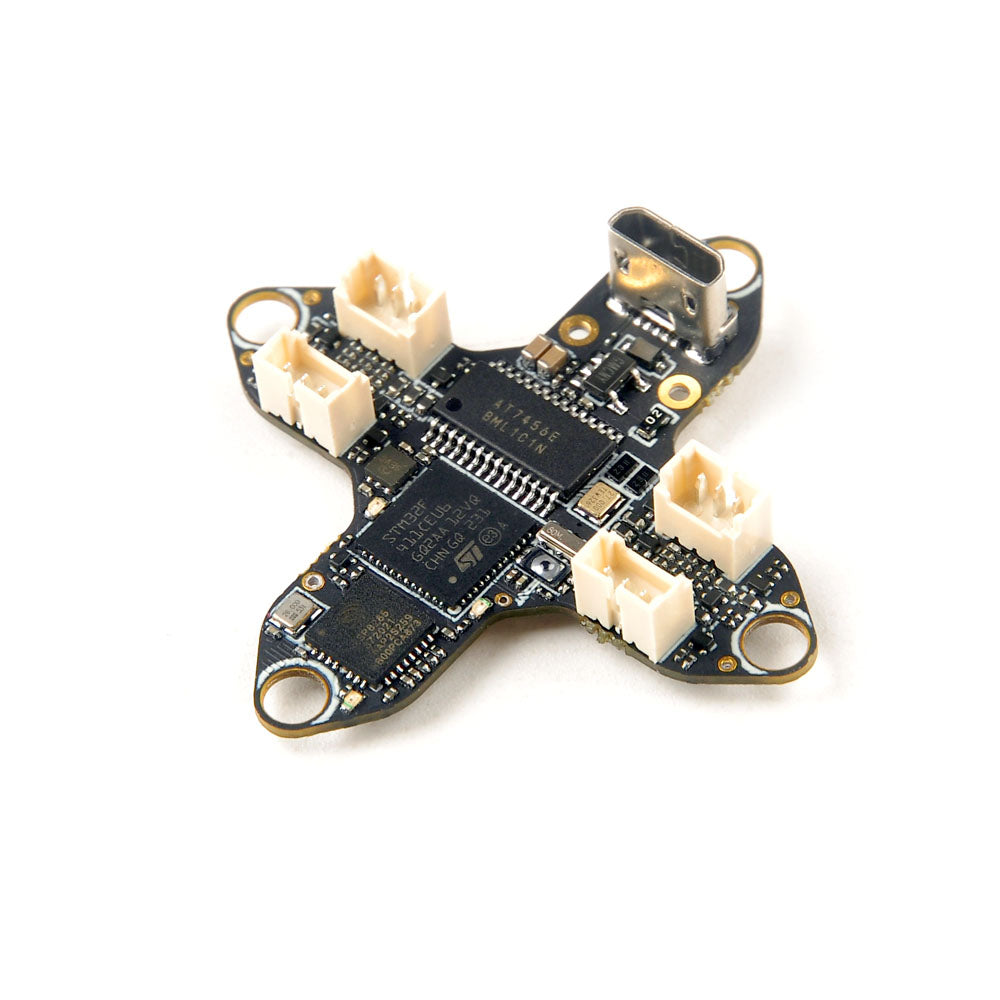

Introducing the new CrossF4 AIO flight controller. This AIO FC is built for tiny whoops, featuring an F411 FC and ELRS receiver.



FEATURES:

  • BMI270 IMU (SPI connection)
  • Serial UART ELRS V3.0 receiver
  • Built-in 5V 1A BEC
  • Pre-Soldered connectors



SPECIFICATIONS:

Flight Controller:

  • Firmware target: CRAZYBEEF4DX4.3.2
  • MCU:STM32F411CEU6 (100MHz, 512K FLASH)
  • Sensor: BMI270(SPI connection)
  • Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V)
  • Built-in 5A(each) Blheli_S 4in1 ESC Dshot300 ready
  • Built-in Betaflight OSD(SPI Control)
  • Built-in UART ExpressLRS 2.4Ghz receiver(Default firmware ExpressLRS v3.0.1)
  • Built-in 5V 1A BEC
  • Built-in voltage detection and current sensor
  • Built-in Onboard flash 16Mb for Blackbox



4-In-1 ESC:

  • MCU: EFM8BB21
  • Power supply: 1-2S LiPo/LiPo HV (2.8v~8.7v)
  • Currents: 5A continuous peak 6A (5 seconds)
  • Support BLHeliSuite programmable
  • Default Factory firmware: S_H_50_REV16_8.HEX
  • Support ESC Protocol: DSHOT150/DSHOT300/DSHOT600



ELRS Receiver:

  • Packet Rate: 25Hz/50Hz/150Hz/250Hz/500Hz
  • RF Frequency: 2.4GHz
  • Antenna: enameled copper wire 31mm length
  • Telemetry output Power: <12dBm
  • Receiver protocol: CRSF
  • Default firmware version: ExpressLRS V3.0.1
  • The same hardware with Happymodel EP1
  • Could update firmware via ExpressLRS configurator



HELPFUL LINKS:

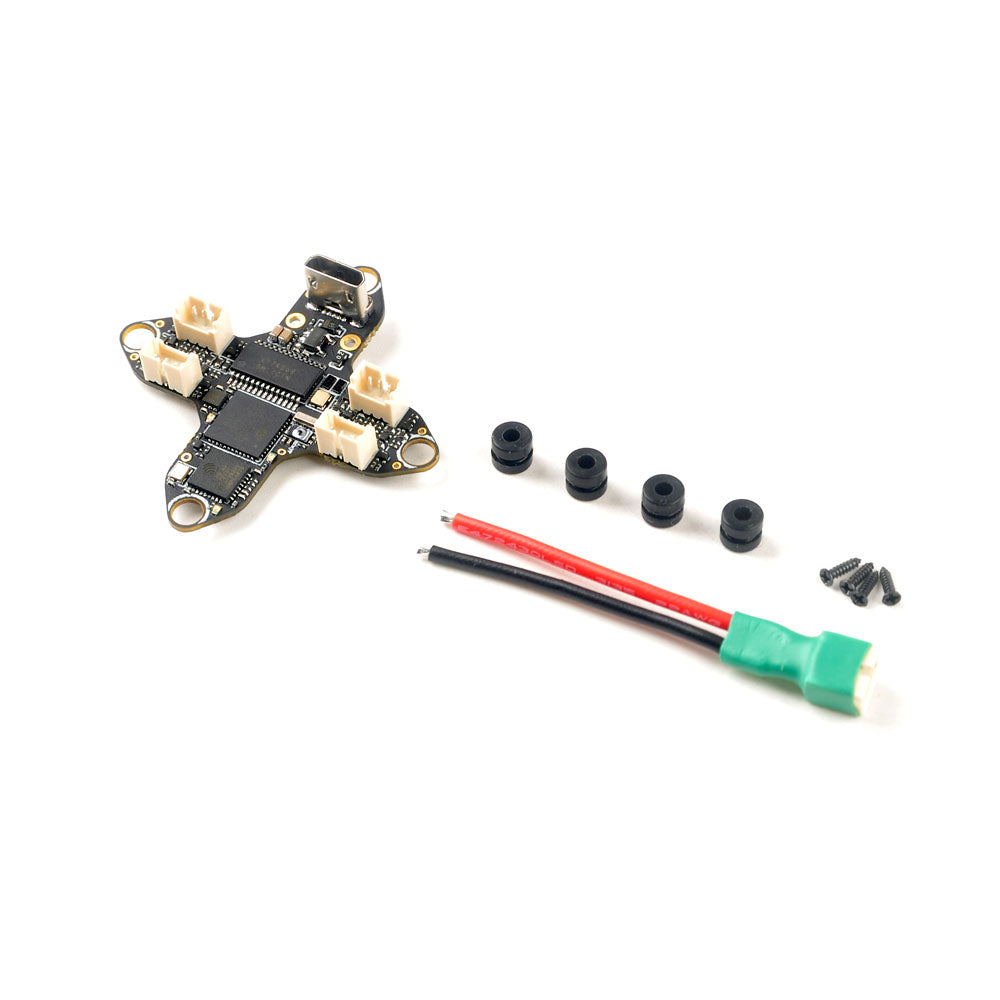

INCLUDES:

(1) HappyModel CrossF4 ELRS Flight Controller
(4) Grommets
(4) Screws
(1) Wiring Harness
