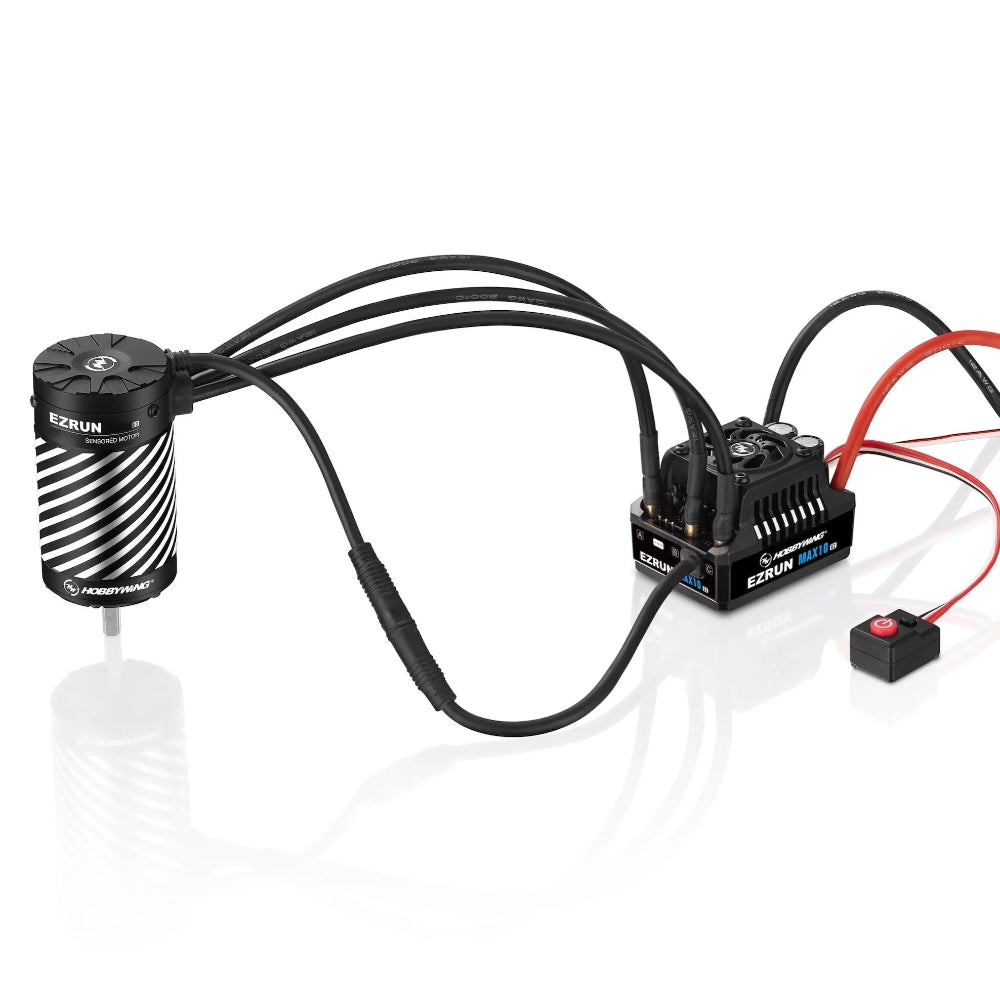

HobbyWing EZRUN MAX10 G2 Combo / 140A ESC + 3665 G3 2400Kv Motor (5mm Shaft / 3-4S / XT60)
HobbyWing EZRUN MAX10 G2 Combo / 140A ESC + 3665 G3 2400Kv Motor (5mm Shaft / 3-4S / XT60) is backordered and will ship as soon as it is back in stock.
Pickup available at RC-N-Go in S. Jacksonville, FL
Usually ready in 1 hour
HobbyWing EZRUN MAX10 G2 Combo / 140A ESC + 3665 G3 2400Kv Motor (5mm Shaft / 3-4S / XT60) is backordered and will ship as soon as it is back in stock.
HobbyWing EZRUN MAX10 G2 Combo / 140A ESC + 3665 G3 2400Kv Motor (5mm Shaft / 3-4S / XT60)
Introducing the EZRUN MAX10 motor combo. It features an improved waterproof sensor cable interface and an upgraded sensor mode to achieve a great sense of control feel, and perfectly matches the EzRun 3665 SD G3 motors.
FEATURES:
-
Supports up to 32° Turbo timing, giving up to 25% more speed with the EzRun 3665 G3 motor.
-
Smart start‑stop fan stays off until needed to reduce noise and save power.
-
74% larger capacitor bank with overheating protection for safer, more stable power delivery.
-
Smart freewheeling technology increases efficiency and lowers temps by about 25°C compared to the previous Max10.
-
Real‑time data monitoring and data logging available when paired with the OTA Bluetooth module.
-
IP67 waterproof design allows reliable use in mud, sand, snow, and water.
SPECIFICATIONS:
Combo:
- Part# 38020343
ESC:
- Part# 30102603
- Type: EZRUN MAX10 140A
- Scale: 1/10 Short course car, Truck, Monster truck
- Cont./Peak Current: 140A / 880A
- Motor Mode: Sensored and Sensorless Brushless Mode
- Input: 2-4S LiPo
- BEC Output: 6V / 7.4V adjustable, continuous current 5A (Switch-mode))
- Programming Port: Independent
- Power Connection: XT60
- ESC Programming: Same
- Switch Mode: Same
- Capacitor Protection: Yes
- Waterproof: Yes
- Size: 53 x 39.5 x 37.2mm
- Weight: 120g (with wires)
Motor:
- Part# 30402604
-
Type: EZRUN 3665 G3
- KV: 2400KV
- Input: 2-4S LiPo
- Poles: 4-Pole
- Weight: 304.5g
- Bearing Size: Front: D16 x D5 x T5 / Rear: D11 x D5 x T5
- Motor Diameter: φ=37mm
- Motor Length: 65.8mm
- Shaft Diameter: φ=5mm
- Shaft Length: 16.5mm
HELPFUL LINKS:
INCLUDES:
(1) EZRUN MAX10 G2 (140A) ESC w/ XT60 power plug
(1) EZRUN 3665 G3 Sensored 2400Kv Brushless Motor
(1) Double-Sided Tape
