Reefs RC RAW 500 BE Brushless Digital Servo (25T Spline / Steel Gears)

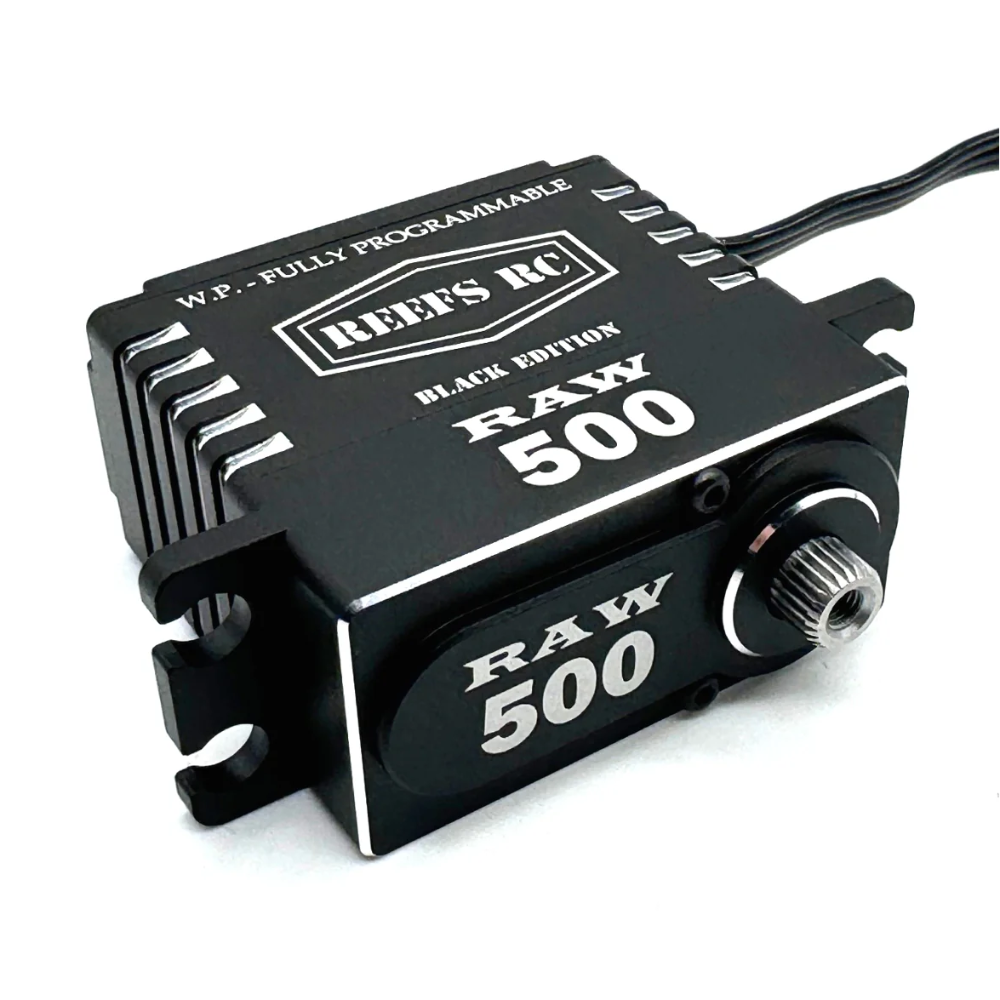

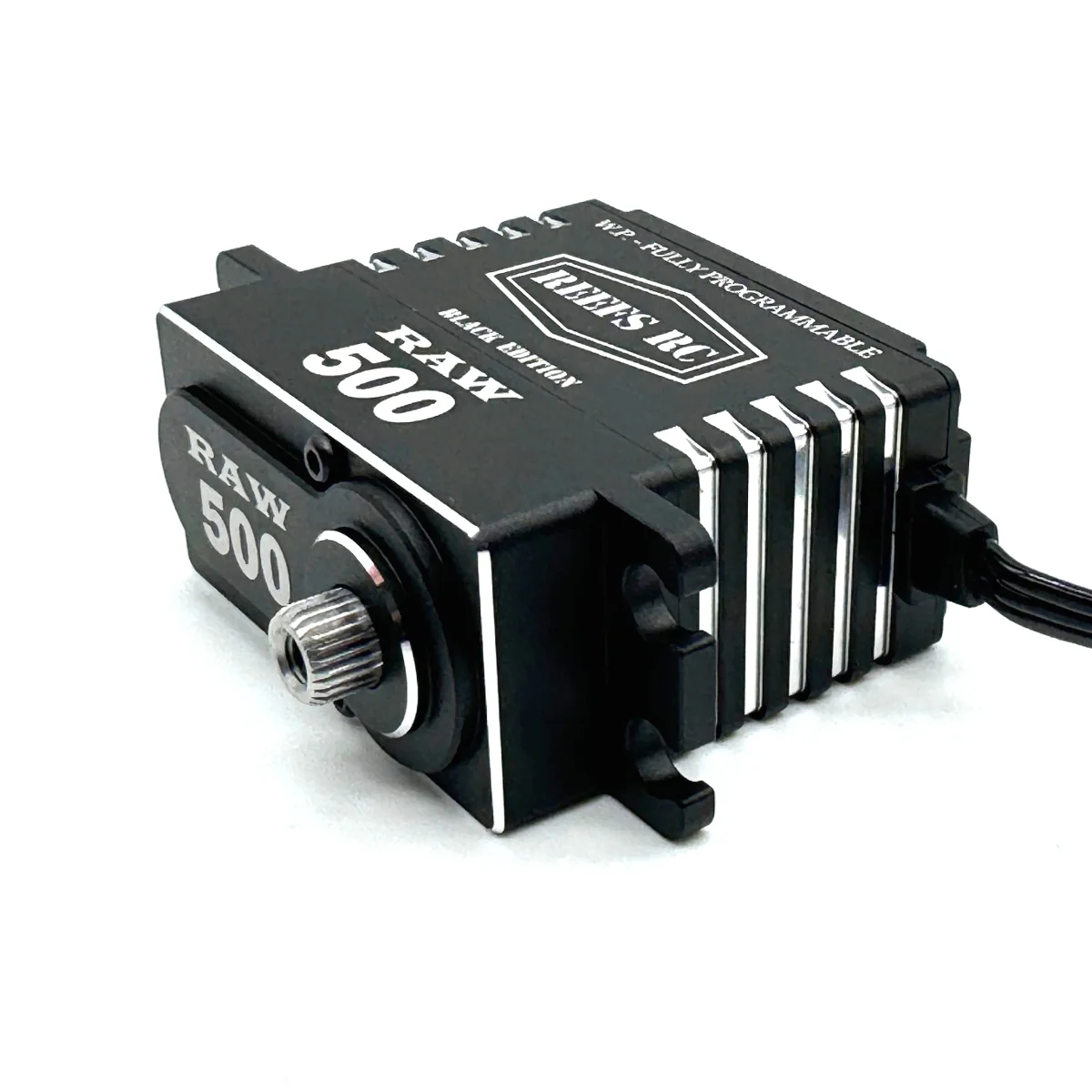

The REEFS RC RAW 500 Black Edition is a high‑torque, high‑voltage brushless servo built for extreme durability and precision control. Featuring a CNC‑machined aluminum case, steel gears, magnetic angle sensing, and full waterproofing, it delivers exceptional power and responsiveness for demanding RC applications. Designed for serious performance, the RAW 500 Heavy-Duty is a premium upgrade for drivers who need maximum strength and reliability.
FEATURES:
- High Torque High Speed Brushless Servo
- SUBMARINE WATERPROOF: 7 Point Seals
- Military Grade Construction
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- High‑voltage capable (4.8V–8.4V) with torque up to 565 oz‑in and speeds as fast as .08/s
COMPATIBILITY:
- Heavy 1/10 Scale Vehicles
- 1/8 Scale Vehicles
SPECIFICATIONS:
- Part#: SEH REEFS178
- Bearing: Dual Ball Bearing
- Gear Type: Steel
- Motor Type: High Torque High Speed Brushless Motor
- Case: CNC‑machined aluminum

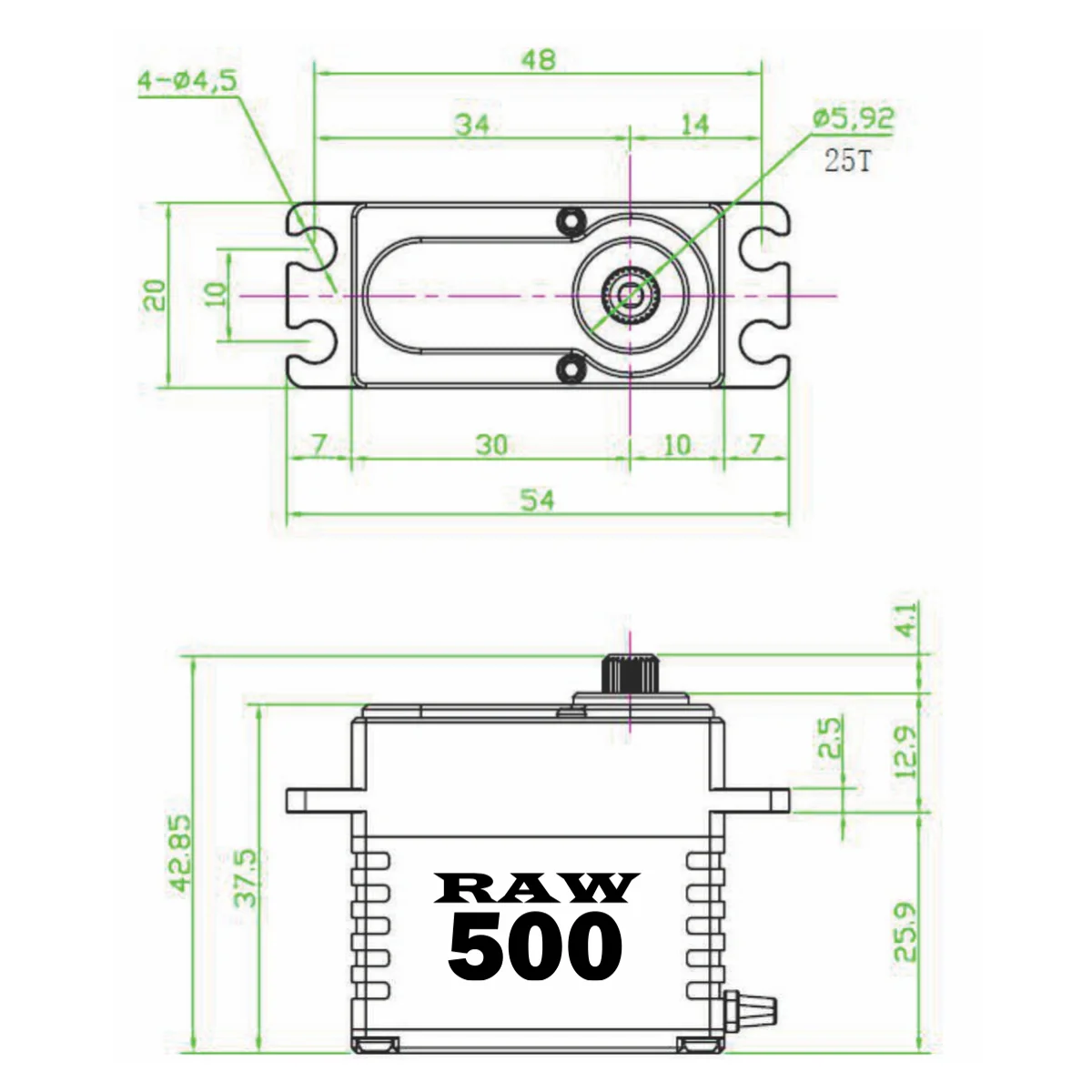

- Product Length: 1.57" (40 mm)
- Product Height: 1.5" (38 mm)
- Product Width: 0.79" (20 mm)
- Product Weight: 2.75 oz (77.96 g)
- Operating Voltage: 4.8 – 8.4V (HV)
- Spline Count: 25‑Tooth
- Torque: 450 oz‑in @ 6.0V / 500 oz‑in @ 7.4V / 565oz (40kg)@8.4v
- Speed: .12sec @6v / .10sec @7.4v / .09sec @8.4v
- Water-Resistant: Yes
- Deadband: 2µs
- BEC: Not Required (8.4v Recommended for best performance or stock ESCs)
INCLUDES:
(1) Reefs RC RAW 500 BE Brushless Digital Servo
NOTES:
- REEFS USB LINK (sold separately) required for Programming.
