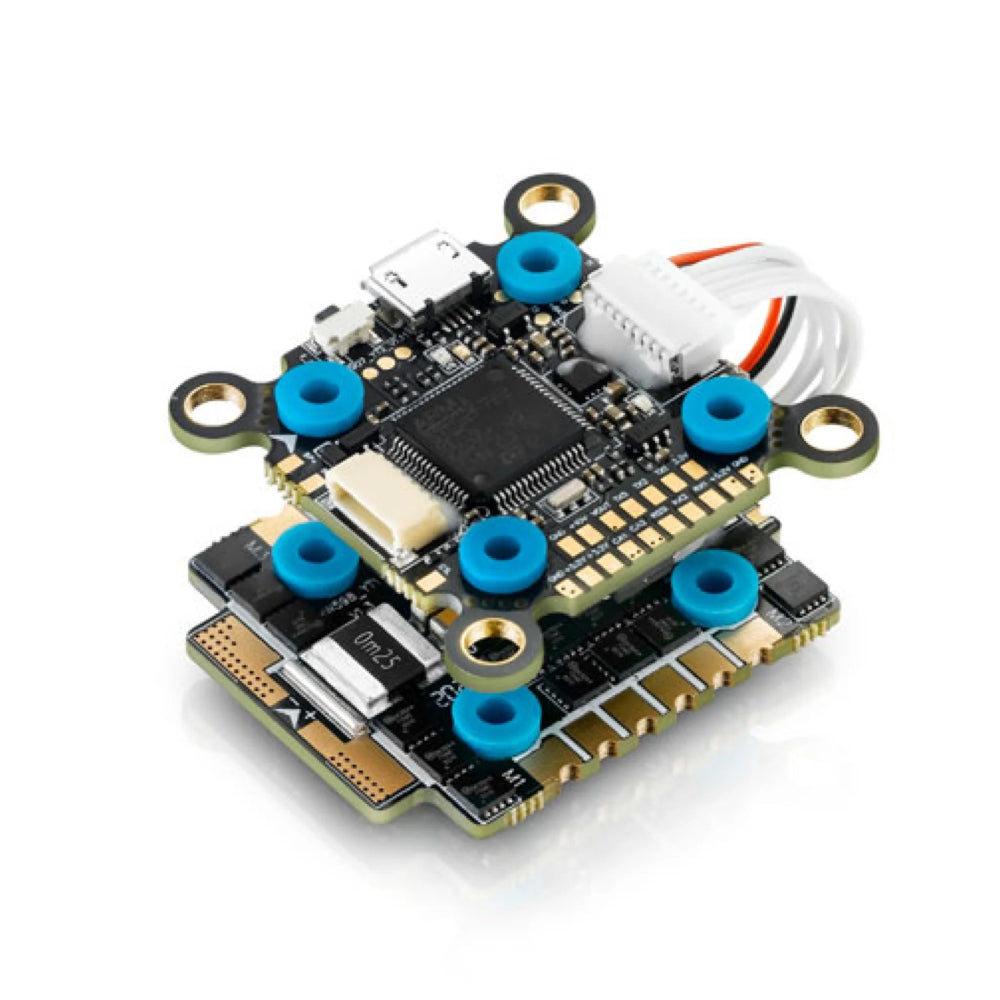

HobbyWing XRotor F7 Stack (45A / 20x20 / AM32 / 3-6S)

$129.99

HobbyWing XRotor F7 Stack (45A / 20x20 / AM32 / 3-6S)

The Hobbywing XRotor Stack (F7 Flight Controller + 45A 4-in-1 ESC) is a premium all-in-one solution built for high-performance FPV applications. Combining the powerful STM32F722 FC with a rugged 45A ESC running AM32 firmware, this stack delivers fast processing, precise control, and dependable power handling for aggressive racing and freestyle flying. With a standard 20x20mm mounting pattern, integrated OSD, RPM filtering, and support for up to 6S LiPo input, it’s engineered for pilots who demand clean wiring, tight integration, and uncompromising performance.



SPECIFICATIONS:

Stack:

  • Part#: 38040305

Flight Controller:

  • Voltage Input: 3S–6S LiPo (11.1V–22.2V)
  • Processor: STM32F722 MCU (32-bit, high-speed processing)
  • Mounting Dimensions: 20mm × 20mm (standard M3 holes)
  • Firmware Compatibility: Betaflight, INAV, and other mainstream FC firmware
  • ESC Protocols Supported: DShot150 / DShot300 / DShot600 / DShot1200, PWM, Oneshot, Multishot
  • Motor Outputs: Up to 8 outputs (supports octocopter configurations)
  • Integrated OSD: Yes (On-Screen Display for flight data)
  • Black Box Logging: Built-in flash memory for flight data recording
  • Barometer: Integrated for altitude hold and telemetry
  • UART Ports: 5 UARTs for peripherals (GPS, receiver, VTX, etc.)
  • BEC Output: 5V & 10V regulated output for powering accessories
  • LED & Buzzer Support: Dedicated pads for external indicators

ESC:

  • Voltage Input: 3S–6S LiPo (11.1V–22.2V)
  • Firmware: AM32
  • Continuous Current: 45A x 4
  • Burst Current: 60A (10 sec)
  • Mounting Dimensions: 20mm × 20mm
  • Microcontroller: 32-bit MCU running up to 120MHz
  • PWM Frequency: Up to 128KHz
  • Signal Protocols Supported: PWM, Oneshot125 / Oneshot42, Multishot, DShot150 / DShot300 / DShot600 / DShot1200


HELPFUL LINKS:



INCLUDES:

(1) HobbyWing XRotor F7 Flight Controller
(1) HobbyWing XRotor 45A 4-in-1 ESC
(1) Hardware Set



NOTES:

  • Manufacturer upgrades, alterations, and processor/firmware changes are frequently made without prior notice. Exact specifications, photos, and links cannot be guaranteed.
