DJI 04 Air Unit Pro FPV Digital Kit

The DJI O4 Air Unit Pro is a cutting-edge digital video transmission system designed for FPV enthusiasts and filmmakers. It features a 1/1.3-inch image sensor capable of recording stunning 4K/120fps video with a 155° ultra-wide field of view. The unit offers ultra-low latency, reaching as low as 15 ms, and a maximum transmission range of 15 km, ensuring smooth and responsive controls. With advanced features like RockSteady stabilization, 10-bit D-Log M color mode, and compatibility with DJI Goggles and FPV remote controllers, it provides a superior FPV flight experience.

FEATURES:

• Transmission: Ultra-low latency, up to 15 km range, stable frequency selection
• Video Quality: 4K/60fps recording, H.265 encoding, 1080p/100fps transmission
• Racing Mode: 15 ms latency, supports up to eight simultaneous aircraft
• Imaging: 1/1.3-inch sensor (O4 Air Unit Pro), 4K/120fps recording
• Light Control: Compatible with DJI Avata 2 ND Filter Set, balanced exposure in bright conditions
• Customization: Canvas Mode, Betaflight OSD settings, customizable data display


COMPATIBILITY:

Adaptation Plan 1 w/ DJI FPV Remote Controller 3:

• DJI Goggles 3
• DJI Goggles N3


Adaptation Plan 2 w/ DJI FPV Remote Controller 2:

• DJI Goggles 2
• DJI Goggles Integra


SPECIFICATIONS:

• Input Voltage: 7.4-26.4 V
• Weight: Air Unit (camera module included): Approx. 32 g / Antenna: Approx. 2.1 g/pcs
• Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H) / Camera Module: 25.55×20×23.30 mm (L×W×H) / Coaxial Cable: 140 mm / 3-in-1 Cable: 100 mm / Antenna: 110 mm
• Video Transmission: Operating Frequency: 5.170-5.250 GHz, 5.725-5.850 GHz
• Transmitter Power (EIRP): 5.1 GHz: <23 dBm (CE) / 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC)
• Lowest Latency: With DJI Goggles 3 (racing mode): 1080p/100fps: as low as 15 ms / With DJI Goggles N3 (racing mode): 1080p/100fps: as low as 19 ms / With DJI Goggles 2 or Goggles Integra: 1080p/100fps: less than 30 ms
• Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)
• Live View Quality: 1080P @ 30/48/50/60/100fps
• Communication Bandwidth: Max 60 MHz
• Antenna: 2 antennas, 2T2R
• Channels: Supports auto and manual mode / With DJI Goggles 3 or DJI Goggles N3: 60 MHz: 1 channel, 40 MHz: 1 channel, 20 MHz: 3 channels, 10 MHz: 3 channels / With DJI Goggles 2 or Goggles Integra: 40 MHz: 1 channel, 20 MHz: 3 channels, 10 MHz: 3 channels
• Channels Info: FCC/SRRC/CE: 60MHz/40 MHz: Channel 1: 5794.5 MHz 20 MHz/10 MHz, Channel 1: 5768.5 MHz, Channel 2: 5789.5 MHz, Channel 3: 5814.5 MHz
• Image Sensor: 1/1.3-inch CMOS Sensor
• Lens: FOV: 155°, Equivalent focal length: 12 mm, Aperture: f/2.8, Focus: 0.6 m to ∞
• ISO Range: 100-25600 (Auto), 100-25600 (Manual)
• Video Resolution: 4K (4:3): 3840×2880 @ 30/48/50/60fps / 4K (16:9): 3840×2160 @ 30/48/50/60/100/120fps / 2.7K (4:3): 2888×2016 @ 30/48/50/60fps / 2.7K (16:9): 2688×1512 @ 30/48/50/60/100/120fps / 1080p (4:3): 1440×1080 @ 30/48/50/60/100/120fps / 1080p (16:9): 1920×1080 @ 30/48/50/60/100/120fps
• Video Format: MP4
• Max Video Bitrate: 130 Mbps
• Color Mode: Normal Mode, D-Log M
• Camera FOV: Standard, Wide-Angle, Ultra Wide-Angle
• EIS: RockSteady 3.0+, Stabilization off (supports Gyroflow)
• Operating Temperature: -10° to 40° C
• Storage: Built-in Storage: 4GB
• Supported SD Cards: microSD (up to 512 GB)
• Supported Flight Controller System: Betaflight 4.3.0 and higher

HELPFUL LINKS:

• DJI O4 Unit Manual
• Installation Guidelines (Video Series) (This link will redirect you to DJI website)
• Download Fly App (This link will redirect you to DJI website)
• DJI Assistant 2 - Consumer Drones Series (This link will redirect you to DJI website)

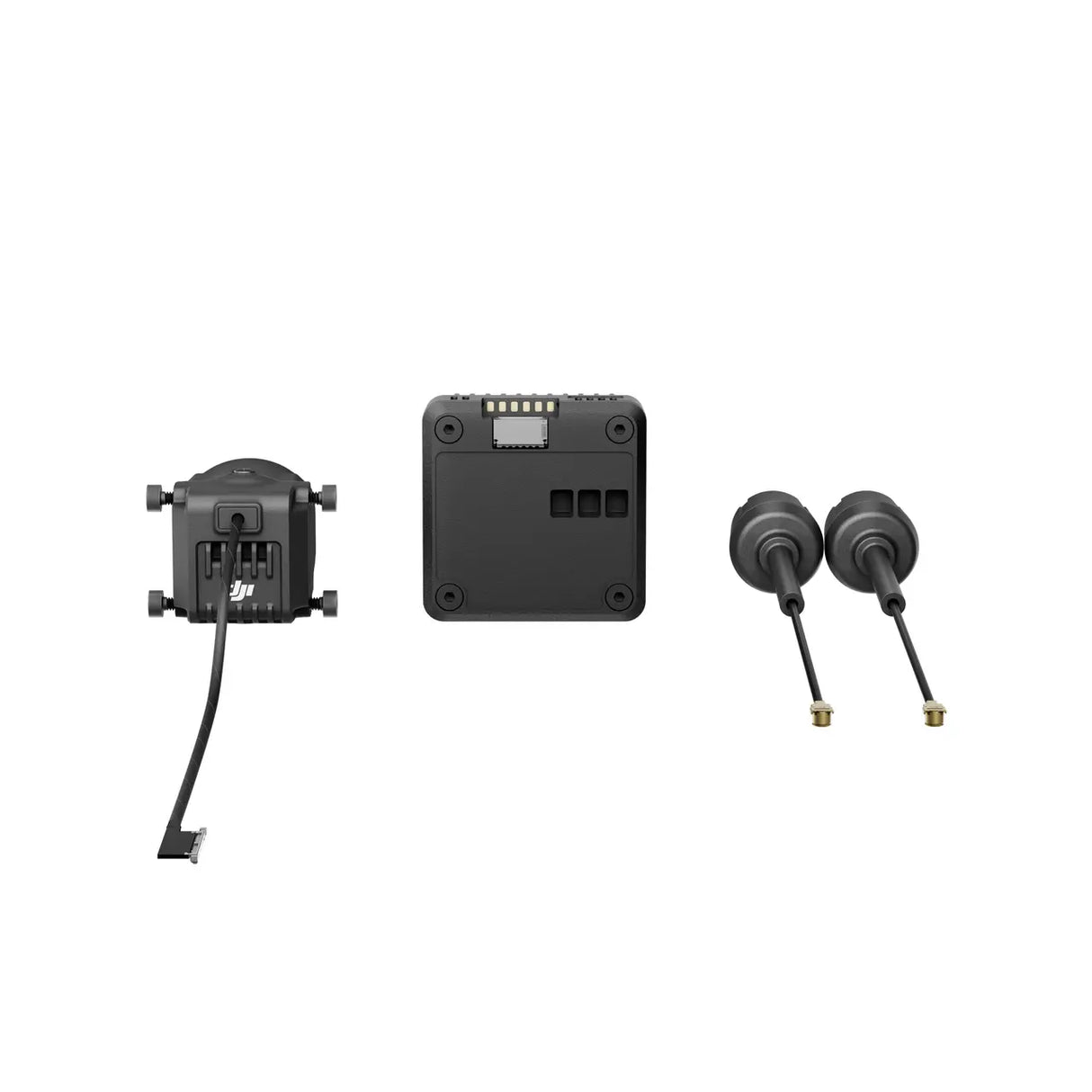

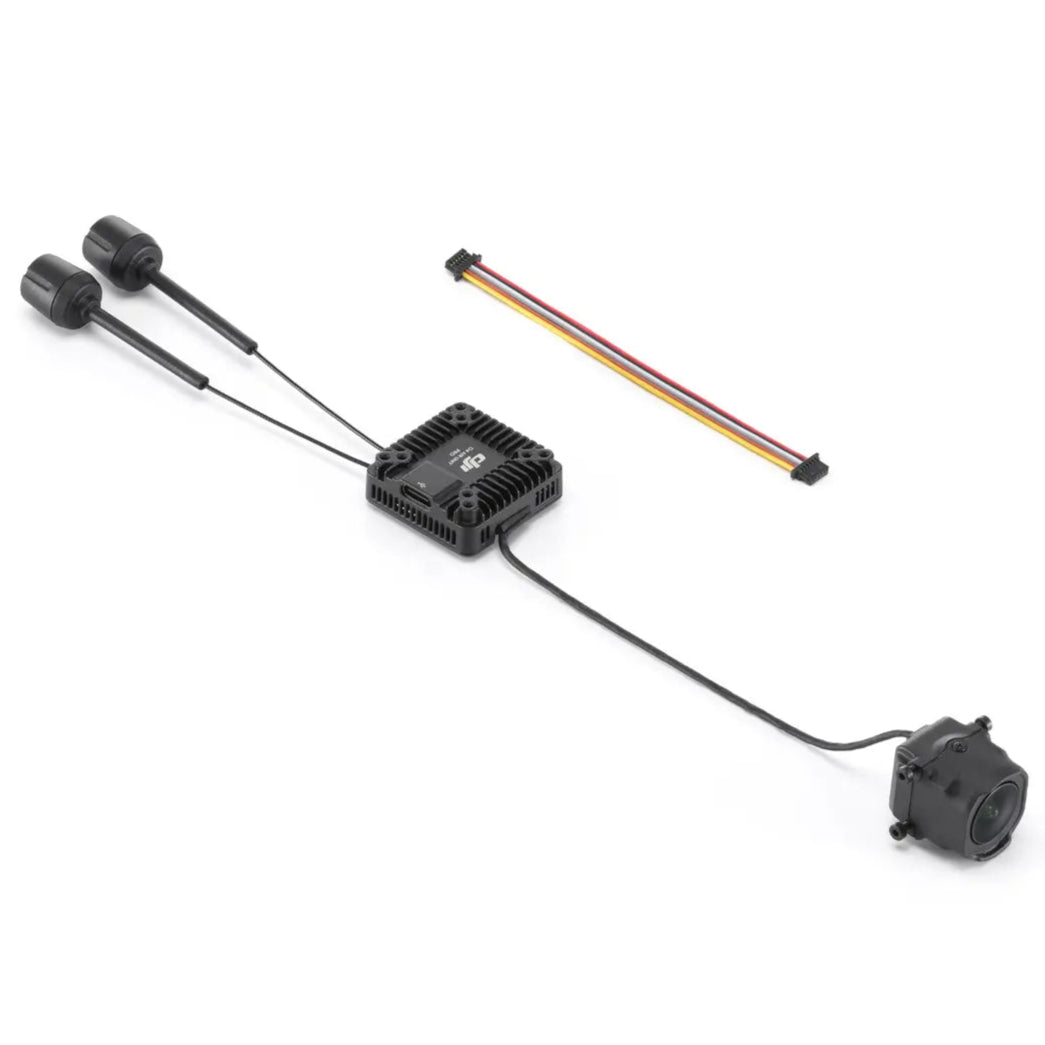

INCLUDES:

(1) DJI O4 Air Unit Pro Camera Module
(1) DJI O4 Air Unit Pro Transmission Module
(2) DJI O4 Air Unit Pro Antenna
(1) DJI O4 Air Unit 3-in-1 Cable
