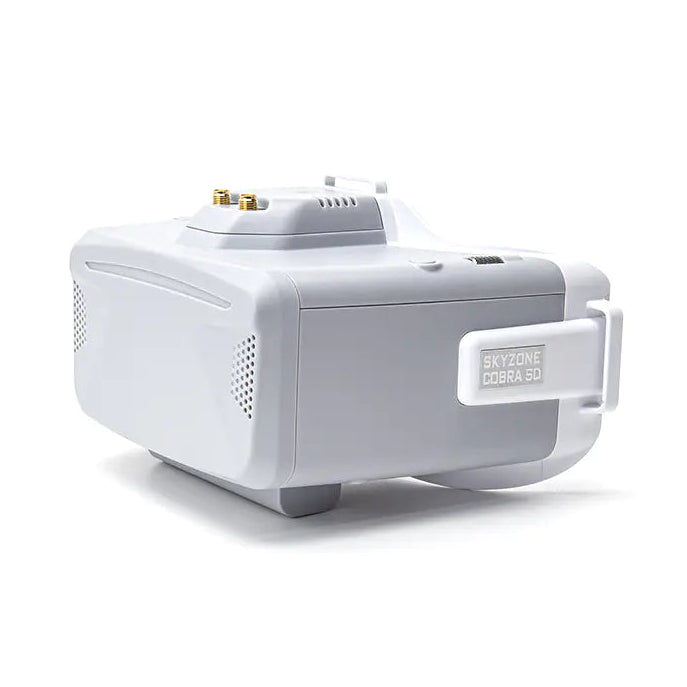

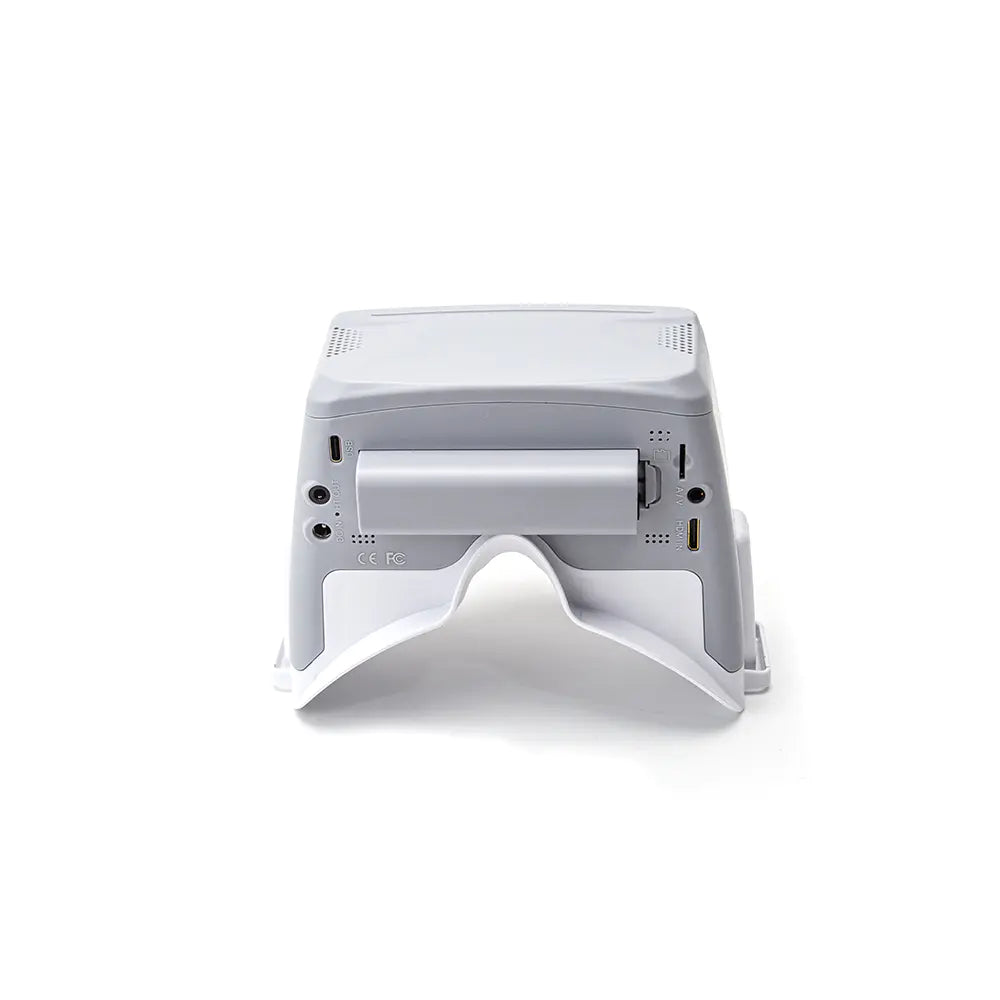

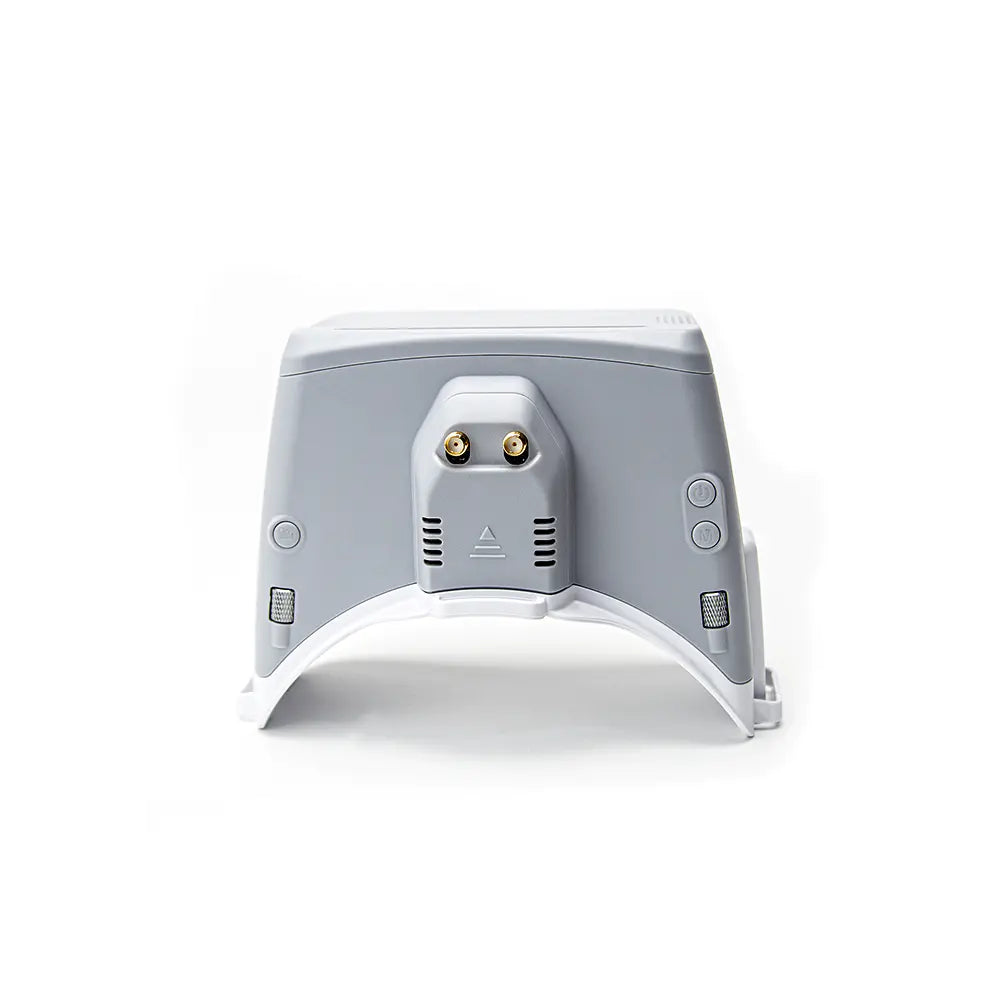

Skyzone Cobra SD FPV Diversity Analog Goggles

The Skyzone Cobra SD goggles are the diversity-equipped version of the Cobra S, featuring a built-in Diversity Receiver for enhanced signal reliability. Designed in a 16:9 aspect ratio, these FPV goggles use a vivid, high-luminance LCD screen that delivers sharp detail, ideal for high-speed racing. They’re also glasses-friendly, ensuring comfort for all pilots.

The updated operating system offers two language options and an intuitive menu layout. With the integrated shuttle wheel and streamlined interface, users can adjust all settings on the fly, no need to remove the goggles.

Power options include a single 18650 cell or a 2–6S LiPo battery. Both USB and DC charging are supported, making these goggles convenient and field-ready.

FEATURES:

• Built-in Diversity Receiver for improved signal stability and range
• 16:9 LCD screen with vivid color and high luminance for enhanced detail
• Glasses-compatible design for comfortable use with prescription eyewear
• Shuttle wheel navigation for quick, intuitive menu control
• Updated OS with dual-language support and streamlined interface
• Flexible power options: 1-cell 18650 battery / 2–6S LiPo battery / USB-C and DC input for field charging
• Integrated DVR for onboard video recording
• AV in/out ports for external video sources and output
• Built-in fan to prevent fogging during use
• Headtracker port for simulator or gimbal control
• Lightweight and ergonomic design


REQUIRED:

• (1) 18650 Li-Ion Battery

  OR

• (1) 2S - 6S LiPo Battery with XT60 Connector or Barrel Connector
  *XT60 to Barrel adapter cable included

  OR


• (1) Li-Ion Power Bank with 5V USB with (2) Li-Ion Batteries
  *any size compatible with power bank

SPECIFICATIONS:

• Screen Type: LCD
• Aspect Ratio: 16:9
• Resolution: 800 × 480 pixels
• Field of View (FOV): 50°
• Receiver Type: Built-in Diversity Receiver (Analog 5.8GHz)
• DVR: Integrated (supports recording FPV feed)

• Navigation: Shuttle wheel with intuitive UI
• Audio Output: 3.5mm jack
• AV Input/Output: Supported
• Headtracker Port: Included
• Fan: Built-in anti-fog fan
• Color: Gray & White
• Power Input: 1-cell 18650 battery (not included) / 2–6S LiPo battery via XT60 / USB-C and DC barrel jack charging
• Dimensions: Approx. 165 × 100 × 90 mm
• Weight: ~280g (without battery)

INCLUDES:

(1) Skyzone Cobra SD FPV Diversity Goggles
(1) Receiver Module
(1) Head Strap
(2) 5.8GHz 2dB Antennas
(1) USB-C Cable (for firmware updates)
(1) Barrel to XT60 Adapter (to power goggles using XT60 LiPo Battery)
(1) AV Head-tracker Cable
(1) AV to RCA Video/Audio Cable
(1) User Manual
