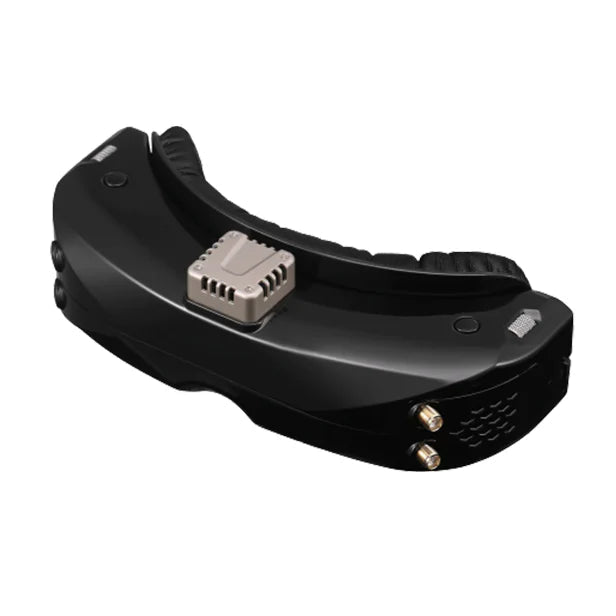

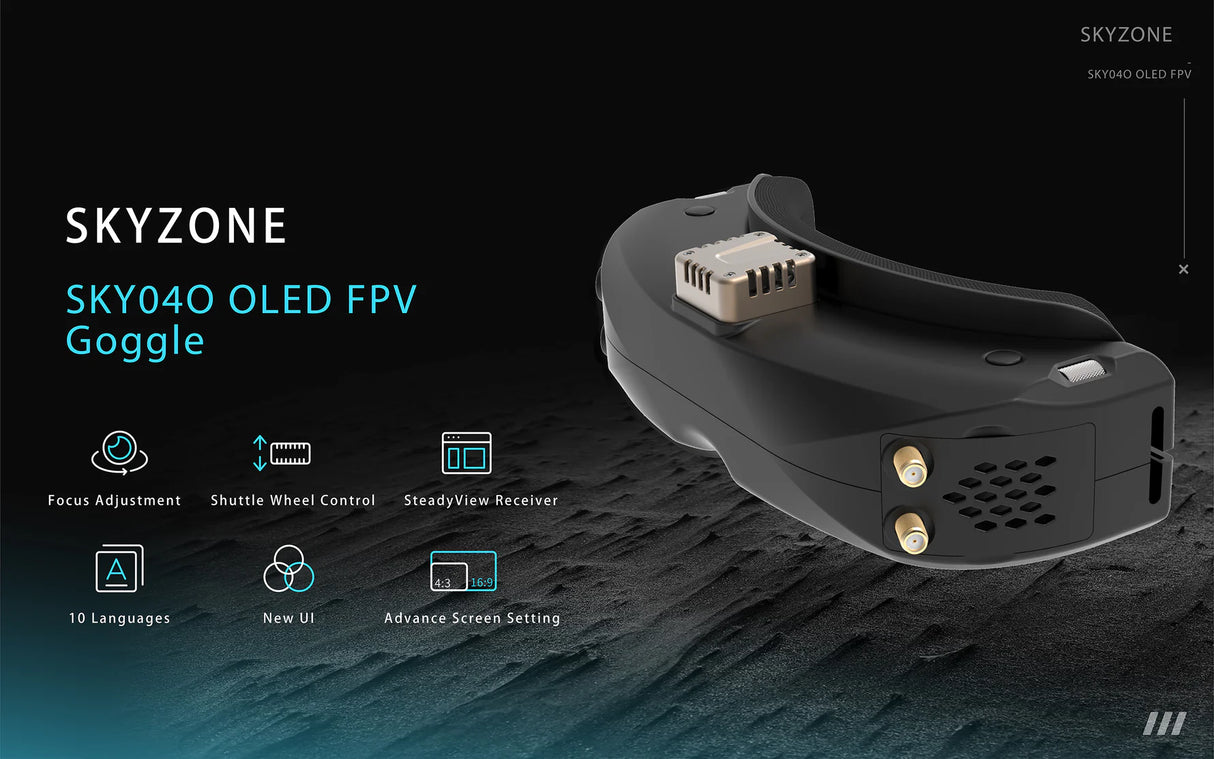

Skyzone SKY04O Pro FPV Analog Goggles

The Skyzone SKY04O FPV Goggles feature dual OLED displays with 1024×768 resolution, providing sharp, vibrant visuals for pilots. Equipped with a 60fps DVR and SteadyView diversity receiver, they ensure smooth recording and stable video feeds even in challenging environments. With adjustable focus (-6~+2), wide interpupillary distance (58–71mm), and 48-channel 5.8GHz support, these goggles are designed for comfort, flexibility, and reliable performance across RC drones, planes, and FPV setups.

FEATURES:

• Dual OLED screens with 1024×768 resolution for sharp, vibrant visuals
• 60fps DVR recording for smooth playback and flight review
• SteadyView diversity receiver merges signals for a stable, low-latency video feed
• Adjustable focus (-6 ~ +2) to suit different eyesight needs
• Wide interpupillary distance range (58–71mm) for comfortable fit
• 48-channel 5.8GHz support covering all major FPV bands
• User-friendly menu system with intuitive joystick navigation

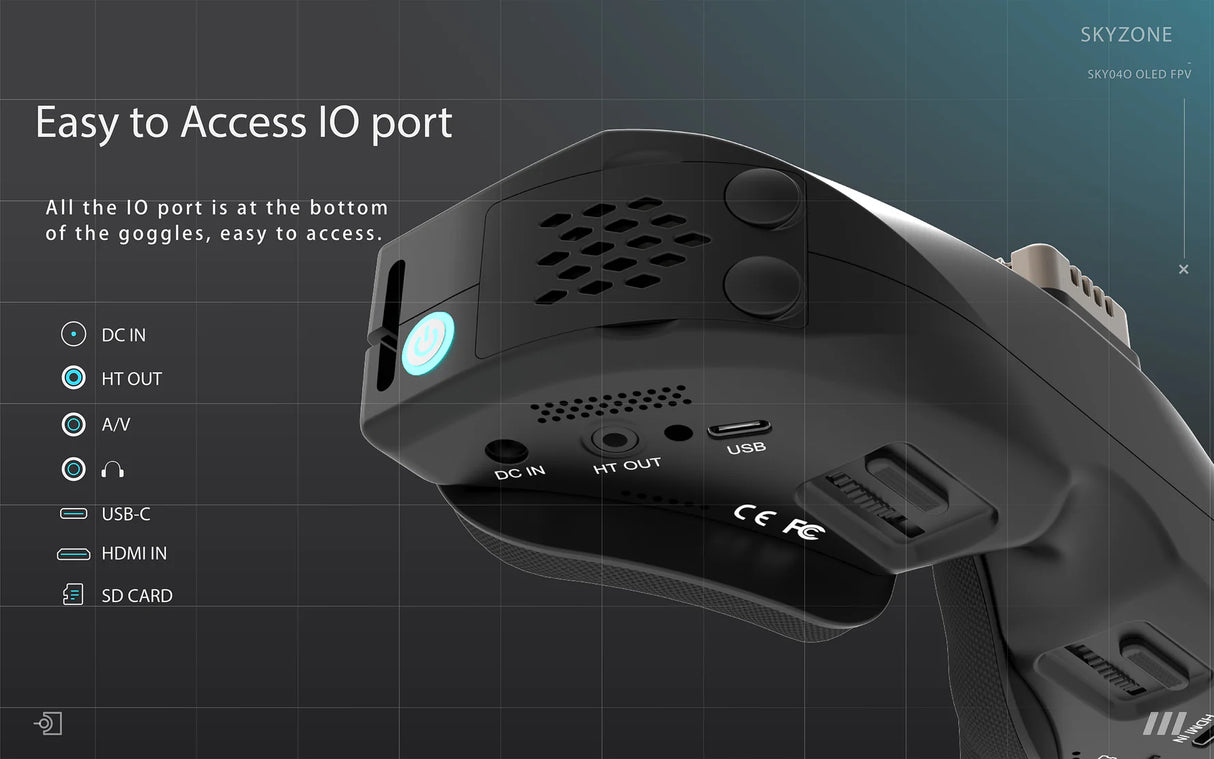

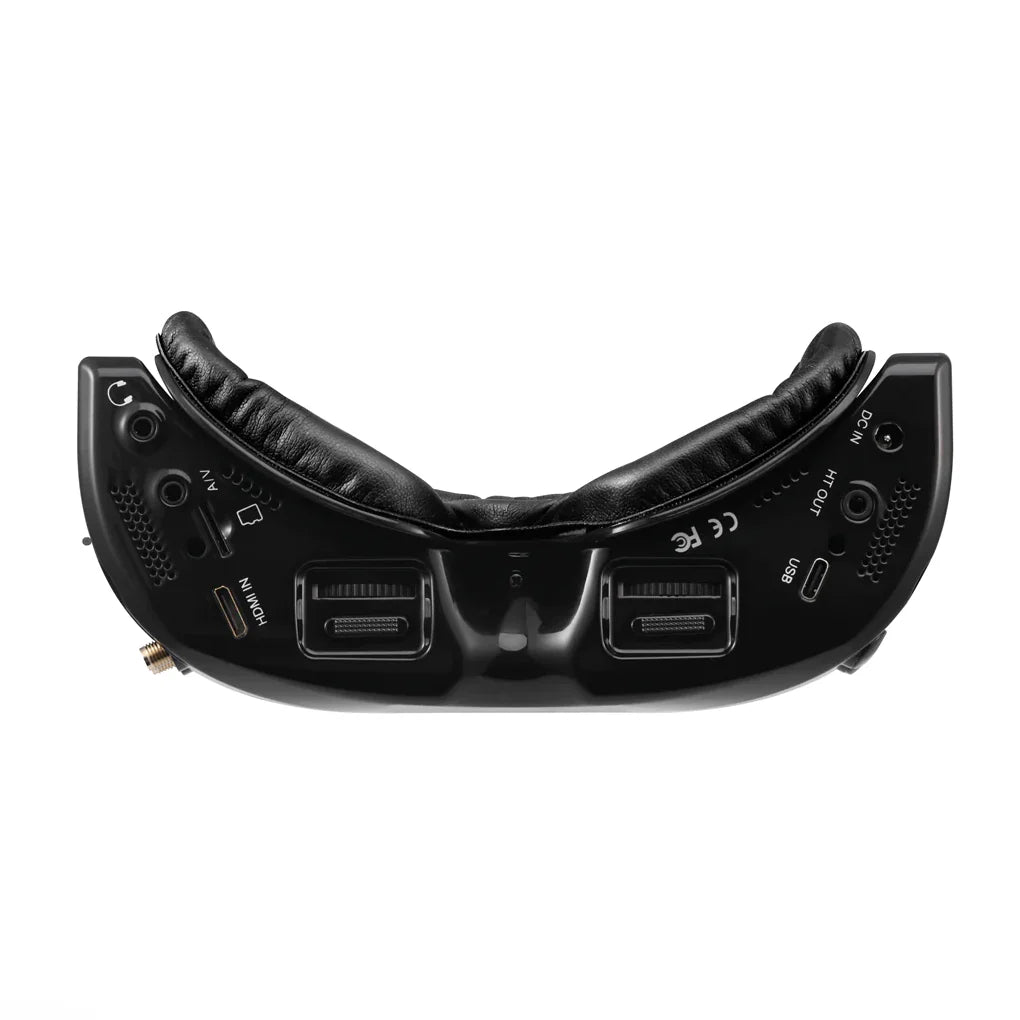

• HDMI input for external video sources
• Built-in fan and faceplate design for comfort during long sessions
• Modular bay for receiver upgrades and customization
• Lightweight ergonomic design optimized for extended wear

REQUIRED:

(1) 2S - 6S LiPo Battery with XT60 Connector or Barrel Connector
*XT60 to Barrel adapter cable included

SPECIFICATIONS:

• Model: SKY04O PRO
• Color: Matte Black
• Display: Dual OLED screens, 1024×768 resolution
• Power Supply: DC 6.5–25V (2S–6S LiPo compatible)
• Field of View (FOV): 46° diagonal
• Aspect Ratio: 4:3 / 16:9 switchable
• Interpupillary Distance (IPD): 58–71mm adjustable
• Focus Adjustment: -6 ~ +2 diopters
• Receiver: SteadyView diversity receiver (built-in)
• DVR: 60fps recording, H.264 codec, SD card support
• Frequency Range: 5.8GHz, 48 channels
• HDMI Input: Supported (up to 720p)
• Audio Output: 3.5mm headphone jack

• Dimensions: 185×75×67mm
• Weight: ~267g (without antenna)
• Cooling: Built-in fan with faceplate ventilation
• Interface: Joystick-controlled menu system
• Modular Bay: Compatible with video receiver module upgrades

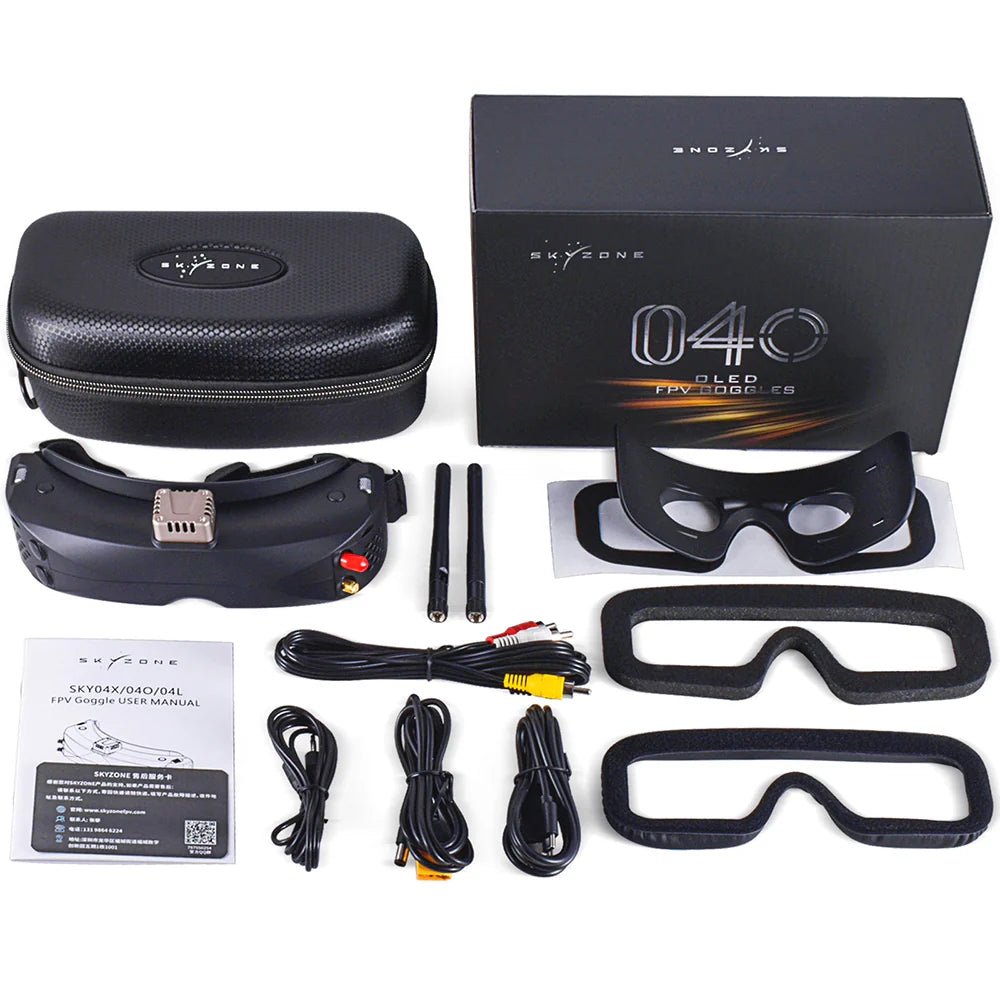

INCLUDES:

(1) SKY04O Goggles
(1) Receiver Module
(2) Faceplate(wide and narrow)
(2) Sponge with a band
(1) Zipper case
(1) Power cable
(1) Headtracker cable
(2) 5.8Gb 2dD antennas
(1) Video/Audio Cable
(1) USB-C Cable
(1) User Manual
