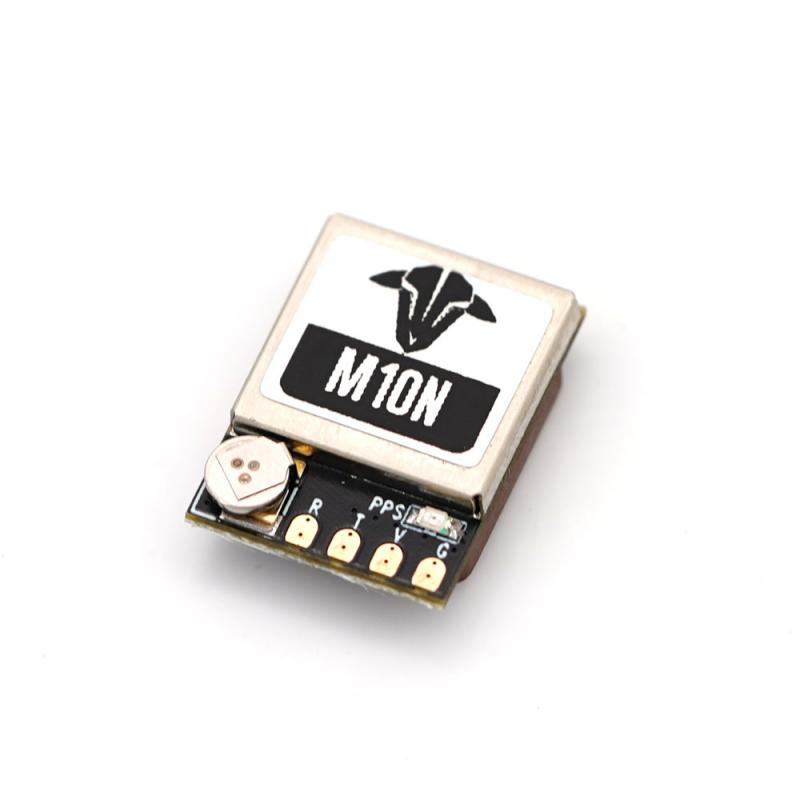

TBS M10N Glonass GPS

The TBS M10N GPS is a tiny, lightweight module that delivers fast, reliable satellite lock and accurate positioning for FPV builds. With multi‑constellation support, low power draw, and a clear PPS LED indicator, it offers dependable performance in a compact, 3‑gram package.

FEATURES:

• Multi‑GNSS support: GPS, BDS, Galileo, SBAS, QZSS
• High‑sensitivity M10050 chipset for fast, reliable satellite lock
• Horizontal accuracy of 2.0 m CEP
• Extremely small and lightweight: 16.5 × 12.3 × 6.0 mm at just 3g
• Low power consumption: 15 mA typical
• Fast acquisition: 27 s cold start, 1 s hot start
• Update rate adjustable from 0.25 Hz to 18 Hz (default 10 Hz)
• Supports NMEA and UBX protocols with configurable baud rates
• PPS LED indicator for clear 3D‑fix status
• Retains configuration via onboard FLASH memory




SPECIFICATIONS:

• Part#: SB-BZ-251
• Chip: M10050

• Receiver Type: GPS L1 C/A, QZSS L1 C/A/S, BDS B1I/B1C, Galileo E1B/C, SBAS L1 C/A
• (WAAS, EGNOS, MSAS, GAGAN)

• Default Position System: GPS, BDS, GALILEO

• Augmentation System: SBAS, QZSS

• Tracking & Navigation: -166 dBm

• Reacquisition: -160 dBm

• Cold Start: -148 dBm

• Hot Start: -160 dBm

• Horizontal Position: 2.0 m CEP

• Velocity: 0.05 m/s

• Dynamic Heading: 0.3°

• Time Pulse: RMS 30 ns / 99% within 60 ns

• Cold Start: 27s

• Hot Start: 1s

• Aided Start: 1s

• Baud Rate: 4800 – 921600 bps (default: 115200 bps)

• Signal Level: TTL

• Protocols: NMEA, UBX

• UBX Messages: PVT

• NMEA Messages: RMC, VTG, GGA, GSA, GSV, GLL

• Update Rate: 0.25 Hz – 18 Hz (default: 10 Hz)

• FLASH Memory: Retains configuration after power loss

• Altitude: 80,000 m

• Velocity: 500 m/s

• Dynamics: < 4g

• Input Voltage: 3.6V – 5.5V (typical: 5.0V)

• Power Consumption: 15 mA @ 5.0V

• Dimensions: 16.5 × 12.3 × 6.0 mm

• Weight: 3g

• Connector: 1.00 mm 4-pin connector

• Operating Temperature: -40°C to +85°C

• Storage Temperature: -40°C to +105°C

• LED Indicator (PPS LED: Off when no fix; flashes blue after 3D positioning, the blue light flashes)

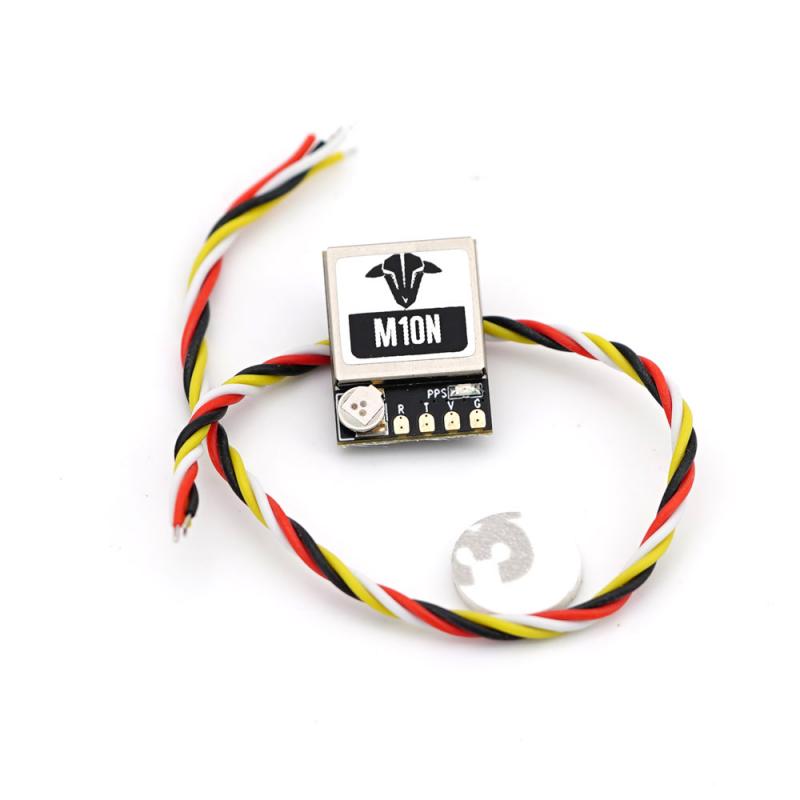

INCLUDES:

(1) TBS M10N Glonass GPS
(1) JST-GH-6P to JST-GH-6P Silicone Wire
