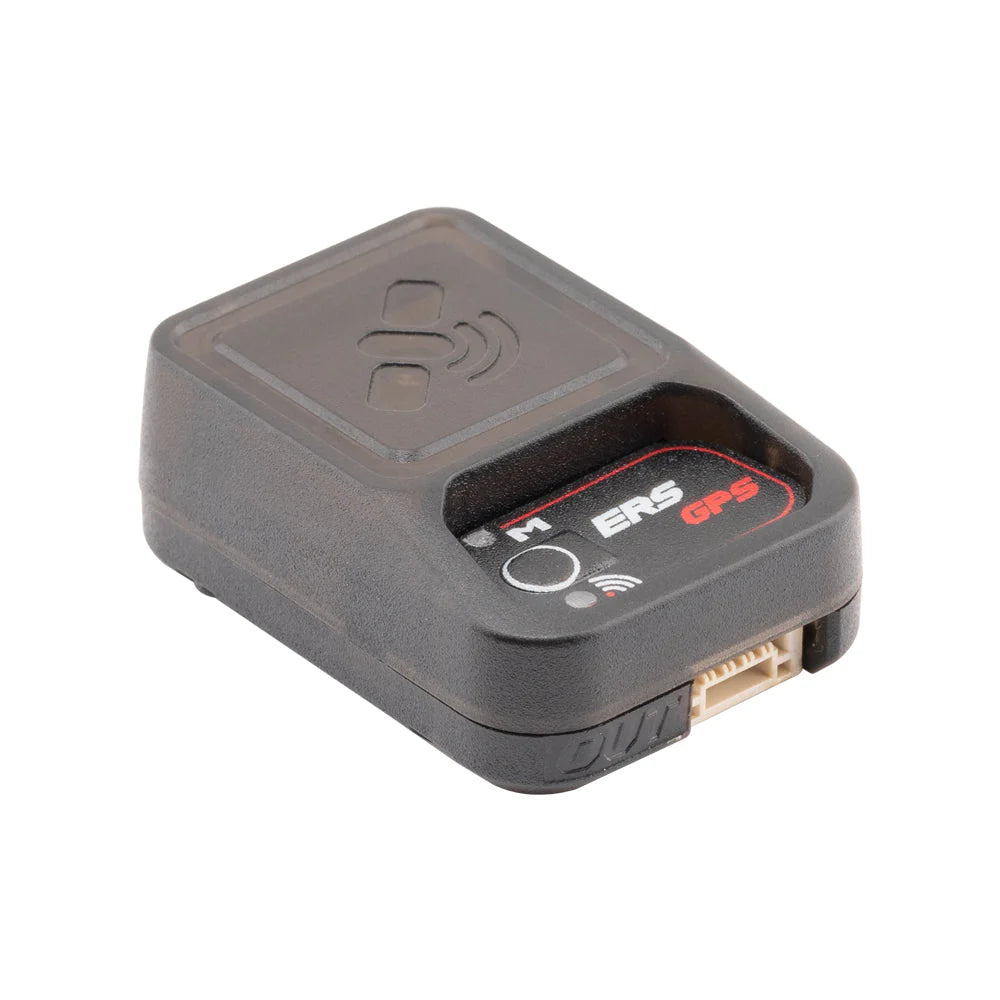

RadioMaster ERS-GPS Telemetry Sensor Module

The ERS-GPS Telemetry Sensor is a specialized GPS unit designed by Radiomaster for use with compatible ExpressLRS PWM receivers. This plug-and-play sensor integrates with the receiver via the CRSF interface.

Equipped with two modes— Mode one to provide accurate GPS data, and Mode two to provide accurate ground speed. Mode one is ideal for capturing position and altitude logs when used with our ER series receivers with built-in barometers. Mode two is ideal for measuring speed in airplanes, jets, boats, or cars. Additionally, the ERS-GPS features a pass-through function that allows for easy future expansion of telemetry sensors through a daisy-chain arrangement.

FEATURES:

• GPS Data mode and GPS Ground speed mode: Log your GPS position or track your speed in real-time and quickly access peak performance stats.

• Future-Ready Pass-Through: The ERS GPS comes equipped with an in-and-out pass-through port, allowing you to daisy-chain additional sensors in the future—no need to swap out hardware as your needs evolve.

• Seamless ExpressLRS Integration: Designed to work effortlessly with compatible ER series ExpressLRS receivers.

• Ideal for RC cars, boats, planes, and jets requiring GPS or speed tracking

COMPATIBILITY:

• Radio Transmitter/Controller with ELRS Protocol
• ER6, ER8, ER8G, and ER8GV 2.4GHz ELRS PWM Receivers

SPECIFICATIONS:

• Part#: ERS-GPS
• Telemetry Protocol: CRSF
• Operating Modes:
• GPS Position Mode (Red LED)
• Ground Speed Mode (Blue LED)
• Input Voltage: 3.0V – 12.0V
• Current Draw: 35mA @ 5V
• Pass-Through Port: Yes (for daisy-chaining additional sensors)

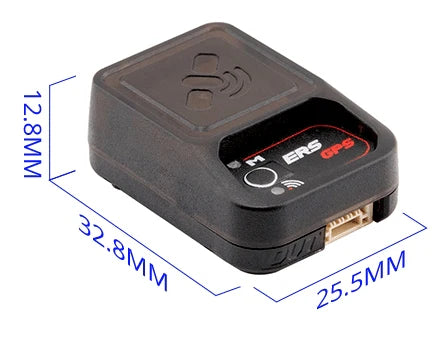

• Dimensions: 32.8 × 25.5 × 12.8mm
• Weight: 13.3g


HELPFUL LINKS:

• User Manual

INCLUDES:

(1) ERS-GPS Telemetry Module

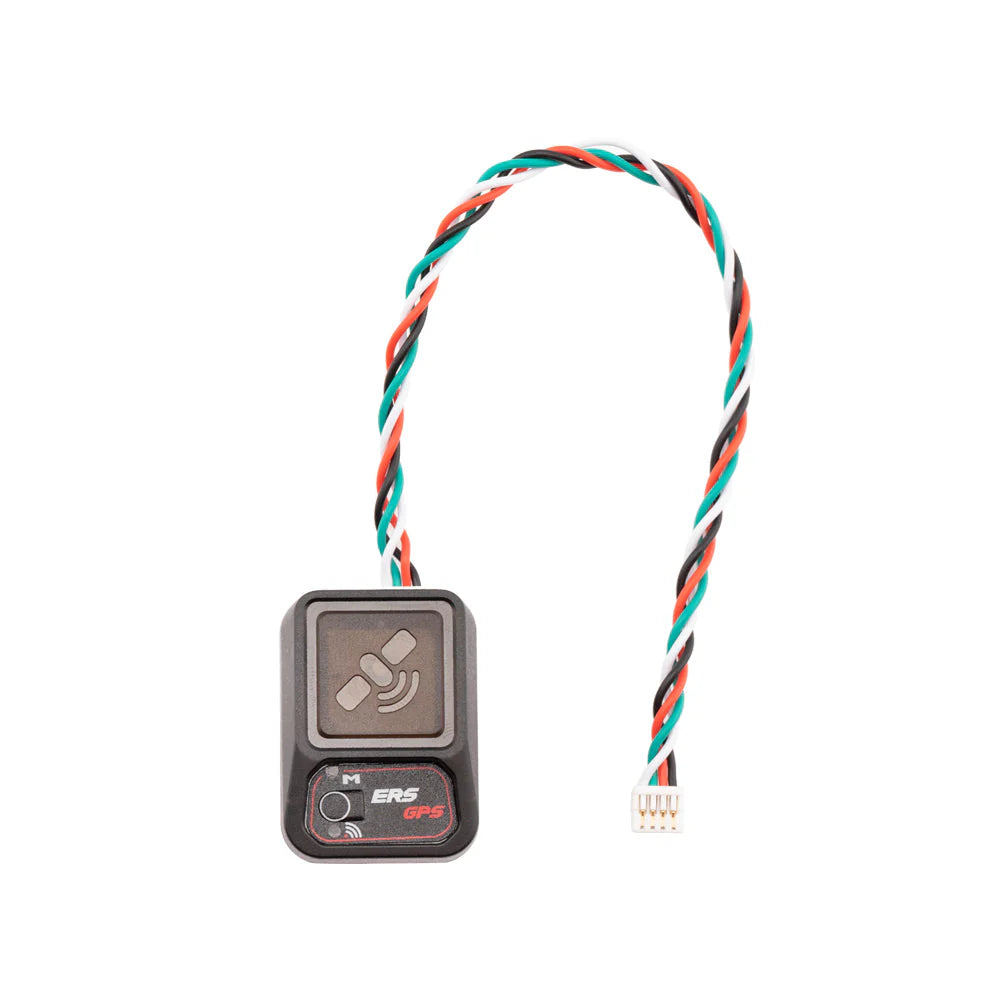

(1) CRSF Interface Cable
