SKU: 53200822

HGLRC Sector5 V3 5" Brushless FPV Racing Drone (BNF / GPS / 6S)

$319.99

HGLRC Sector5 V3 5" Brushless FPV Racing Drone (BNF / GPS / 6S)

The Sector5 V3 is a 5" Freestyle quadcopter that comes fully assembled with everything you need to have an amazing flight experience! Lots of new parts have been upgraded in the V3, including the new arm protectors, new GPS mount, and power cable fixing mount.  The upgraded carbon fiber, screws and TPU printed parts make the V3 more durable than the V2, so it will last longer and give you more flying and less fixing!

FEATURES:

  • Compatible LEDs and GPS. Control the LED lights easily with the press of a button on the Zeus F722 FC.
  • GPS Rescue. The Sector5 V3 also supports GPS-rescue with one of the most stable GPS units available, the HGLRC M80.
  • No Props in view. Enjoy the clear view of flying!

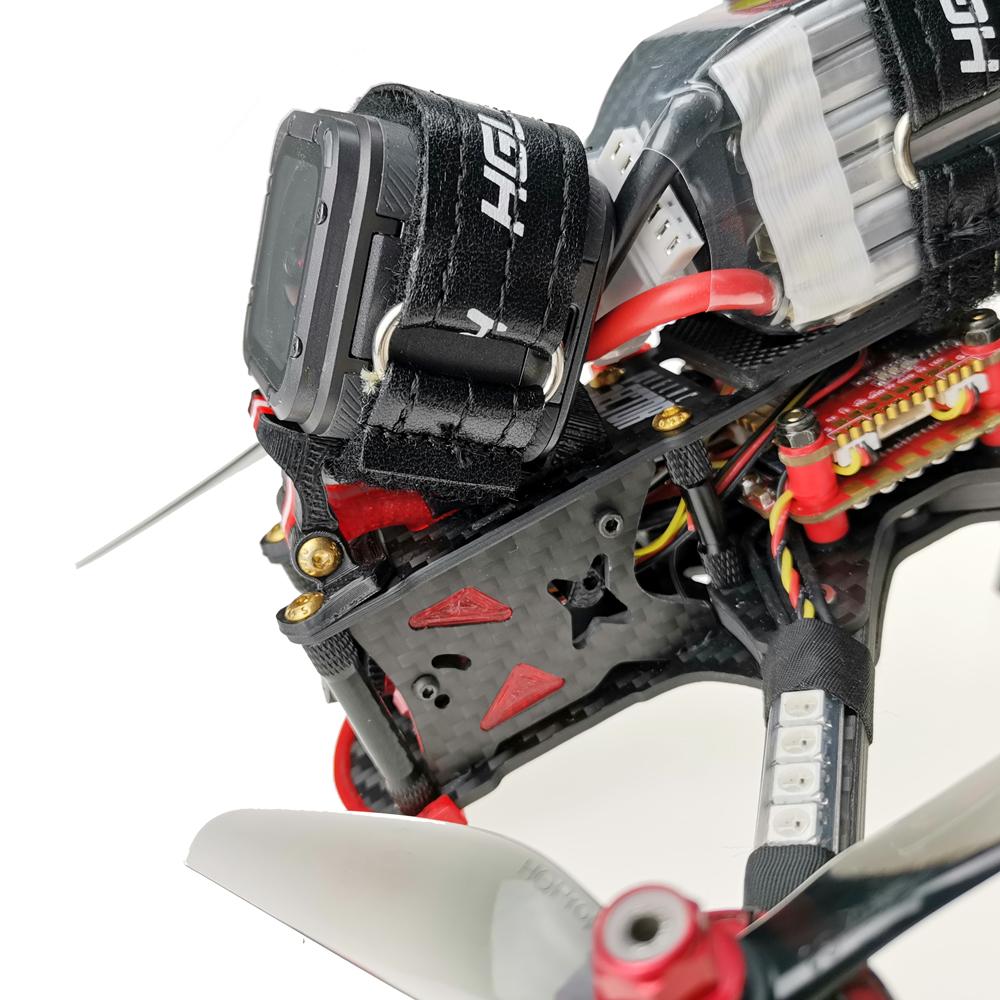

  • Adjustable camera mount angle from 25°, 30°, 35° to 40°.
  • Capacitor slot to hide the capacitor for a neater look.
  • All TPU parts (STL Files) available for free, so you can print spare parts yourself on any 3D printer (see HELPFUL LINKS section below).



REQUIRED:

(1) Radio Controller w/ Correct Protocol
(1) Analog FPV Goggles
(1) 4-6S Li-Po Battery w/ XT60 Connector
(1) LiPo Charger



    SPECIFICATIONS:

    Frame:

    • Type: Sector5 V3 Freestyle Frame Kit
    • Size: 5"
    • Wheelbase:218mm
    • Supports propellers up to 5.2 inches
    • Overall size: 172.5 x 136.7mm
    • Power plug: XT60



    Flight Controller:

    • Type: Zeus F722
    • MPU: MPU6000
    • CPU: STM32F722 RET6
    • Input Voltage: 3-6S Lipo
    • BEC Output: 5V/3A / 9V/2A



    ESC & LED:

    • Type: Zeus 48A BL_S
    • Input Voltage: 3-6S Lipo
    • Steady Current: 48A
    • Peak Current: 55A (10 Sec)
    • W554B LED Light boards (x4)



    Receiver:

    • Type: FrSky R-XSR
    • Operating Voltage Range: 3.5V~10V
    • Operating Current: 70mA@5V
    • Number of channels: 16CH



    VTX:

    • Type: Zeus VTX
    • Output Power: PIT/25/100/200/400/800mW
    • Input: DC 6-26V
    • Antenna: Circular Polarized with MMCX Connector



    Camera:

    • Type: Caddx Ratel 2
    • Image Sensor: 1/1.8" 1200TVL CMOS
    • Input Power: DC 5V
    • Dimensions: 19 x 19 x 20mm



    Motors:

    • Type: Aeolus Brushless Motors
    • Size: 2306.5
    • KV: 1900KV
    • No. of Cells Capable (Li-Po): (4S - 6S)
    • Recommended Propeller Size: 5-inch



    Propellers:

    • EthixS5 Propellers
    • Size: 5"
    • Pitch: 4



    GPS:

    • Type: HGLRC M80
    • Chip: M8030
    • Power Supply: 5V
    • Antenna: Ceramic Antenna
    • Output Protocol: UBLOX
    • Output Frequency: 1Hz-10Hz, Default 10Hz



    HELPFUL LINKS:



      INCLUDES:

      (1) HGLRC Sector5 V3 Brushless Drone (BNF / FrSky - R-XSR)

      • (1) Zeus F722 FC (Installed)
      • (1) Zeus 48A ESC (Installed)
      • (1) Zeus VTX (Installed)
      • (1) Caddx Ratel 2 (Installed)
      • (1) FrSky R-XSR Radio Receiver (Installed)
      • (4) Aeolus 2306.5 / 1900KV Motors (Installed)
      • (1) M80 GPS (Installed)

      (8) EthixS5 propellers (4CW & 4CCW)
      (1) 5.8GHz Antenna

      (4) W5548 LED Boards
      (4) Battery Straps



      NOTES:

      • GoPro7 Mount seen in photo is NOT included but can be printed via the STL files.
      • GoPro7 Camera and LiPo Battery seen in photo are NOT included.
