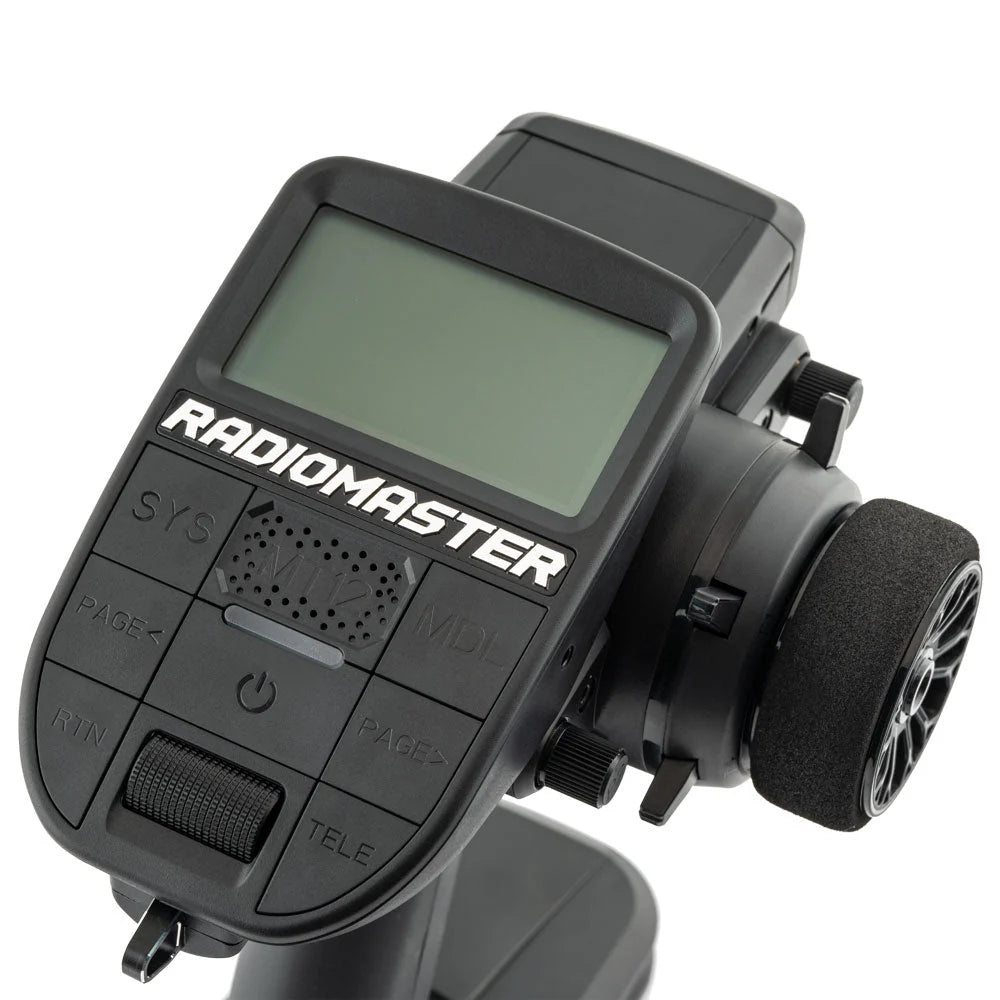

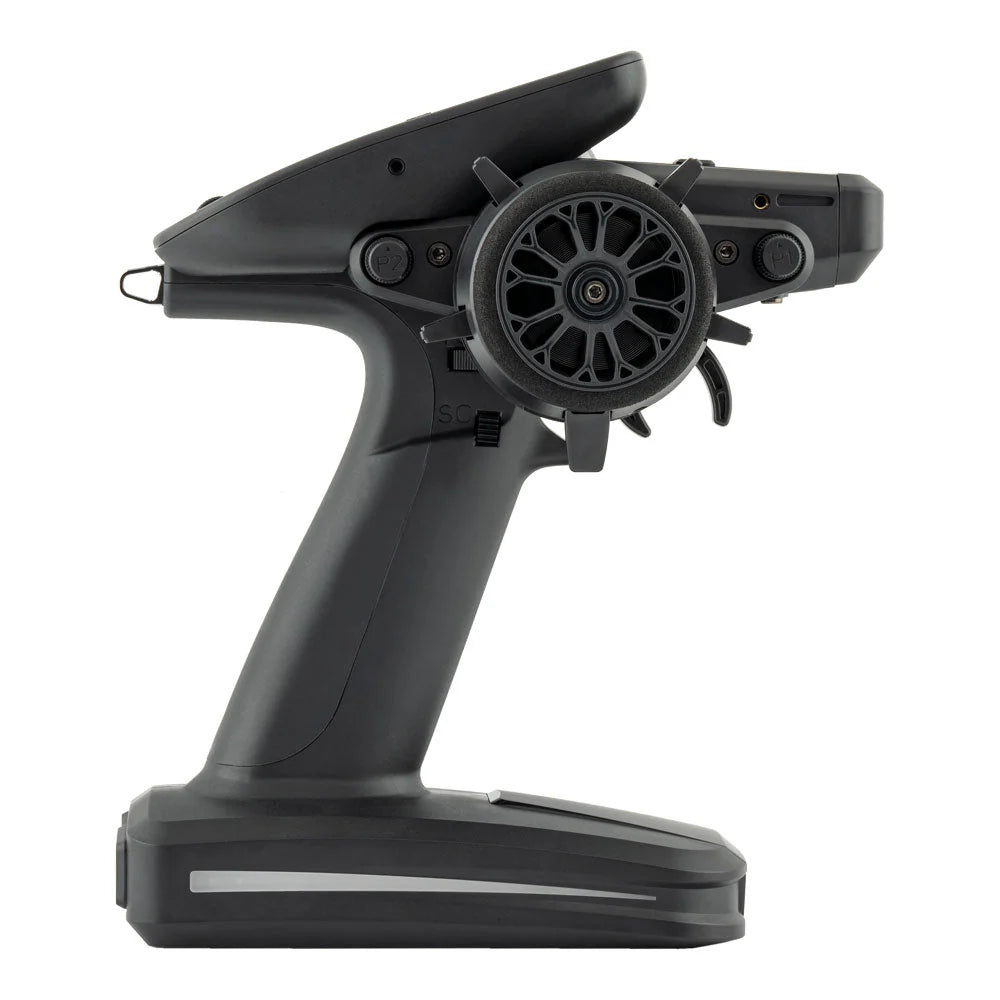

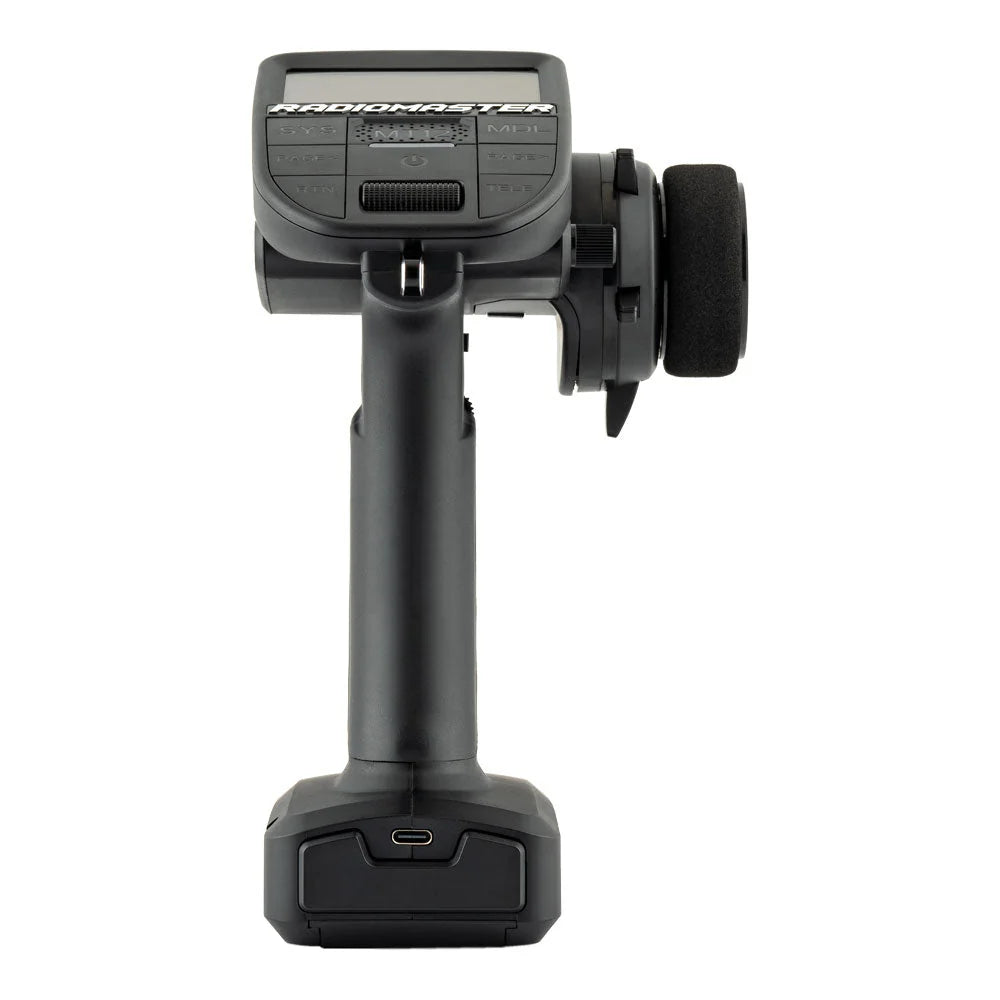

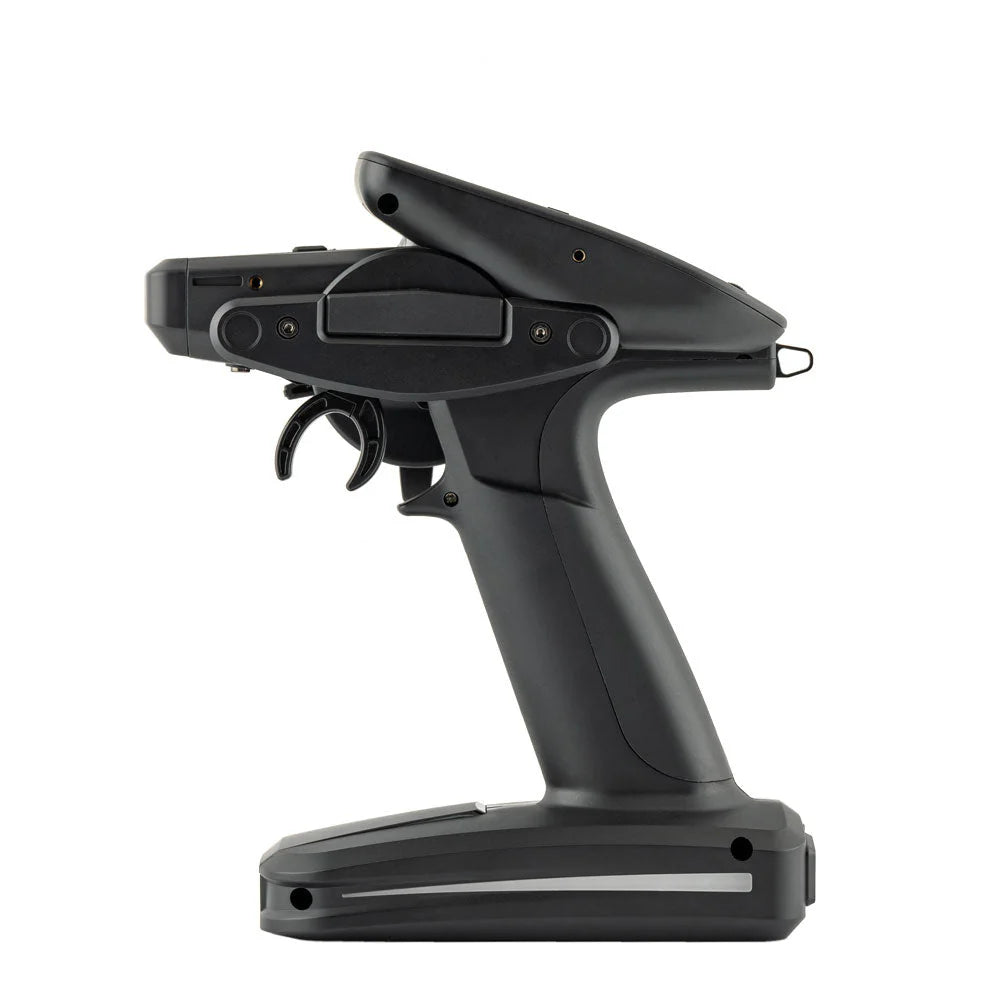

RadioMaster MT12 Surface Radio System (Hall Sensor Gimbals / ELRS Version)

The RadioMaster MT12 is a pioneering open-source surface radio and the first surface radio officially supported by EdgeTX, ExpressLRS, and the Multi-Module project. Boasting 10 physical inputs and the capability to handle either 16 or 32 channels, the MT12 is primed for a wide array of surface models, from RC Cars and RC Trucks to boats and beyond. Featuring extensive customizability and a versatile operating system, the MT12 stands out as a highly configurable surface radio, prepared to excel in virtually any scenario.

FEATURES:

• Featuring a powerful STM32F407VGT6 with 1MB Flash
• Preinstalled EdgeTX firmware

• QC3.0 fast charging supporting 2.0A MAX

• Compact design with excellent ergonomics
• Oversized battery compartment - 2 x 18650 cells or a 2s 7.4v 5000mah battery pack (Batteries not included)
• Standard Nano module bay for external RF modules
• Rotatable antenna
• RadioMaster standardized button layout

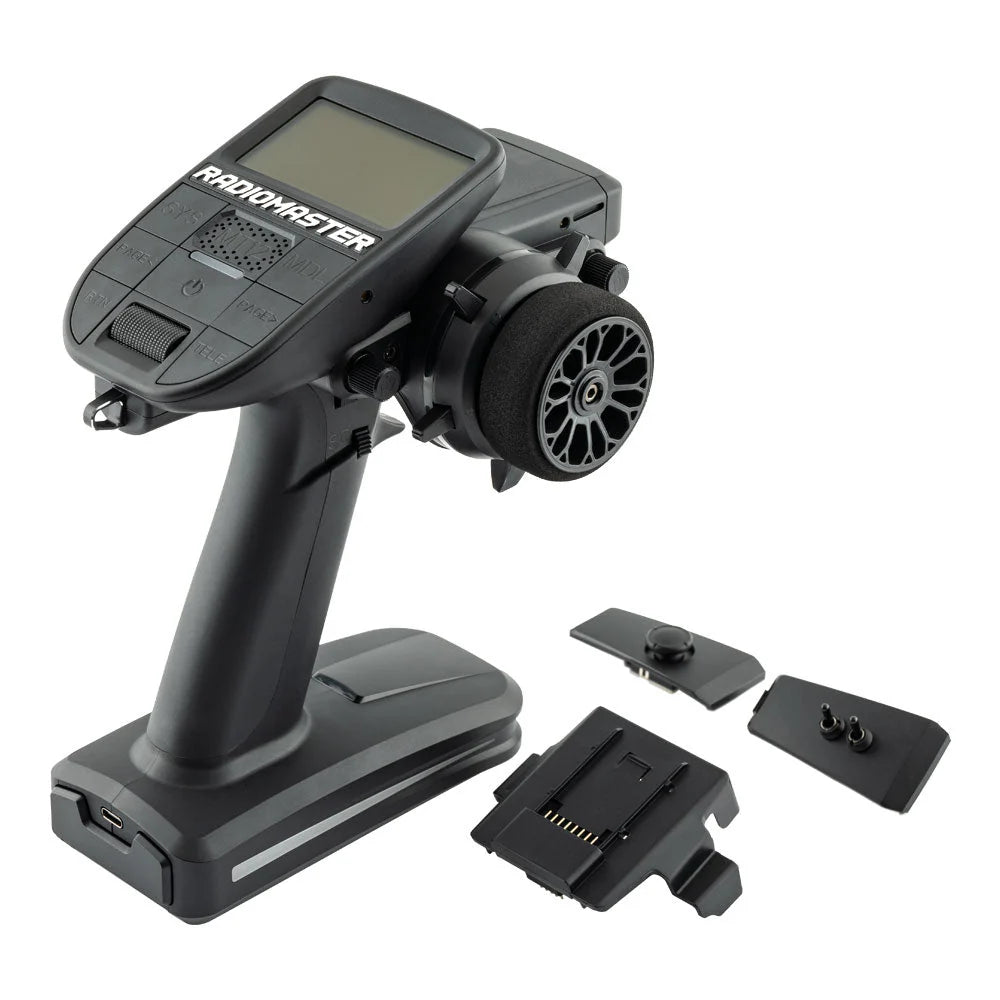

• Customizable base switches or 4-way joystick included

REQUIRED:

• (2) 18650 Li-Ion Batteries

SPECIFICATIONS:

• Model: MT12
• Operating Frequency: 2.400GHz-2.480GHz
• Internal RF Options: ELRS 2.4GHz
• Operating Voltage: DC 6.6-8.4V
• Current Draw: 160mA (4-in-1) / 320mA (ELRS)
• Dimensions: 177.8 × 118.4 × 207.8mm
• Weight: 480g
• Operating system: EdgeTX
• Control channels: 16 as standard, ability for expansion 32 Channels (4in1 only)
• Display: 128*64 Monochrome LCD
• Charging: Built-in USB-C Charging
• Firmware Upgrade method: Via USB or SD card
• Wheel and Trigger sensor: Hall-effect
• Module bay: Nano size

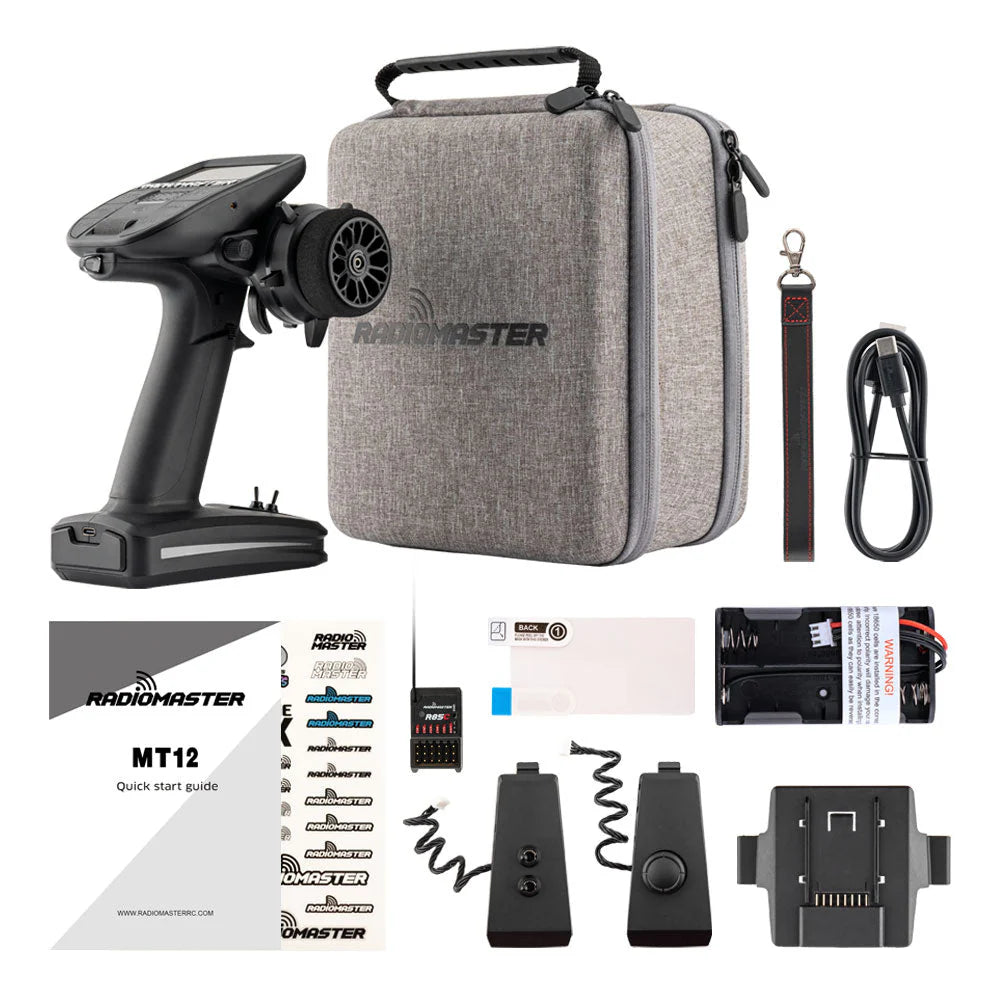

INCLUDES:

(1) MT12 Surface Radio 4in1 Version
(1) R85C Receiver
(1) Dual Switch Expansion Module
(1) 4-Way Joystick Expansion Module
(1) Nano Adapter
(1) USB-C Cable
(1) Leather Lanyard
(1) Custom RadioMaster signature carry case
(1) 18650 Battery Tray
(1) Screen Protector
(1) Stickers
(1) Manual
