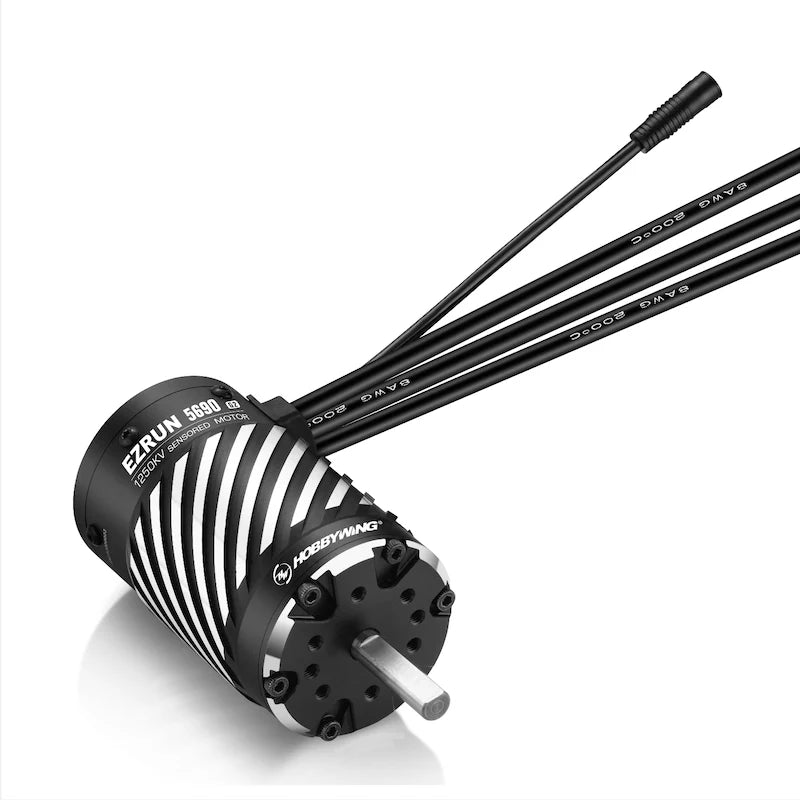

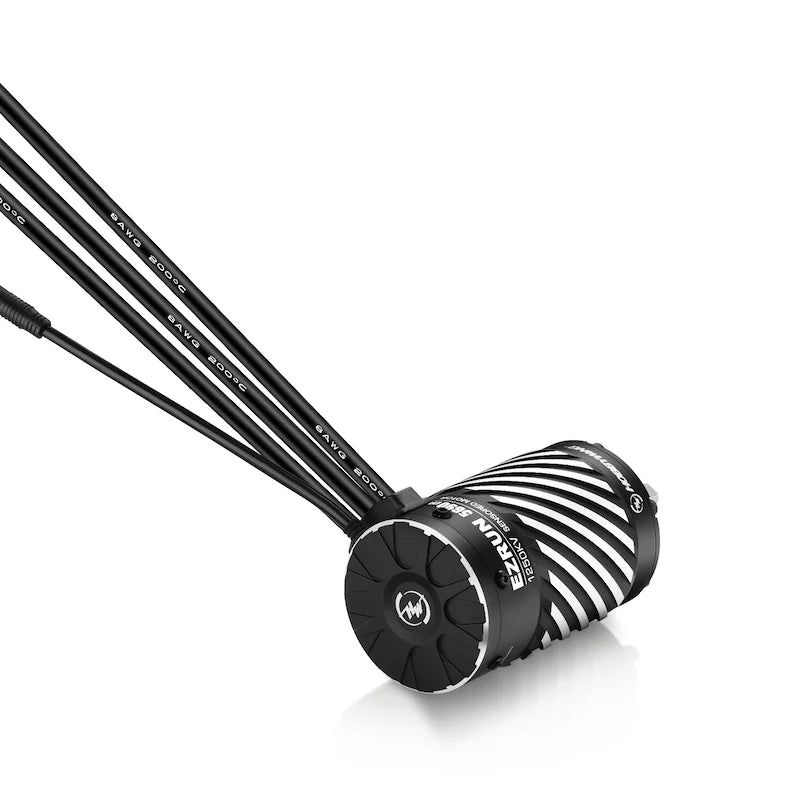

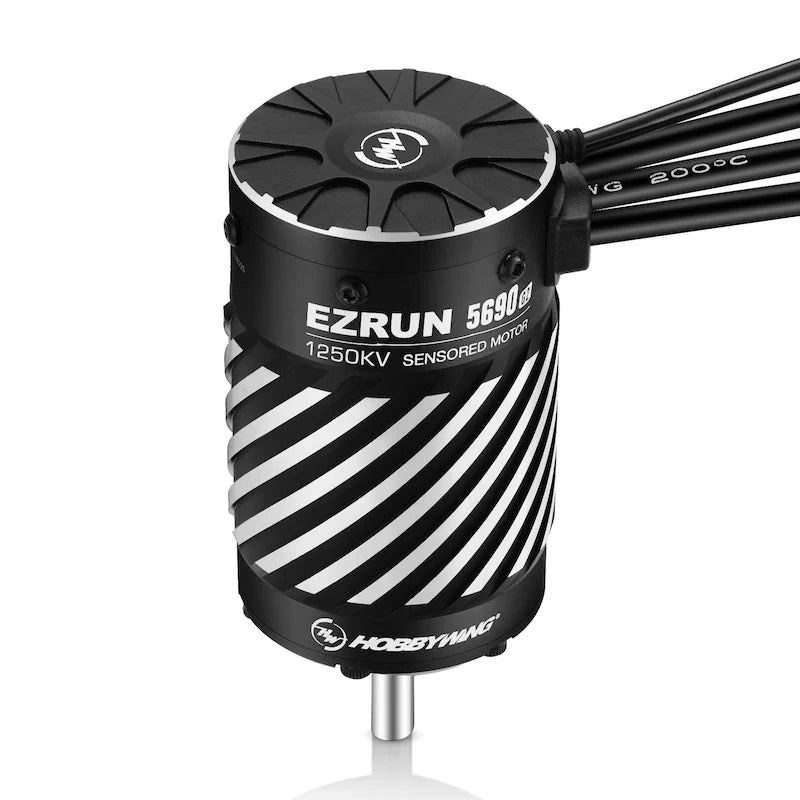

HobbyWing EZRUN Max 5690SD G2 / 1250KV Brushless Motor (8mm Shaft / 6-8S)

The Hobbywing EzRun MAX 5690 SD G2 is a powerhouse sensored brushless motor built for 1/6 and 1/5 scale RC vehicles. With a 1250KV rating and support for 3–8S LiPo, it delivers explosive torque, smooth throttle response, and full-sensor mode compatibility when paired with the MAX5 G2 ESC. Its CNC-machined aluminum housing, high-purity copper windings, and IP67 waterproof rating make it ideal for extreme bashing in any terrain.

FEATURES:

• Sensored Brushless Technology: Offers smooth throttle response and precise control, especially when paired with the MAX5 G2 ESC.
• High Voltage Compatibility: Supports 3–8S LiPo input, delivering massive torque and speed for 1/6 and 1/5 scale vehicles.
• IP67 Waterproof & Dustproof: Built to withstand harsh environments with a sealed sensor cable and rubber-sealed bearings.
• CNC-Machined Aluminum Housing: Ensures durability and efficient heat dissipation under extreme loads.
• High-Purity Copper Windings: Improves conductivity and motor efficiency.
• Explosion-Proof Rotor & Stainless Steel Shaft: Designed for high RPM stability and rugged use.
• Modular Design: Detachable structure allows for easier maintenance and cleaning.
• Advanced Sensor System: High-precision encoder delivers clean rotor position signals for stable sensor-mode operation.

SPECIFICATIONS:

• Part#: 30402350
• Size: 5690SD G2
• KV: 1250KV
• Number of Poles: 4-Pole
• LiPo Rating: 6-8S
• Diameter: Φ=56mm
• Length: 90mm
• Shaft Diameter: 8mm
• Shaft Length: 30mm
• Weight: 867g

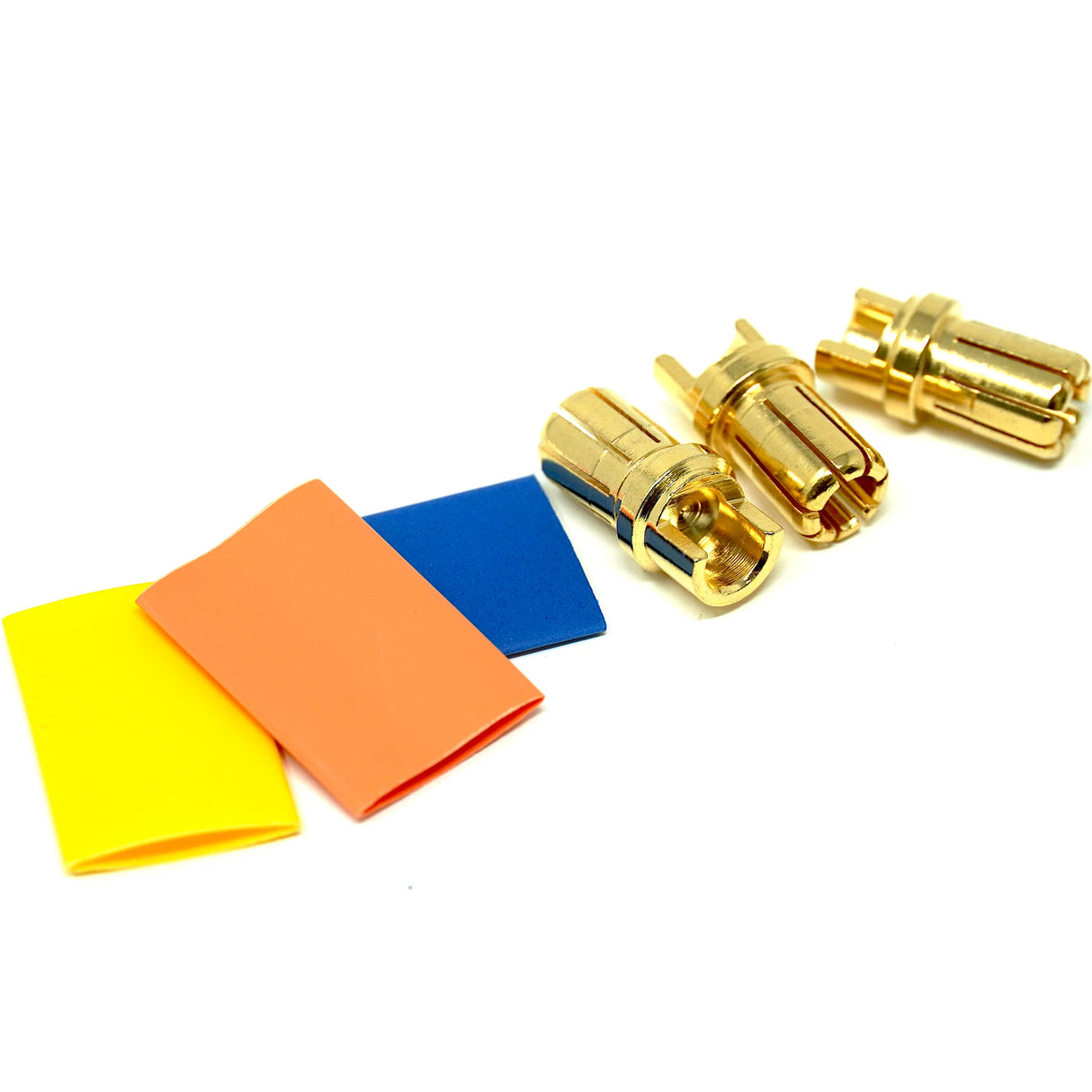

• Bullet Connectors: 8mm

HELPFUL LINKS:

• Ezrun Motor Manual

INCLUDES:

(1) HobbyWing EZRUN Max 5690SD G2 / 1250KV Brushless Motor

NOTES:

• It’s important to select the FDR/gear ratio properly, as improper FDR/gear ratio may cause you great loss. Please choose the gear ratio by referring to the manual.
