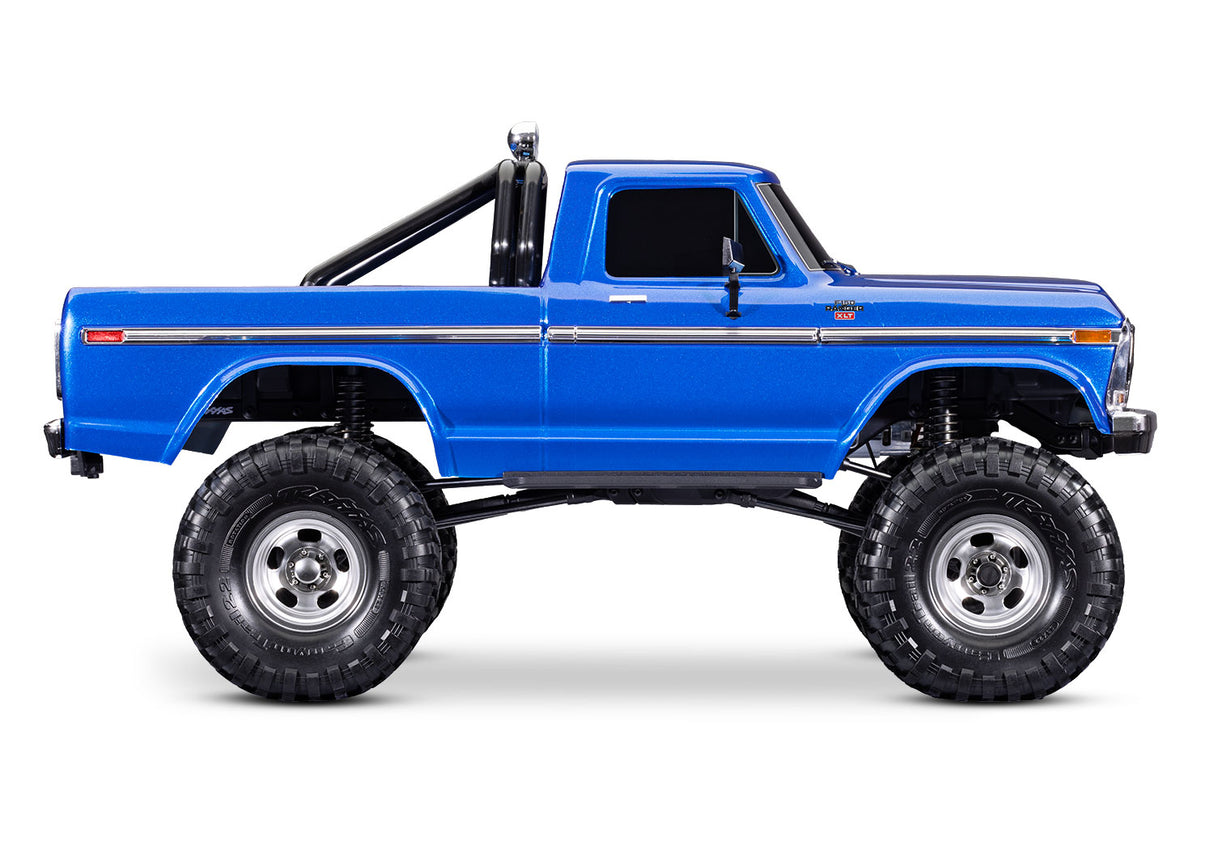

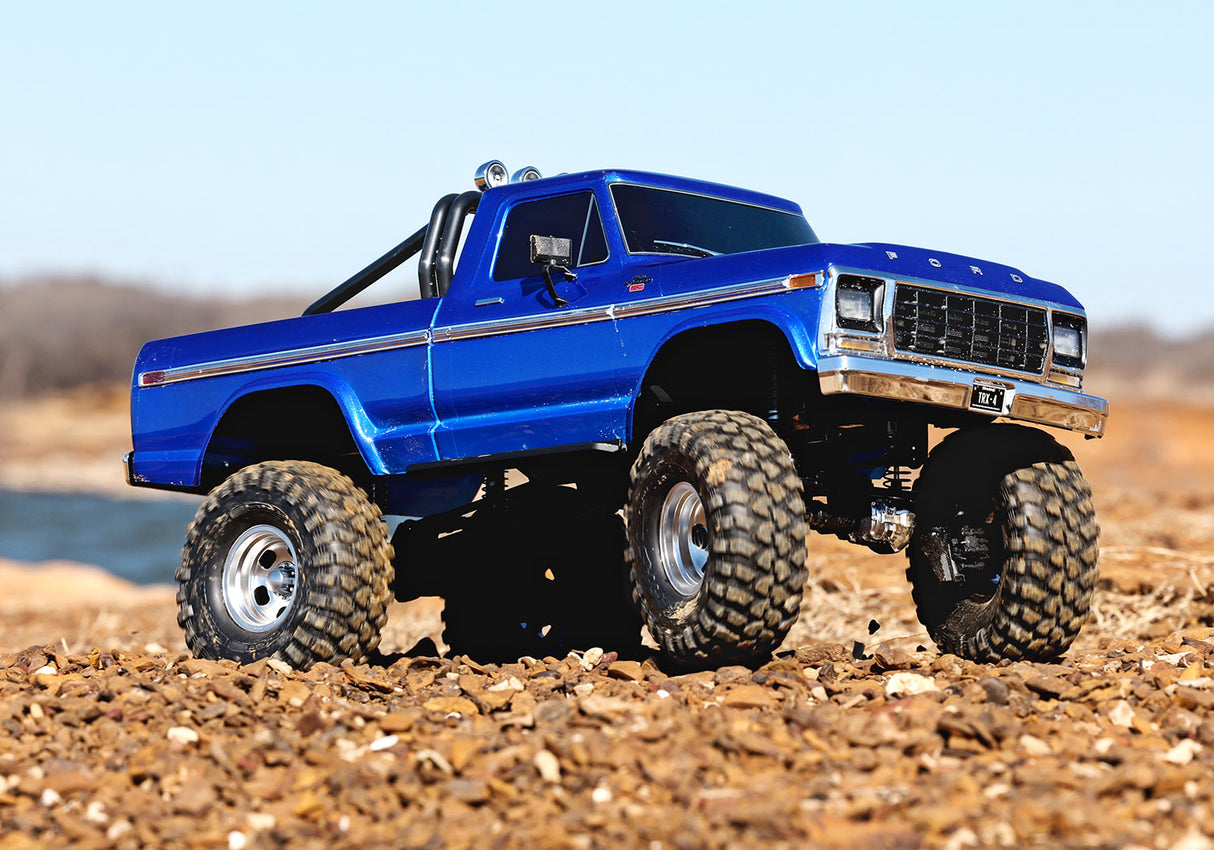

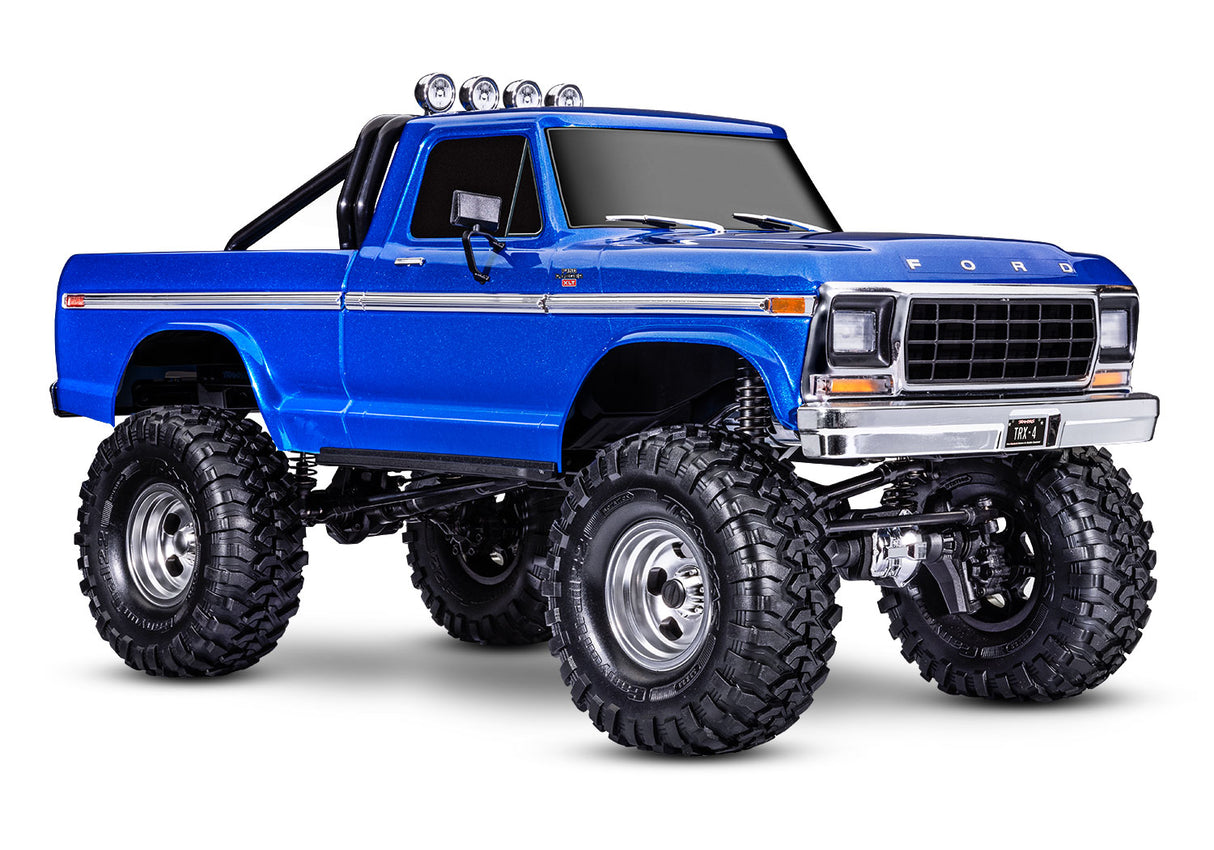

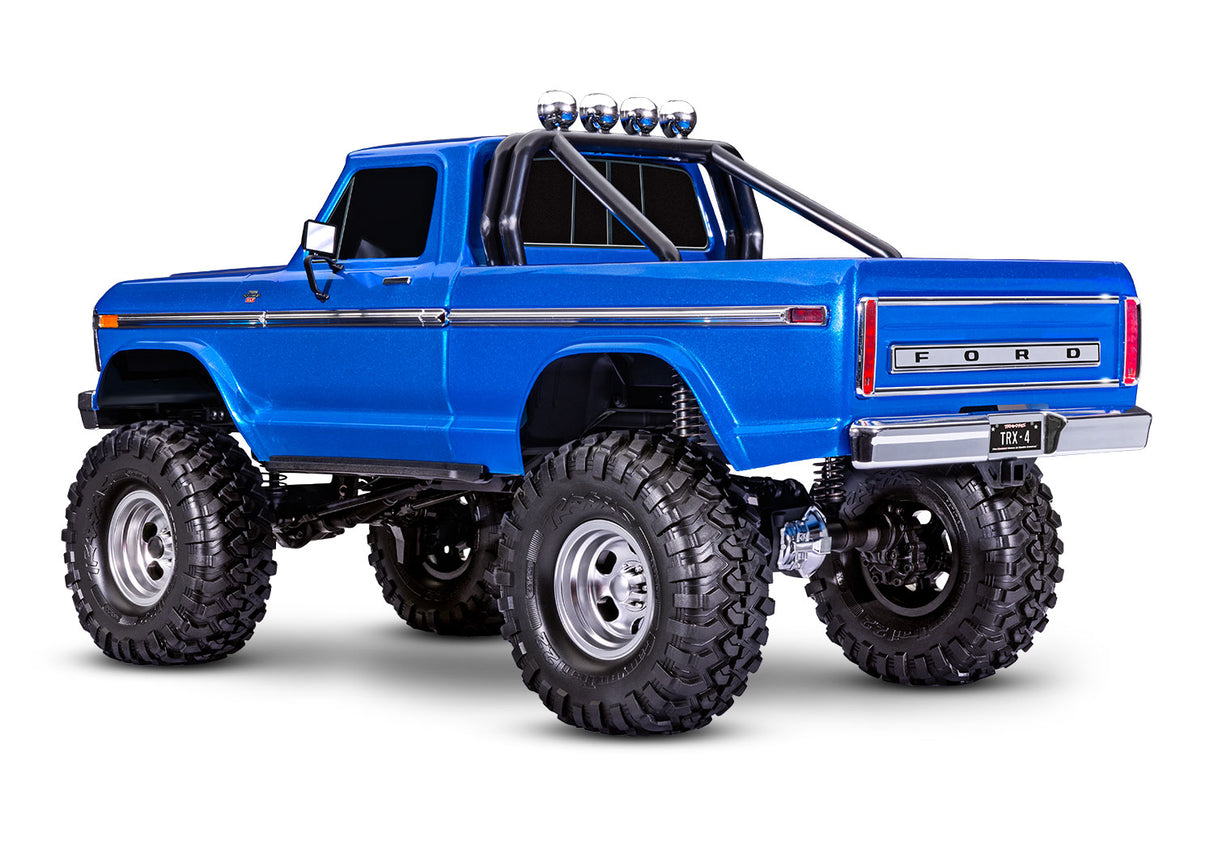

Traxxas 1/10 TRX-4 Ford F-150 4WD High-Trail Crawler (Brushed / ARR)

Sporting top-of-the-line Ranger XLT trim, the Ford® F-150® High Trail Edition® is equipped with a factory-installed Long Arm Lift Kit and stands over an inch taller than our standard height TRX-4®. The exceptional all-terrain capability, smooth-running drivetrain, and Traxxas Tough™ durability drivers expect from TRX-4 are all there. Black roll bar, chrome light housings, longer wheelbase, and slotted aluminum-finish mags complete the authentic, period-correct look.

 FEATURES:

• Licensed 1979 Ford F-150® Ranger XLT body with scale details and clipless mounting.
• LED-ready headlights, tail lights, and roll bar.
• XL-5™ HV waterproof ESC with 5 driving modes and 2–3s LiPo compatibility.
• Titan® 21T motor with internal cooling fan.
• Portal axles for increased ground clearance and reduced torque twist.
• Two-speed high/low transmission with remote shifting.

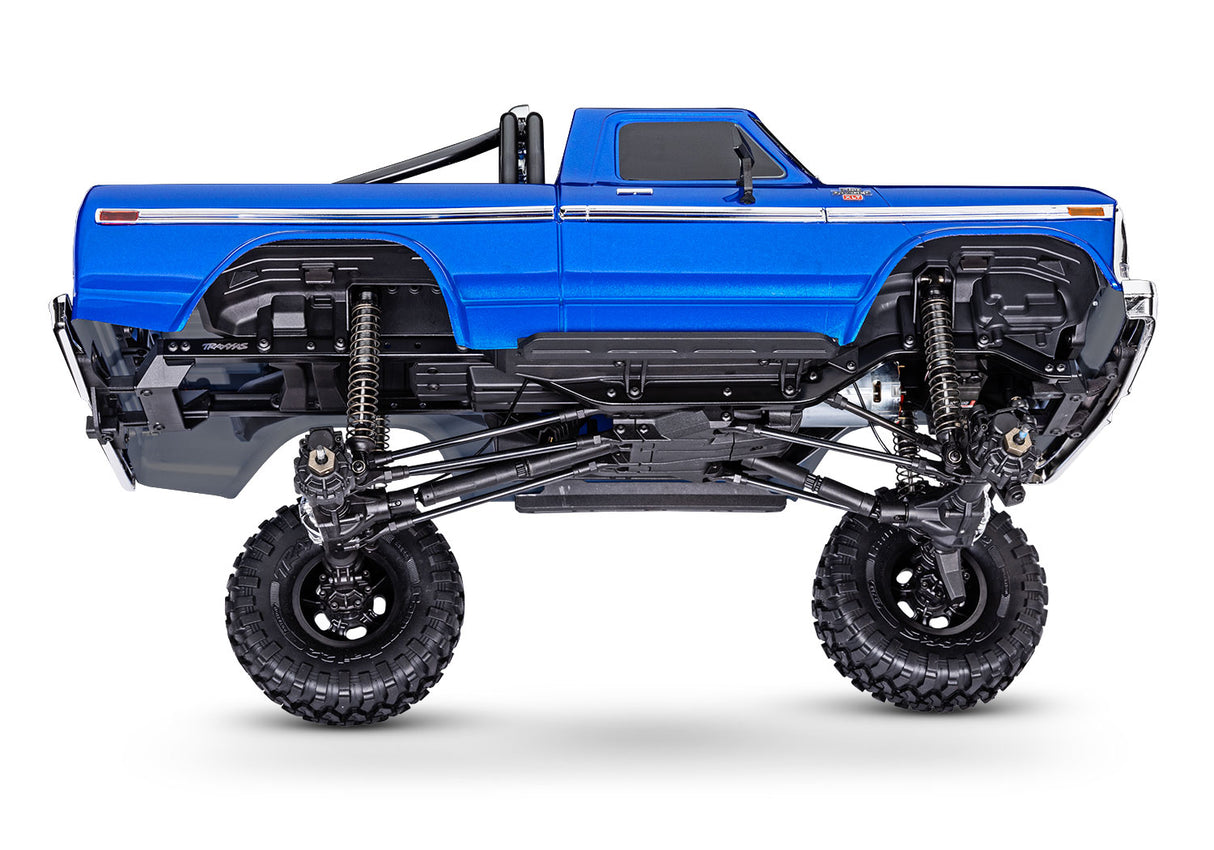

• Extended aluminum oil-filled GTS shocks and Long Arm Lift Kit for better articulation and clearance.
• Oversized 2.2" wheels with trail-tuned Canyon Trail tires.
• TQi™ 4-channel transmitter with telemetry integration and cruise control.

REQUIRED:

(1) 4-7 Cell NiMH or 2-3S LiPo
(1) Battery Charger
(4) AA Batteries for Transmitter

SPECIFICATIONS:

• Model#: 92046-4
• Length: 22.30 inches (566 mm)
• Front Track: 10.60 inches (270 mm)
• Rear Track: 10.60 inches (270 mm)
• Center Ground Clearance: 4 inches (99 mm)
• Weight (w/o battery): 7.34 pounds (3.33 kg)
• Height (overall): 10.82 inches (275 mm)
• Wheelbase: 13.23 inches (336 mm)
• Approach Angle: 73.5°
• Departure Angle: 49.67°
• Breakover Angle: 67°
• Front Shock Length: 4.33 inches (110 mm)
• Rear Shock Length: 4.33 inches (110 mm)
• Front Wheels: 2.2″ x 1.34″ (56 x 34 mm)
• Rear Wheels: 2.2″ x 1.34″ (56 x 34 mm)
• Front Tires: 5.3″ x 2.14″ (135 x 54 mm)
• Rear Tires: 5.3″ x 2.14″ (135 x 54 mm)
• Hex Size: 12 mm
• Speed Control: XL-5 HV
• Motor (electric): 21T Reverse rotation
• Transmission: 2-speed high/low, remote shifting
• Gear Pitch: 32 pitch
• Differential Type: 4 gear, remote locking

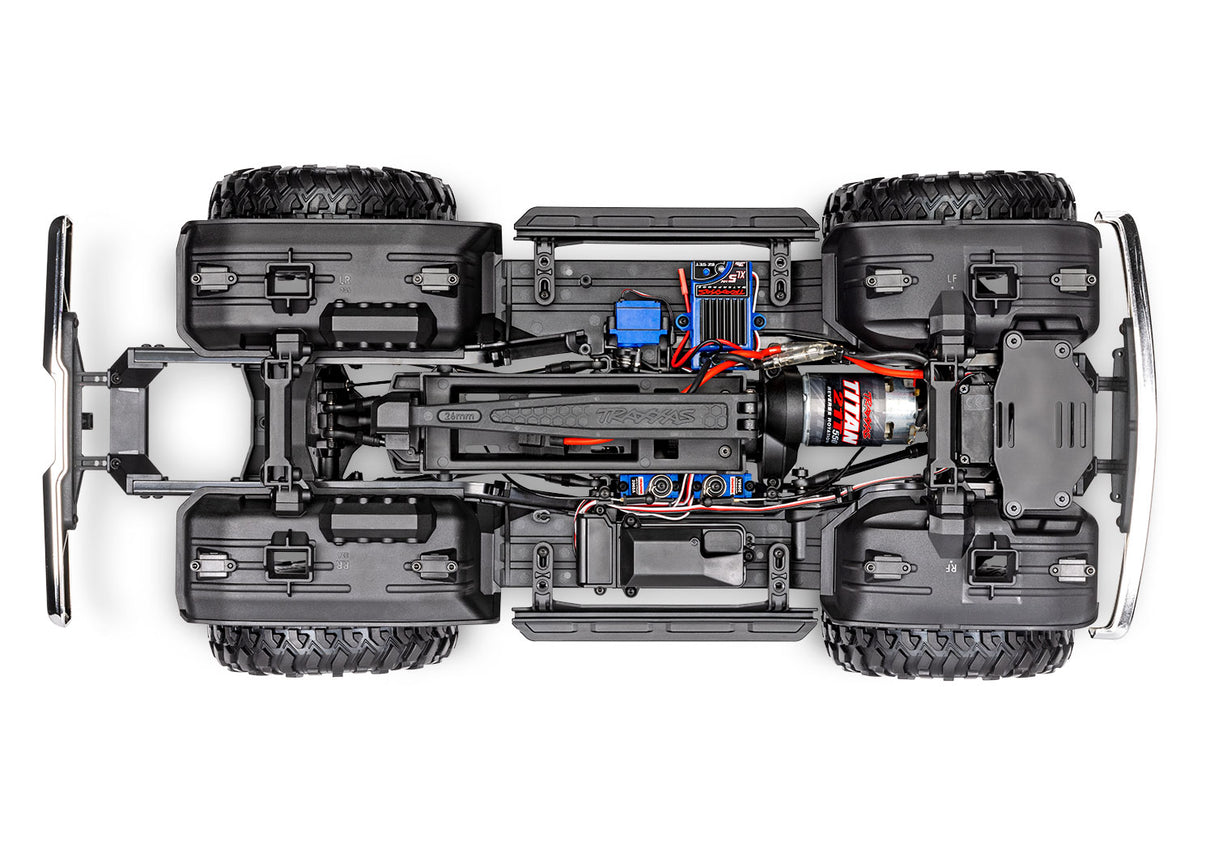

• Chassis Structure / Material: Steel ladder frame with Nylon composite crossmembers
• Brake Type: Electronic “Hill Hold”
• Drive System: Shaft driven 4WD
• Steering: Chassis-mounted servo
• Servo: 2075X metal gear
• Transmitter: TQi™ 2.4 GHz 4-channel transmitter
• Receiver: 6533
• Skill Level: 1
• Battery Tray: 159 L x 47 W x 23/26 mm H
• Connector: Traxxas

HELPFUL LINKS:

• TRX-4 F-150 Ford Manual

INCLUDES:

(1) Traxxas 1/10 TRX-4 Ford F-150 Crawler
(1) TQi™ 2.4GHz radio system
(1) Tool Set
