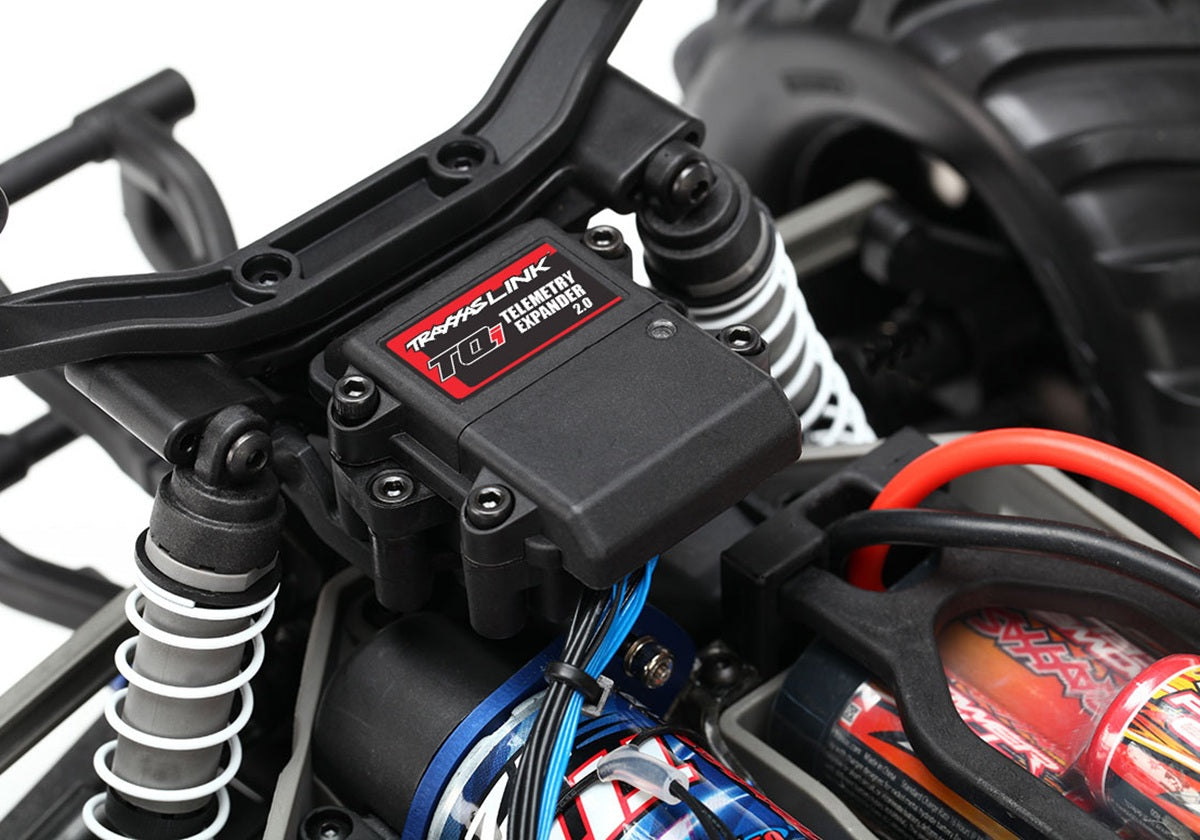

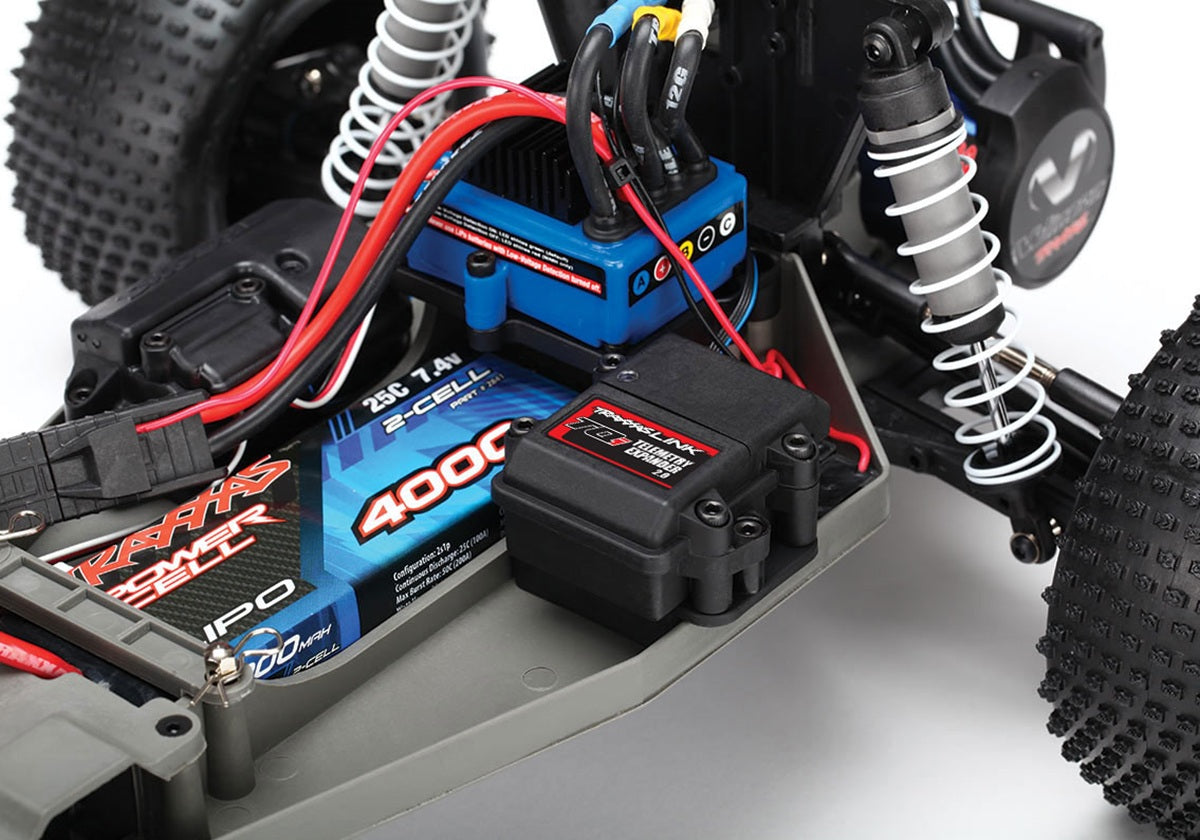

Traxxas Telemetry Expander 2.0 (#6550X)

The Traxxas telemetry expander lets you monitor and record real-time data from your vehicle while you drive. Add the optional GPS module (sold separately) to the water-sealed Telemetry Expander and track the actual speed of your vehicle in real-time! Advanced communication bus technology allows you to connect the telemetry expander to your TSM receiver, High-Voltage Power Amplifier, or directly to the VXL-4s™, VXL-6s™, or VXL-8s™ electronic speed controls with optional data cables.

FEATURES:

• Expands telemetry capability with up to six additional sensor ports
• Auto‑detecting sensor interface for easy plug‑and‑play setup
• Fully sealed enclosure protects electronics from water, dirt, and debris
• High‑speed communication bus for fast, real‑time data transfer
• Compatible with GPS Speed Module 2.0 (#6551X) for true ground‑speed tracking
• Supports voltage, temperature, and RPM sensors (sold separately)
• Includes data cable for connection to TQi/TSM receiver
• Compact, easy‑mount design fits most Traxxas vehicles without modification
• Works with Traxxas Link App for dashboards, logging, and tuning

REQUIRED:

(1) TQi Transmitter w/ Bluetooth Module
(1) TQI TSM Receiver
(1) Traxxas Sensors and/or GPS Module
(1) Traxxas Link App (iOS/Android)

SPECIFICATIONS:

• Part#: 6553X
• Sensor Ports: 6 auto‑detectable plug‑and‑play ports
• Supported Sensor Types: Voltage, Temperature, GPS (auto‑detectable)

HELPFUL LINKS:

• Installation Instructions

INCLUDES:

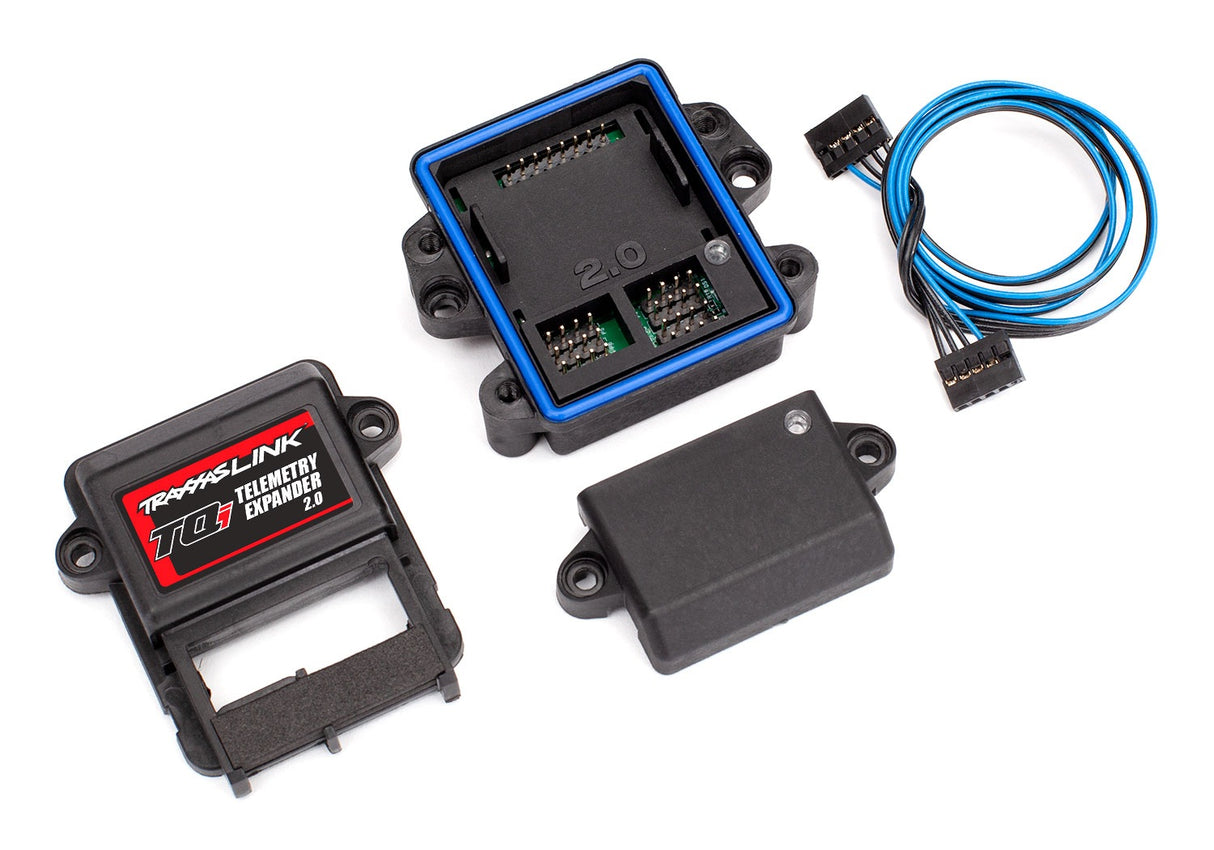

(1) Traxxas Telemetry Expander 2.0

NOTES:

• Telemetry requires a TQi transmitter with 6511 Bluetooth Wireless Module installed and the free Traxxas Link app on your mobile device.

• Always refer to your vehicle's manual or check with the vehicle's manufacturer to verify compatibility. Newer models may not appear on the compatibility list above.
