ARRMA® engineers have outfitted the KRATON™ 6S BLX 4WD with a brushless power system that now features the Spektrum™ Firma™ 150A Smart ESC and Firma™ 2050Kv brushless motor. The combination delivers incredible torque, acceleration and speed.
For improved steering, ARRMA® also includes a new, steel gear Spektrum™ S652 Digital Servo which is 32% stronger and 5% faster than the previous version's ADS-15M servo. Add your favorite 4S or 6S LiPo battery and watch this monster truck smash your speed expectations — up to 60+ MPH in optimum conditions with a 6S LiPo battery and the included optional speed pinion gear.
The ready-to-run package now also includes a 3-channel Spektrum™ SLT3™ radio and Spektrum™ SR315 dual protocol receiver. If you're a new driver, you'll be able to set throttle limits at 50% or 75% until you're ready to use the full speed potential. The SLT3™ is compatible with Tactic® SLT™ receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them. Because the SR315 receiver can use SLT™ and DSMR® protocols, you can easily upgrade to a Spektrum™ DSMR® transmitter later — then, download the free Spektrum™ Dashboard™ app for your mobile device and take full advantage of the Smart telemetry capabilities already present in the Firma™ electronics. You'll be able to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM.
FEATURES:
- Updated with Spektrum™ components and Smart compatible
- 60+ MPH (97 km/h) speeds achievable in optimum conditions using a 6S LiPo battery and the include optional speed pinion gear
- EXB compatible front brace
- Large volume waterproof receiver box
- Ready-to-run: Just install a charged 4 cell or 6 cell LiPo battery of your choice
- Oil-filled adjustable shocks
- Black-anodized aluminum front and rear shock towers
- Durable steel driveshafts throughout
- Heavy-duty drivetrain
- All-metal diff outdrives and gearbox internals
- Never-loose red aluminum servo saver
- Never-pop ball ends
- 4-Bolt center diff removal
- Easy-access sliding motor mount for quick motor removal
- Multi-split spoke wheels
- Durable wheel hubs for increased strength
- Hub nut O-rings

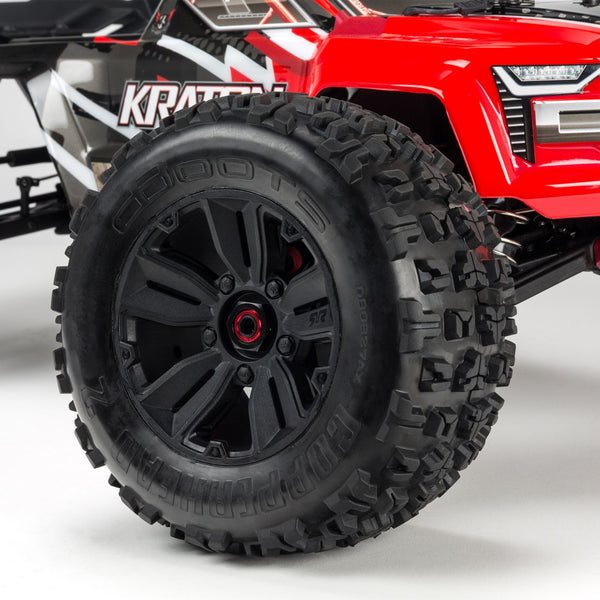

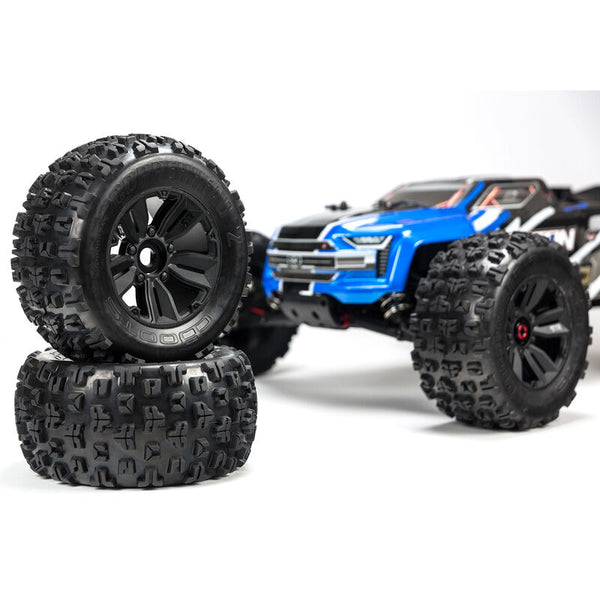

- Multi-terrain dBoots® COPPERHEAD 2™ tires
REQUIRED:
(4) AA batteries (for transmitter)
(1) LiPo charging bag or case (Recommended)
SPECIFICATIONS:
Kraton 1/8 Monster Truck:- Ball Bearings: Full set
- Battery Tray Dimensions 6.22" x 1.89" x 2.76" inches (158 x 48 x 70mm)
- Body: Painted, decaled and trimmed
- Brakes: User programmable
- Chassis: 0.12" (3mm) 6061-T6 aluminum
- Completion Level: Ready-To-Run
- Connector: IC5 (EC5 Compatible)
- Differential: 3-gear
- Drivetrain: 4WD
- Drive Type: Forward/Brake/Reverse
- Final Drive Ratio: 17.92
- Front Shock Spring Rate: 6.2lbs/in (1.09N/mm)
- Front Track: 18.15" (461mm)
- Power Type: Electric
- Gear Pitch: 1.0MOD
- Ground Clearance: 1.85" (47mm)
- Inner Tire / Outer Wheel Diameter: 3.8 in
- Internal Gear Ratio: 4.3
- Motor Size: 4074
- Motor Type: Brushless - Sensor-less
- Pinion: 12T
- Product Height: 7.68" (195 mm)
- Product Length: 23.39" (594 mm)
- Product Weight: 10.67lb (4.85kg)
- Product Width: 18.15" (461 mm)
- Radio: Included
- Rear Shock Spring Rate: 5.0lbs/in (0.87N/mm)
- Rear Track: 18.15" (461mm)
- Receiver: Included
- Scale: 1/8
- Servos: Included
- Shock Type: Aluminum body oil-filled adjustable
- Speed Control: Included
- Spur Gear: 50T
- Suspension: Independent
- Tire Tread: dBoots COPPERHEAD 2
- Tire Type: Multi-terrain
- Vehicle Type: Monster Truck
- Water-Resistant: Yes
- Wheelbase: 14.84" (377mm)
- Wheel Hex Size: 17mm
- Wheel Type: Five split-spoke monster truck
- Wheel Width: 3.3" (81.5mm)

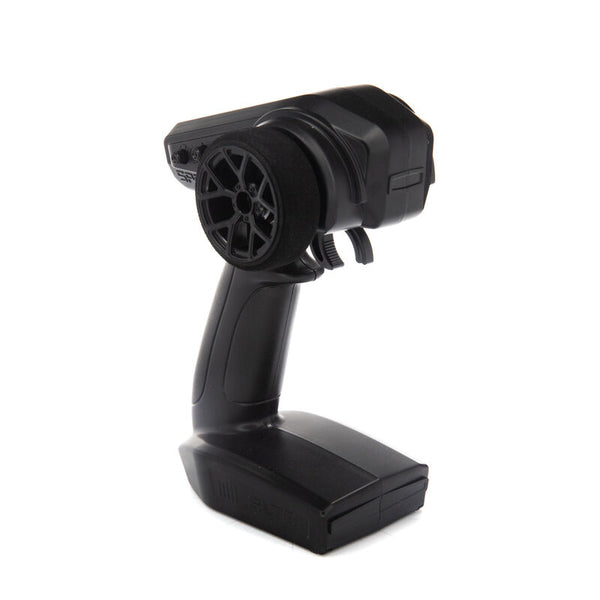

SL3T Radio Transmitter:
- Band: 2.4GHz
- Bind Method: Bind Plug
- Channels: 3CH
- Input Voltage: 4.8V (4 AA Batteries Required)
- Modulation: FHSS
- Range: Full
HELPFUL LINKS:
(1) Spektrum™ Firma™ 150A Smart 4S/6S ESC (installed)
(1) Spektrum ™ Firma ™ 4074 2050Kv Brushless Motor with ARRMA® Heatsink (installed)
(1) Spektrum ™ S652 Metal-Geared Digital Servo (installed)
(1) Spektrum ™ SR315 3-Channel Dual Protocol Receiver (installed)
(1) Spektrum ™ SLT3™ 2.4GHz 3-Channel Radio
(1) EC5 Jumper (for 2nd Battery Plug to use single 4S/6S instead of two 2S/3S LiPos)
(1) Tool Set
- Be sure to check battery tray dimensions in specs when choosing a battery
-
Speed achievable in optimum conditions on 6S LiPo with optional pinion gear.
- For details on waterproof standards, please refer to the product instructions manual.
