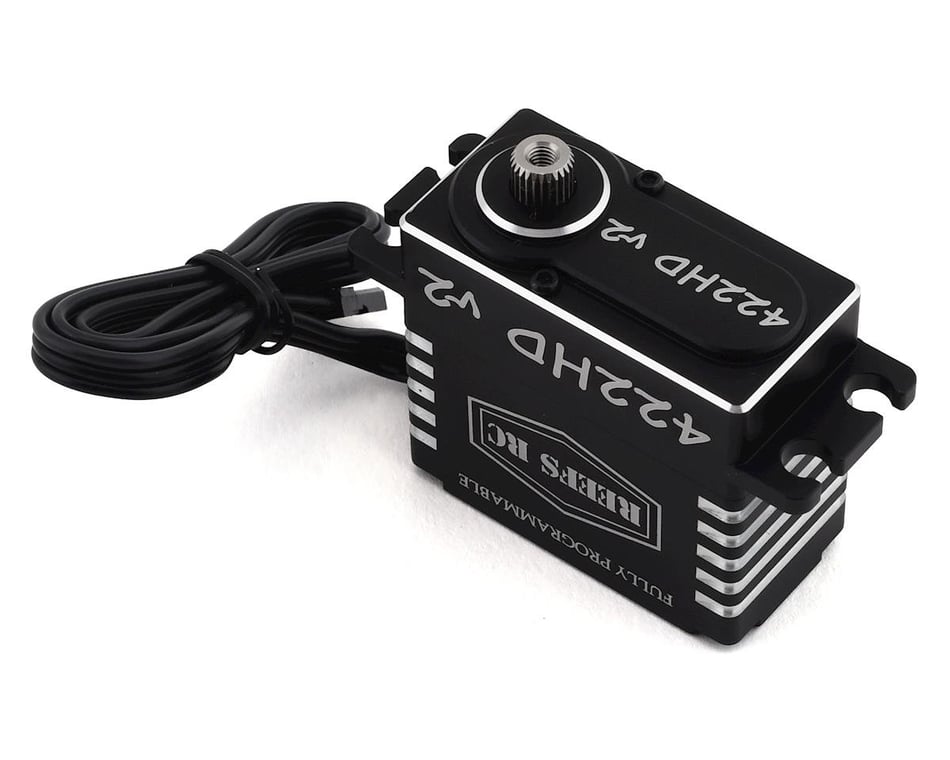

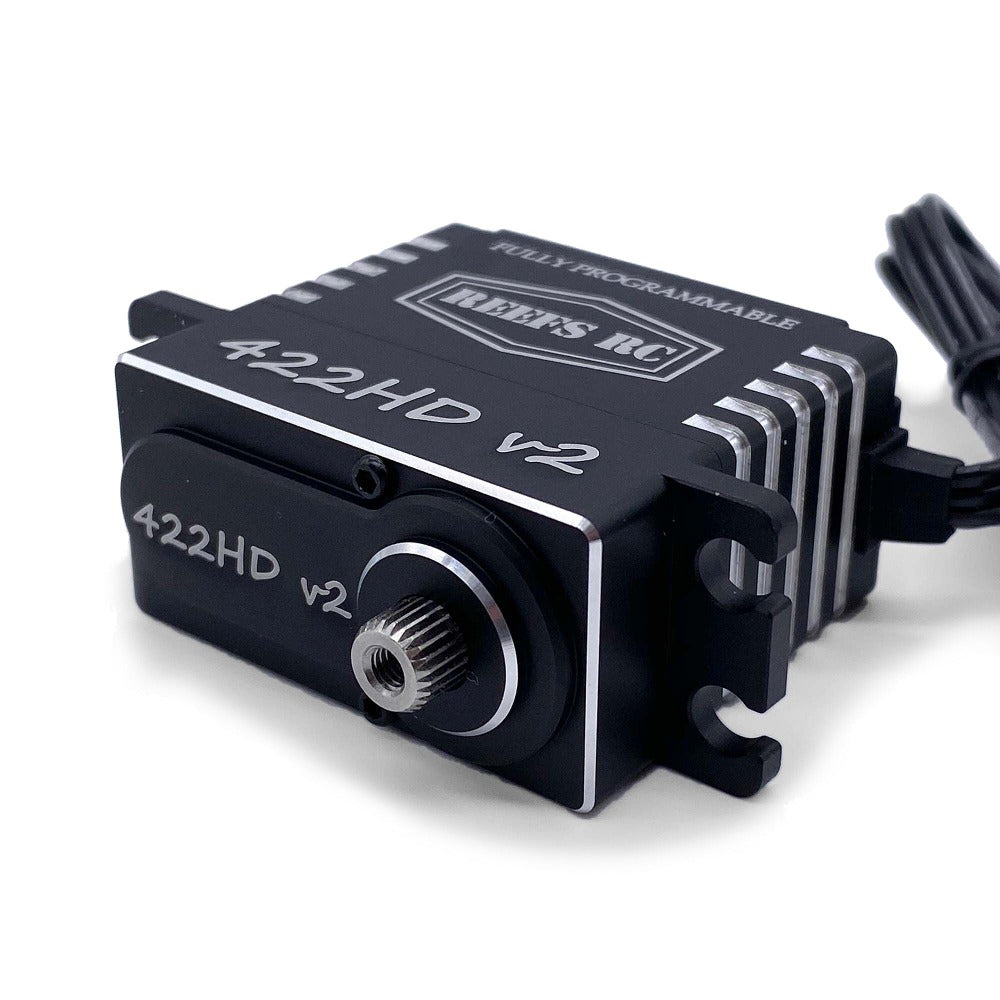

Reefs RC 422HD V2 Digital Coreless Servo (25T Spline / Steel Gears)

The REEFS RC 422HD V2 Brushless Servo delivers exceptional torque and precision, making it a powerful upgrade for demanding RC applications. Built with a high‑efficiency brushless motor, steel gears, and a full CNC aluminum case, it offers outstanding durability and smooth, consistent performance. The V2 update enhances speed, strength, and reliability, while maintaining full programmability and water resistance. Whether used in high‑torque steering setups or heavy‑duty builds, the 422HD V2 provides the control and toughness serious RC drivers expect.

COMPATIBILITY:

• 1/10 Scale Vehicles
• "Lightweight" 1/8 Scale Vehicles

FEATURES:

• The 422HD V2 boasts impressive torque for precise steering control.
• Submarine Waterproof: Equipped with 7-point seals, ensuring protection against water and moisture.
• Magnetic Angle Sensor: Provides accurate position feedback for reliable performance.
• Pulse Width Modulation Control: Allows fine-tuning of servo behavior.
• Fully Programmable: You can customize settings using REEF’s software (requires REEFS LINK).

• Features steel gears and an all-CNC aluminum casing.
• High‑voltage capable (4.8V–8.4V) with torque up to 434 oz‑in and speeds as fast as .10/s

* REEFS LINK required for Programming

SPECIFICATIONS:

• Part# SEH REEFS65

• Input Voltage: 4.8V ~ 8.4V
• Spline Count: 25 - Tooth
• Bearing: Triple Ball Bearing
• Servo Type: Digital
• Maximum Servo Speed: 0.13 sec/60 deg @ 6.0V, 0.11 sec/60 deg @ 7.4V, 0.10 sec/60 deg @ 8.4V
• Maximum Servo Torque: 360oz/in @ 6.0V, 400oz/in @ 7.4V, 434oz/in @ 8.4V
• Height: 1.5" (38mm)
• Length: 1.57" (40mm)
• Weight: 2.85oz (81g)
• Width: 0.78" (20mm)
• Programmable: Yes

• Servo Size Category: Standard

• Water-Resistant: Yes
• Deadband: 2µs
• BEC: Not Required (Recommended for best performance)

INCLUDES:

(1) Reefs RC 422HD V2 Digital Coreless Servo (25T Spline / Steel Gears)
