SKU: 610406248687

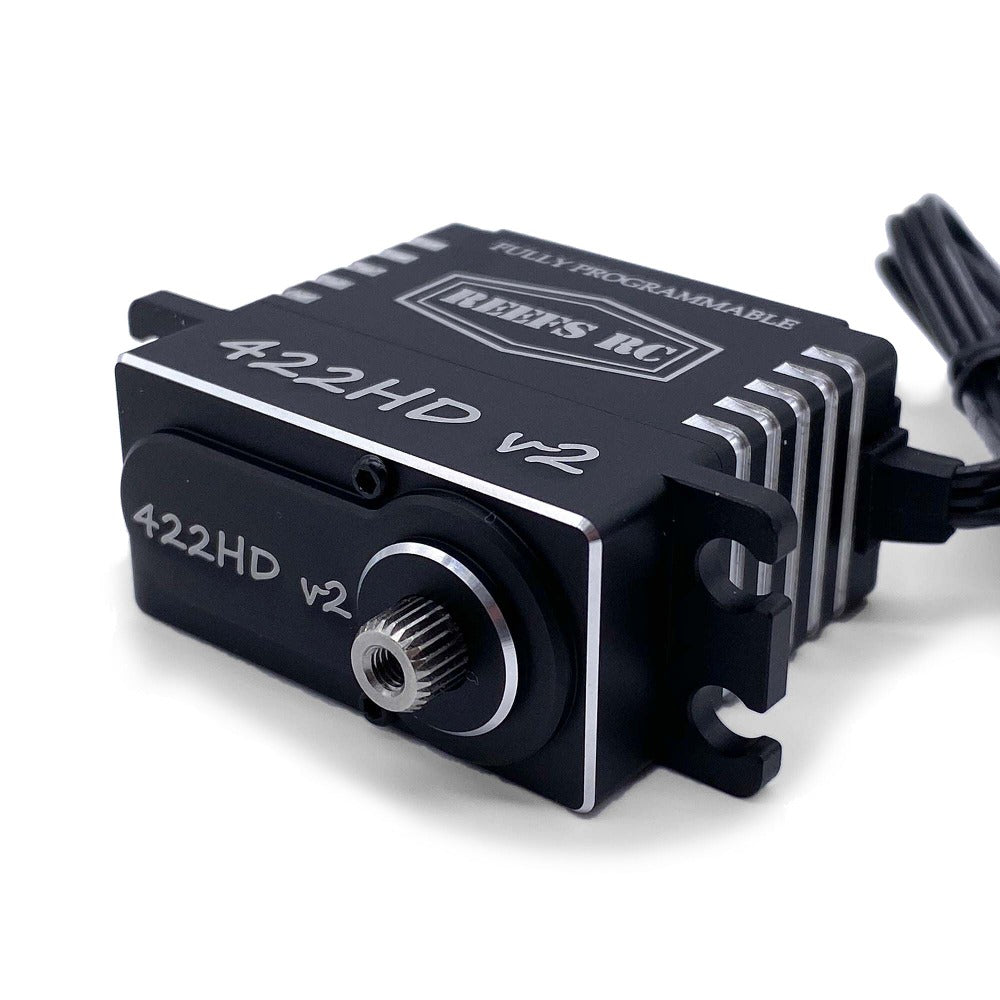

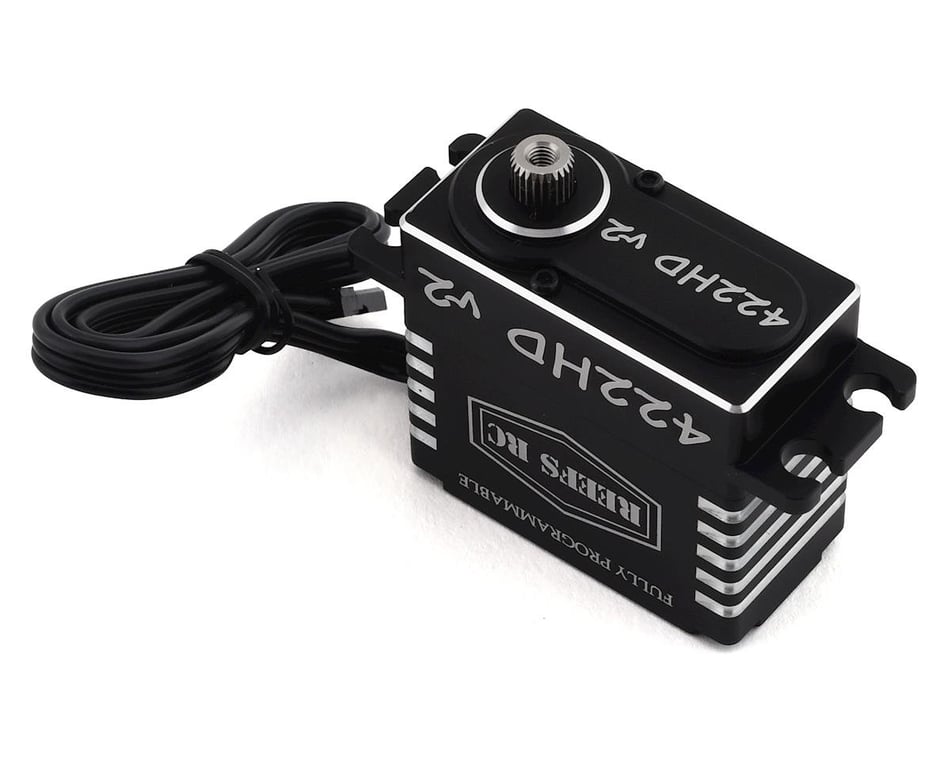

Reefs RC 422HD V2 Digital Coreless Servo (25T Spline / Steel Gears)

$104.99

Reefs RC 422HD V2 Digital Coreless Servo (25T Spline / Steel Gears)

The 422HD V2 servo combines affordability with outstanding performance, making it an excellent choice for upgrading your RC vehicles.


COMPATIBILITY:

  • 1/10 Scale Vehicles
  • "Lightweight" 1/8 Scale Vehicles


FEATURES:

  • The 422HD V2 boasts impressive torque for precise steering control.
  • Submarine Waterproof: Equipped with 7-point seals, ensuring protection against water and moisture.
  • Magnetic Angle Sensor: Provides accurate position feedback for reliable performance.
  • Pulse Width Modulation Control: Allows fine-tuning of servo behavior.
  • Fully Programmable: You can customize settings using REEF’s software (requires REEFS LINK).
  • Operates from 4.8V to 8.4V.
  • Features steel gears and an all-CNC aluminum casing.


SPECIFICATIONS:

  • Part# SEHREEFS65
  • Bearing: Triple Ball Bearing
  • Deadband: 2µs
  • Input Voltage: 4.8V ~ 8.4V
  • Maximum Servo Speed: 0.13 sec/60 deg @ 6.0V, 0.11 sec/60 deg @ 7.4V, 0.10 sec/60 deg @ 8.4V
  • Maximum Servo Torque: 360oz/in @ 6.0V, 400oz/in @ 7.4V, 434oz/in @ 8.4V

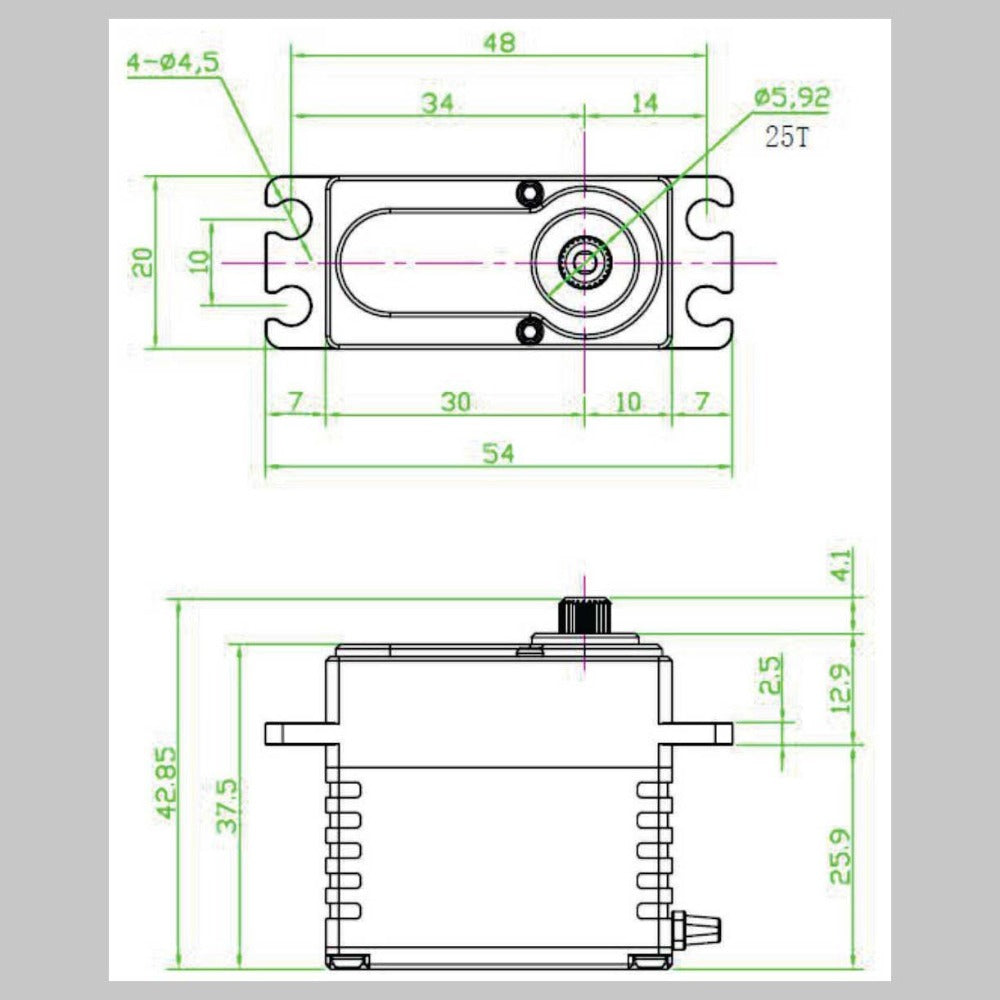

  • Height: 1.5" (38mm)
  • Length: 1.57" (40mm)
  • Weight: 2.85oz (81g)
  • Width: 0.78" (20mm)
  • Programmable: Yes
  • Operating Voltage: 4.8 - 8.4V (HV)
  • Servo Size Category: Standard
  • Servo Type: Digital
  • Spline Count: 25 - Tooth
  • Water-Resistant: Yes
  • BEC: Not Required (Recommended for best performance)


INCLUDES:

(1) Reefs RC 422HD V2 Digital Coreless Servo (25T Spline / Steel Gears)
