Mini-BEC 5V / 1.5A Voltage Regulator (5-28V Input)

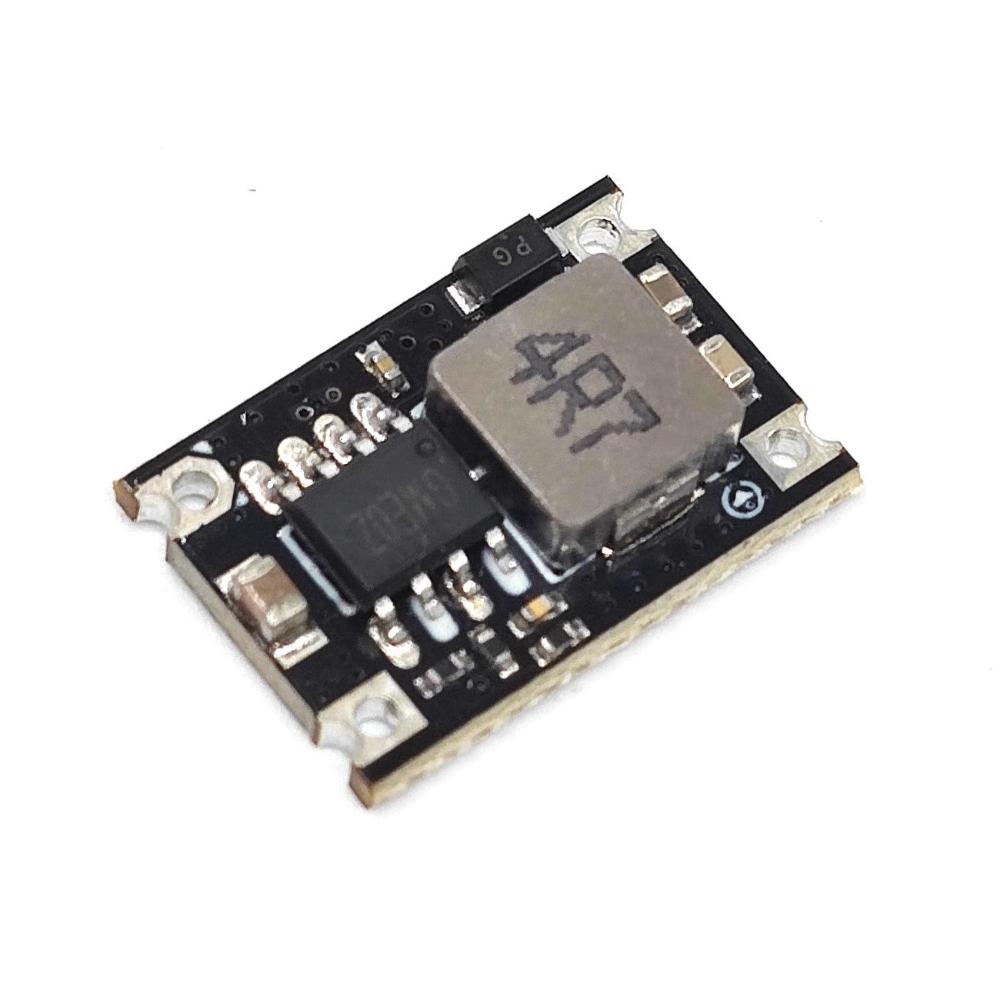

This mini 5V Regulator Module is a compact buck converter designed to step down the voltage from a higher input range to a fixed 5V output.

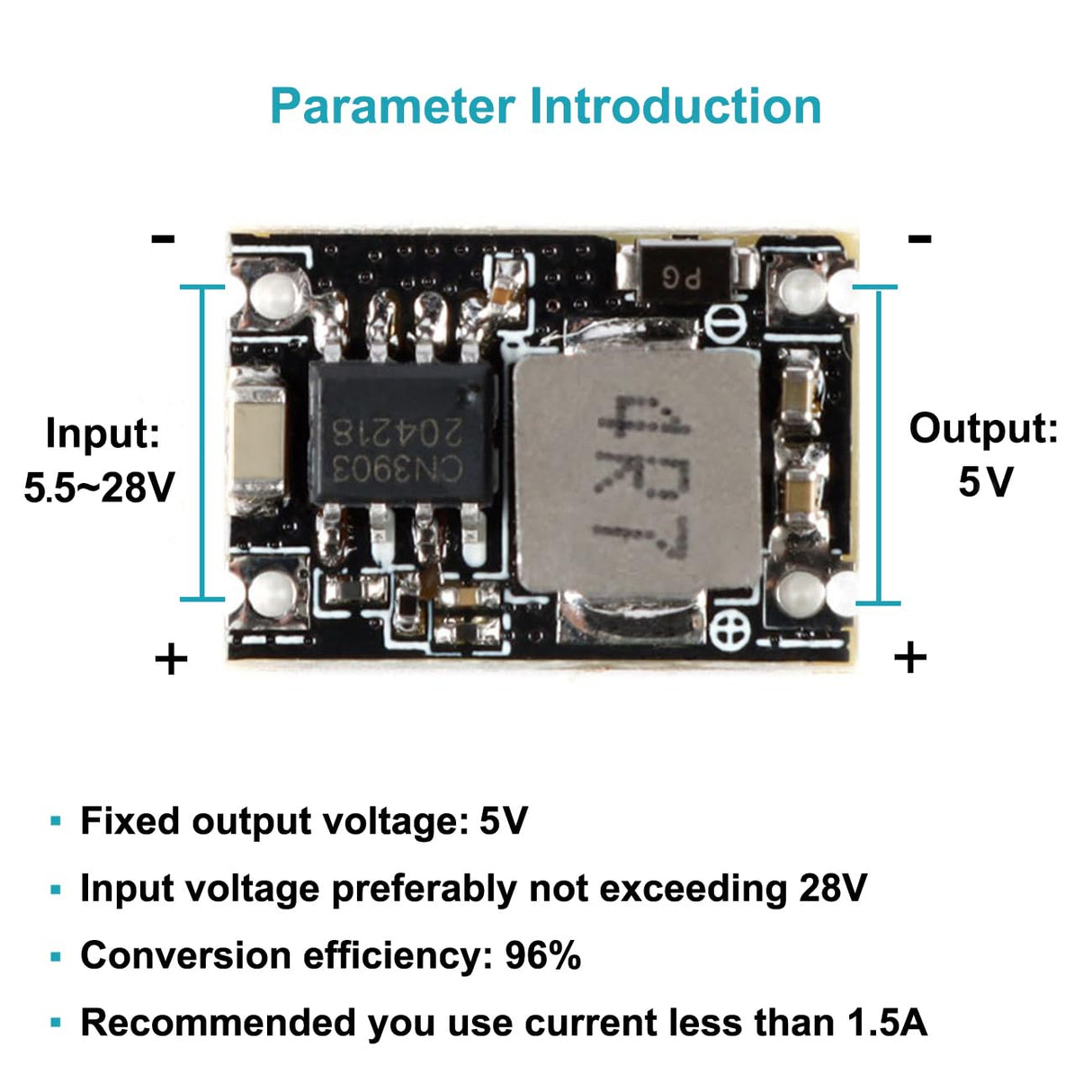

SPECIFICATIONS:
- Input: 5-28V
- Output: 5V
- Output current: 1.5A
- Conversion efficiency: 96%

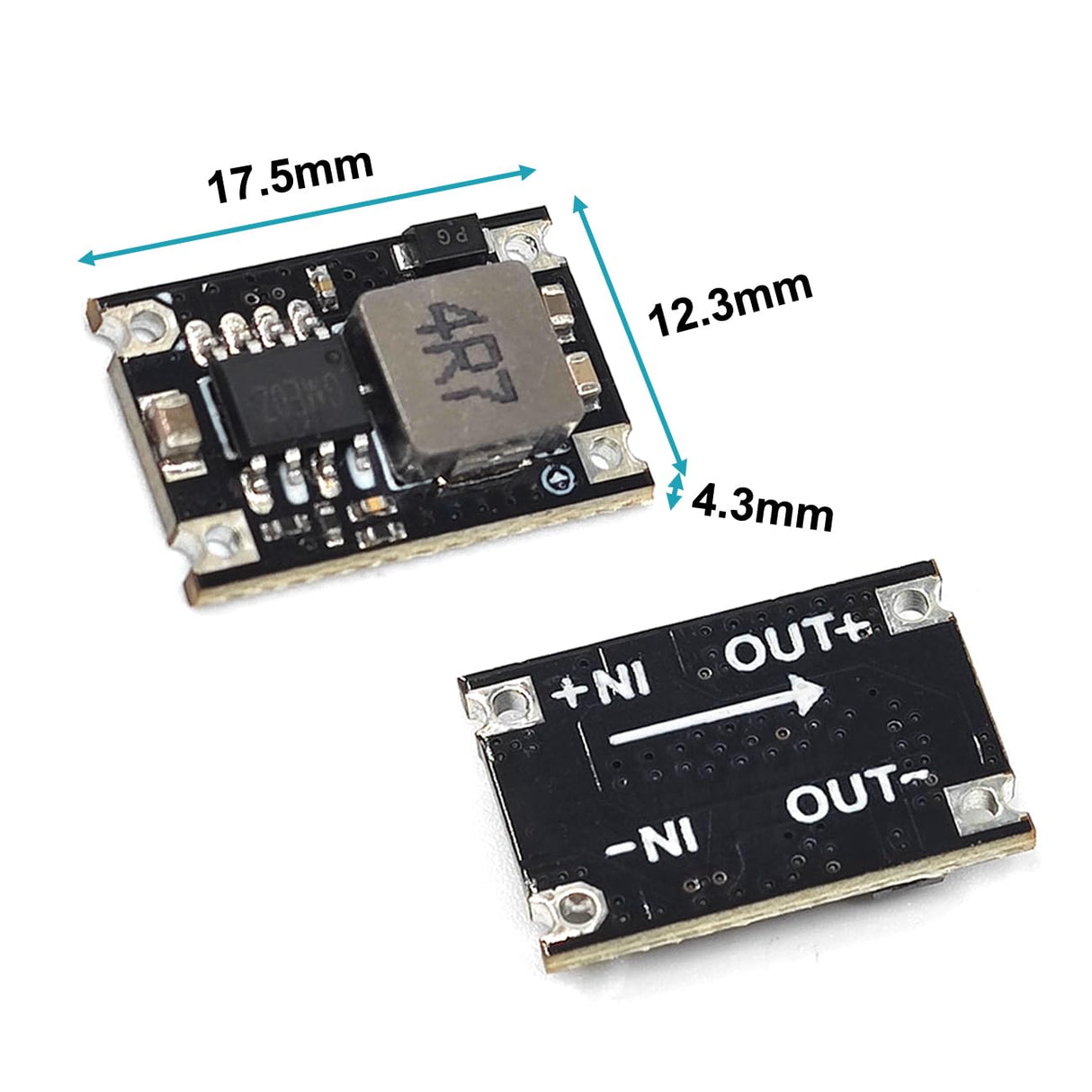

- Size: 17.5x12.3x4.3mm
- Output ripple: <30mV
- Output accuracy: ± 0.1V
- No-load current: <1mA
- Switching frequency: 1-1.5 MHz (max)
- Output accuracy: ± 0.1V
- No-load current: <1mA
INCLUDES:
(1) Mini-BEC 5V / 1.5A Voltage Regulator
