The Aikon AK32 4-in-1 55A 6S is a new generation ESC that uses a variety of bleeding edge technologies in hardware and firmware.
FEATURES:
- BLHeli_32 code base
- Programmable PWM frequency of up to 48KHz
- Auto-timing for higher efficiency and reliability
- Voltage/Current sensing
- Adjustable “Brake on Stop” force
- Improve direction change in Bidirectional mode
- ESC Telemetry (Voltage and RPMs only, no current)
- Configuring from FC using DShot commands
SPECIFICATIONS:
- Input Voltage: 3-6S
- Constant Current: 55A
- Burst Current(10s): 70A
- BEC: No
- MCU: STM32 F0
- Firmware: BLHeli32
- Telemetry: Yes
- Current Sensor: Yes
- Current Sensor Scale: 210
- Mounting Dimensions: 30.5 x 30.5mm
- Weight (w/o wire): 18.5g

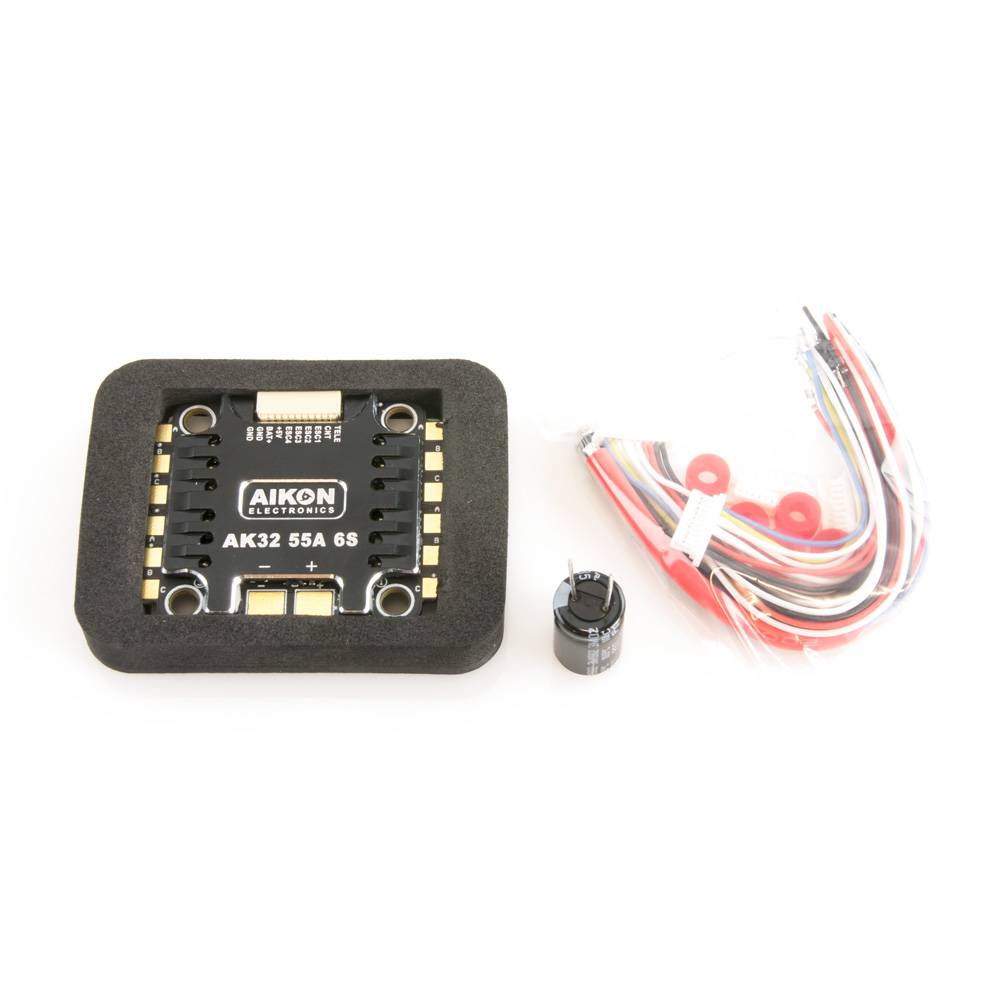

INCLUDES:
(1) Aikon AK32 55A 4-In-1 ESC
(1) 35v 470uf Capacitor
(5) Silicone Grommets
(1) Power Lead Cable Set
(1) ESC Cable
