AKK BA2 Micro AIO 5.8Ghz Analog Camera/VTX (40CH / 200mW)

$19.99

AKK BA2 Micro AIO 5.8Ghz Analog Camera/VTX (40CH / 200mW)

The AKK BA2 is much smaller and lighter in weight than other all-in-one cameras. It has a great signal range of 200mW, making it suitable for Foam RC Planes and Small Drones.



FEATURES:

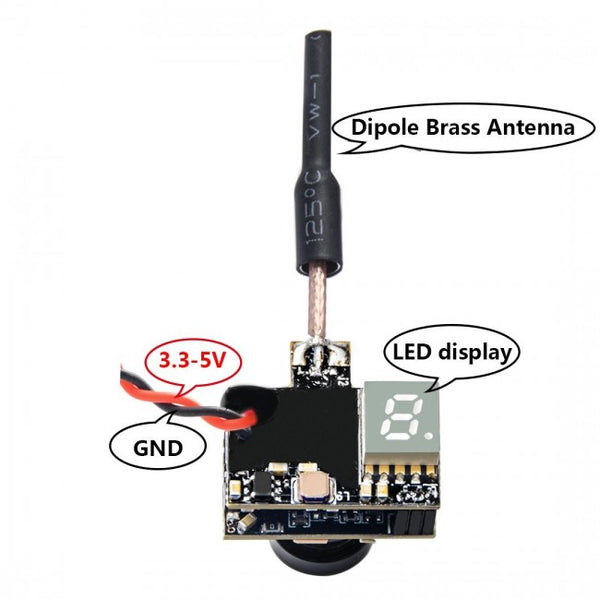

  • All-in-one video transmitter, camera, and brass dipole antenna. Just plug and play...it's ready to fly!
  • Super lightweight, 4.7g AIO Camera.
  • Compatible with 5.8GHz goggles and monitor.
  • Installs in seconds! Just connect a 1S LiPo battery.
  • Convenient button control for channels instead of switches. 40 channels, including Raceband.
  • Good quality image with low latency.
  • OSD compatible (See notes below)



INSTRUCTIONS:

  • Channel: Press the button once to change the channel.
  • Frequency Band: Press and hold the button to change the frequency band.

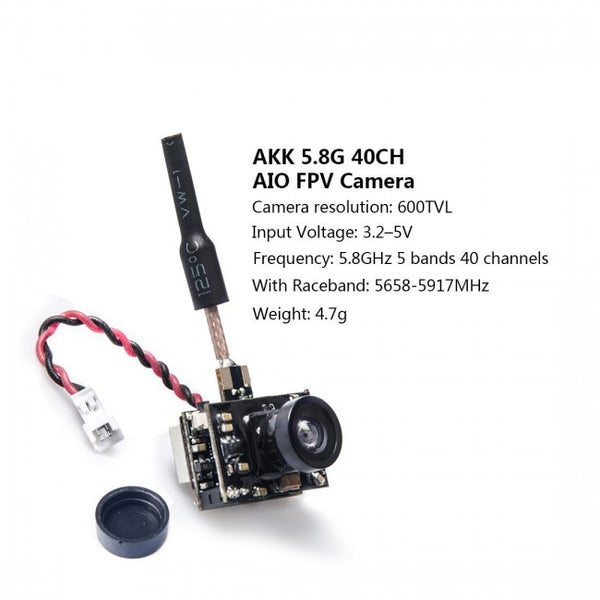

SPECIFICATIONS:

  • Output power: 200mW
  • Input power: 3.2–5V
  • Current consumption: 3.2V-5V,500mA(type)
  • Camera resolution: 600TVL
  • Sensor size: 1/4 CMOS
  • Video system: NTSC
  • Mini illumination: 1 lux
  • Field of view: 120° viewing angle
  • Antenna: Brass dipole antenna
  • Frequency: 5.8GHz 5 bands 40 channels, with Raceband
  • Weight: 0.16oz (4.7g)
  • Battery Connector: JST-1.25 Male or JST-DS "Losi" (if included adapter is used)



INCLUDES

(1) BA2 AIO FPV Camera with Lens Cover
(1) Adapter Cable (JST-1.25 to JST-DS "Losi" Connector)
(1) Manual



NOTES:

*You can add your OSD to this AIO camera by following these steps:

    1. Locate the three pins on the bottom right side of the back LED screen, and cut them in the center.
    2. Solder a wire from the front of the pin to the video input on the OSD.
    3. Solder another wire to the back of the pin on the back of the camera.
    4. Solder the wire from the OSD output to the VTX.
