CaddxFPV GM V2 FPV Camera Gimbal (GM1 & GM3)

The CaddxFPV GM3 V2 delivers ultra‑smooth, three‑axis mechanical stabilization for pilots who want the highest level of clarity and control, while the lighter CaddxFPV GM1 offers a compact single‑axis option ideal for minimal‑weight builds. Both gimbals support PWM/UART control, integrate seamlessly with Walksnail Avatar systems, and unlock immersive head‑tracking when paired with compatible goggles. Whether you need the full stabilization range of the GM3 V2 or the streamlined simplicity of the GM1, each model enhances your FPV experience with crisp, stable footage across drones, wings, and RC vehicles.

FEATURES:

• Head Tracking Functionality
• Enhanced FPV Experience with Pan & Tilt Capabilities with Multiple Options
• Choose from 1-axis (GM1) or 3-axis (GM3) capabilities
• Works with RC Drones, Cars, Airplanes, Boats & more

COMPATIBILITY:

• V2 VTX

• Moonlight VTX

SPECIFICATIONS:

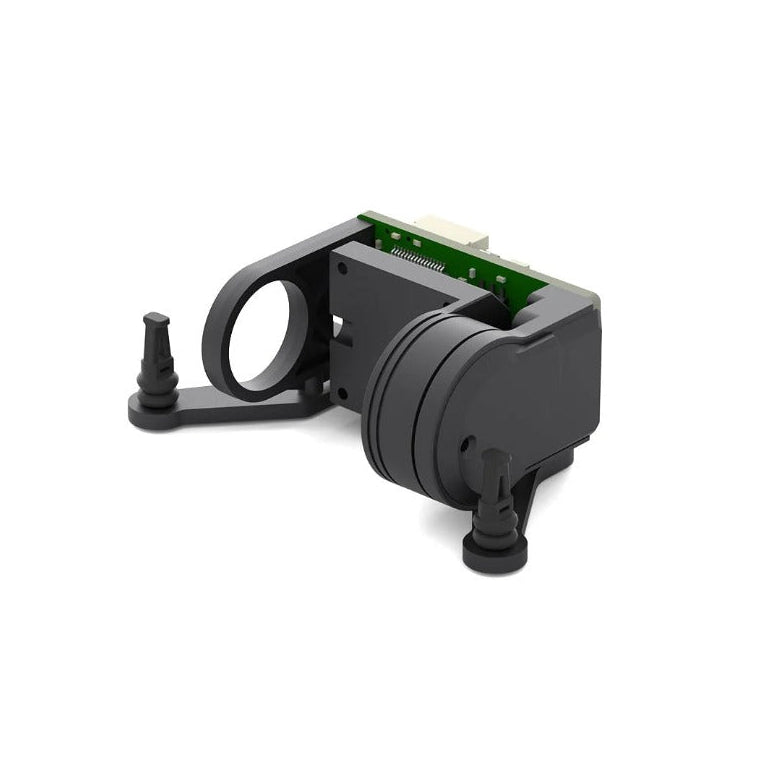

GM1:

• Part#: C0CA-GM010
• Camera Compatibility: 19mm FPV Camera
• Image Stabilization: ±0.005°
• Max Controllable Speed: ±1500°/s
• Max Controlled Rotational Range: Pitch: ±120°
• Size: 32.2x38.1x20.5mm

• Control Mode: PWM / UART
• Head Tracking Control: Support
• Voltage: 7~25V
• Static Power Dissipation: 1.0W
• Weight: 16g

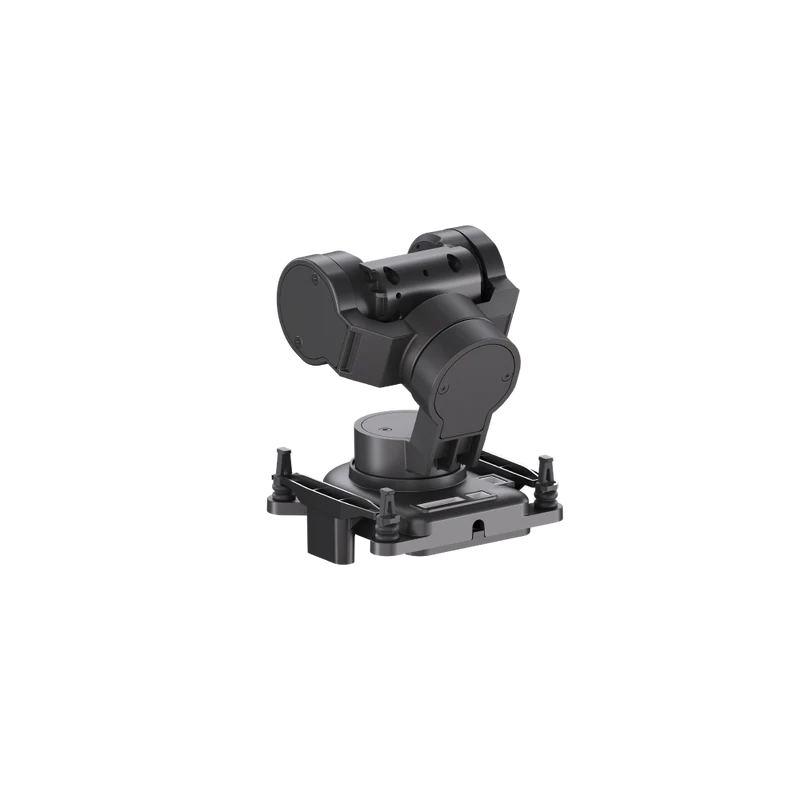

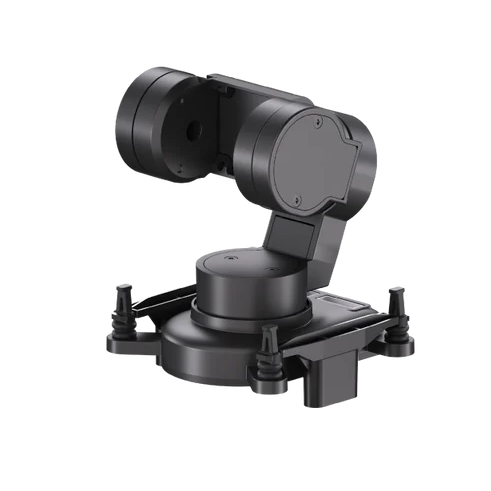

GM3:

• Part#: C0CA-GM030
• Camera Compatibility: Avatar/Ascent Series 19/20mm

• Stabilization Accuracy: ±0.005°

• Maximum Controllable Speed: ±1500°/s

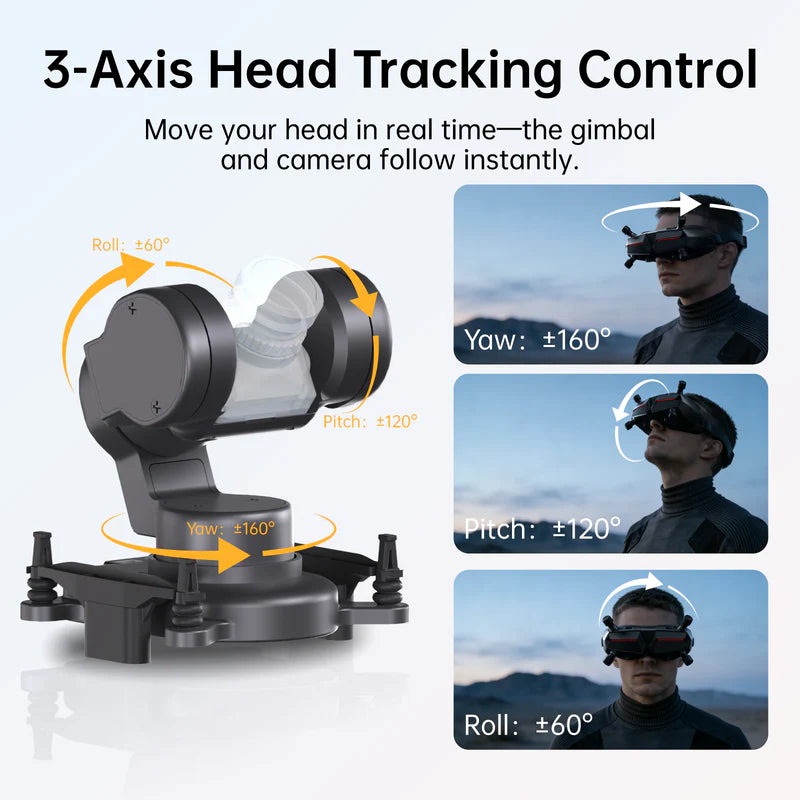

• Controllable Rotation Range: Yaw：±160° Pitch: ±120° Roll：±60°

• Control Method: Uart/ S.bus/ Crsf/ Mavlink/ PWM

• Head Tracking Control: Supports

• Static Power: 1.6W

• Stall Power: 18W

• Dimensions: 61.5x47x46mm
• Voltage: 7~25V

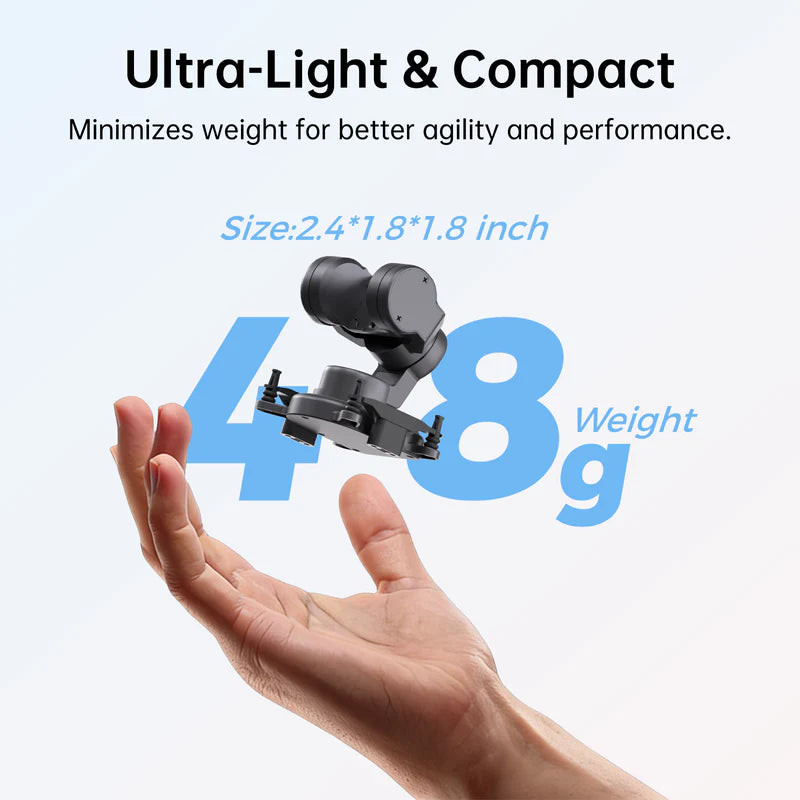

• Weight: 48g

INCLUDES:

(1) CaddxFPV GM Camera Gimbal (Select Version)
(1) Power Cabl
