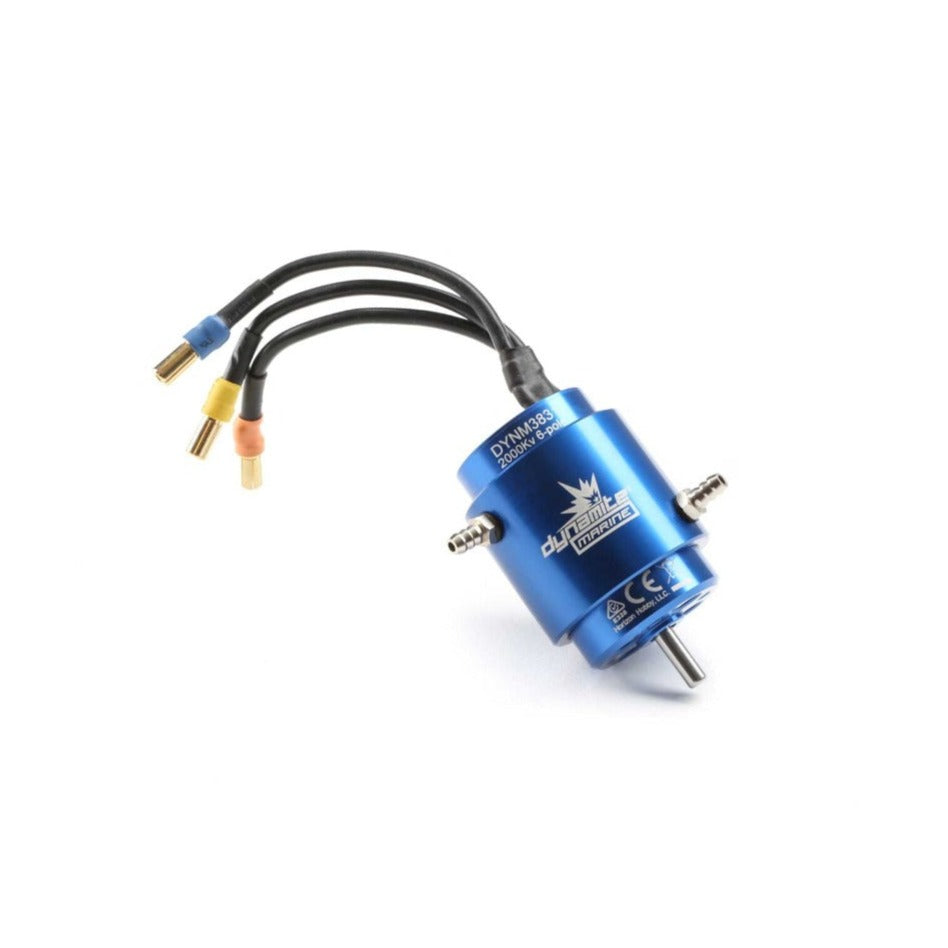

Introducing the Dynamite A3650 brushless marine motor, it features a 6-pole design and water-cooling techniques.
FEATURES:
- 6-pole design
- Water-cooled motor
- 5.5mm motor bullets
SPECIFICATIONS:
- Part# DYNM3831
- Turns: 1.5-D
- Connector Type: 5.5mm Bullet
- Efficiency: 92%
- Product Length: 2.2" (56 mm)
- Outer Diameter: 1.42" (36mm)
- Motor Design: Inrunner
- Adjustable Timing: No
- Input Voltage: 22.2V max
- Recommended Speed Control: 120A
- RPM/Volt (Kv): 2000Kv
- Shaft Length: 0.61" (15.5mm)
- Bushing Or Bearing: Bearing
- Motor Type: Brushless
- Application: Boat
- Number of Poles: 6
- Output: 680W
- Product Weight: 10.4oz (294.8g)
- Shaft Diameter: 0.20" (5mm)
HELPFUL LINKS:
INCLUDES:
(1) Dynamite A3650 / 2000KV Brushless Marine Motor
