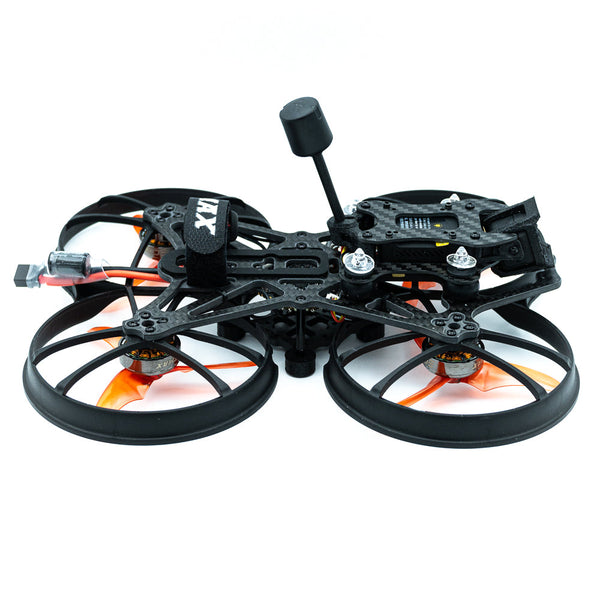

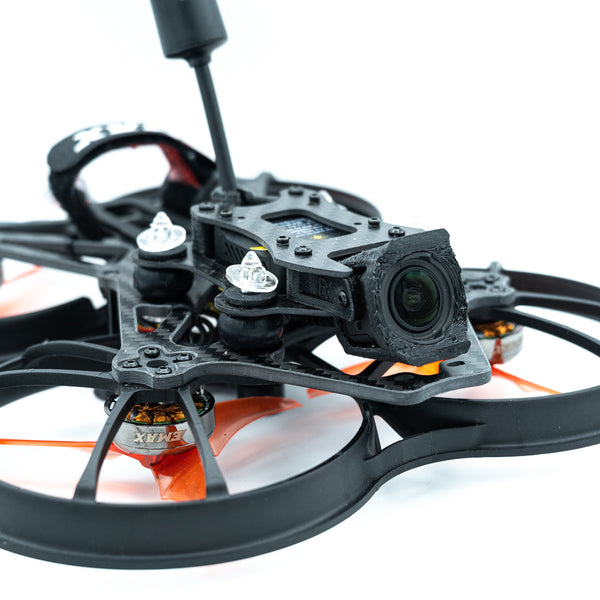

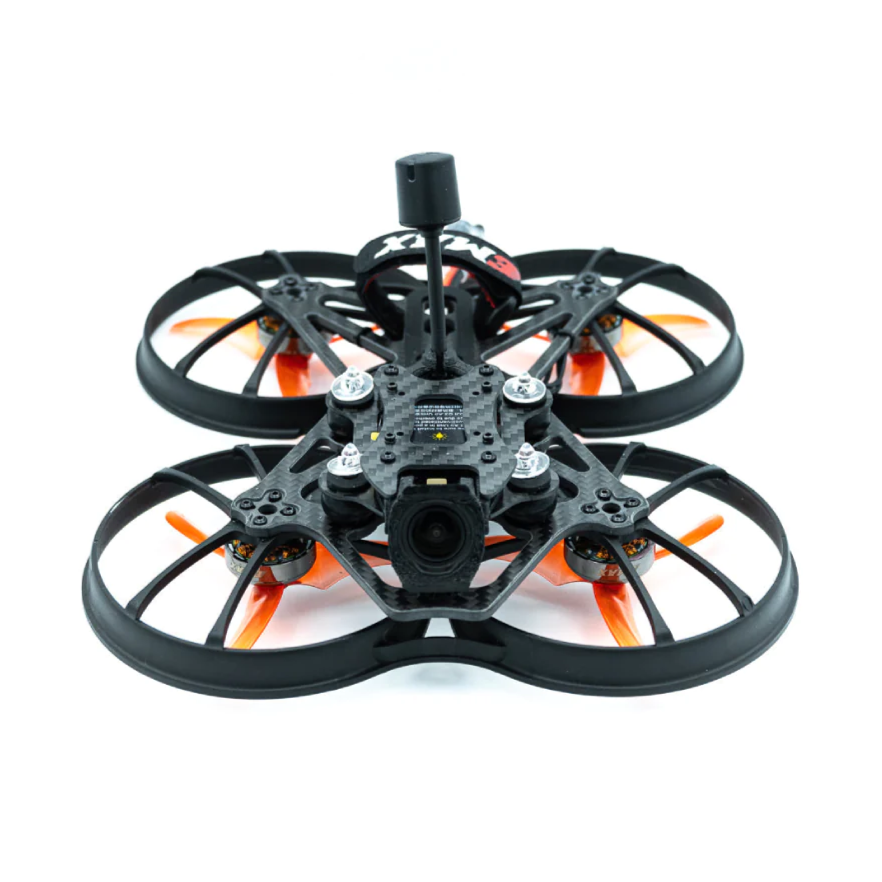

he EMAX Cinehawk is a new product in the cinewhoop category that was developed by years of experience, with high-quality flight performance and user feedback.
The Cinehawk is the first ever cinewhoop from EMAX. By incorporating the O3 Air Unit, they have found this to be a high-performing video-capturing solution and moved forward with designing a ducted 3.5” cinematic use drone around the platform. The O3 Air Unit needed a special design to get the greatest possible image quality out of the built-in camera while maintaining a stable enough platform to mount an action camera.
The Cinehawk is the culmination of serviceability, reliability, and performance, to enable pilots the necessary freedom to capture cinematic-level FPV video.
- Diagonal Wheelbase: 151mm
- Drone Size: 221x193x65mm
- Drone Dry Weight: 236g
- Motor: ECOII 2004 / 3000KV
- Propeller: AVAN 3.5" x 2.8 x 3
- Battery: 4S
- Main Board: EMAX F411 AIO (F4, 25amp 8-Bit ESC)
- Receiver: DJI or EMAX ELRS 2.4GHz RX
- Camera/VTX: O3 Air Unit
(1) EMAX Cinehawk O3 Ducted 3.5" Cinematic DJI FPV Drone w/ ELRS
