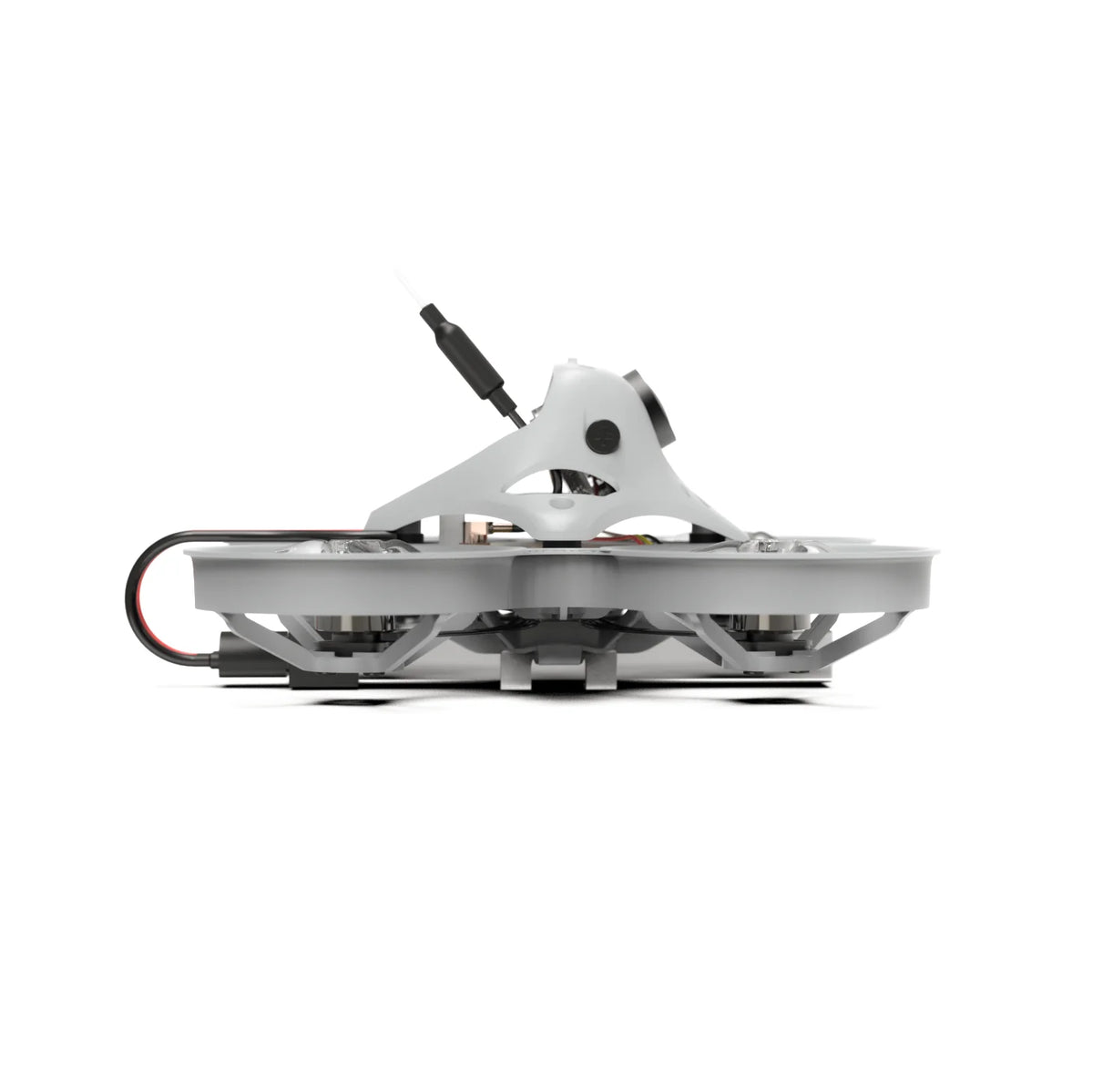

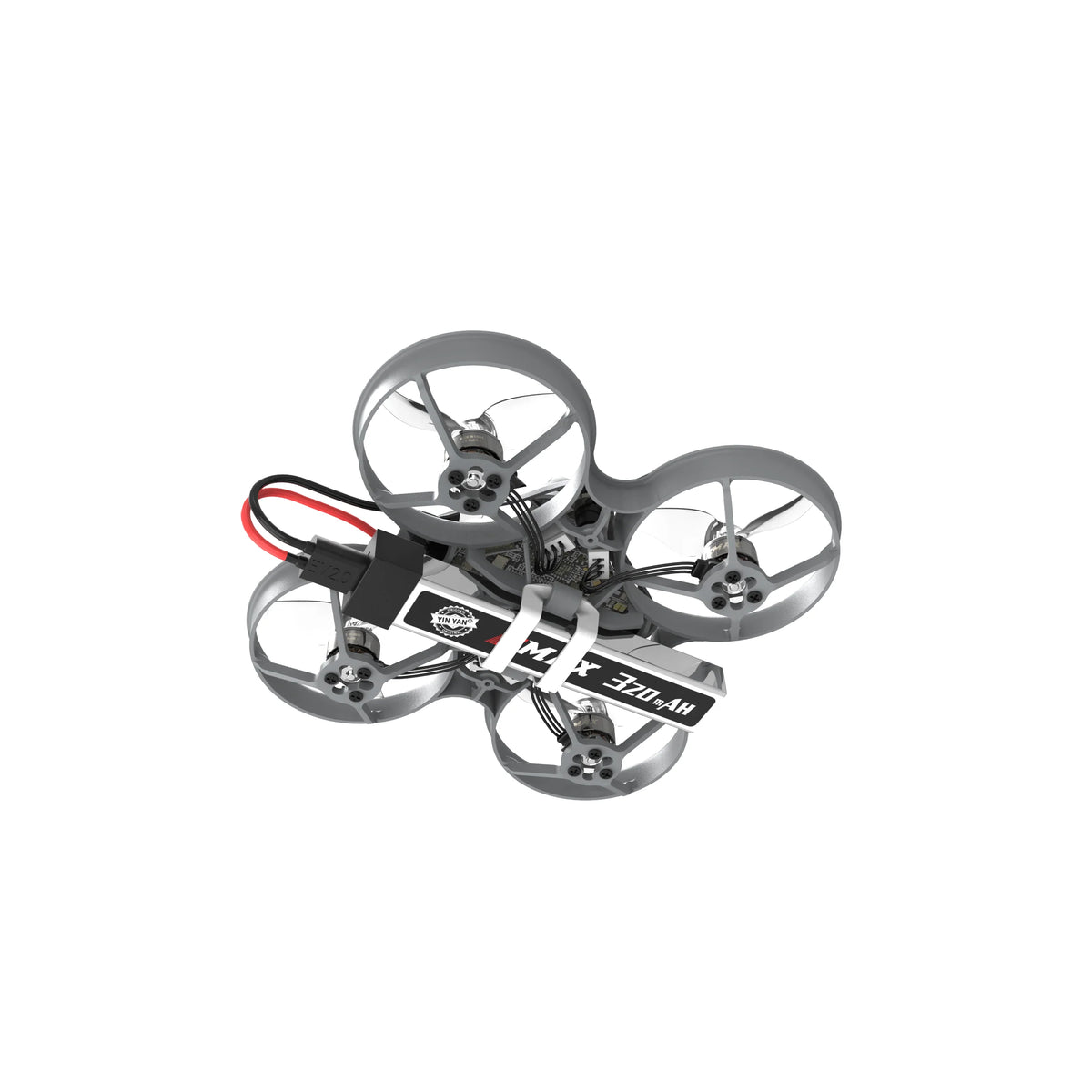

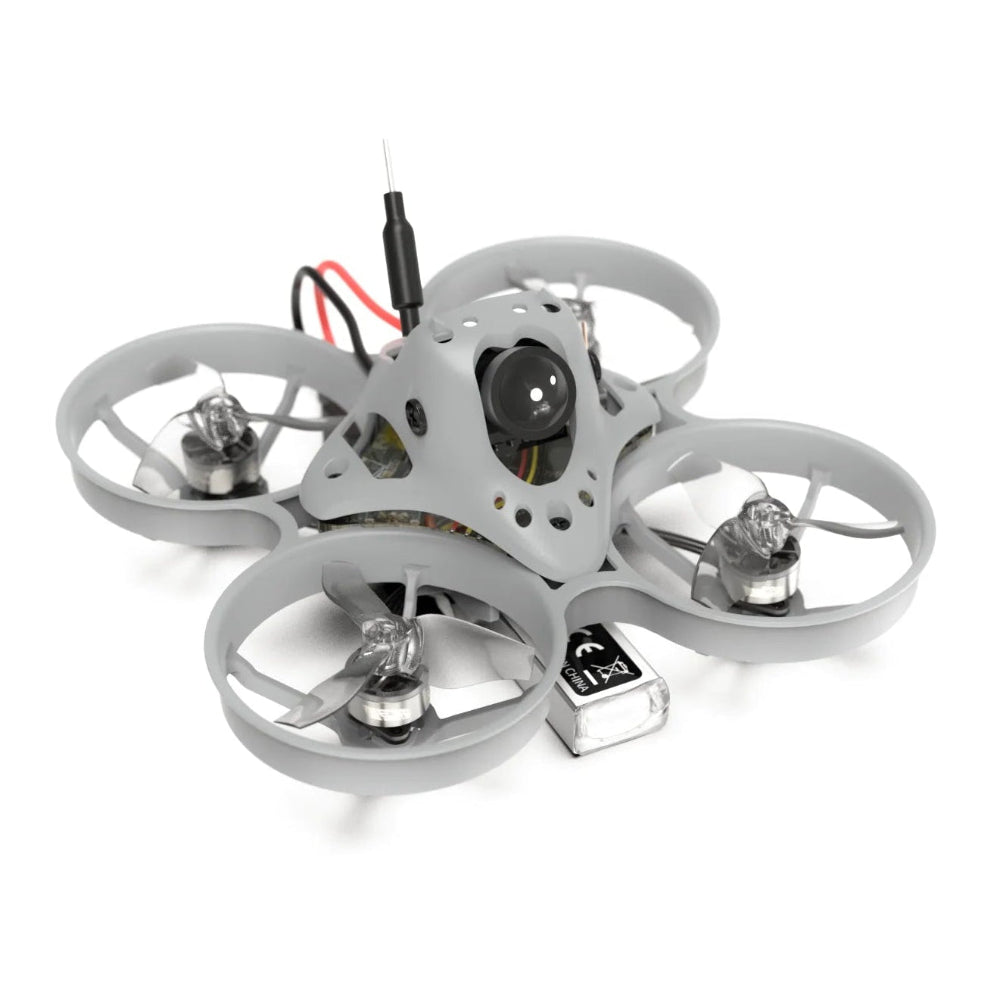

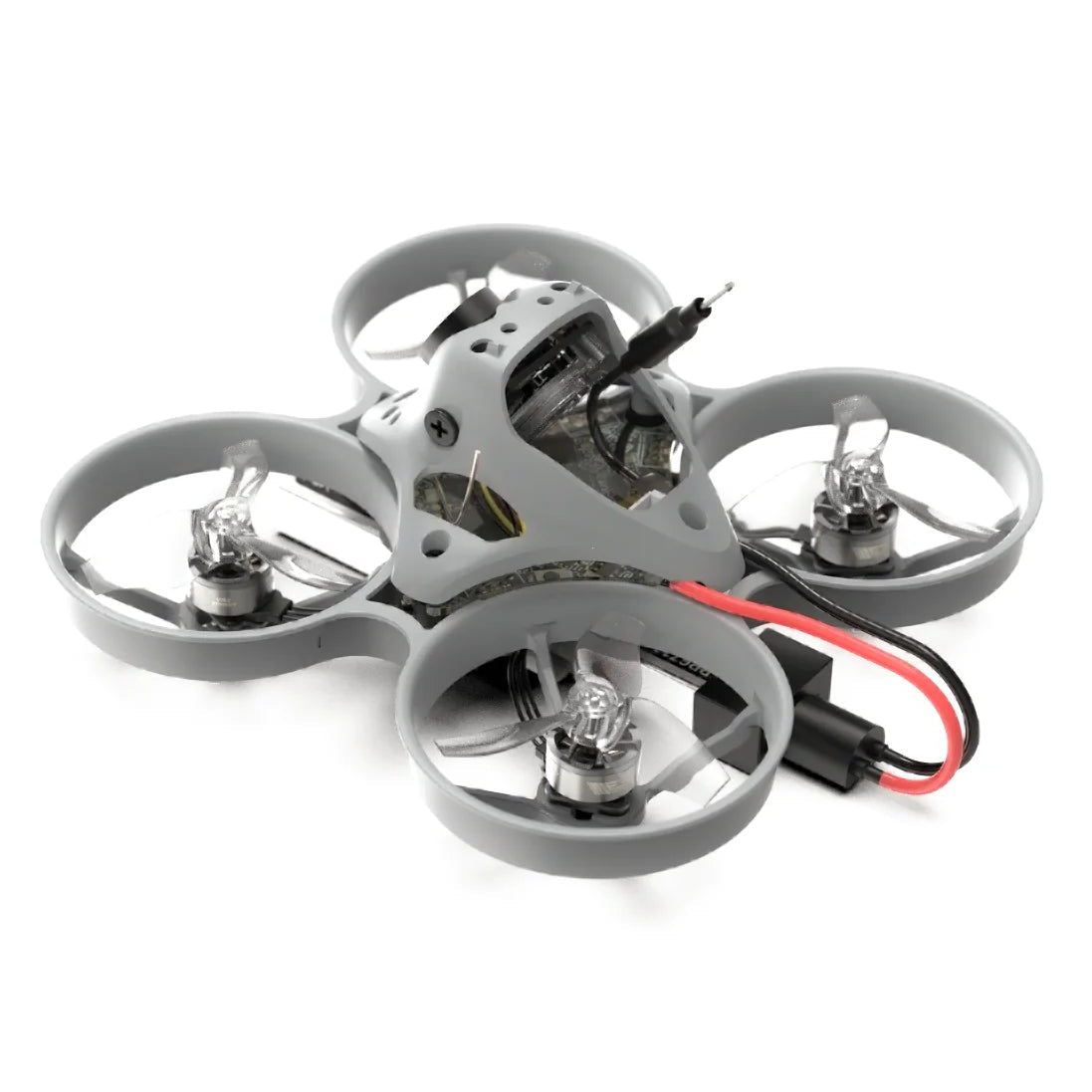

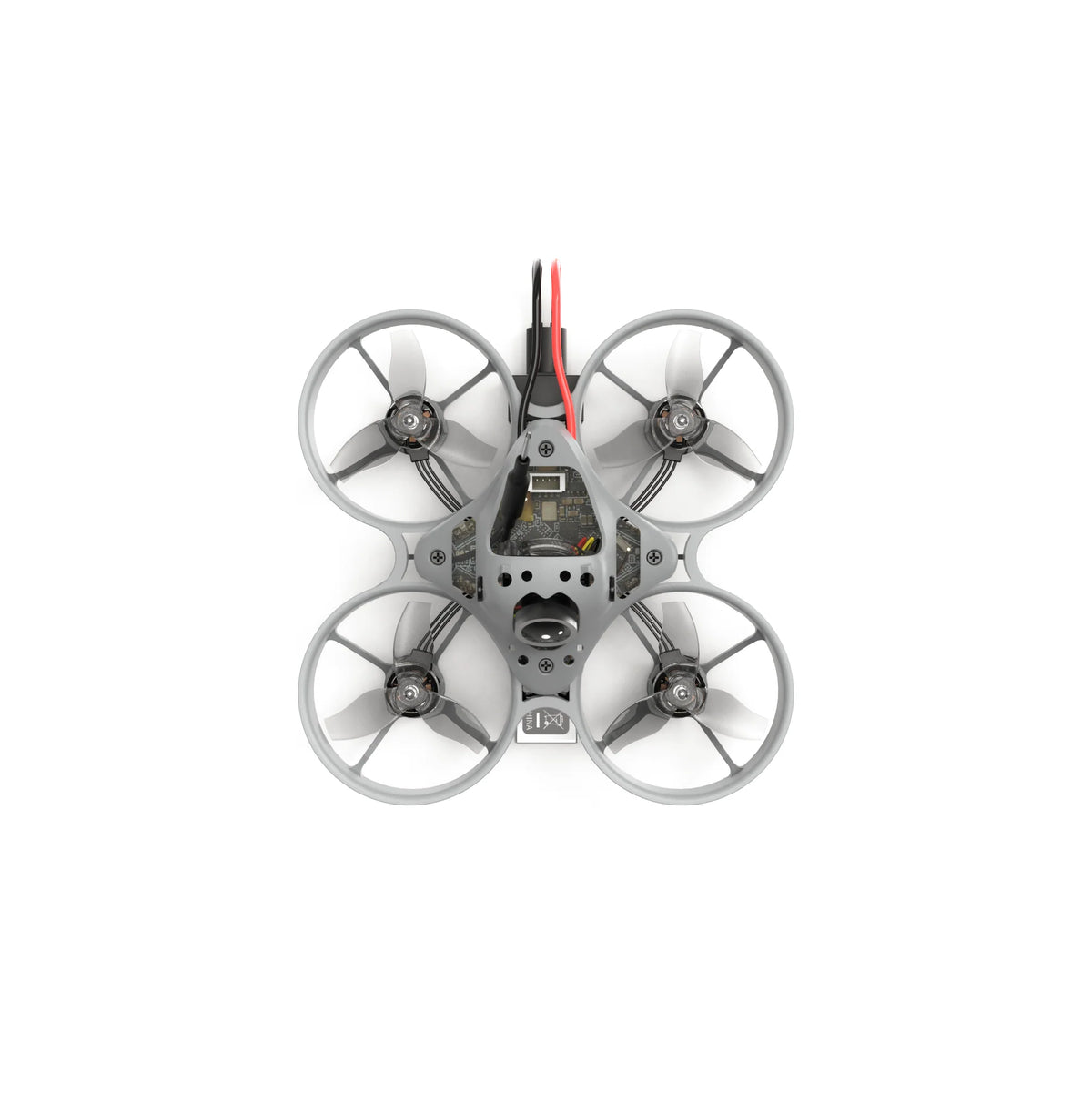

Emax Tinyhawk Nanoscout Pro FPV Drone (1S / BNF / ELRS)

Tinyhawk Nanoscout Pro ELRS 2.4GHz BNF, a lightweight 65 mm micro whoop built for tight indoor lines and backyard practice. Powered by 0702‑27000KV brushless motors, a 5‑in‑1 AIO flight controller, and an ExpressLRS 2.4 GHz receiver, it delivers punchy thrust, low‑latency control, and durable ducted protection. The adjustable 5.8 GHz analog VTX (25–400 mW) provides a clear FPV feed, and the included 1S 320 mAh battery offers around 4 minutes of flight time. Bind to your ELRS radio, pair your goggles, and fly.

FEATURES:

• 65 mm Micro‑Whoop Frame — Lightweight, ducted, and durable for indoor and tight‑space flying.
• 0702‑27000KV Brushless Motors — High‑KV micro motors delivering strong punch on 1S.
• 5‑in‑1 AIO Flight Controller — Integrates FC, ESC, RX, VTX, and OSD for minimal weight and maximum efficiency.
• ExpressLRS 2.4 GHz Receiver — Ultra‑low latency control link with long‑range capability.
• Adjustable 5.8 GHz Analog VTX (25–400 mW) — Clean video signal with selectable output power for indoor or outdoor flying.
• Nano FPV Camera — Lightweight camera optimized for micro‑whoop visibility.
• 1S 320 mAh Battery Included — Typical flight time around 4 minutes.
• BNF (Bind‑N‑Fly) Format — Pre‑built and pre‑tuned; bind to your ELRS radio and fly.
• Beginner‑Friendly Handling — Stable, predictable flight characteristics ideal for training and indoor practice.

REQUIRED:

(1) Radio Controller w/ Compatible Radio Protocol
(1) Analog FPV Goggles

SPECIFICATIONS:

• Part#: 0110001173
• Wheelbase: 65 mm
• Maximum Dimensions: 84 × 84 × 35 mm
• Weight (no battery): Approx. 20 g
• Weight (with battery): Approx. 28.9 g

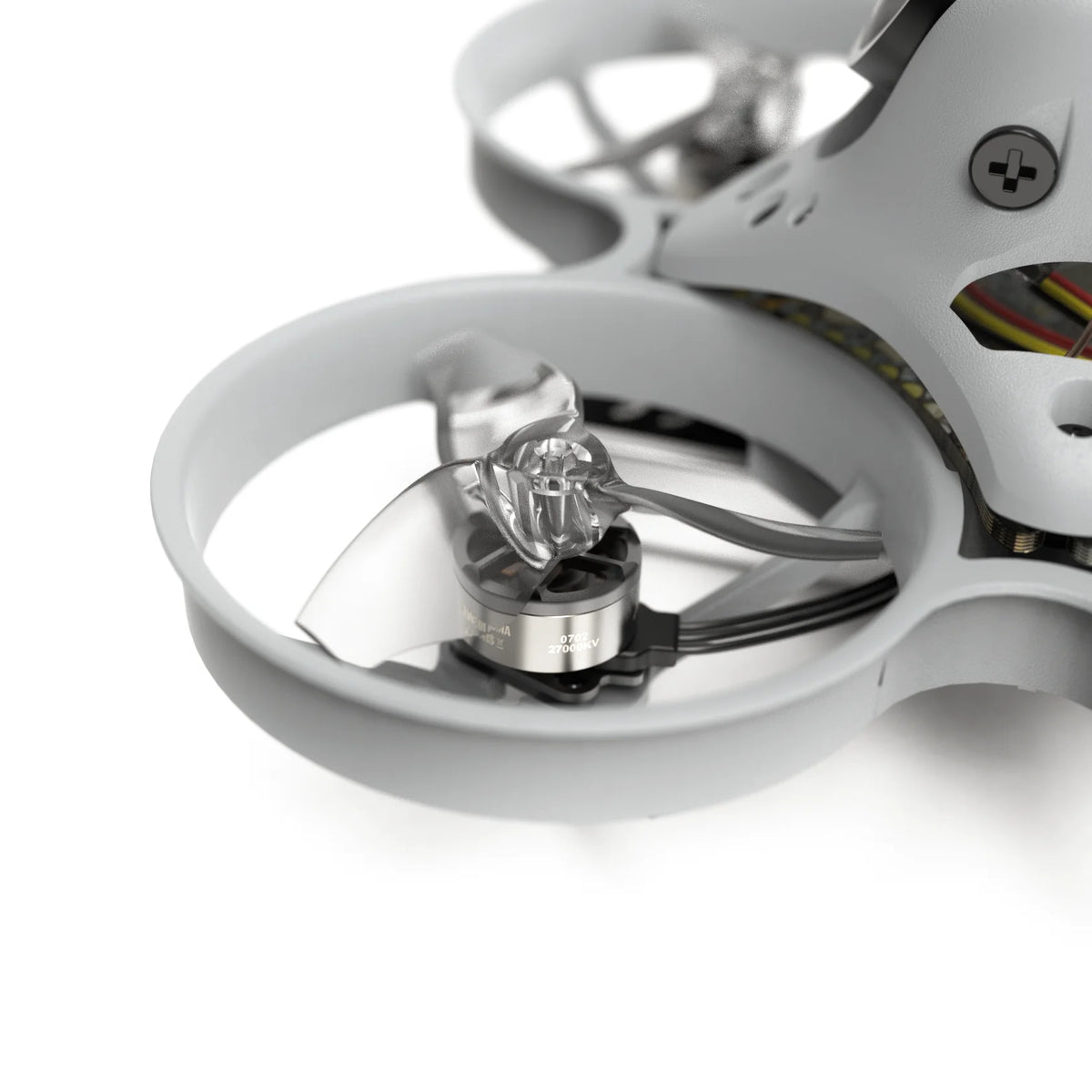

• Motor: 0702 27000KV brushless, ball‑bearing
• Propeller: Avia 31 mm translucent
• Maximum Combined Thrust: 152 g
• Flight Controller: STM32G473CEU6
• ESC: Integrated 4‑in‑1 6A
• Receiver: Serial ELRS 2.4 GHz
• Video System: 5.8 GHz analog, 40 channels; 25/100/200/400 mW
• Camera: EMAX E02, approx. 1.3 g
• Battery: 1S 320 mAh
• Approx. Hover Time: ~4 minutes

HELPFUL LINKS:

• Nanoscout Manual (Prior Version)
• Nanoscout CLI (Prior Version)

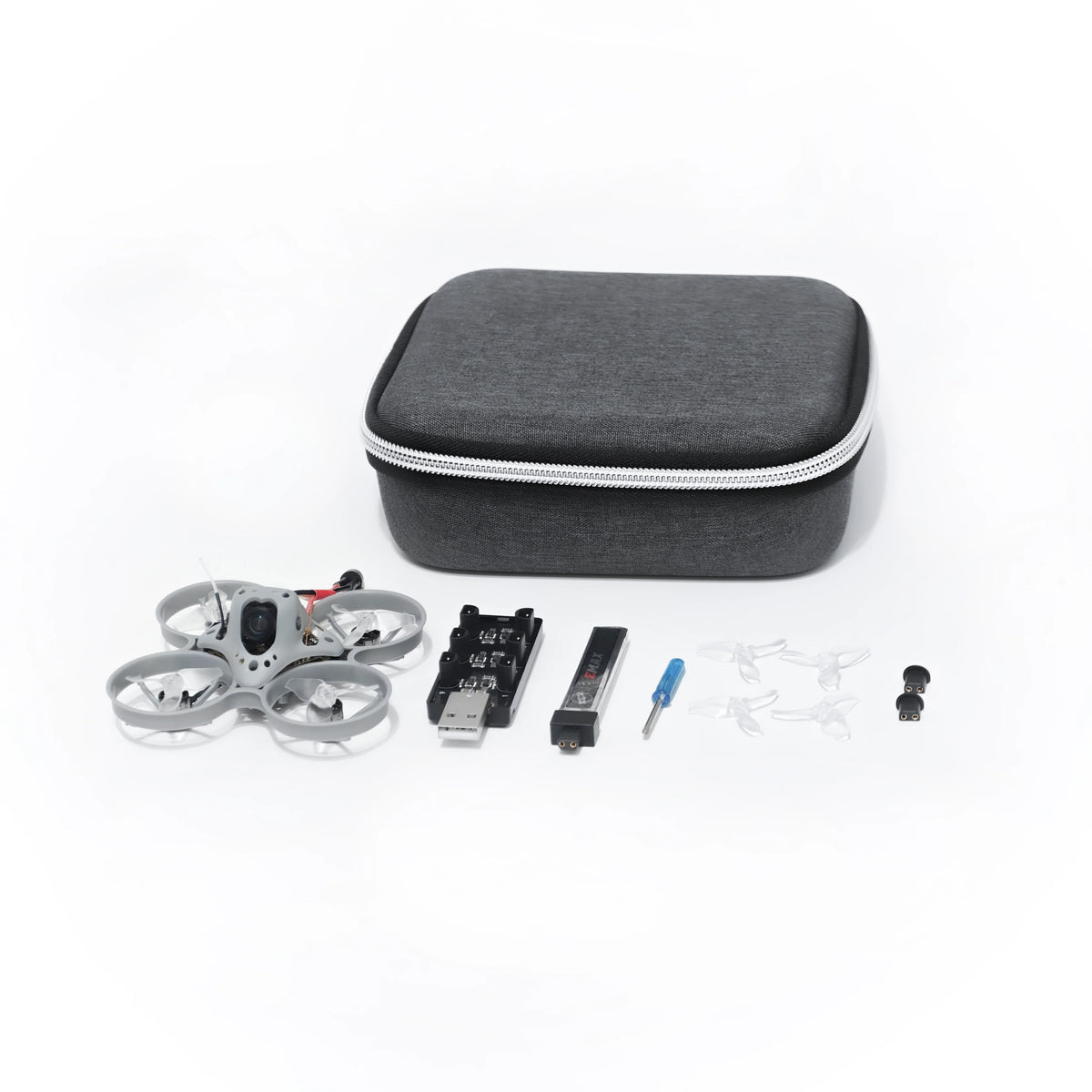

INCLUDES:

(1) Tinyhawk Nanoscout Drone, ELRS 2.4GHz Analog Video
(1) 1S 320mAh 3.8V HV LiPo Battery w/ EM 2.0 Connector
(1) 6-Port EM2.0 USB LiPo Battery Charger
(1) Avia Nanoscout Propeller Set
(1) Spare Hardware Set
(2) Solderable EM2.0 Battery Side Connectors
