RadioMaster ER6 ExpressLRS 2.4GHz / 6CH PWM Receiver
The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed, and ultra-long range bringing you brand new experience with your hobby.
The ER6 ELRS receiver has been specially designed for fixed-wing users. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. A 4-wire CRSF interface is provided to facilitate later expansion of telemetry sensors. The ER6 features a dual-antenna with telemetry power up to 100mw. The receiver shell adopts one-piece molding process with high structural strength.
FEATURES:
- Based on the Revolutionary ExpressLRS System
- High performance, high reliability, flexible configuration, fast response speed and ultra-long range

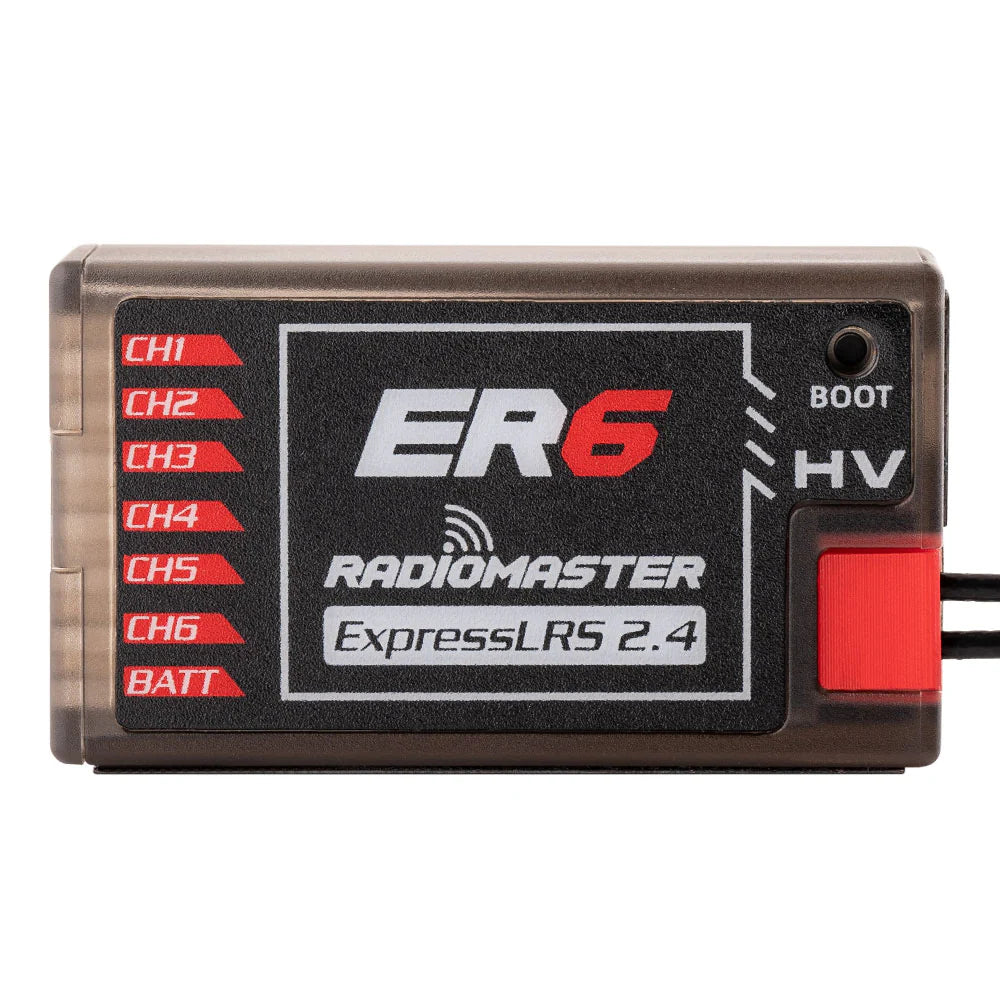

- Support 6 PWM Channels
- Optimized ground up PCB design
- Automatically voltage telemetry of external battery voltage or built-in receiver voltage
- Supports Wi-Fi updates and WEBUI configuration
- High quality 2.54 mm connector

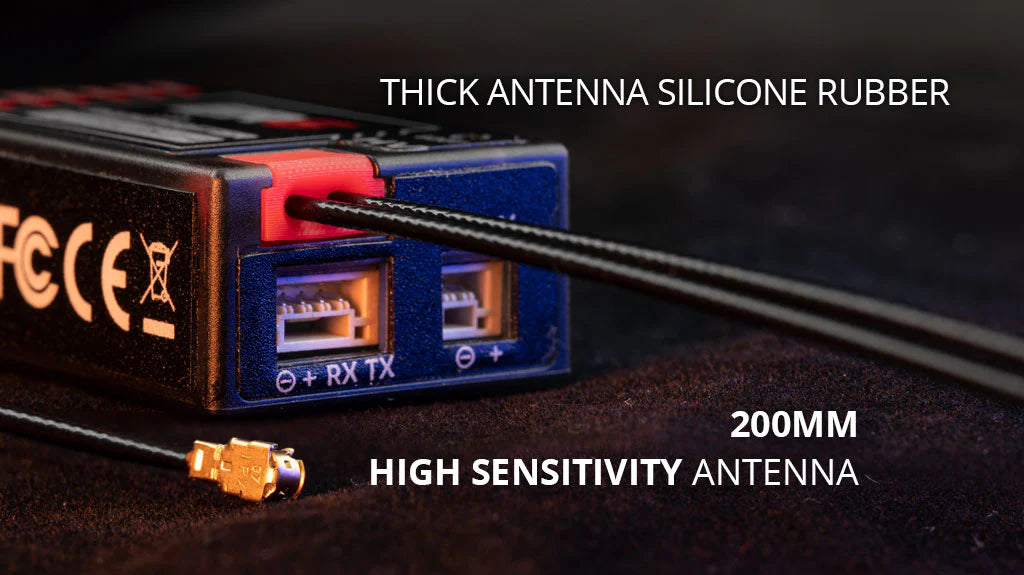

- Standard 20 cm High Sensitivity Antenna

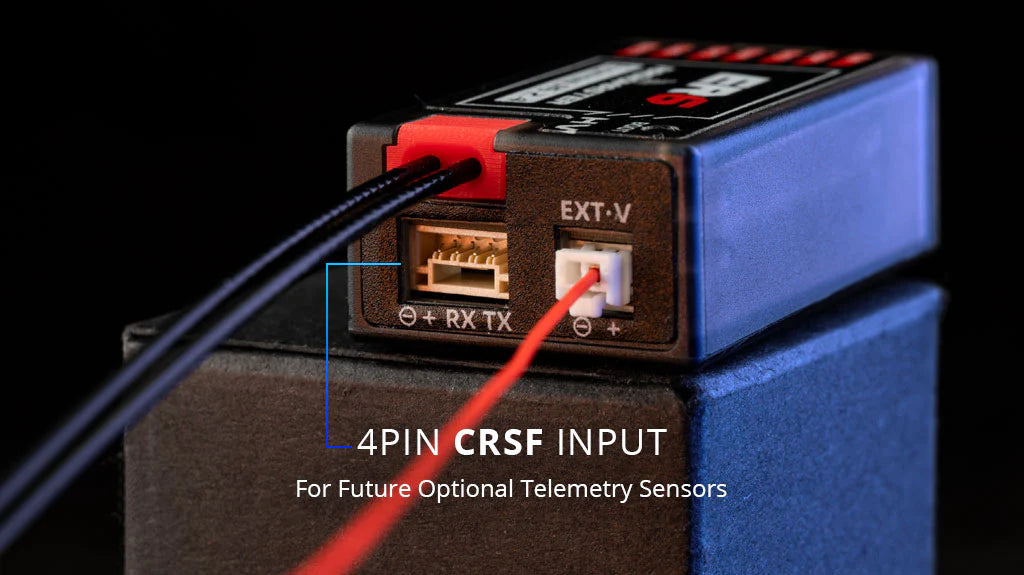

- Reserve 4pin CRSF input port
- The shell adopts one-piece molding process with high structural strength
- For fixed-wing aircraft and more
- Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
COMPATIBILITY:
- Radio Transmitter/Controller with ELRS Protocol
SPECIFICATIONS:
- Model#: HP0157.RX-ER6
- Item: ER6 2.4GHz ELRS PWM Receiver

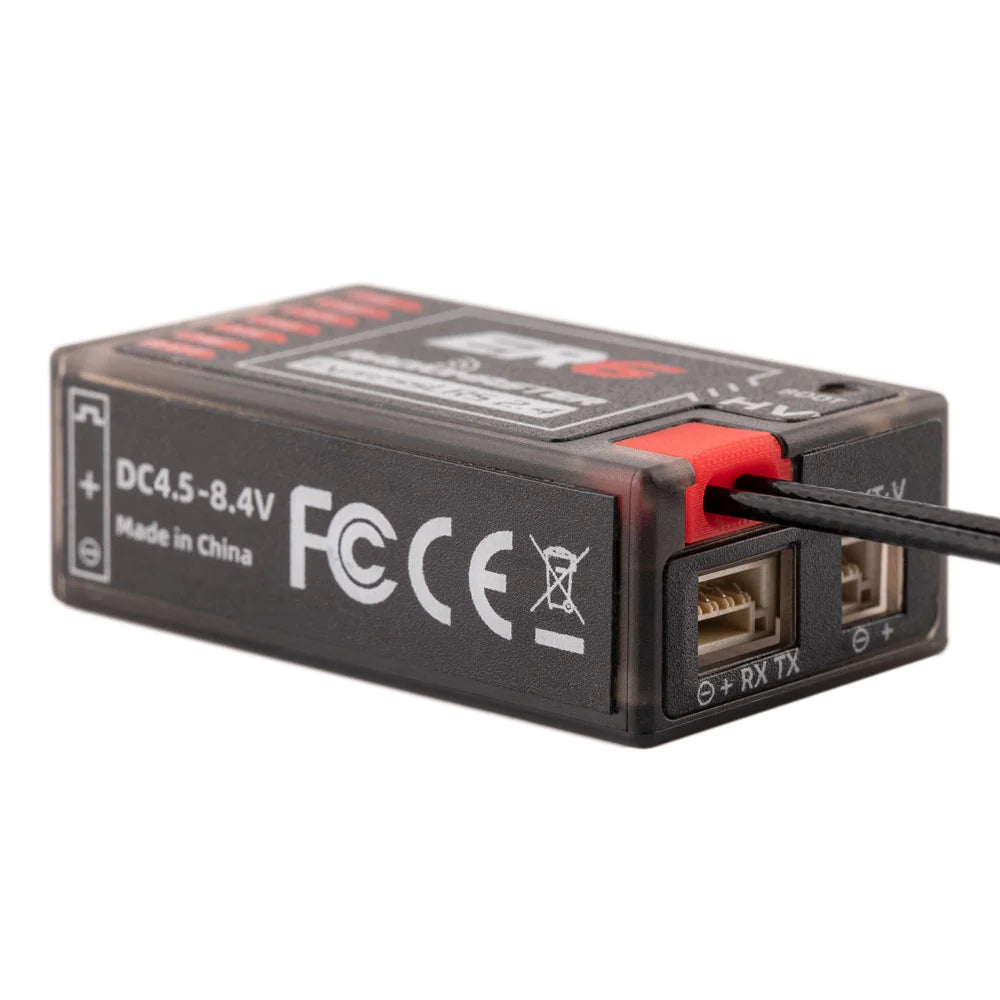

- Power supply: DC 4.5 - 8.4V

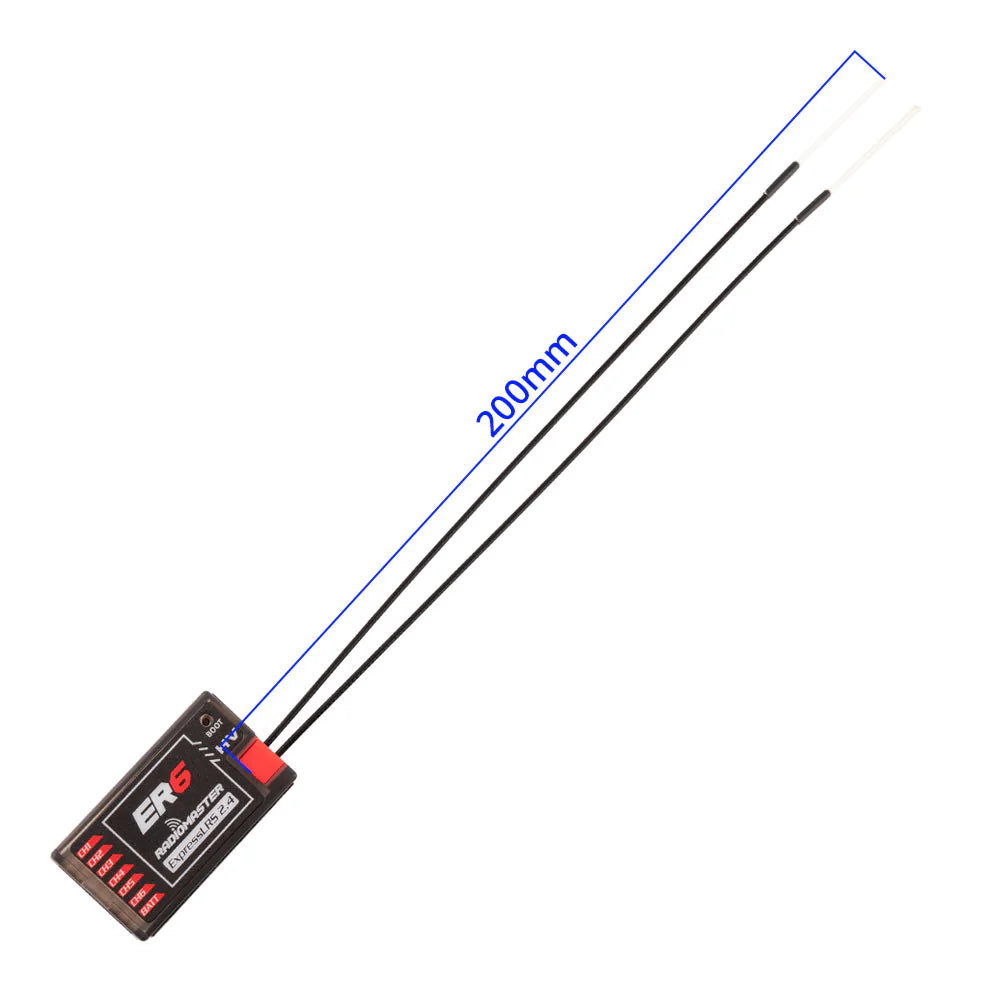

- Antenna type: 20cm high sensitivity dual antenna
- Wireless protocol: ExpressLRS 3.3.0 pre-installed
- Output channel: 6CH PWM
- Serial Output: CRSF / Sbus
- Telemetry power: maximum 100mw (LUA Adjustable)
- Telemetry Battery voltage detection range: DC 4.0 - 35V
- Bus interface: CRSF
- Weight: 14.5 grams

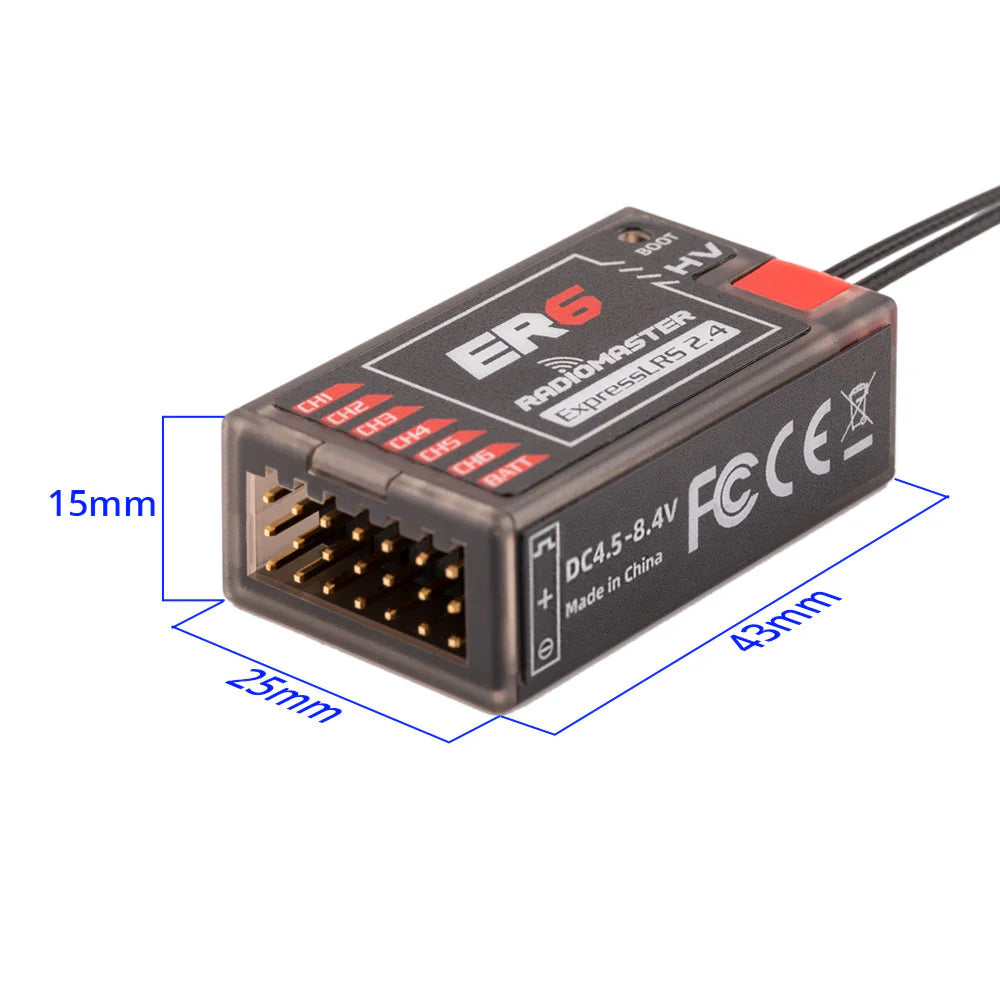

- Dimensions: 43*25*15mm
- Firmware: Device Category: Radiomaster 2.4Ghz / Device: ER6 2.4GHz Diversity+6xPWM RX
HELPFUL LINKS:
INCLUDES:
(1) ER6 2.4GHz ELRS PWM Receiver
(1) Voltage telemetry wire (Type-B)
(1) CRSF wire
(1) ELRS- RX- SBUS wire
(1) User Card
